Cathedral ceilings create generous height, but a broad stretch of plain drywall can still feel unfinished. The strongest cathedral ceiling ideas put that volume to use. A few well-placed beams bring scale to a tall room. Trim sharpens the roofline, and lighting ties the ceiling to the furniture and activities below.

A true cathedral ceiling follows the roofline with two matching slopes that meet at a central ridge. “Vaulted ceiling” is a broader term that also covers asymmetrical, curved, and single-slope ceilings. Many of the same design moves work for both, although the framing, fixture hardware, and trim cuts change with the geometry.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

Start with the cathedral ceiling design you already have

Before finding ideas for stain colors or chandeliers, find out what is behind the finished ceiling. Rafters, trusses, a structural ridge beam, insulation, ventilation channels, wiring, and HVAC all affect the available locations for a new beam or skylight. If the ceiling is already open for a larger renovation, settle those hidden conditions before adding the finish layer.

Use the room itself to decide how much beams and trim belongs overhead:

• Choose one dominant ceiling feature. Pair a full timber framework with a quiet light fixture. A sculptural chandelier needs fewer competing beams and moldings around it. A formal room with detailed millwork can carry more ornament than a modern kitchen built around flat surfaces and clean lines.
• Repeat a material already present in the room. A beam stain can pick up the floor, mantel, cabinetry, or window frames, though it doesn't need to match any of them exactly. Coastal and Scandinavian rooms usually favor light or whitewashed wood; farmhouse and rustic interiors can carry rougher, darker timber.
• Follow the roof geometry. Ridge beams and sloped rafters emphasize height. Horizontal ties visually lower the ceiling and make a large room feel more contained.
• Plan the view from the doorway. Beam spacing, skylights, and chandeliers are most noticeable along the room’s main sightline, so small alignment errors become surprisingly obvious.

Vary beam thickness to divide an open floor plan

Varying beam thickness creates hierarchy. One substantial timber establishes a boundary, and slimmer members keep the roofline light.

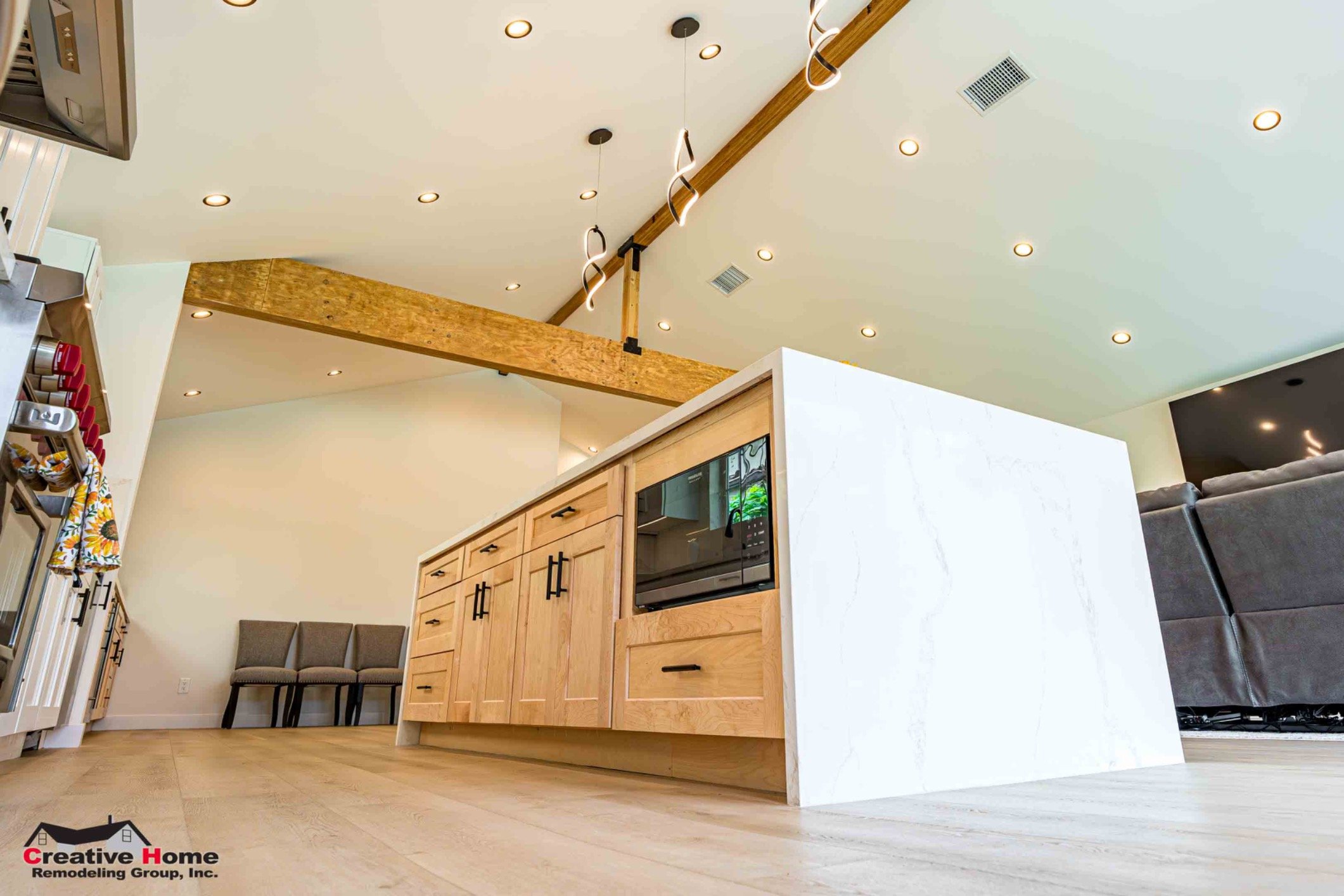

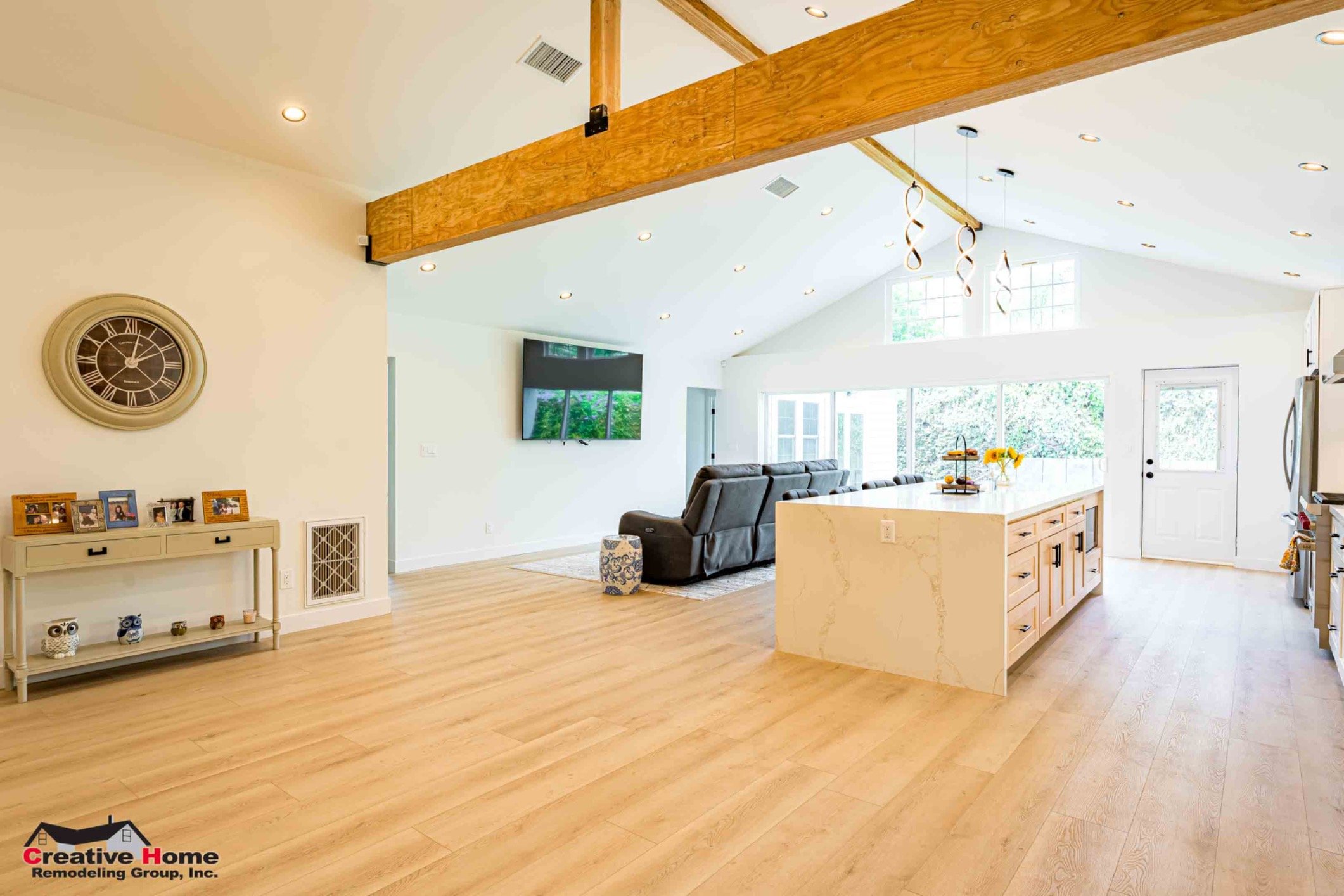

For example, this open-plan renovation by Creative Home Remodeling Group Inc. presents a horizontal timber to mark the transition into the vaulted kitchen and living area. Narrower members trace the slopes and ridge beyond it, keeping attention moving toward the peak.

Cathedral ceiling beams: four ways to use the structure

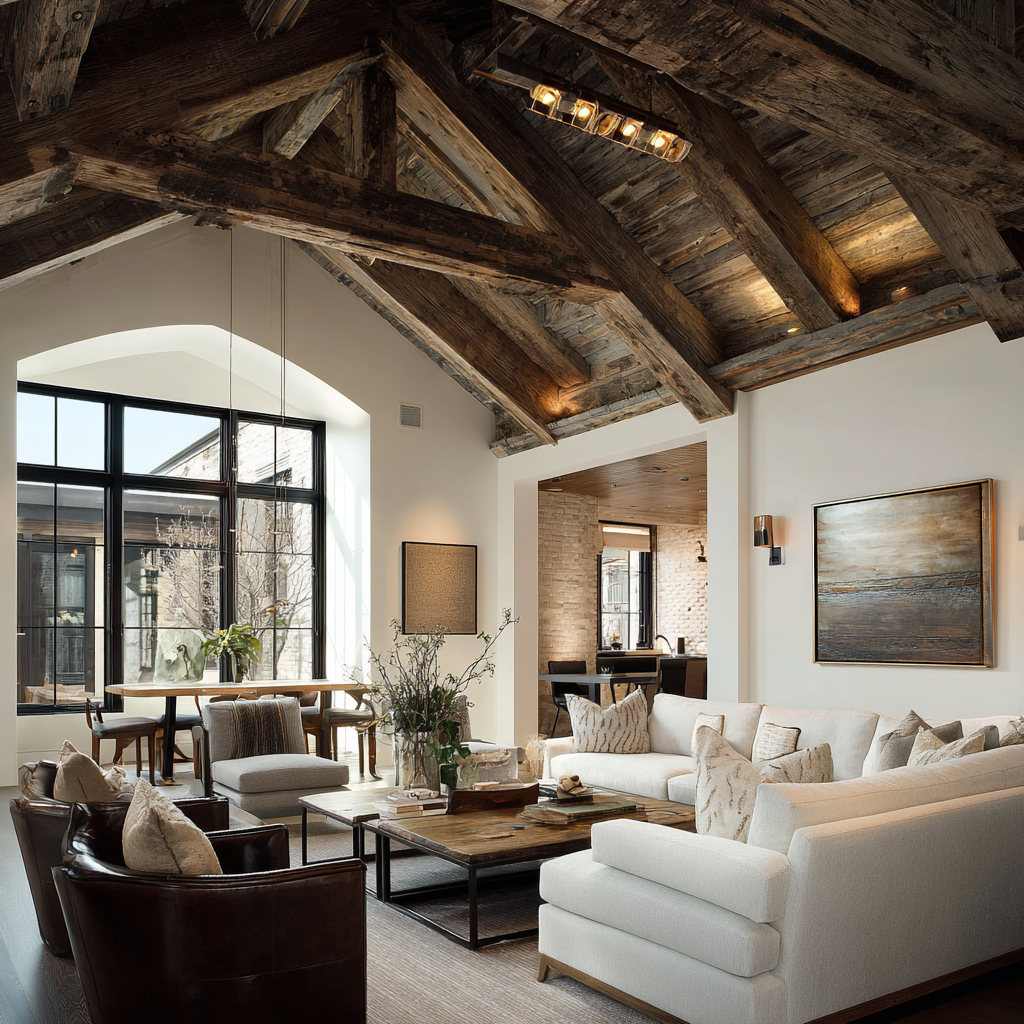

Preserve the grain on a full timber framework

In this multi-room renovation by Oro Design & Construct, a light stain leaves the knots and grain visible against white-painted ceiling slats. This is a smart idea; the pale finish gives the timber framework presence but keeps the ceiling from feeling heavy. Black-framed windows and exposed-looking connections introduce an industrial edge, but the cathedral ceiling's warm wood and soft white palette keep the room relaxed.

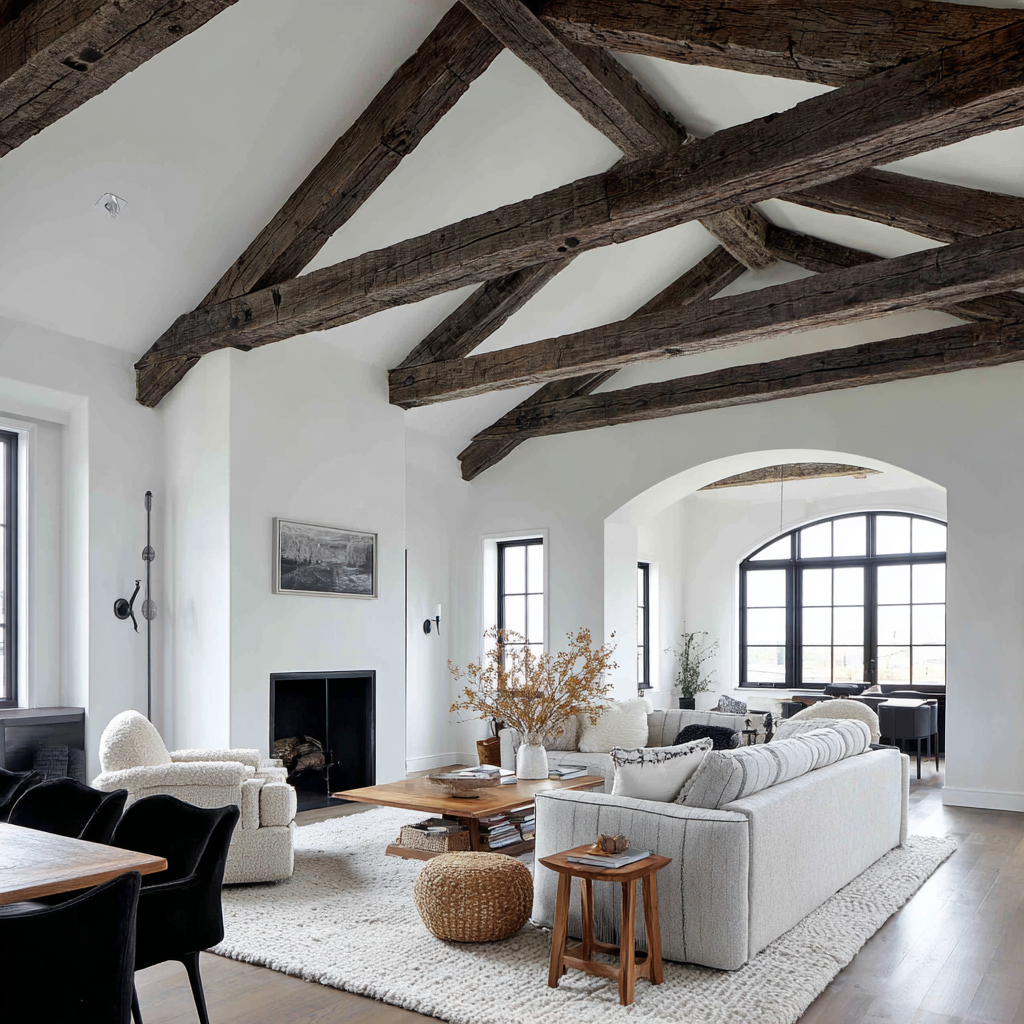

Use dark stain to pull the eye upward

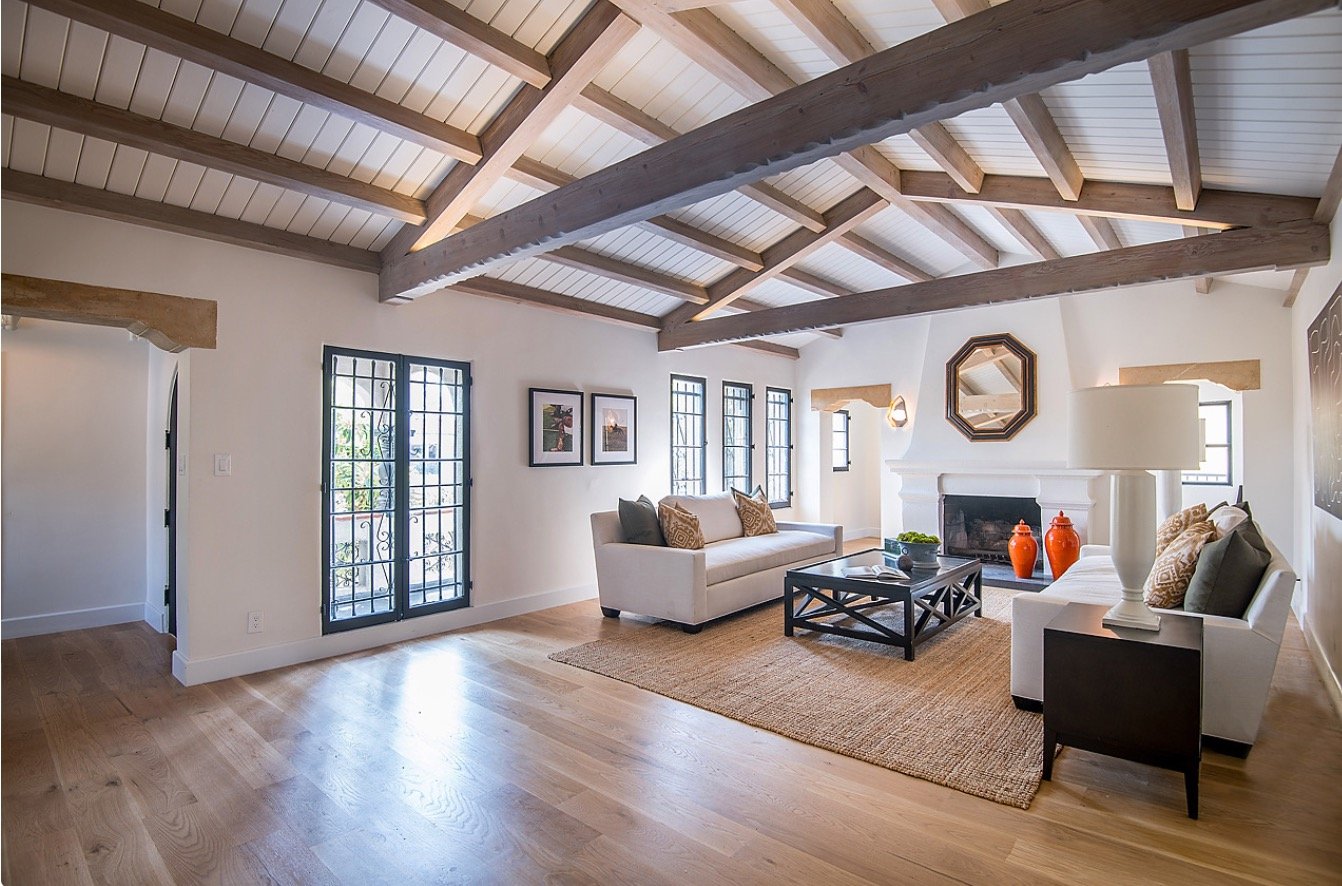

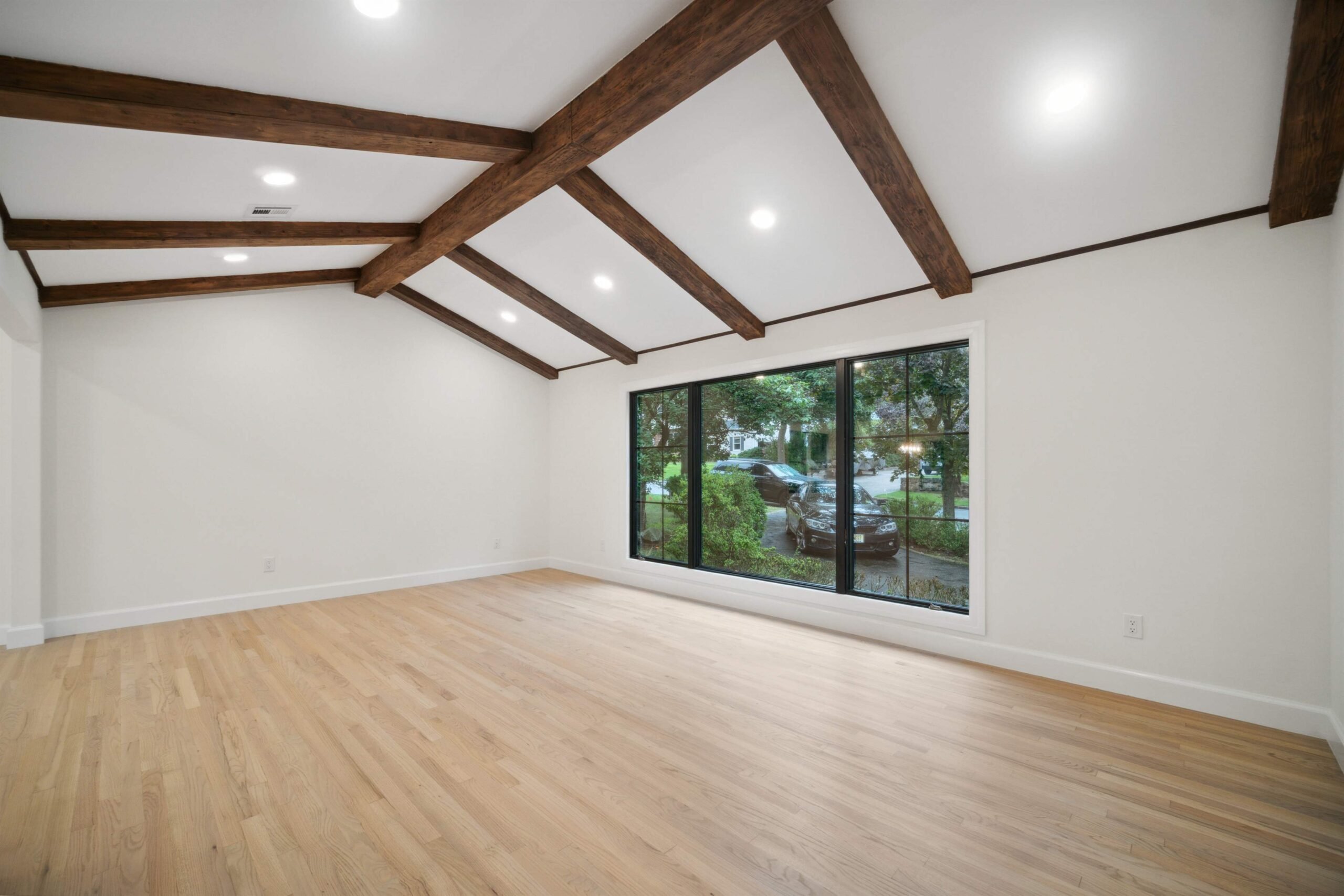

Dark-stained beams create a clear outline against the clean white ceiling in this renovation by Mahseri Remodeling LLC. The contrast pulls your eye toward the peak. Meanwhile, the light wood floor keeps the lower half of the room bright. Stain and paint alone create the overhead drama.

The narrow perimeter trim matters here, too. It continues the dark line around the room and makes the beam layout feel complete instead of applied only to the slopes.

Choose structural, solid decorative, or hollow beams

Find out what kind of beam is in the estimate before comparing materials. The word “beam” covers three very different products:

• Structural timbers carry roof loads and require engineering.
• Solid decorative wood provides authentic grain and weight but still needs substantial attachment.
• Hollow box beams made from wood, engineered wood, or polyurethane are lighter and can conceal wiring, although the electrical box and fixture must remain independently supported.

Never drill, notch, cut, or remove a member that might be structural to make room for lighting. Your contractor should identify the framing first and bring in an engineer when the load path is unclear.

Arrange exposed beams on a vaulted ceiling with purpose

Start with the direction you want the eye to travel. Exposed beams on a vaulted ceiling can follow the slopes, run along the ridge, cross the room horizontally, or form a truss. Members that follow the pitch emphasize the peak. For a more contained room, use horizontal ties; a single ridge beam creates the quietest layout. Align the pattern with windows, a fireplace, or a dining table so the spacing relates to the room below.

For more material and layout options, check out our guide to decorative ceiling beam ideas.

Cathedral ceiling trim ideas

Use crown molding only where the geometry supports it

Conventional crown molding is designed to bridge a 90-degree wall-to-ceiling corner. A sloped junction changes the spring angle and creates compound cuts at every transition, so a profile that works around the horizontal walls may fail where it climbs the gable.

Keep crown on the level perimeter when the sloped runs would become fussy. A simple profile with enough width to be visible from the floor will usually look stronger than a deeply carved molding carried through several awkward angles.

Material matters, too. Paint-grade wood or MDF produces crisp profiles, stain-grade wood keeps the grain visible, and lightweight polyurethane can simplify long overhead runs. The finish carpenter still needs to solve the angles and joints before ordering the full quantity.

Draw a clean line along the ridge

A narrow ridge trim, flat board, or small painted beam can sharpen the point where the two slopes meet. This detail suits a ceiling that needs definition but not the visual weight of a full timber layout. Paint it with the ceiling for a subtle shadow line or use a wood finish to establish a clear centerline.

Give the tall gable wall its own proportions

The wall beneath the peak often needs more help than the ceiling. Picture rail, panel molding, or a horizontal band can divide the tall surface at a height related to the doors, windows, or adjacent rooms. The line should respond to something already in the architecture. An arbitrary strip of molding halfway up the wall tends to emphasize how much blank wall remains above it.

Increase the scale of window and door casing

Standard casing can look thin beneath a 14-foot or 18-foot peak. A wider flat profile gives openings enough visual weight and avoids ornate millwork. On a gable wall with stacked or clerestory windows, keep the casing consistent so the group functions as one composition.

Consider cathedral ceiling molding ideas beyond crown

Cathedral ceiling molding ideas can include flat-stock trim along the slopes, a framed gable panel, board-and-batten on the end wall, or a simple band at the ceiling’s spring line, where the slope begins. These flatter treatments are easier to resolve at changing angles and often suit contemporary rooms better than traditional crown. Here, we discuss more wall and ceiling molding ideas for the walls below.

Not sure how to begin your renovation?

Get free, expert guidance from a dedicated Block Project Planner who can help you navigate proposals, timelines, contractor selection, and more.

Book A Free Consultation

Lighting cathedral ceilings: ideas for height and shadow

Build the lighting plan from the room upward

Tall ceilings tempt homeowners to solve everything with one large fixture. Start with what happens at the floor instead: reading beside a sofa, preparing food at an island, seeing faces around a table, or moving safely through the room. Table lamps, floor lamps, sconces, undercabinet lights, and pendants handle those jobs closer to the activity. Ceiling fixtures can then provide ambient light and architectural emphasis.

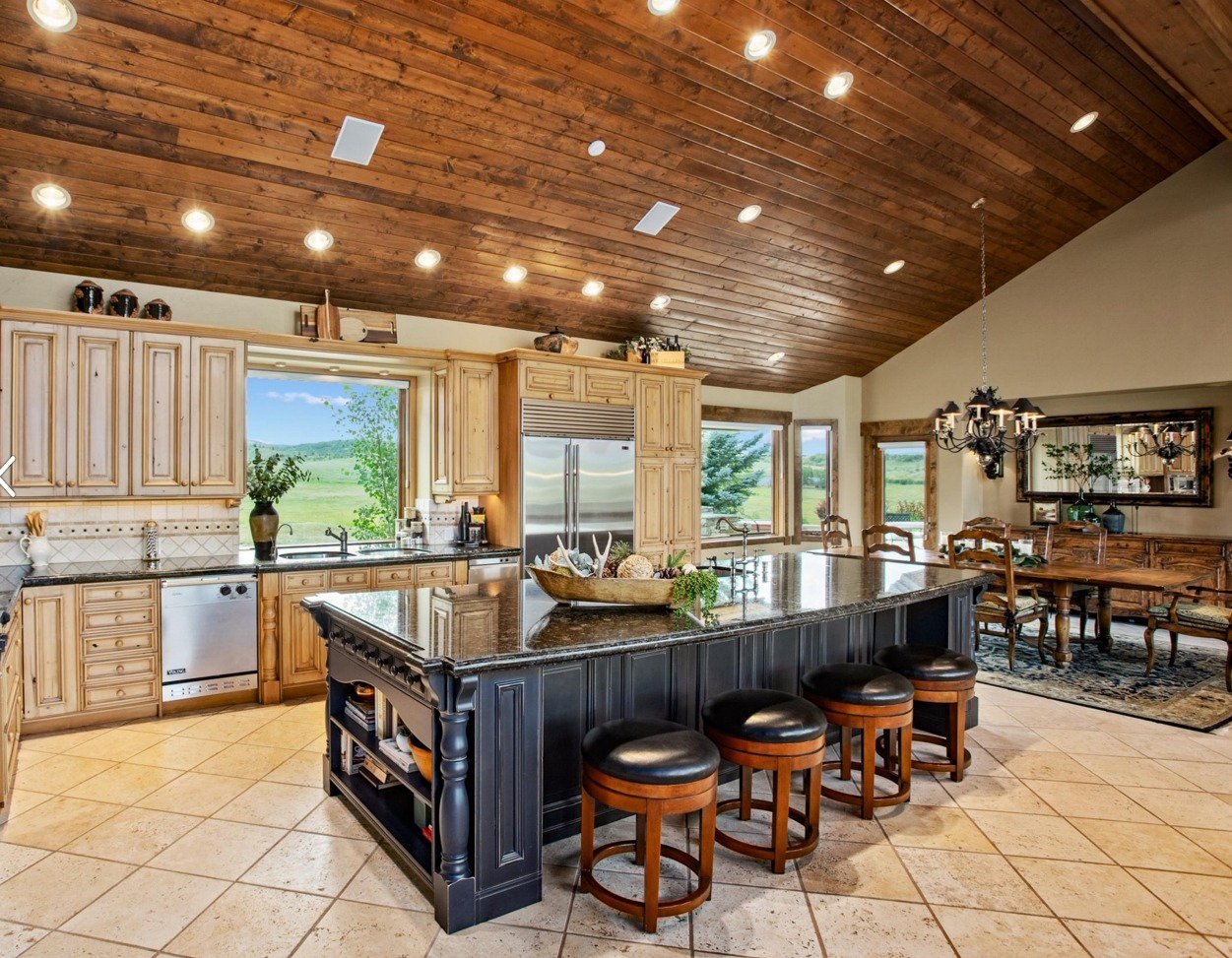

Use recessed lighting as support

Recessed fixtures should aim at surfaces that can reflect or use the light, including walls, artwork, counters, and seating areas. Sloped-ceiling housings or adjustable gimbal trims keep the beam aimed correctly even though the fixture sits on an angle.

A single, evenly spaced row down the ridge tends to create a bright center path and dim edges. Spread the fixtures according to the room layout, not simply the ceiling geometry, and put them on a separate dimmer from the chandelier or pendants.

Track lighting offers similar control with a more visible profile. Movable heads are useful when artwork or furniture layouts are likely to change.

Licensed contractor and Limited Addition partner Quinn Babcock recommends choosing the fixture around the way the room is used.

“Directional recessed lighting, adjustable flush mounts, track lighting, or a chandelier can all work well in cathedral ceilings.”

Quinn Babcock, licensed contractor and partner, Limited Addition

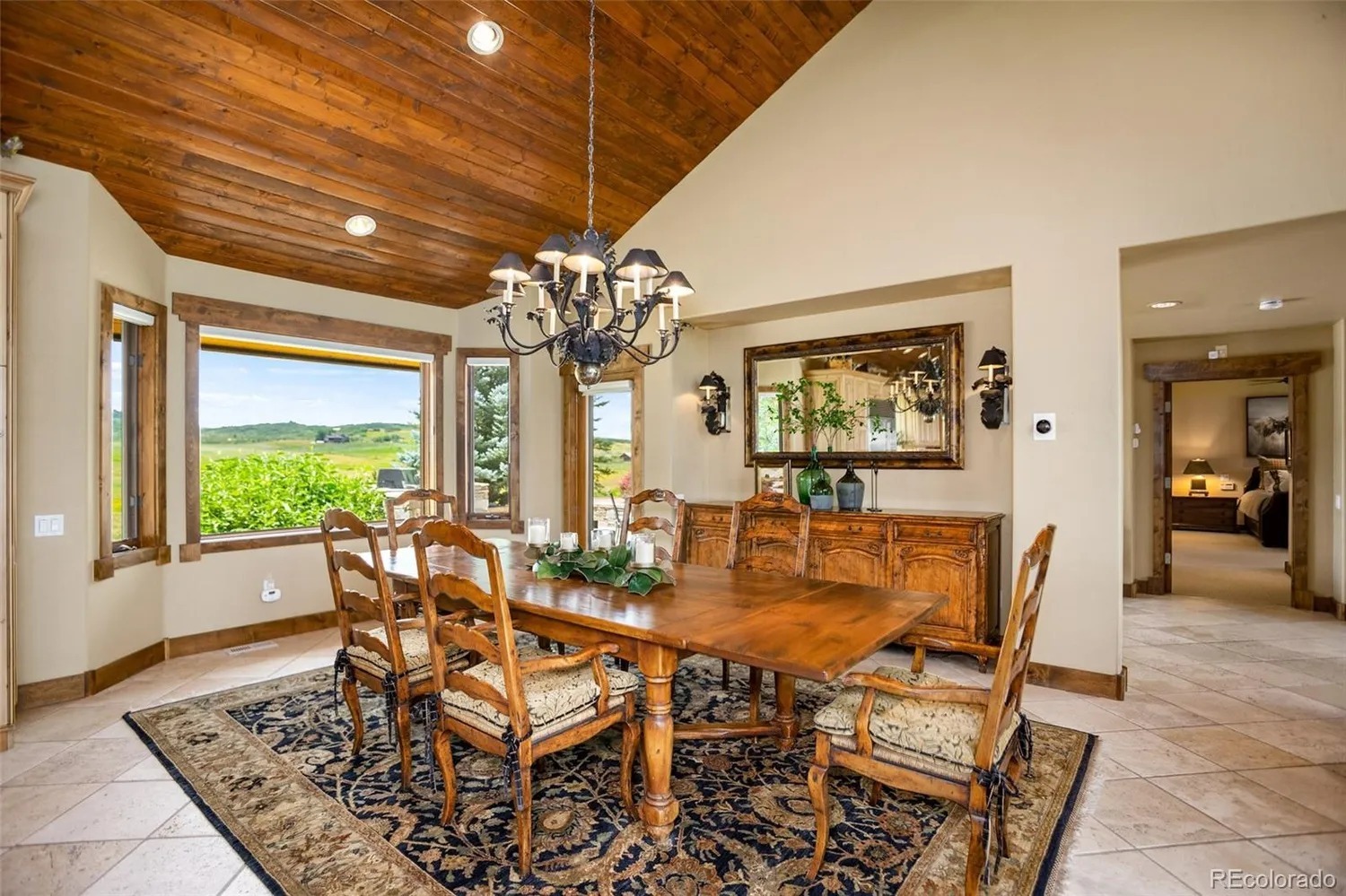

Hang a chandelier in relation to what is below it

A chandelier suspended too close to the ridge can look detached from the furniture. Over a dining table, use the table as the anchor. Check out our guide to chandelier sizing for detailed measurements. Start at 30 to 36 inches above a standard-height table for an eight-foot ceiling, then add three inches for each additional foot through a 12-foot ceiling. In a taller cathedral room, mock up the bottom of the fixture with a balloon, cardboard, or temporary cord before finalizing the chain or stem.

An open living area needs comfortable standing sightlines and enough clearance for circulation. A long fixture body or multi-tier composition fills the vertical space and keeps its lowest point safely above the room.

Let one exposed truss frame the chandelier

Keeping the timber treatment to one cross-room element preserves the height and gives the room a focal line. In this bedroom renovation, one truss crosses the room near the chandelier and adds texture, yet most of the ceiling remains open. The wood’s subtle distressing contrasts with the chandelier’s finer metalwork.

The horizontal member near the peak has the placement of a collar tie, and the vertical post creates a king-post-style composition. Collar ties connect opposing rafters in the upper portion of the roof and are distinct from the lower rafter ties shown in the first project. The photo can't settle whether this is an original truss or a decorative reproduction. Treat the full assembly as structural until the drawings or an engineer establish its role.

A decorative version of this arrangement still needs its own attachment plan. The truss can frame a chandelier visually, but the fixture requires a properly rated box or independent support rather than an assumed connection to the timber.

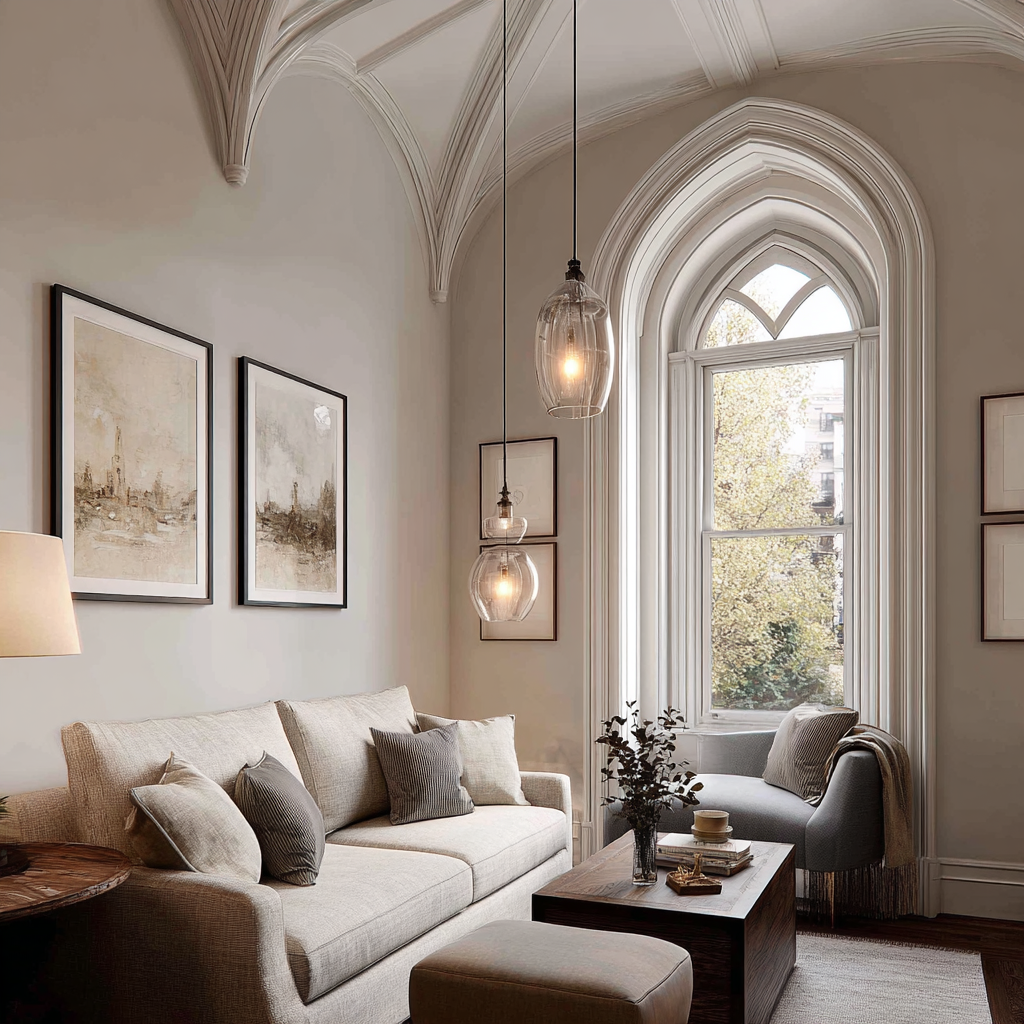

Use pendants to mark individual zones

Use two or three pendants to define an island, dining zone, or stair opening inside a much larger room. Their drop lengths may differ at the sloped ceiling but the shades should finish level over the surface below. Confirm that the fixture canopy, swivel, or sloped-ceiling adapter is compatible with the roof pitch before ordering.

Let accent light reveal the ceiling material

Grazing light brings out the texture of timber, tongue-and-groove boards, brick, or stone. Concealed LED tape above a decorative beam can wash the slope. Wall sconces brighten a tall gable and limit the number of holes overhead. Place the source where it won't shine directly into a seated person’s eyes.

Plan wiring and fixture support before the finish work

Hollow decorative beams can hide cable, but they don't automatically support a heavy fixture. The ceiling box or independent brace must be rated for the load and attached to suitable framing. Standard listed ceiling boxes commonly top out at 50 pounds; heavier chandeliers need hardware designed for the fixture’s actual weight.

Finalize junction-box locations, beam cavities, speaker wire, dimmer circuits, and controls before installing slats, drywall, or box beams. Moving a box after the ceiling is complete means patching a highly visible surface at a difficult height.

Make bulb changes and cleaning part of the design

Decide how each fixture will be reached after construction. Integrated LEDs can last for years, but the whole fixture may need service when the light source or driver fails. A compatible extension tool, accessible attic route, fixture lift, or planned location for scaffolding can spare you from improvising 15 feet above the floor.

Additional cathedral ceiling ideas

Use wood slats to emphasize the roofline

In this kitchen renovation by Unison Builds, LLC, wood slats cover the cathedral ceiling and contrast with the surrounding walls. The repeated lines follow the slopes and make the roof geometry more pronounced.

Decorative beams project below the ceiling and divide it into smaller fields. Slats stay close to the ceiling plane, so the pitch stands out and the room keeps more of its apparent height. Choose them when you want wood overhead but substantial beams would make the roof feel lower.

Carry wall color onto the ceiling

Color can make a cathedral ceiling feel more enveloping, especially in bedrooms, libraries, and small sitting rooms. Continue one color from the walls onto the slopes for a continuous field, or paint only the ceiling to emphasize the roof shape. Dark paint absorbs more light, so review large samples under both daylight and the final fixture temperature.

Use the gable end as the focal point

Give the peak a focal point with a fireplace, tall window composition, built-in bookcase, or large-scale art. Keep the ceiling treatment quieter when the gable wall already has a strong feature. In a room that lacks one, extending paneling or color toward the ridge makes the peak part of the composition.

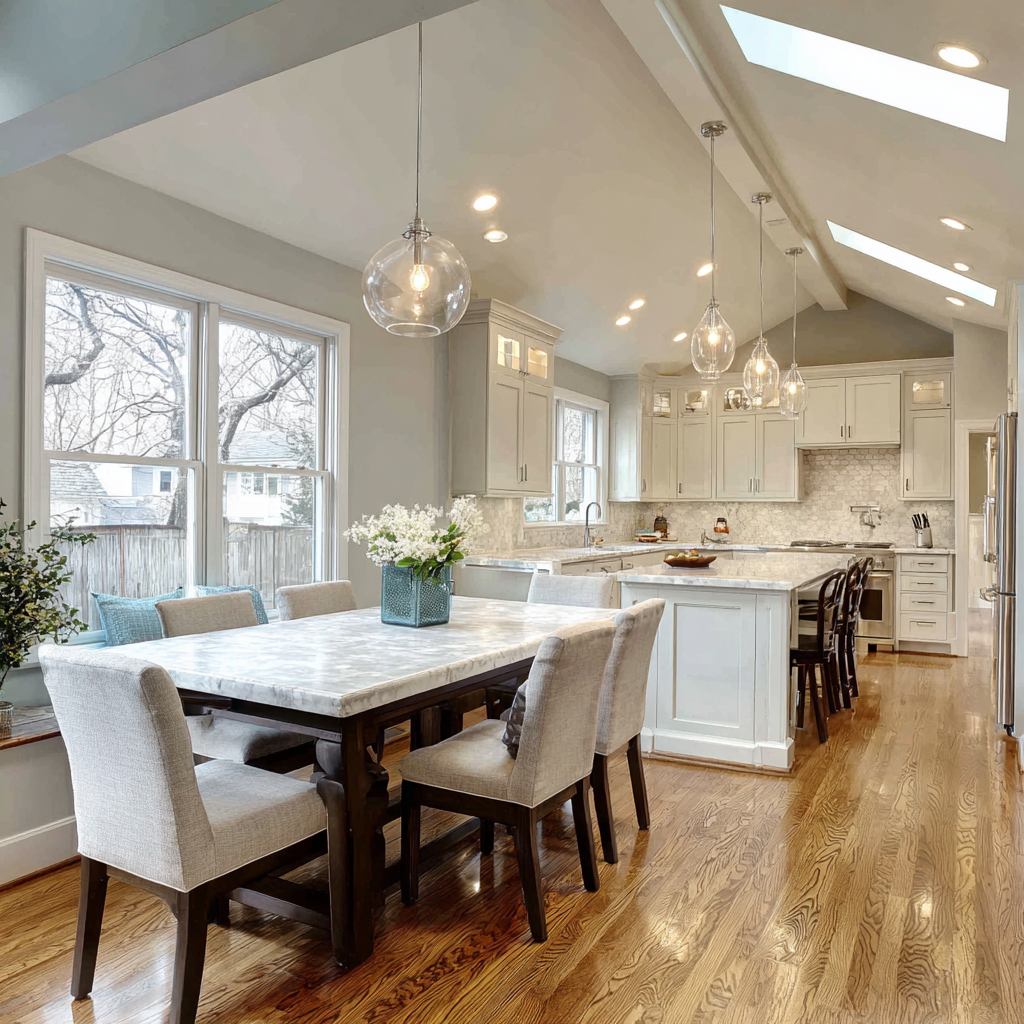

Place skylights around the framing

Skylights bring daylight deep into a room, but their spacing starts with rafters, trusses, roof valleys, and water management. Cutting a truss or relocating a structural rafter isn't a finish decision. Map the framing and choose the skylight size before settling the interior pattern, then coordinate the light well, flashing, insulation, shades, and nearby recessed fixtures as one assembly. Here, we discuss skylight design and installation in more depth.

Style-specific cathedral ceiling ideas

Modern and contemporary

Keep the roof shape easy to read. One continuous ceiling material, such as pale wood slats or smooth drywall, can carry the full surface; a restrained ridge beam or linear fixture adds definition. If the room already has strong cabinetry, stone, or window frames, you don't need another pattern competing overhead.

Rustic and farmhouse

Let the wood grain carry the character. Rough-sawn or lightly stained beams stand out against painted planks or slats, and black hardware can add an industrial edge. Keep the spacing generous when horizontal ties cross the room because a dense arrangement of heavy timbers can make the roof feel lower.

Traditional and classic

Start with symmetry around the ridge, windows, and main furniture grouping. Center a chandelier over the table or seating area rather than in the room by default. Crown molding works best along the level perimeter; ridge trim, panel molding, or carefully spaced beams can carry the detail onto the slopes.

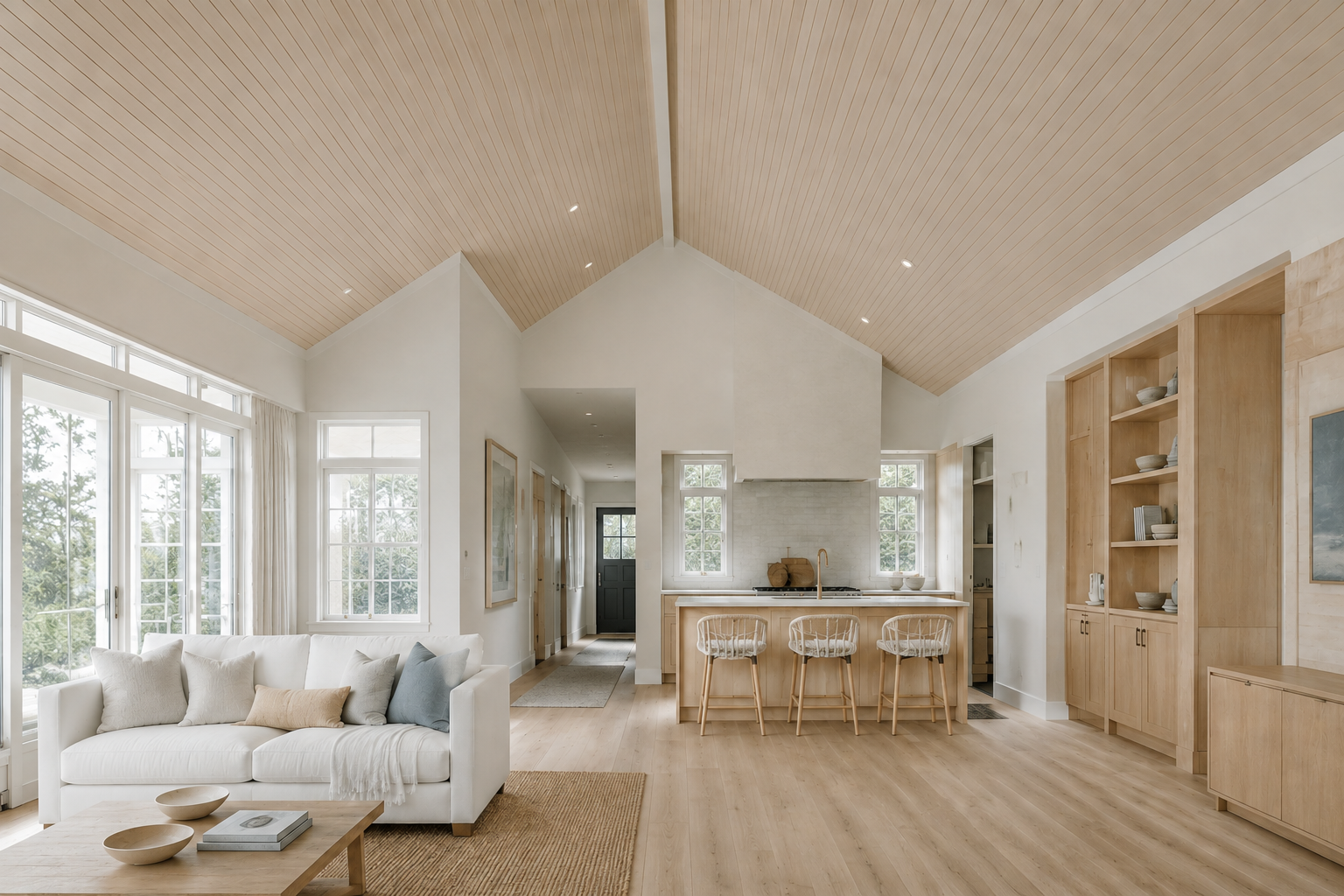

Coastal and Scandinavian

Choose light-stained or whitewashed wood, low-contrast trim, and diffuse fixtures. Shallow slats or narrow boards add texture and preserve more apparent height than deep box beams. Repeat the general tone of the flooring or cabinetry, but don't force an exact match across every wood surface.

What drives cathedral ceiling renovation costs

Cathedral ceiling renovation costs rise with custom fabrication, structural changes, electrical complexity, and work at height. Solid structural timbers and custom millwork generally cost more than hollow box beams and stock trim. New skylights, moved junction boxes, or a redesigned roof assembly add labor across several trades.

It's easy to overlook access in an early estimate. A lift or scaffolding may be needed for carpentry, electrical work, finishing, and painting, and each separate setup adds labor. Group overhead tasks into one access period when the schedule permits, then compare those access assumptions before judging the labor totals.

Spend more on the element that leads the view from the doorway, such as a statement chandelier, a visible wood finish, or precision finish carpentry. Save on background details with hollow box beams, simple paint-grade profiles, and repeated stock dimensions instead of custom cuts. Compare estimates line by line because a low beam or lighting allowance may exclude stain, hardware, access equipment, or ceiling repair.
