Front Porch With Gable Roof: Costs, Designs, and How It Gets Built

Your front door can have an overhang and still leave you standing in the rain with a bag of groceries. Making that cover deeper gives packages somewhere dry to land and creates room to pause outside instead of heading straight indoors. A front porch with gable roof framing also gives a long, low facade some height around the entry. Budget roughly $4,000 to $12,000 for a compact portico or $15,000 to $40,000 for a full-width open porch, with the foundation and floor accounting for much of the difference.

The design starts with how you want to use the space. From there, pitch, columns, and the connection to the house determine whether the porch feels like part of the original facade or an addition that arrived later.

Renovate with confidence every step of the way

Step 1: Personalize Your Renovation Plan

Step 2: Receive Quotes from Trusted Contractors

Step 3: Let Us Handle the Project Details

Get Started

What a gable roof adds to a front porch

Most porch roofs fall into three broad families. A shed uses one plane from the house to the front edge and generally takes the least framing. Hips keep the roofline low around the perimeter. When the gable faces the street, the ridge runs back toward the house and concentrates the added height over the center of the porch.

Height where you feel it

You feel the difference at the center of the porch, where the path to the front door passes under the ridge. The amount of extra height comes directly from width and pitch. A gable 8' wide at 4/12 rises about 16" from the eaves to the ridge. At a 12' span and 8/12 pitch, that rise is closer to 4'.

Leaving the ceiling open brings all of that volume into view, but it changes the structure above you. Ceiling joists often serve as rafter ties that keep the supporting walls from spreading. An open design may need a structural ridge beam, engineered raised rafter ties, or scissor trusses, along with support beneath any new beam. The framing choice belongs on the structural drawings before the ceiling finish is selected.

After rain or snow

Following a wet snowfall, the roof pitch matters less than where everything lands. Rain drains toward both side eaves, and a steep metal roof can release snow in sheets. The plan has to keep those drop zones away from the steps and account for snow drifting or sliding from a taller main roof onto the porch below.

Proportion on a long, low house

Matching the main roof sounds like the safe choice. Contractors propose it regularly because the cuts are familiar and the rooflines relate on paper. Across a wide ranch porch, however, a 4/12 gable leaves you with a short triangle that looks pressed against the house.

On a wide ranch, draw the porch at 6/12 or 8/12 before accepting a pitch that simply matches the main roof. That extra rise makes the entry easier to see across a long facade. Narrowing the gable over the entry improves the proportion further and helps keep the ridge below a second-story window.

The front elevation should show the window sills, existing eaves, porch beam, rafter depth, roofing, and flashing clearance. It should also show the column line. Moving the posts inward makes the gable look narrower from the street, but it changes the beam span and the roof overhang beyond the columns. The elevation and structural plan have to describe the same porch.

Gable roof front porch addition costs

A gable roof front porch addition is priced as a structure rather than a roof alone. A complete bid includes excavation, footings, a slab or framed floor, posts and beams, roofing, steps, railings, electrical work, and repairs where siding comes off the house. Screens, windows, and conditioned space expand that scope quickly.

Still, a cost range does not tell you whether two proposals cover the same work. These figures assume complete construction for the scope named in each row. Design fees, permit fees, major grading, concealed damage, and extensive repairs to the house are commonly priced separately. A lower bid deserves a line-by-line check for gutters, painting, debris removal, and allowances that could change later.

Why some bids for porches and gable roofing exceed the range

• Footing depth changes the amount of excavation and concrete. A covered porch around Minneapolis can require footings 42" below grade. Georgia's model-code minimum is 12", and soil plus roof load determine the width in either place.
• Floor height can change the whole foundation approach. A slab works well for a low entry on a level site. Once the door is higher, the scope expands to more formwork or a framed floor, plus beams, stairs, and railings.
• Cutting into the main roof adds demolition and careful repair. When the gable enters the main roof, crews remove existing shingles and sheathing before framing and waterproofing the new valleys.
• Older siding is difficult to match cleanly. A useful proposal explains how much will come off and what happens when the original profile or color is no longer available.
• Electrical work needs to be complete on paper. Lights, switches, exterior receptacles, a fan-rated box, and possible panel work should appear before the contract is signed.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

Front porch with gable roof designs by house style

The same front-facing triangle can work on a ranch, Colonial, bungalow, or farmhouse. Each style needs its own mix of pitch, overhang, columns, and gable finish.

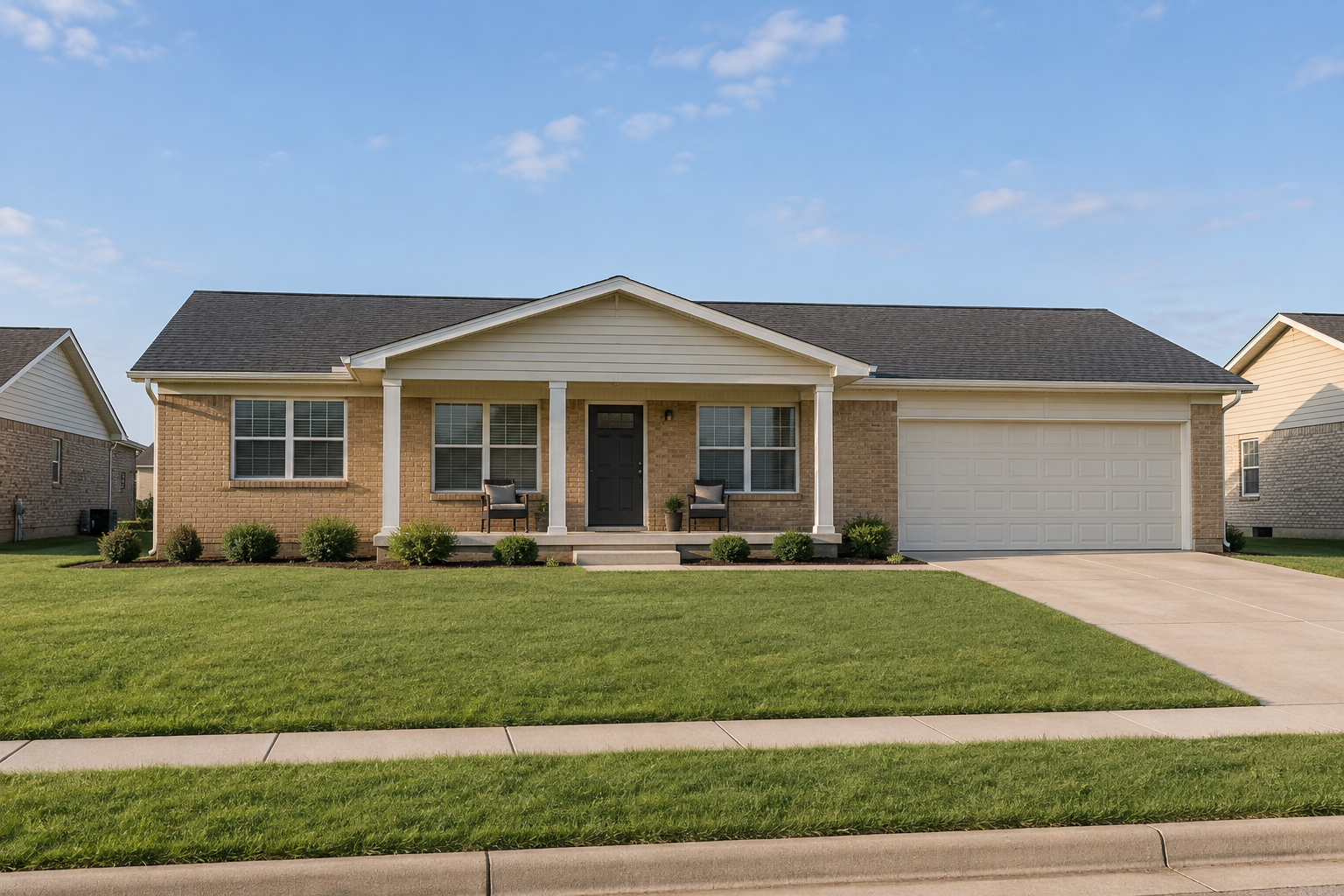

Ranch and split-level homes

On a long brick ranch, a narrow porch gable creates a clear center at the entry. A 6/12 or 8/12 pitch adds enough height for the smaller triangle to remain prominent.

Tapered columns on brick or stone bases add weight near the ground. Their location matters as much as their style because a wide opening changes the beam span, while posts set too close together can pinch the approach to the front door.

If you're interested in building or replacing the porch entirely, find inspiration with our guide to adding porches to ranch homes.

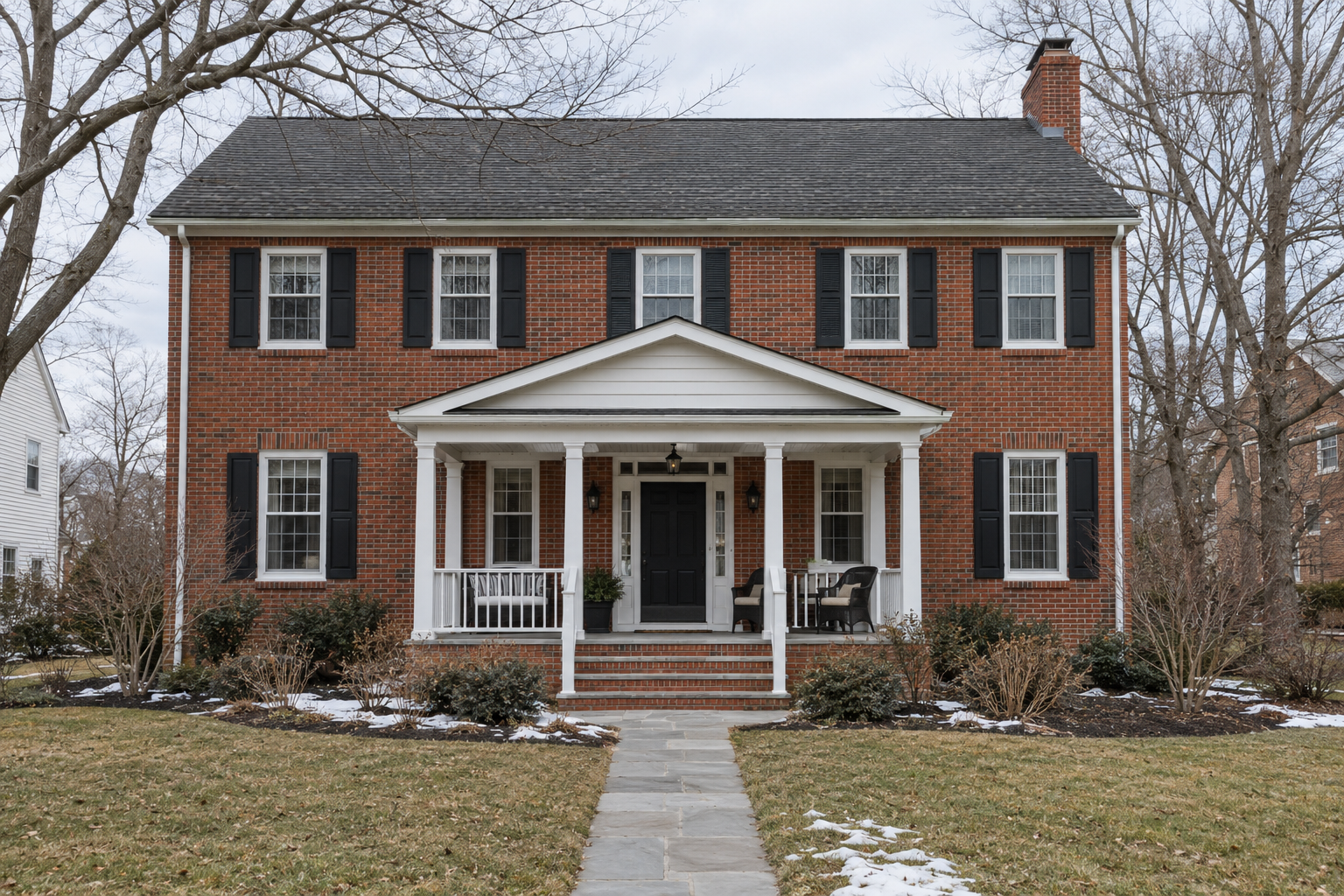

Colonial and two-story traditional homes

For Colonial home porches, keep the gable narrow and centered. A gable that borrows its angle and trim from an existing pediment or dormer has enough architectural support already. Two well-proportioned columns and a restrained gable field suit the facade better than extra decoration.

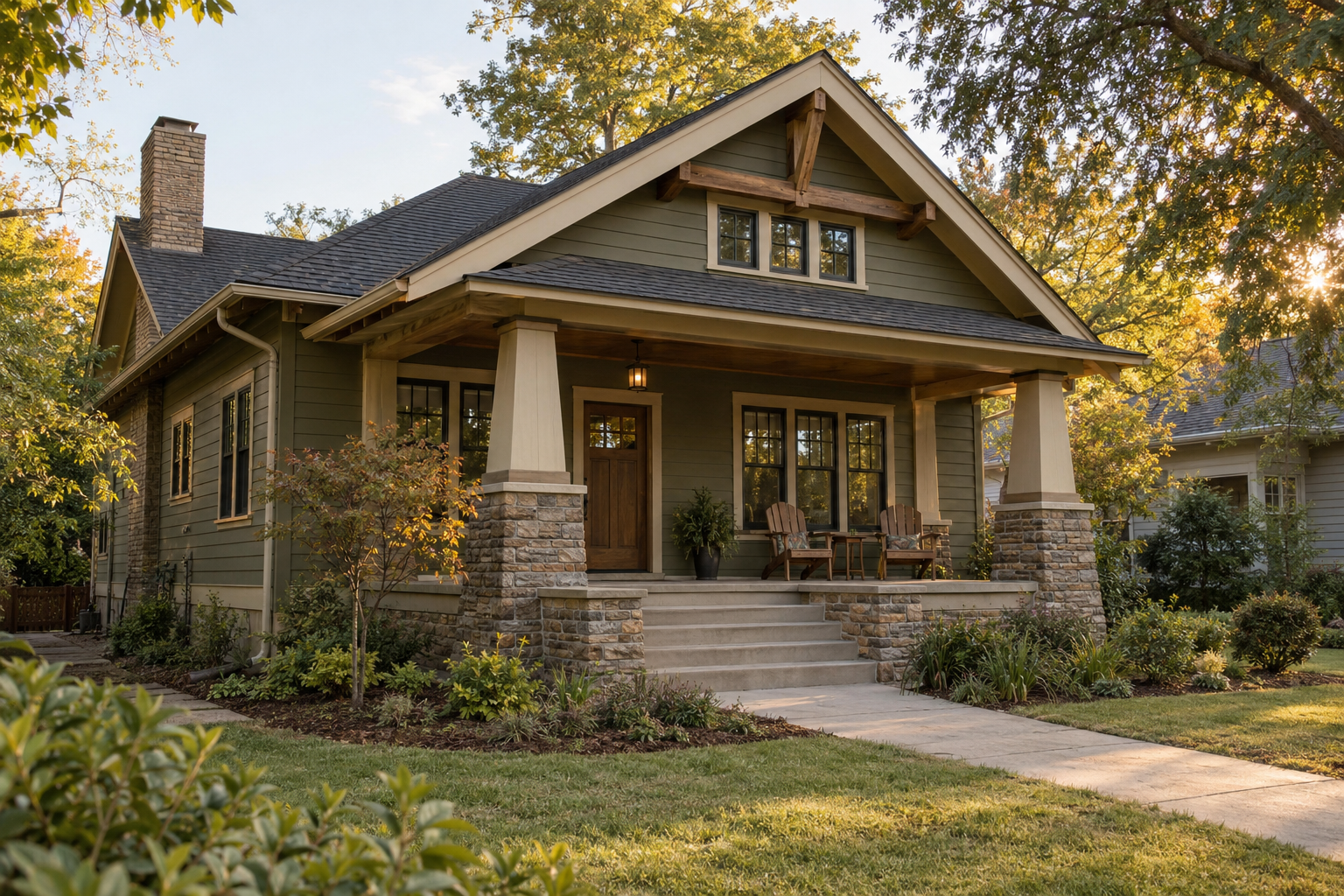

Craftsman and bungalow homes

Deep rake overhangs, broad fascia, knee braces, and exposed rafter tails suit the low horizontal lines of a bungalow and keep the porch from looking newly pasted onto the front. The columns need visual weight too. Tapered square columns on stone, brick, or stucco piers are familiar choices, but a fixed 30" base is not a design rule. The pier height should be drawn with the railing, column, and beam because each one changes the proportions of the others.

Every visible timber should be labeled as load-bearing or decorative in the proposal. That single distinction affects the engineering, connections, wood species, and price, even when the finished pieces look similar from the sidewalk.

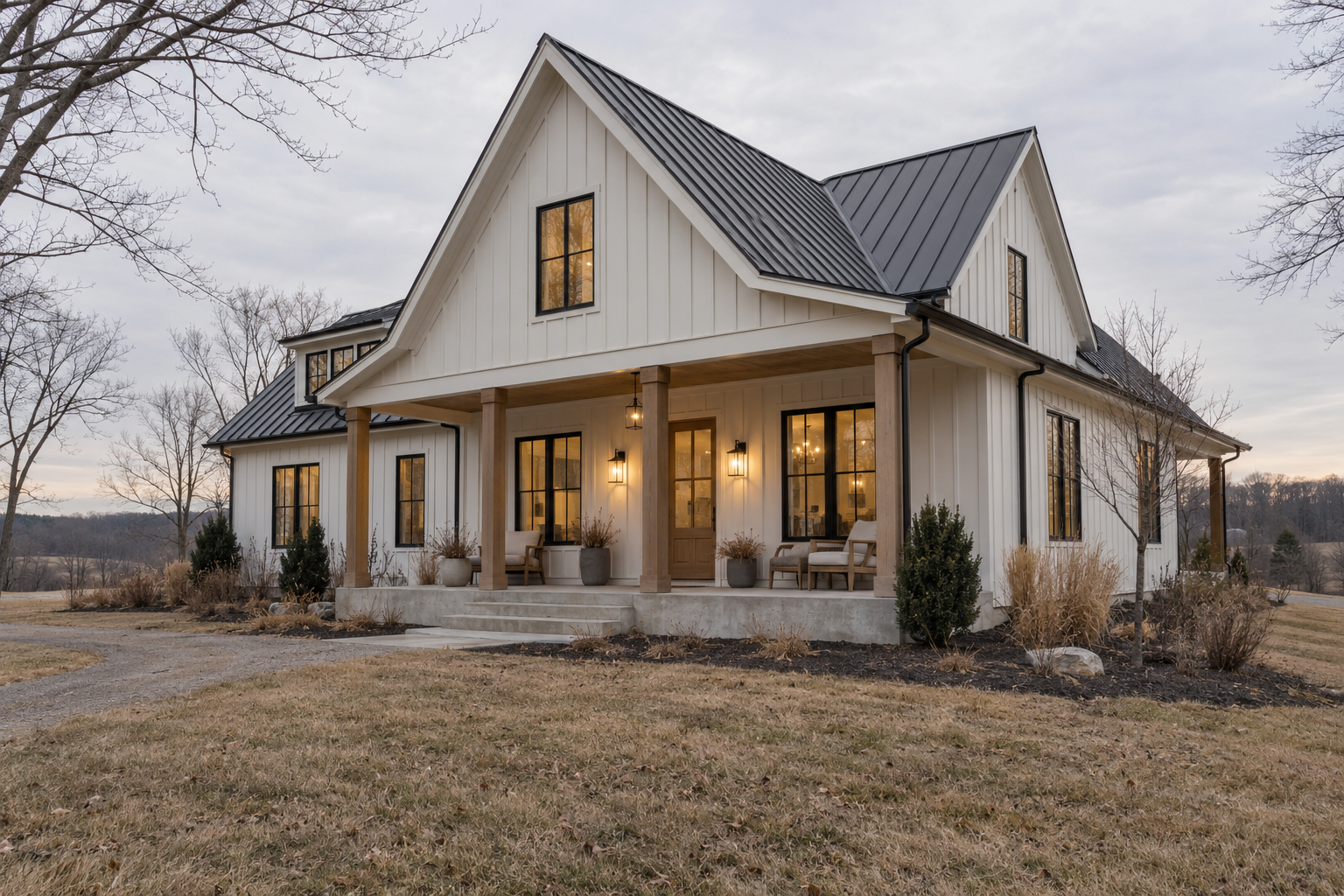

Farmhouse and cottage homes

A dark metal roof already creates a strong contrast with pale siding. Plain rake boards and gable trim keep the roof as the main accent.

• Standing-seam metal gives the gable a crisp outline and makes the roof more visible.
• Square column wraps can create a 6"x6" or 8"x8" profile around a smaller structural post.
• Board-and-batten or cedar shingles add texture inside the gable field.
• Wide, plain rake boards keep the outline clean on a farmhouse facade.
• An 8' depth leaves practical room for rocking chairs and the route to the door.

Choosing the pitch and finishing the gable end

The pitch calculation starts at the top of the porch beam, not at the porch floor. An elevation drawing shows how much rise remains below the closest window, eave, or roof intersection after rafter depth and flashing clearance are included. On a low house, that drawing settles the argument faster than another conversation in the driveway.

Roofing narrows the options further. Asphalt shingles installed from 2/12 to below 4/12 need special low-slope underlayment, and they are not intended for slopes below 2/12. A bid that says only “metal roof” leaves the profile, fastening system, and minimum slope unresolved. A complete roofing specification names the product, profile, and attachment details.

After the roof geometry is set, the gable finish, masonry supports, and ceiling assembly still need to be specified:

• Paint can separate the triangle from the siding below with little additional labor when the whole porch is finished at once.
• Cedar shingles, board-and-batten, or manufactured shake panels require trim and water-management details in addition to the visible material.
• A king-post or queen-post accent adds depth to an open gable, and the proposal should identify it as decorative or part of the engineered framing.
• Brick or stone around the column bases needs approved support and a cap that sheds water.
• A finished ceiling can create enclosed roof cavities that require ventilation or an approved unvented assembly, and one decorative round vent rarely provides enough airflow by itself.

Building a front porch gable roof

Once the design is approved, building a front porch gable roof follows a clear order. Seeing the full sequence helps explain why permit delays and active construction belong on separate schedules.

How the work progresses

Once excavation starts, the project moves through these seven stages:

1. Zoning limits, buried utilities, dimensions, and permit requirements are confirmed.
2. The approved footings or foundation are excavated and poured.
3. The slab or framed porch floor is built at the planned threshold height.
4. Posts and beams are installed to carry the roof.
5. The gable is framed and sheathed, including any structural ridge beam or engineered trusses.
6. The house connection, underlayment, flashing, roofing, gutters, and downspouts are completed.
7. Electrical work, ceiling finishes, trim, stairs, railings, paint, and final inspections finish the project.

Footings, floor, and threshold height

A slab poured over an old front walk does not prove that the concrete can support new columns. Roof loads need their own foundation, sized for the soil and taken to the locally required depth. Around Minneapolis, 42" frost footings are common. Georgia starts with a 12" model-code minimum. The gap between those numbers changes the excavation, concrete, and labor in the bid.

Floor drainage and door height need to be decided before the pour. The model residential code caps the slope of an exterior door landing at 1/4" per foot, and the permitted drop below the threshold depends on the door and its swing. Put both finished elevations on the drawings. Correcting either dimension after the concrete hardens usually involves more than a minor adjustment.

Where the roof meets the house

When building a front porch gable roof, the house connection controls both the load path and the waterproofing detail. Its location and attachment method belong on the drawings.

A wall ledger transfers part of the porch load into structural framing behind the siding. A roof tie-in extends the new ridge into the existing roof and creates two valleys in the common front-facing configuration. Freestanding construction keeps the vertical roof load on its own posts and footings, although it still requires lateral bracing, uplift resistance, and a weatherproof joint that tolerates movement.

The waterproofing changes with the configuration. A shingled roof-to-wall junction uses step flashing interleaved with the roofing and lapped behind the siding and wall barrier. Kickout flashing at the bottom directs runoff into the gutter. A roof-to-roof connection needs a lined valley, while metal panels use details made for that exact system. The Building America Solution Center shows how these layers work together.

What a complete proposal includes

Bids become much easier to compare when they describe the same porch. A complete pre-bid package covers the following details:

• Drawings include a dimensioned floor plan, front elevation, and wall section.
• Foundation notes state the type plus footing size and depth.
• Structural notes identify the beam, post, and roof-framing system, with stamped drawings where required.
• Every connection to the house has a named attachment method and flashing detail.
• Finish specifications cover roofing, siding, ceiling, flooring, columns, railings, and paint.
• The electrical and drainage scope names fixtures, switches, receptacles, gutters, and downspout locations.
• Contract terms assign permit responsibility and define allowances, exclusions, cleanup, and repair limits.
• The schedule separates permit lead time from active construction.

Those details preserve the porch you priced at the beginning. They also expose a low opening bid that depends on allowances or leaves repair work for later.
