Home Cinema Dimensions: How Big Should Your Room Be?

A compact theater for 2 to 4 people can start around 10 x 12 feet. For a dedicated room with 4 to 5 seats, 12 x 16 feet gives you more flexibility. Two rows usually push the room toward 15 x 20 feet or larger because you need space for another row, circulation, and a riser. Use these figures to test an early floor plan, then refine them around the finished room and the AV design.

Home cinema room dimensions by seat count

Seat count gives you a practical way to estimate how much of the house to devote to a theater.

These dimensions refer to usable finished space. Added drywall assemblies, acoustic treatments, columns, soffits, and a built-out screen wall can all shrink the room shown on the framing plan.

The best home cinema dimensions for a room also depend on how tightly you want to pack the seats. A 14-foot-wide theater may physically hold a long row of chairs, but the listeners at either end can wind up much closer to the side walls and surround speakers than the people in the middle.

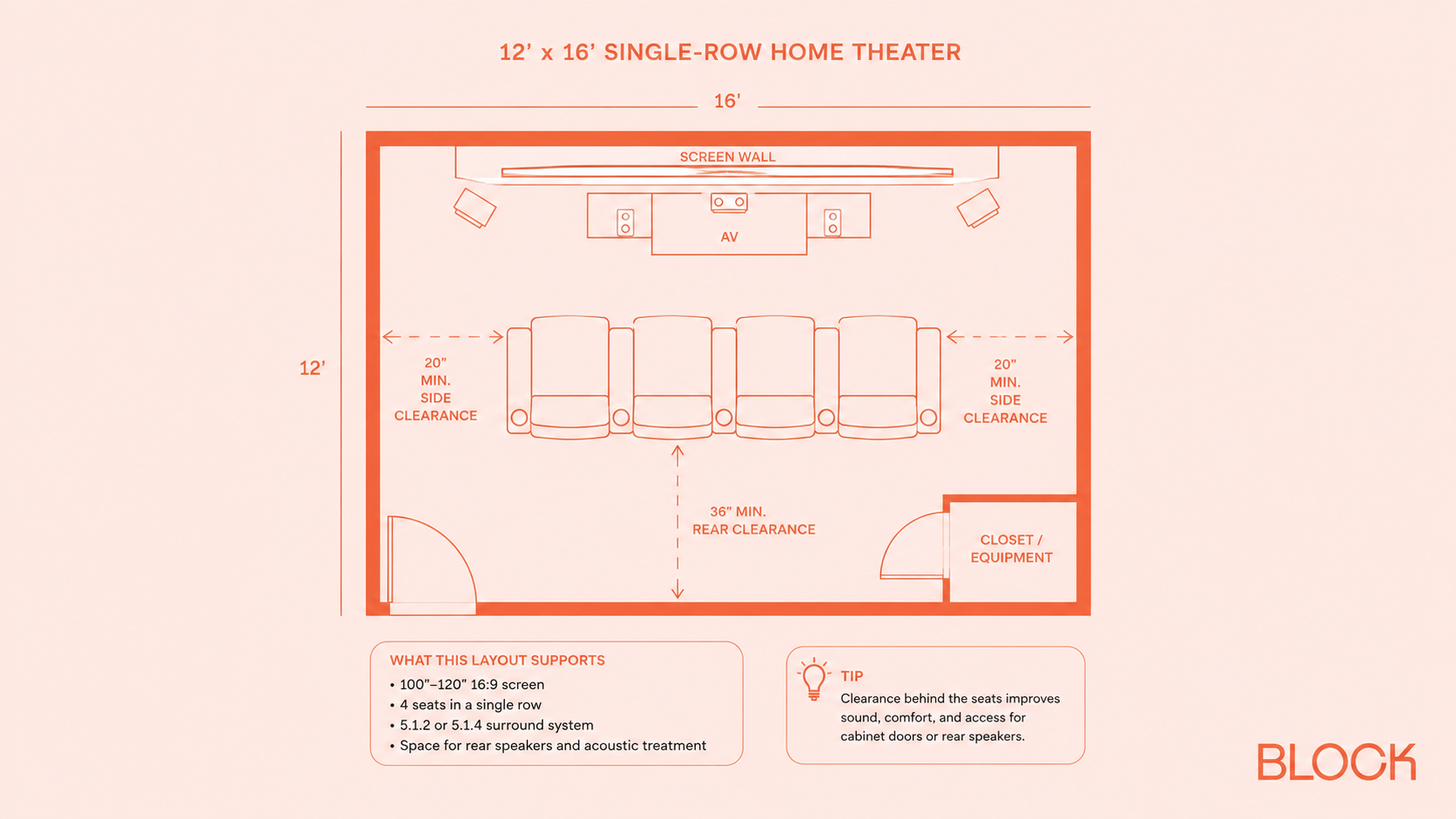

What are the minimum room dimensions for a home theater?

A 10 x 10-foot room has enough floor area for a small theater, but its square proportions create an acoustic disadvantage and leave little freedom around the seating. During a major renovation, there is usually little reason to design toward that footprint when a wall can still move.

Around 10 x 12 feet is a more practical minimum for a dedicated setup. Keep the room to one row with perhaps 2 to 4 seats, then size the screen around the viewing distance you actually have.

At roughly 12 x 16 feet, several constraints begin to loosen. There is more room beside the seating, more freedom to place the front speakers, and a better chance of leaving useful clearance behind the audience.

Home theater measurements to take before construction

The length and width printed on an architectural plan do not tell the whole story. Your AV layout should use measurements that reflect the room people will eventually occupy.

• Record the expected finished width and length.
• Measure the ceiling at its lowest finished point, including soffits and beams.
• Mark every door and its swing.
• Locate structural posts, plumbing chases, and permanent obstructions.
• Establish an approximate primary seating position.
• Measure reclining seats at their full depth.
• Record the usable width of the screen wall.
• Check circulation space beside and behind the seating.
• Account for wall and ceiling thickness added by sound-isolation assemblies.
• Identify likely projector, speaker, subwoofer, and equipment locations.

Share the same set of home theater measurements with the architect, contractor, and AV designer. Losing 3 inches at each side wall may sound minor on paper, but it can affect chair clearance, speaker placement, and the position of a doorway.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

How wide should a home theater room be?

A finished width of roughly 12 to 14 feet gives a single-row theater considerably more flexibility than a 10-foot room. Once the row gets wider, side-wall clearance becomes part of the audio layout.

CEDIA/CTA-RP22 sets its first performance target at more than 0.5 meter, or about 20 inches, between each listener's head position and the nearest wall or protruding speaker baffle. Its higher performance levels increase that clearance.

The screen uses a substantial share of the same wall. A 120-inch 16:9 screen is about 8 feet 9 inches wide before its frame is included. Put that in a 10-foot-wide theater and the space beside the image disappears quickly.

For that reason, seat count and room width should be tested together. A slightly wider room may help, but so can removing one chair from the row.

Plan enough length for the screen and seating

For many single-row theaters, 16 to 20 feet of finished length gives you room to establish viewing distance and preserve some clearance behind the seats. Larger screens and a second seating row increase the requirement.

Screen size should be considered from the primary viewing position. A homeowner planning a 120-inch projection screen may land on a very different seating location from someone installing an 85-inch television in the same room.

Check the space behind that position before approving the floor plan. Recliners need room to open, people need a path in and out, and some layouts also require space for rear speakers or acoustic treatment.

CEDIA/CTA-RP22 specifically warns about seats placed against the rear wall when back speakers are present. The closest surround-back speaker can dominate for that listener and weaken the intended sense of envelopment. Where the seating must remain against the rear wall, RP22 recommends a 5.1 listener-level layout instead of adding back speakers for 7.1.

What ceiling height works for a home theater?

An 8-foot finished ceiling is workable for many home theaters. Once a room includes a raised second row, deep soffits, or substantial mechanical work overhead, extra height becomes much more valuable.

Dolby's home theater installation guidance uses roughly 3.9 feet as the seated listener height for listener-level speakers. Its guidance places overhead speakers at 2 to 3 times that vertical position.

An 8-foot ceiling sits near the lower edge of that relationship. A dropped ceiling or large duct soffit reduces the available height further, and a riser brings the rear listeners closer to the ceiling.

Dolby's preferred elevation for overhead speakers in a 7.1.4 configuration is 45 degrees from the listener, with a range of 30 to 55 degrees where adjustment is necessary. That layout should be coordinated with recessed lighting and other ceiling fixtures before electrical rough-in.

For a two-row room, take the final ceiling measurement from the top of the riser. The slab-to-ceiling dimension no longer describes what the rear seats will experience.

Avoid square home theater dimensions when you have a choice

A 12 x 12-foot room contains 144 square feet. A 10 x 14-foot room contains almost the same area, yet the different length and width give the audio design a better starting point.

Equal dimensions cause room modes to overlap at the same frequencies. The result can be large differences in bass response from one chair to another. RP22 notes that low-frequency response can vary by as much as 25 dB between seats.

There is no need to force the renovation around a single "golden ratio." Give the room distinct dimensions, then consider those proportions alongside the seating positions, subwoofer locations, and acoustic treatment.

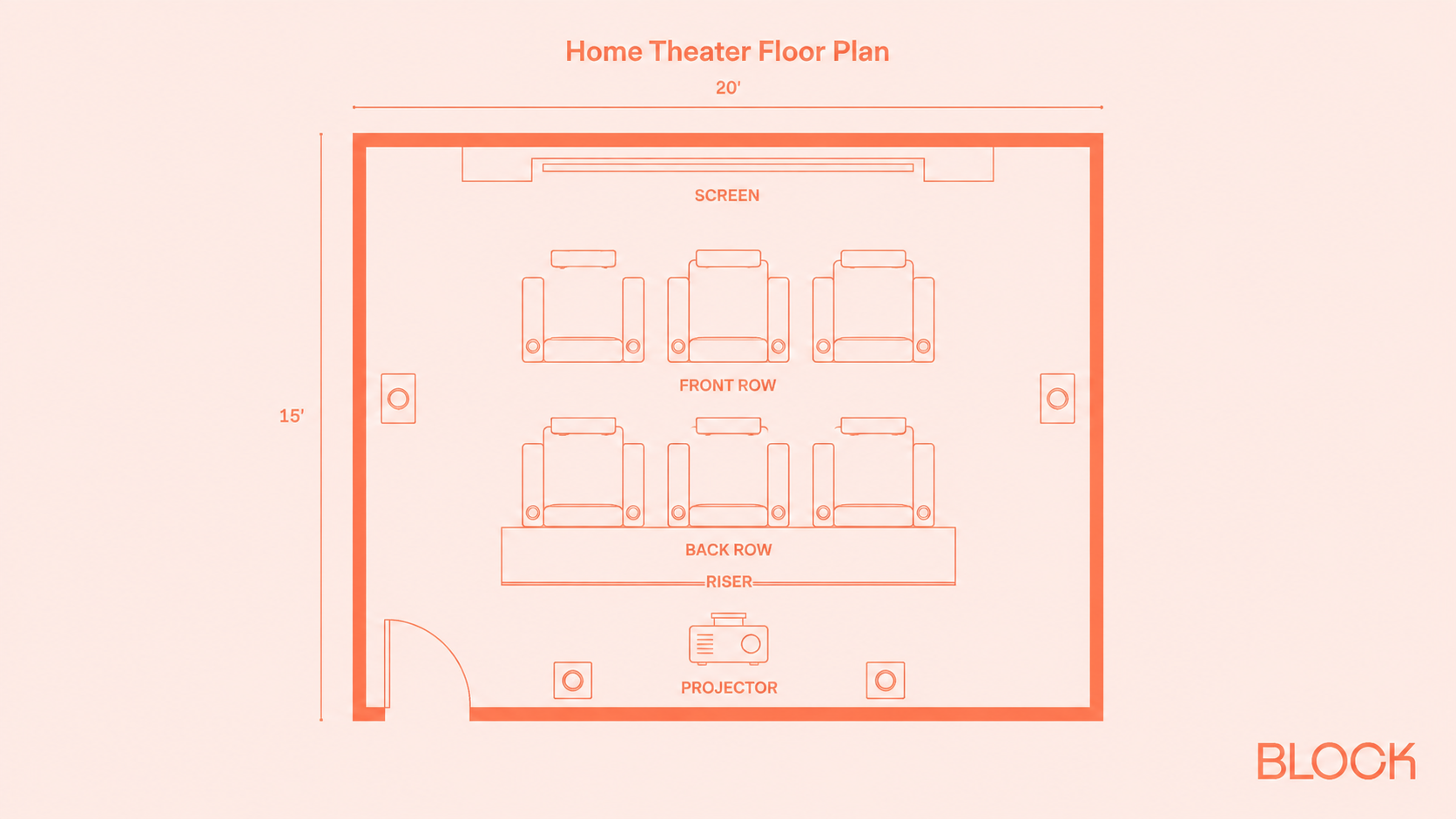

Room dimensions for home theater layouts with two rows

Once the plan includes a second row, 15 x 20 feet is a reasonable point to begin testing layouts. The rear seats normally need a riser, and that decision brings sightlines and headroom into the same conversation.

Your AV designer can calculate riser height from the screen position, eye height, chair dimensions, and spacing between rows. Choosing an arbitrary riser height before those numbers are known can create unnecessary ceiling problems later.

Speaker clearance changes as well. RP22 notes that maintaining vertical head clearance across multiple seats commonly moves the surround-speaker plane about 300 mm, or roughly 12 inches, above the listening plane. The exact position depends on the room, distance to the walls, and seating arrangement.

A taller riser reduces headroom at the back. Speaker positions may then need adjustment, and a soffit running across the same part of the ceiling can narrow the available range further. Put the second row on the architectural and AV plans early enough that those pieces can be resolved together.

Finished room dimensions can shrink during construction

A framed theater measuring 13 feet wide may lose several inches before it is ready for seating.

Sound isolation is one common reason. Resilient clips, channels, additional drywall layers, and isolated ceiling assemblies add thickness to the room envelope. Block Renovation's overview of soundproofing walls and ceilings explains several assemblies homeowners may encounter during a renovation.

Projection systems can use depth at the front of the room too. An acoustically transparent screen may have speakers and acoustic material installed behind it, so the finished seating area begins farther into the room than the framing plan suggests.

Ask the project team to include expected finished clear dimensions on the plans. Those are the numbers the AV layout should use.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

Home theater dimensions for basements and additions

Basements often seem to have plenty of square footage until you measure the ceiling. Ducts, beams, plumbing, structural columns, and existing soffits can dictate where the screen or seating can go. A nominal 8-foot basement ceiling may also drop well below 8 feet in selected areas.

When you are converting part of a basement, measure the clear height and width around those obstructions before deciding how large the theater will be. Moving the theater a few feet within the basement may solve a layout problem more effectively than trying to conceal a large duct directly over the rear row.

An addition gives you a different opportunity. Width, length, ceiling height, and door placement can be chosen before the foundation and framing are built. If a dedicated cinema is already part of the renovation brief, establish its finished dimensions alongside the structural plan instead of carving out whatever space remains afterward.

Size the screen and seating together

Start from the seat where you expect the strongest viewing experience. Screen dimensions and viewing distance determine how much of the viewer's field of vision the image occupies, so changing one affects the other.

Once the approximate seating position is established, check what remains at the front and rear of the theater. A projection wall may require additional depth. The seats may recline farther than their upright dimensions suggest. A second row changes the calculation again.

Doing this during space planning can reveal that the proposed screen is too large for the available viewing distance, or that moving the seats forward creates a better layout with the same room dimensions.

A quick way to test your planned home theater size

Before the renovation drawings are finalized:

1. Decide how many permanent seats you want.
2. Choose one row or two.
3. Establish an approximate screen size.
4. Place the primary seating position at an appropriate viewing distance.
5. Check side and rear clearance around every seat.
6. Subtract any space needed for finished wall and ceiling assemblies.
7. Confirm that doors, speakers, soffits, and circulation still fit the plan.

When several of those elements only fit by an inch or two, revisit the layout before framing. Reducing the seat count, changing the door location, adjusting the screen, or enlarging the room may give the project more usable space where it matters.
