Home Gym Dimensions: Room Sizes, Layouts, and Equipment Clearances

Most home gyms start with a room you already have: a spare bedroom, half a garage, or the dry corner of a basement. Whether that room works comes down to three home gym dimensions you can measure this afternoon, meaning the longest clear wall, the width across from it, and the height from finished floor to the lowest duct. A 10 by 10 room holds a full power rack, an adjustable bench, and a 7-foot barbell with space to load plates. Ceiling height is the measurement that sends projects back to the drawing board, because a bar pressed overhead needs more room than most basements have.

Home gym size dimensions: how much space do you need?

Home gym size dimensions usually get quoted as total square footage, and square footage alone won't tell you whether a room works. The shape decides what you can put along a wall. A 100-square-foot room measuring 8 by 12.5 feet gives you a 12.5-foot run for a rack and a loaded barbell, while the same 100 square feet in an L-shaped basement corner may not give you one clear 10-foot wall anywhere. Measure the longest uninterrupted wall first, then the width across from it, then the height to the lowest beam or duct.

The four sets of home gym dimensions below cover the rooms homeowners actually convert.

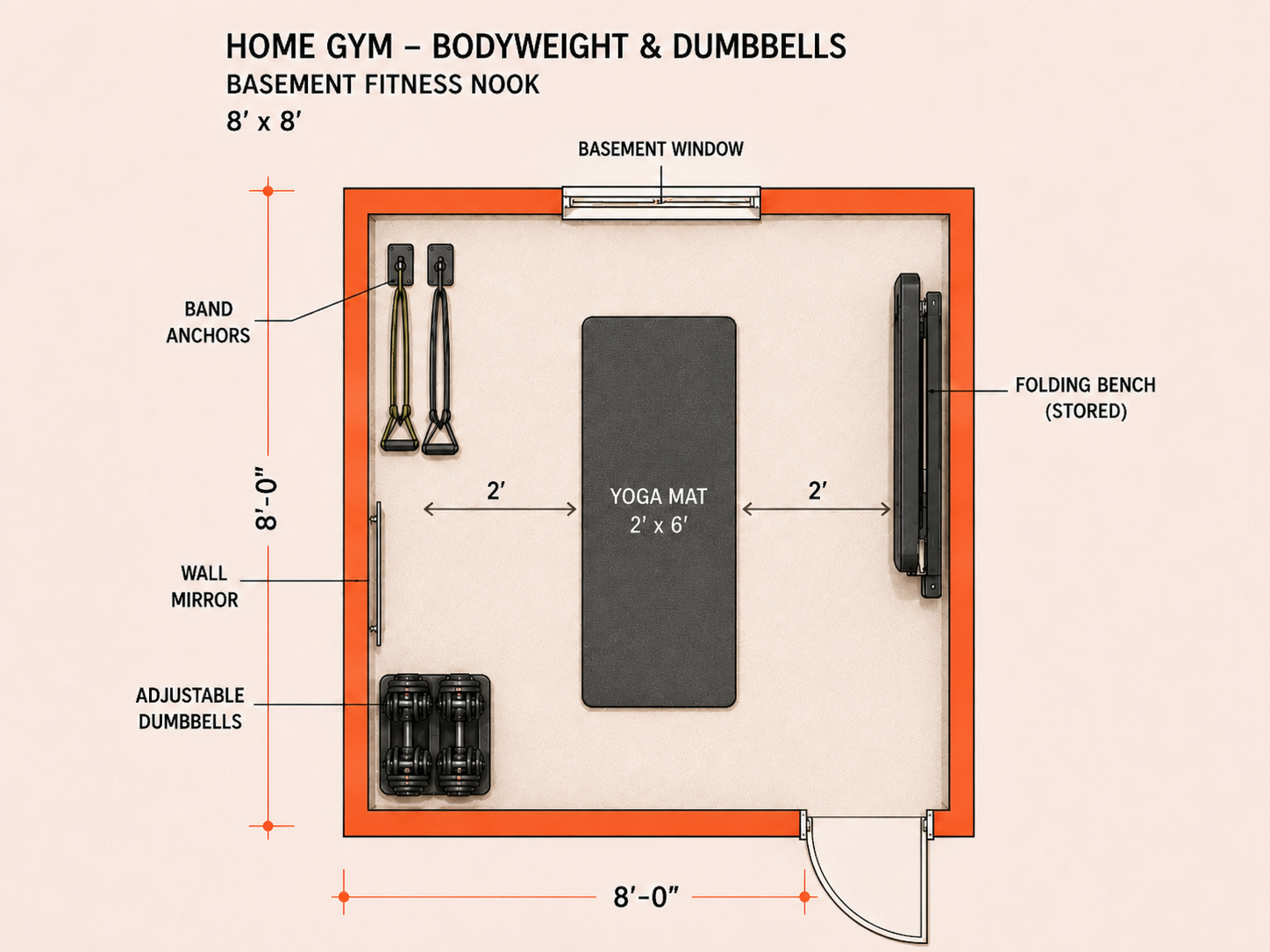

36 to 64 square feet: the smallest workable home gym dimensions

You get real training out of a 6 by 6 corner, and you get it for a few hundred dollars. A yoga mat measures 2 by 6 feet. Give it 2 feet on each long side and push-ups, lunges, planks, and mobility work all happen without moving anything between sets.

Everything else in a room this size has to fold, mount, or nest:

• Adjustable dumbbells cover the range of a full rack in about 4 square feet of floor.
• A folding bench stores flat against a wall at roughly 5 inches deep.
• Wall-mounted band anchors add pulling work and take no floor at all.

You can't put a barbell in here. A 7-foot bar needs a 9-foot clear run to load and rack it safely, so an 8-foot wall comes up short before you account for the rack, and the plates need somewhere to live besides the mat.

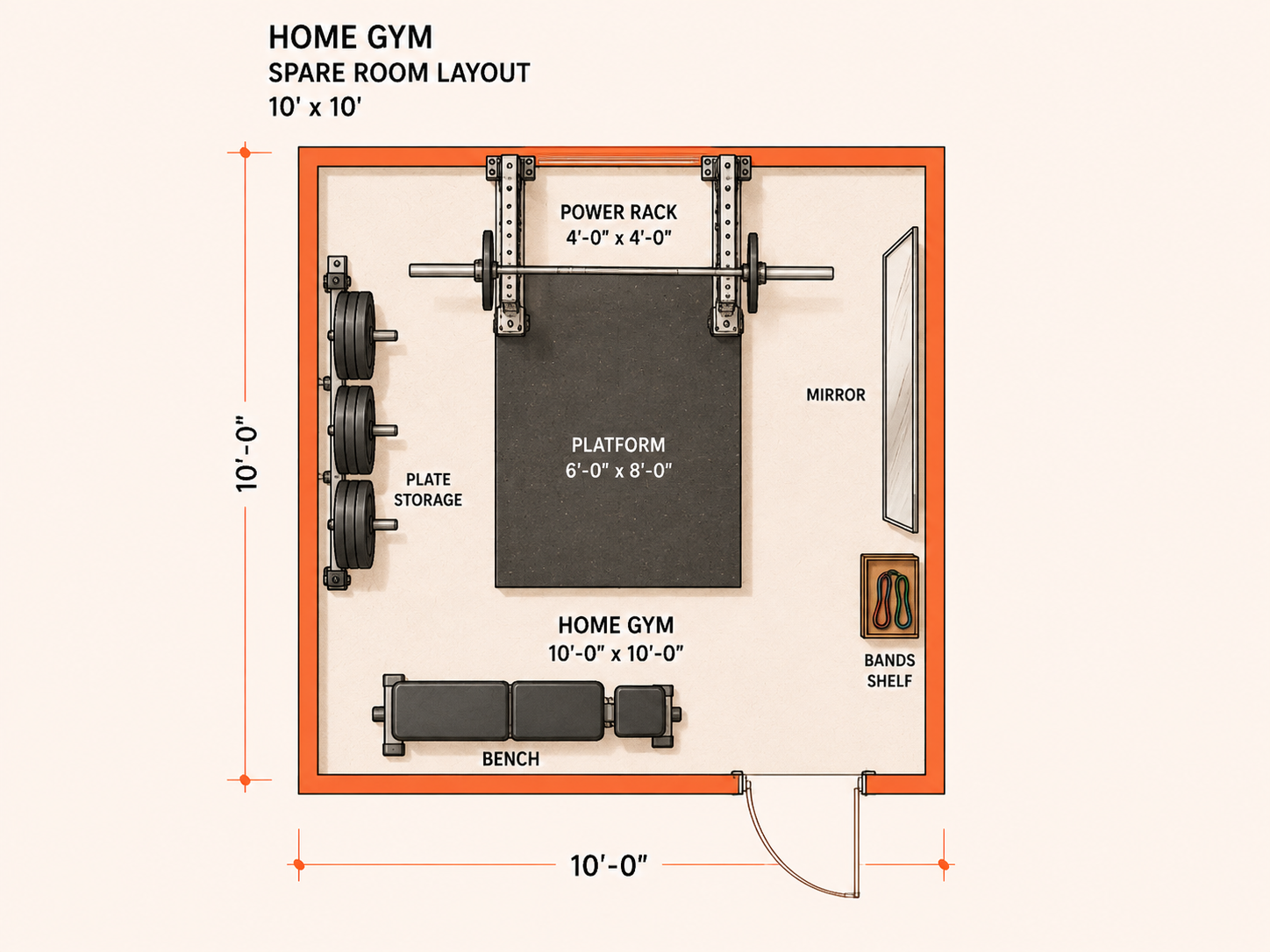

100 square feet: the 10x10 home gym layout

A standard spare bedroom measures about 10 by 10, and that's why this size comes up more than any other in home gym planning. It's also the smallest room that takes a barbell without asking you to give something up. A power rack runs about 4 feet wide and 4 feet deep, an Olympic bar is 7 feet, and the sleeves stick out roughly a foot past each upright, so a 10-foot wall clears the bar on both ends.

Two arrangements work at these dimensions, and the difference is where the open floor lands:

• The platform layout puts the rack flat against the middle of the back wall. A 6 by 8 foot mat or platform runs straight out from the uprights, giving you a squat, a press, and a deadlift in one footprint, with plates and accessories pushed to the two side walls.
• The perimeter 10x10 home gym layout keeps the center of the room clear. Every piece moves to a wall, so a rack goes on one, cardio on another, and a bench folds or rolls into the middle only when it's in use.

Plates stacked on the floor take up the lane you need to walk around the bar, so budget for a wall-mounted holder or a vertical tree in a corner before the plates show up. A 10x10 home gym layout won't hold a second large machine, a leg press, or Olympic lifting with a real bail-out zone.

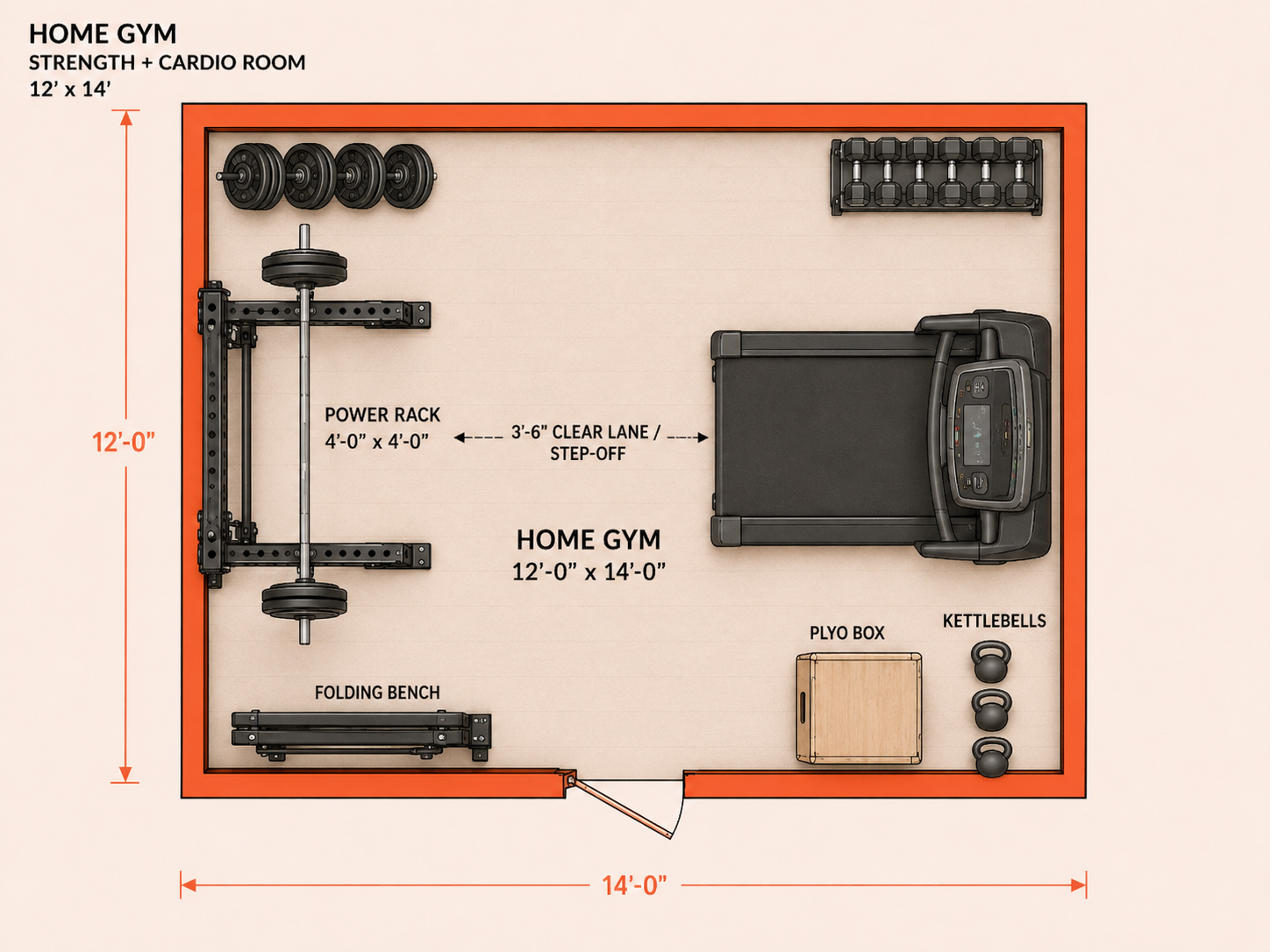

144 to 224 square feet: strength and cardio in one room

Push a treadmill into a 10 by 10 room that already has a rack and you'll find the problem quickly. The bench has nowhere to go, the plate tree ends up behind the belt, and someone has to step off the treadmill before anyone else can walk through.

A 12 by 14 room fixes it. The rack takes one wall, the treadmill takes the wall opposite, and a 3-foot lane runs between them, so one person can pass while the other is mid-set and a dropped plate stays off a moving belt. Treadmills also need about 3 feet of open floor behind the deck for a safe step-off, so the machine can't tuck into a corner the way a bench can.

Storage stops competing with training at this size, provided it comes off the floor. Plate trees, dumbbell racks, and wall-mounted holders give back several square feet, and 224 square feet leaves room for a folding bench, a plyo box, and a set of kettlebells without any of them landing in a walkway.

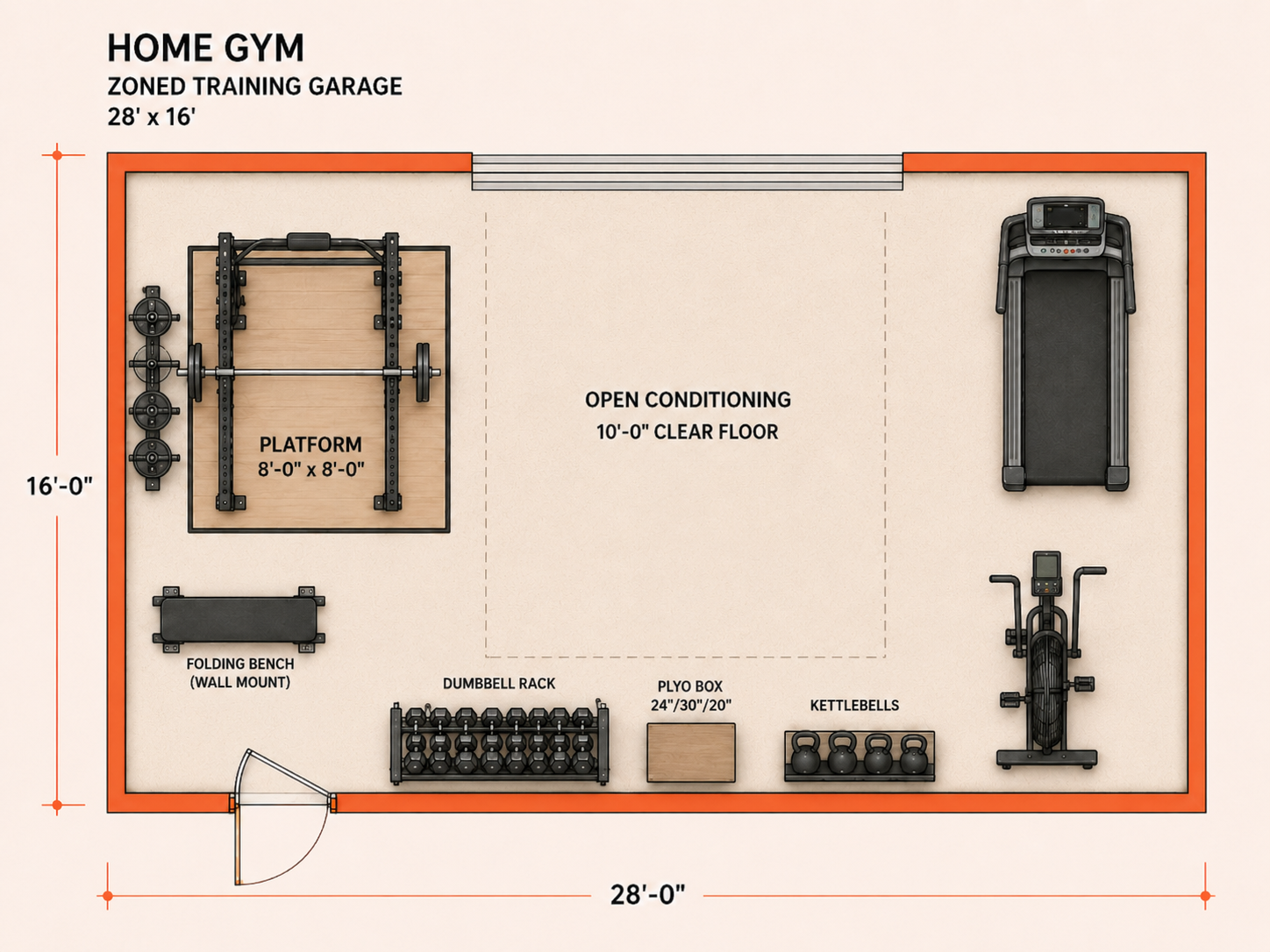

400 square feet and up: zoned training

Hardly anyone builds a room this size for a gym. They inherit one, usually a two-car garage at 400 to 576 square feet with no interior walls breaking it up.

What the space buys you is separation. A platform goes on one end, cardio on the other, and the middle stays open for conditioning or for two people training at the same time. Mistakes also get cheap: a machine that ends up 8 inches off where you wanted it slides over in a minute, where a 10 by 10 room would have you moving three other things first.

• Sled pushes, bear crawls, and rope work need 8 to 10 feet of clear floor in one direction.
• A dedicated 8 by 8 platform keeps dropped weight away from everything else.
• Two lifters training at once want about 100 square feet each before they start waiting on equipment.

Home gym equipment dimensions and clearances

Manufacturer specs give you the footprint of a machine, not the space required to use it. A cable machine measures 4 feet deep on paper and needs 3 more feet in front of it for the handle to travel. Build your layout from the second number.

Add the equipment dimensions to the clearance, tape the combined footprint onto the floor, and walk through a set inside it before you order anything.

Ceiling height: the home gym dimension most homeowners miss

The model residential code requires 7 feet of finished ceiling height for habitable space and for the portions of a basement containing it, measured to the lowest projection from the ceiling. Many jurisdictions allow less when the work is an alteration to an existing basement rather than new construction, so confirm the number with your local building department before you commit to a lower level.

Here's the thing that surprises a lot of homeowners: meeting code doesn't mean you can press a bar overhead. A standing overhead press puts the bar roughly 8 inches above your reach at lockout, so a 6-foot lifter wants close to 8 feet of clear height to finish a rep without ducking. A pull-up bar mounted at 7 feet leaves a tall person tucking their knees every time. Box jumps, jump rope, and kettlebell swings all ask for more room than a press does. Measure to the ductwork, not to the joists.

Two moves usually recover the height a basement gym needs. Rerouting a duct run or swapping a section for low-profile rectangular trunk line frees 6 to 10 inches under the obstruction, and skipping a dropped ceiling in favor of painted, exposed joists keeps every inch you already have. The third option, lowering the slab, turns a gym project into a structural one and prices accordingly.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

Where the gym goes: room dimensions by location

Basement home gym dimensions

Basements tend to offer the longest uninterrupted wall runs in the house, and the slab takes any load you put on it. For barbell training, that combination is hard to beat anywhere else in a home.

Ducts, beams, and the sanitary line all hang below the joists, so usable ceiling height runs 6 to 12 inches under what the framing suggests. Measure the stair turn and the landing while you're down there, since a fully assembled treadmill deck may not make a 36-inch turn at the bottom of a stairwell.

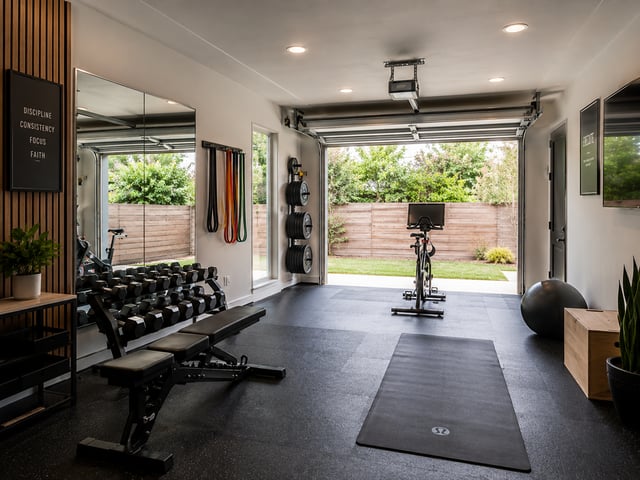

Garage home gym dimensions

You keep the whole footprint and skip the framing when a garage becomes the gym. The overhead door also gives you an opening wide enough to move anything in, which matters more than people expect once a functional trainer shows up on a pallet.

Half a two-car bay still leaves about 200 square feet, enough for a rack, a bench, and one cardio machine with a clear lane between them. Most homeowners don't have to choose between parking the car and training.

Spare bedroom and bonus room dimensions

Most secondary bedrooms run 10 by 10 to 11 by 12 feet, putting them squarely in 10x10 home gym layout territory on paper. The closet, the door swing, and a window wall can cut that down to one usable 10-foot run.

Map the obstructions before you shop. Taking the closet doors off returns roughly 2 feet of depth for a plate tree, and rehanging the door to swing out into the hallway frees a corner you could otherwise never use.

What a home gym remodel costs by square footage

A gym in an already-finished room can be a $2,000 project covering flooring, a few outlets, and a mirror wall. Block Renovation's guide to the best flooring options for home gym renovations breaks down rubber, foam, and vinyl per square foot once the room dimensions are settled.

Finishing the space first puts a gym on the same numbers as any other room. Block's complete guide to basement remodel costs puts a contractor-led standard basement finish at $30 to $75 per square foot, so a 200-square-foot gym area lands at roughly $6,000 to $15,000. Garages price differently, since a conversion changes the use of the space: Block's guide to garage remodel costs puts a full conversion at $20,000 to $75,000. And that's before you get to the equipment.
