5x9 Bathroom Floor Plans: Four Layouts That Work With the Space, Not Against It

A 5x9 bathroom is 45 square feet. The room is narrow enough that fixture placement isn't really a design decision. It's a sequencing problem. You have one corridor, roughly 5 feet wide, and whatever goes in has to line up in a way that lets you actually use it.

The 9-foot length is your only real asset. That's what separates a functional 5x9 from a cramped one. Used well, it lets you run the tub along one side, put the toilet and sink at the far end, and still have standing room in between. Used poorly, with fixtures crowding the same zone or fighting for the same surface, the space feels like a utility closet regardless of what you tile it with.

Why layout decisions carry more weight at this size

At 45 square feet, there's no square footage to absorb a mistake. The difference between a 5x9 bathroom layout that works and one that doesn't usually comes down to a single decision: whether the toilet and vanity are sharing a surface they can't both fit on comfortably, or whether the room's length is doing the job of keeping them apart.

The four 5x9 bathroom floor plans below are the ones that hold up.

What a 5x9 bathroom floor plan renovation typically costs

A 5x9 bathroom is compact, but renovation costs don't scale down the way you might expect. The trades are the same regardless of square footage. A plumber charges by the job, not the inch, and the labor-to-material ratio often runs higher in small bathrooms because the work is more intricate in a confined space.

• Basic refresh: $8,000 to $15,000. New tile, updated fixtures, a vanity swap, and fresh paint, all within the existing plumbing footprint. Nothing moves. At this level, you're changing how the space looks without touching the rough-in, which keeps costs predictable and the timeline short.
• Mid-range renovation: $15,000 to $28,000. Higher-quality materials, a new tub or shower configuration, improved lighting, and potentially one fixture relocation. Moving a toilet or vanity in a 5x9 typically adds $1,200 to $3,500 depending on how far the new position sits from the existing drain.
• High-end renovation: $28,000 to $45,000+. A full gut with custom tilework, a walk-in shower conversion, premium fixtures, and possible layout reconfiguration. At this level, you're replacing the waterproofing membrane and subfloor, upgrading supply lines, and likely pulling permits. Permit costs typically run $400 to $1,800 depending on your municipality and scope.

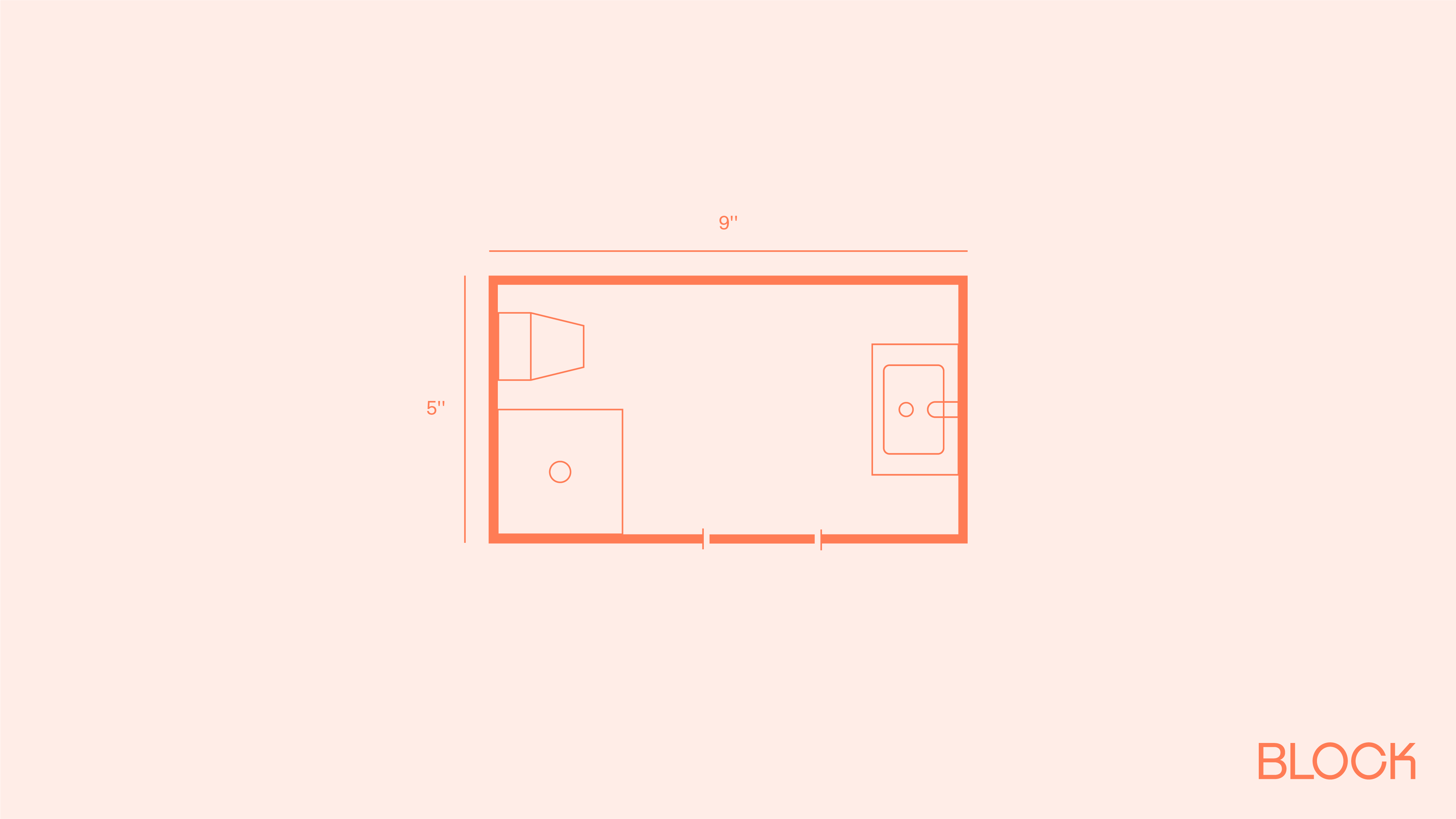

5x9 bathroom layout 1: shower and toilet on the left, vanity on the right

The toilet sits upper-left. The shower occupies the lower-left. The vanity is positioned on the right side. Entry is through the bottom center.

The case for ditching the tub in a 5x9 bathroom layout

This is the only configuration in the set without a tub, and that's the decision that makes it work. A standard alcove tub is 60 inches long. In a space that's 60 inches wide, fitting a tub on the short side leaves nothing else on that surface. Replacing it with a shower gives the left side two usable zones: toilet and shower, without either one being squeezed.

The sink is positioned opposite the shower, which creates natural separation between wet and dry zones.

This is the right 5x9 bathroom layout with a shower for anyone who uses the shower daily and the tub rarely or not at all. A walk-in shower in this footprint can realistically be 36x48 or larger. That's enough to use comfortably, and more than most tub-shower combos in the same footprint would allow.

What this layout costs to build

If you're converting an existing tub-shower combo to a dedicated walk-in shower, budget $2,000 to $5,000 for the conversion beyond standard renovation costs. That covers demo, a new shower pan or linear drain, waterproofing, and glass or tile enclosure. Relocating the vanity to the right side may require a short drain extension if the existing rough-in is on the left. Expect $800 to $1,500 for that move.

One thing to confirm with your contractor: a 5-foot-wide shower with no door or curtain works in a larger bathroom, but in a 5x9 the spray containment needs to be planned carefully. A fixed glass panel is typically the right call here.

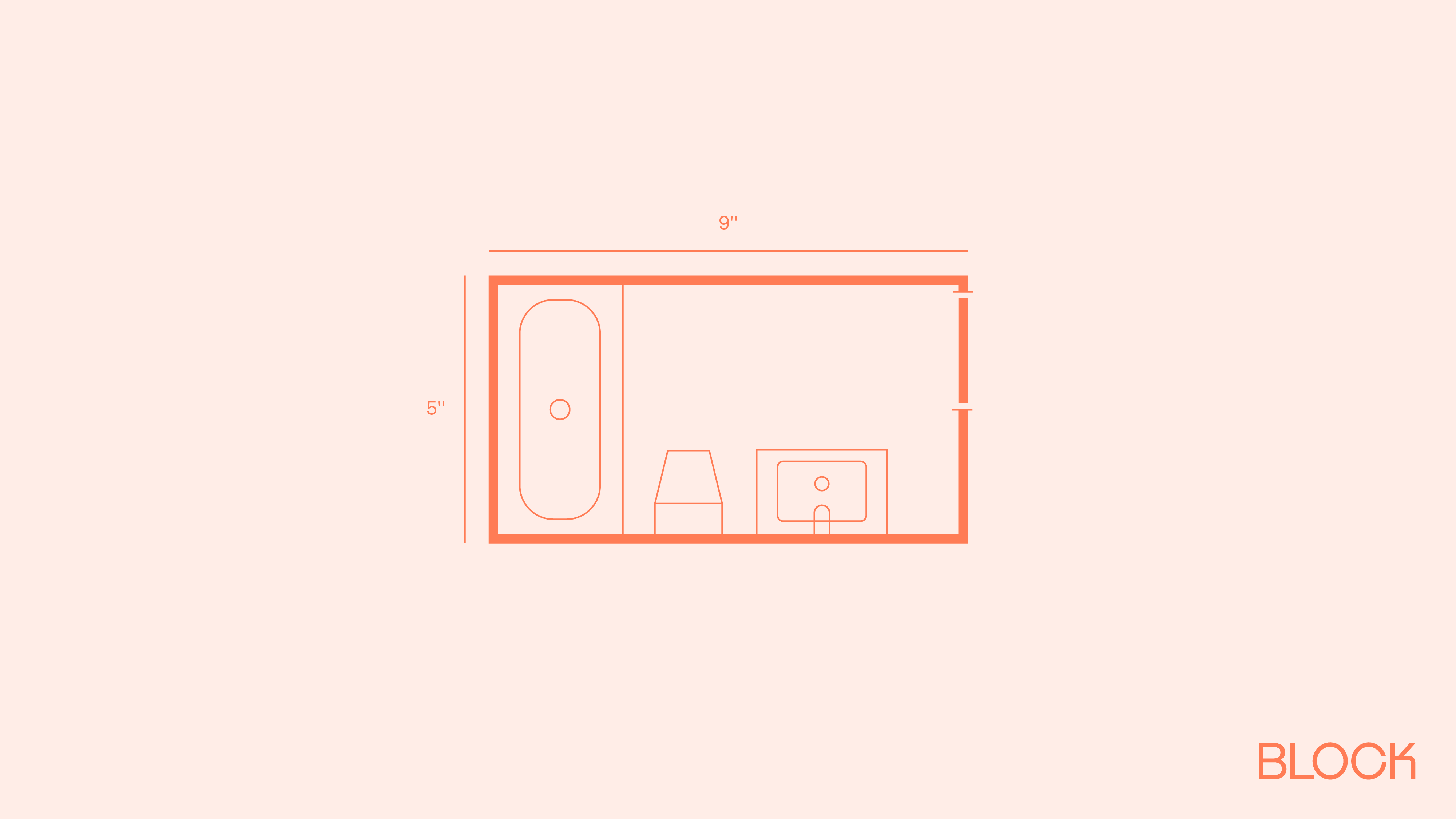

5x9 bathroom floor plan layout 2: tub on the left, toilet and vanity side by side on the right

The tub runs the full length of the left side. The toilet and vanity sit side by side along the bottom. Entry is through the right.

Why the linear layout is the most common 5x9 floor plan

This is the configuration most 5x9 bathrooms are born with, and there's a reason it persists. The tub takes the long side, which is the only one long enough to hold it. The toilet and sink share the far end of the space, keeping all three fixtures in a logical sequence as you move from the door inward.

The honest limitation is the side-by-side toilet and vanity placement. In a space that's 5 feet wide, the person standing at the sink is directly adjacent to the toilet. It works for a bathroom one person uses at a time, and it's the configuration to keep if you're doing a basic refresh without moving plumbing.

Making the most of this 5x9 bathroom layout

The two upgrades that help this configuration most are both low-cost:

• Replace a standard vanity with a wall-hung model. Lifting it off the floor opens up the lower half of the right side visually and makes cleaning easier. A wall-hung vanity in this position typically runs $400 to $1,200 installed.
• Add a full-length mirror above the sink. In a narrow space, a mirror that runs from the countertop to the ceiling makes the area feel twice as tall. It costs almost nothing relative to the visual impact.

If you are moving plumbing, the single most useful change here is shifting the sink to the end rather than the side. That puts it at the far end of the space, improves sight lines from the door, and gives the toilet its own zone.

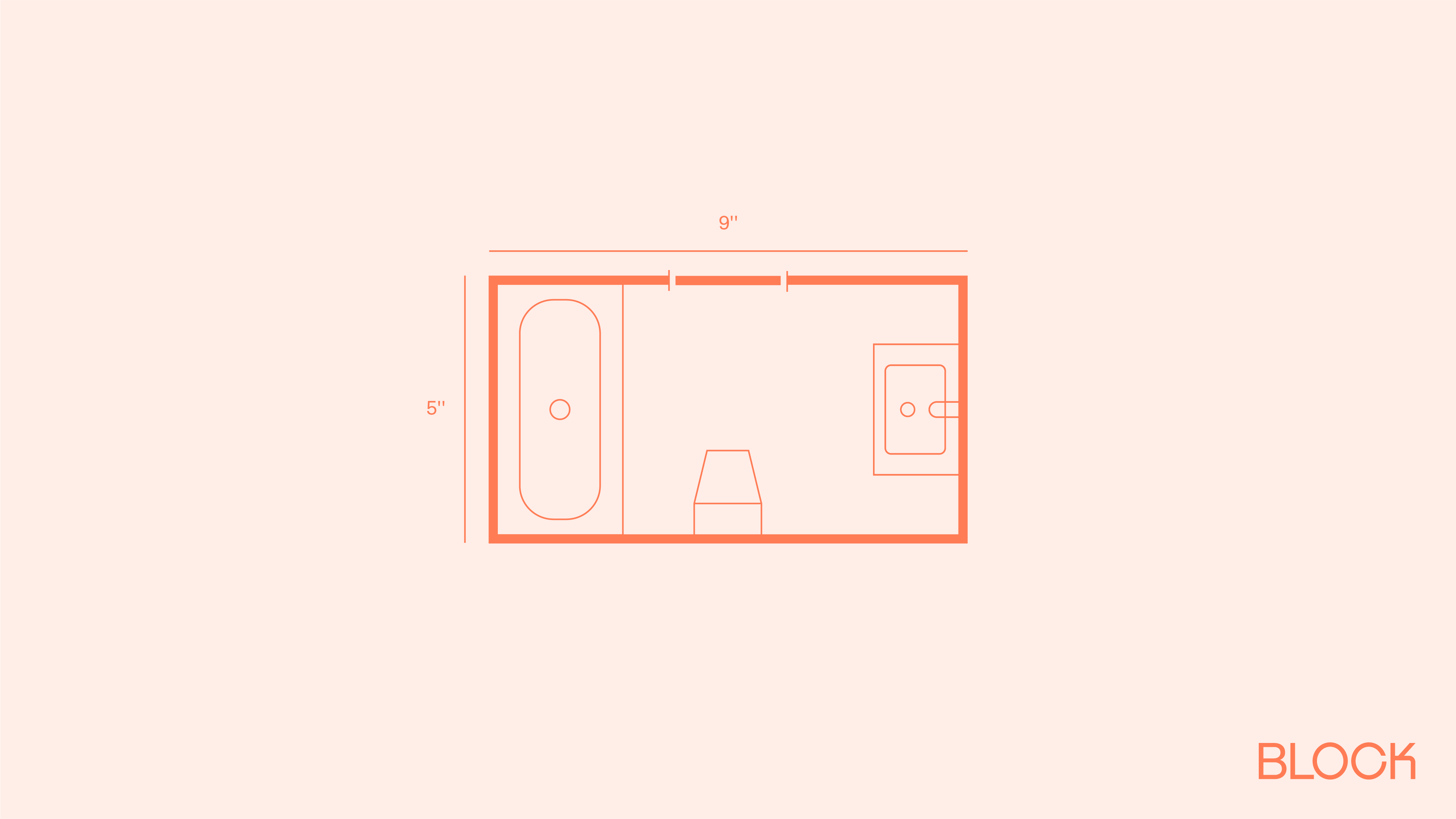

5x9 bathroom layout 3: tub on the left, toilet centered, vanity on the right with entry at top

The tub occupies the left side. The toilet sits center-bottom. The vanity is on the right. Entry is through the top center.

What the door position changes about this layout

The entry at the top center is what separates this from Layout 2. Rather than entering from the corner and moving along the tub, you enter from the middle and the space opens left and right in front of you. The tub is on the left, the vanity is on the right, and the toilet is between them at the far end.

That arrangement gives the toilet a more neutral position than the side-by-side configuration in Layout 2. It's not tucked away, but it's not immediately adjacent to the sink either.

The floor plan 5x9 bathroom layout trade-off to know

The top-center entry requires the door to swing into the space or into the hallway. It can't swing into the tub zone. This is worth mapping out before committing to the configuration. If your existing door rough-in is on the side and moving it to the top center requires reframing, add $600 to $1,500 to your estimate. If the door position already works, this is the most balanced of the four options for a bathroom one person uses at a time.

If the right side gets natural light from a window, the vanity benefits more from this placement than in any other configuration in the set. The counter and mirror read as their own destination rather than an afterthought at the end of a corridor.

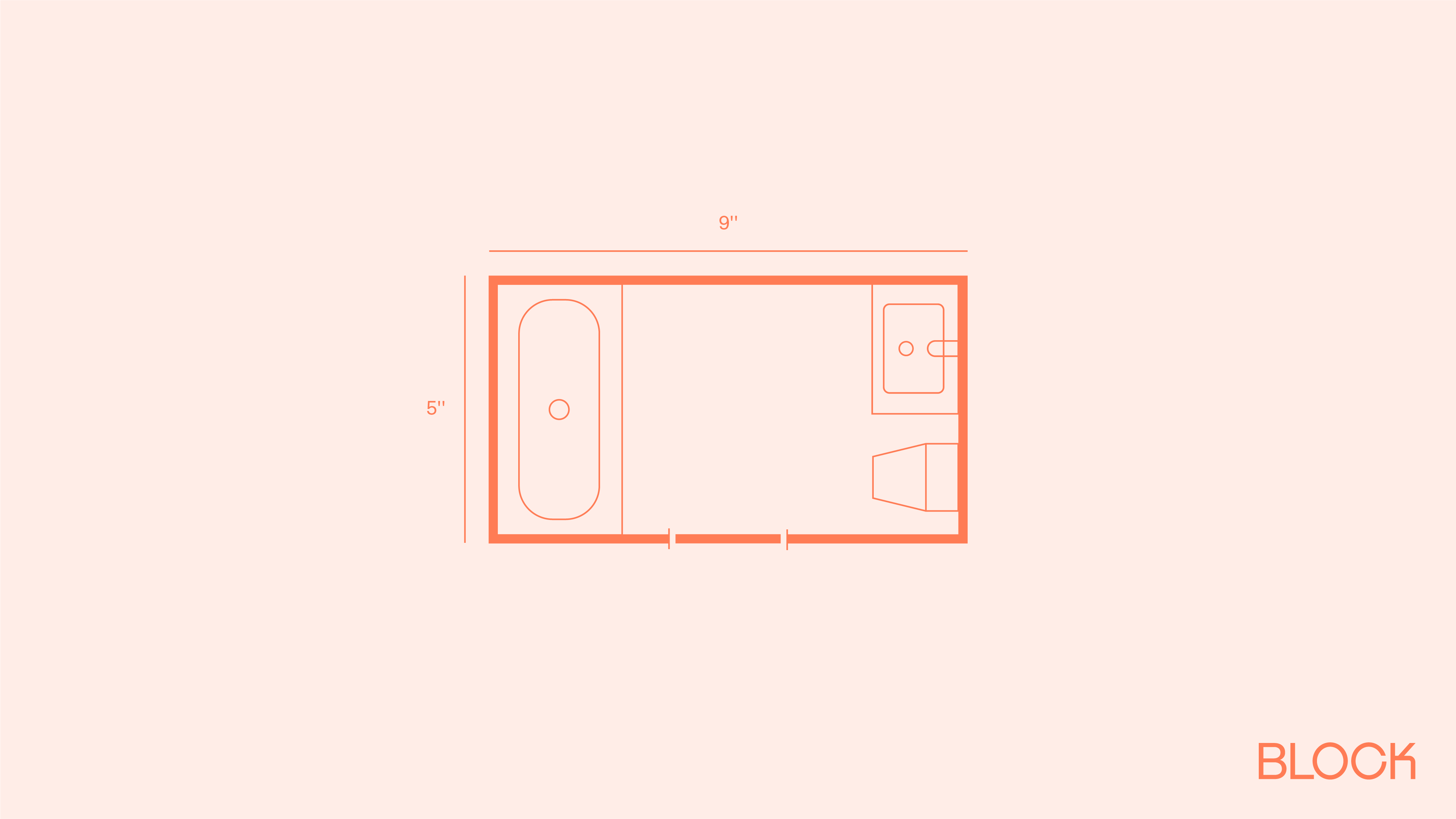

5x9 bathroom layout ideas: layout 4, tub on the left, vanity upper-right, toilet lower-right

The tub runs the left side. The vanity sits upper-right. The toilet is positioned lower-right. Entry is through the bottom center.

The strongest single-file 5x9 bathroom layout

This is the most resolved of the four configurations. The tub anchors the left side across the full 5-foot depth. The vanity and toilet stack vertically on the right, with the sink above and the toilet below. Entry at the bottom center gives you a clear line of sight down the space without the toilet being the first thing you see.

The vertical stacking is the detail that makes this work better than it looks on paper. In a 5x9, placing the toilet and vanity side by side puts the sink directly on top of the toilet. Stacking them end to end gives each fixture its own territory and keeps the space from feeling jammed.

Why this 5x9 bathroom floor plan keeps costs down

All plumbing runs on the right side. Toilet drain, vanity drain, and supply lines are consolidated, which means:

• Shorter drain runs with less chance of slope issues
• Supply lines that don't need to cross the floor
• A single plumbing side that's easier to access for future repairs
• No need to cut into the subfloor for a remote fixture position

If your existing bathroom already has plumbing on the right, this configuration likely requires the least reconfiguration of any option here.

One decision that matters more than it seems

The vanity sits at the upper-right, which puts the mirror and overhead lighting at the top of that surface. If the right side has no natural light, plan for sconces flanking the mirror rather than a single overhead fixture. The difference in how you look at 7am is worth the extra circuit.
