6×12 Bathroom Floor Plans: How to Design a Narrow Bathroom That Actually Works

A 6×12 bathroom gives you 72 square feet to work with. That sounds modest, and in some ways it is. But it’s also one of the most common footprints in American homes, showing up in older urban apartments, new construction townhouses, and everything in between. Done well, it can hold a soaking tub, a double vanity, and a private water closet, and gives you the room to play unavailable to 5x10 or 6x6 spaces.

The challenge with a narrow bathroom isn’t square footage, it’s the ratio. At 6 feet wide, you have very little room to make mistakes with fixture placement. Every inch of clearance matters, and the order in which you arrange things along the 12-foot run can mean the difference between a bathroom that flows naturally and one you’re constantly sidestepping yourself in.

To help, Block Renovation created 6×12 bathroom floor plan configurations, assessing each one based on real building code requirements and practical design principles. Below, we walk through each one: what works, what’s tight, and what to watch out for before your renovation begins.

What the building code actually requires in a 6×12 bathroom layout

Before getting into layouts, it helps to understand the rules that govern fixture placement in any bathroom, regardless of size. These come from two main sources: the International Residential Code (IRC), which sets legal minimums, and the National Kitchen and Bath Association (NKBA), which publishes more livable recommended standards.

• Toilet clearances. The IRC requires at least 15 inches from the toilet’s centerline to any wall or adjacent fixture on either side, and at least 21 inches of clear floor space in front. The NKBA recommends 18 inches to each side and 30 inches in front, noticeably more comfortable but harder to achieve in a 6-foot-wide room.
• Sink clearances. A single sink needs its centerline to fall at least 15 inches from any wall (20 inches per NKBA). In a double-sink vanity, the two centerlines must be at least 30 inches apart, with 36 inches being the NKBA’s preferred spacing.
• Shower and tub clearances. A shower stall must measure at least 30 by 30 inches on the interior (the NKBA recommends 36 by 36). Both the shower entry and the front of a bathtub need at least 21 inches of clear floor space in front, or 30 inches per NKBA guidelines.
• Separate toilet compartments. If the toilet is enclosed in its own compartment, that compartment must be at least 30 inches wide by 60 inches deep per IRC. The NKBA recommends 36 by 66 inches.

In a 6-foot-wide bathroom, these clearances aren’t generous. The 6-foot dimension leaves roughly 72 inches of usable width, which when you account for a typical 24-inch-deep vanity on one side and a toilet on the other, leaves a narrow aisle through the middle. The design decisions you make up front will determine whether that aisle is comfortable or constantly contested.

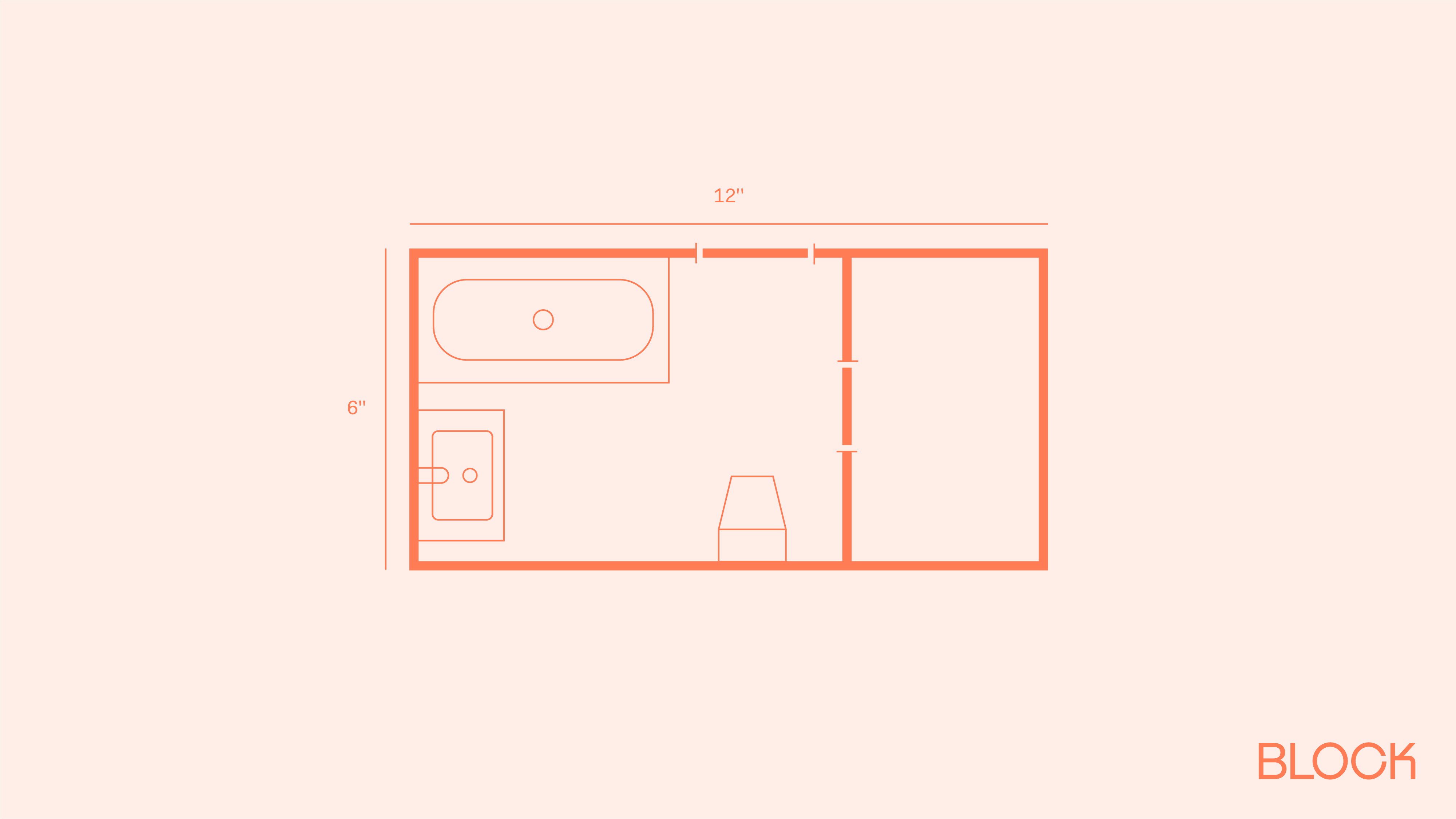

6×12 bathroom floor plan option 1: Single sink, soaking tub, toilet, and enclosed water closet

Of all the 6×12 layouts here, this one moves the best. Fixtures follow a logical sequence from left to right: vanity, soaking tub, toilet, and an enclosed water closet at the far end. The wet zone is concentrated on the left side of the room, the toilet sits in the middle with open aisle space on both sides, and the enclosed WC provides privacy without dominating the footprint. The compartment appears to meet or exceed the 30-by-60-inch IRC minimum, and the overall zoning works well for a shared primary bathroom.

A few things to verify before finalizing:

• If the single sink’s centerline falls closer than 20 inches to the left wall, elbow room at the vanity will feel tight. A wall-mounted or compact vessel sink can help if the left wall is the limiting factor.
• This plan doesn’t include a shower. If this is a primary bathroom, confirm whether a tub-only configuration works for your household, or whether a shower should be part of the program.

6×12 bathroom floor plan option 2: Soaking tub, toilet, and stacked double sinks

This layout takes a less conventional approach and pulls it off. Orienting the soaking tub with its long axis running north-south along the left wall is a smart use of the 6-foot depth, and the entry at the bottom of the room keeps the door swing away from every wet fixture.

The part that raises eyebrows is the stacked double-sink configuration along the right wall, making it a jack and jill bathroom. Each sink needs at least 21 inches of clear floor space in front, and the room’s 6-foot width must provide adequate turning room between the sinks and the opposite wall. Worth confirming with your contractor before finalizing.

The catch: there is no enclosed toilet compartment here, which makes this layout better suited to a single-user primary bath than a shared one.

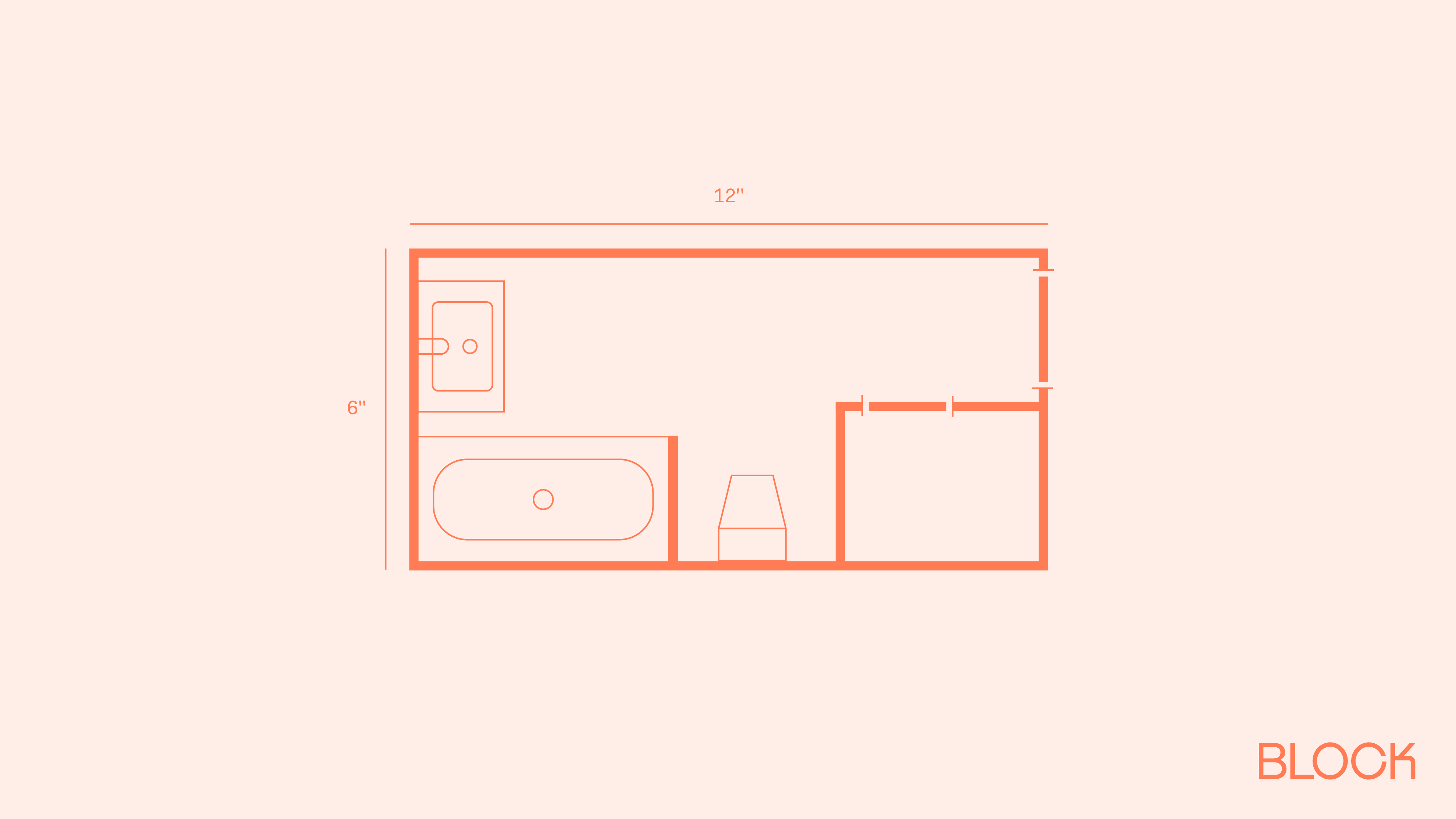

6×12 bathroom floor plan option 3: Soaking tub, single sink near entry, toilet, and enclosed water closet

This plan rearranges the fixtures from option 1, with the tub and sink swapping positions. Keeping the enclosed water closet was the right call, and the fixture count is the same. The problem is where the sink lands.

Placing the sink at the bottom-left, near the entry door, means vanity use and bathroom entry happen in the same zone. The circulation path to the toilet or water closet requires passing through the wet zone, which creates friction. There are also two things to watch closely:

• If the door swings into the room, it could conflict directly with someone standing at the sink, making an outswing or pocket door a strong consideration.
• The code clearances are achievable with careful planning, but if you’re weighing option 1 against option 3, option 1 simply moves better.

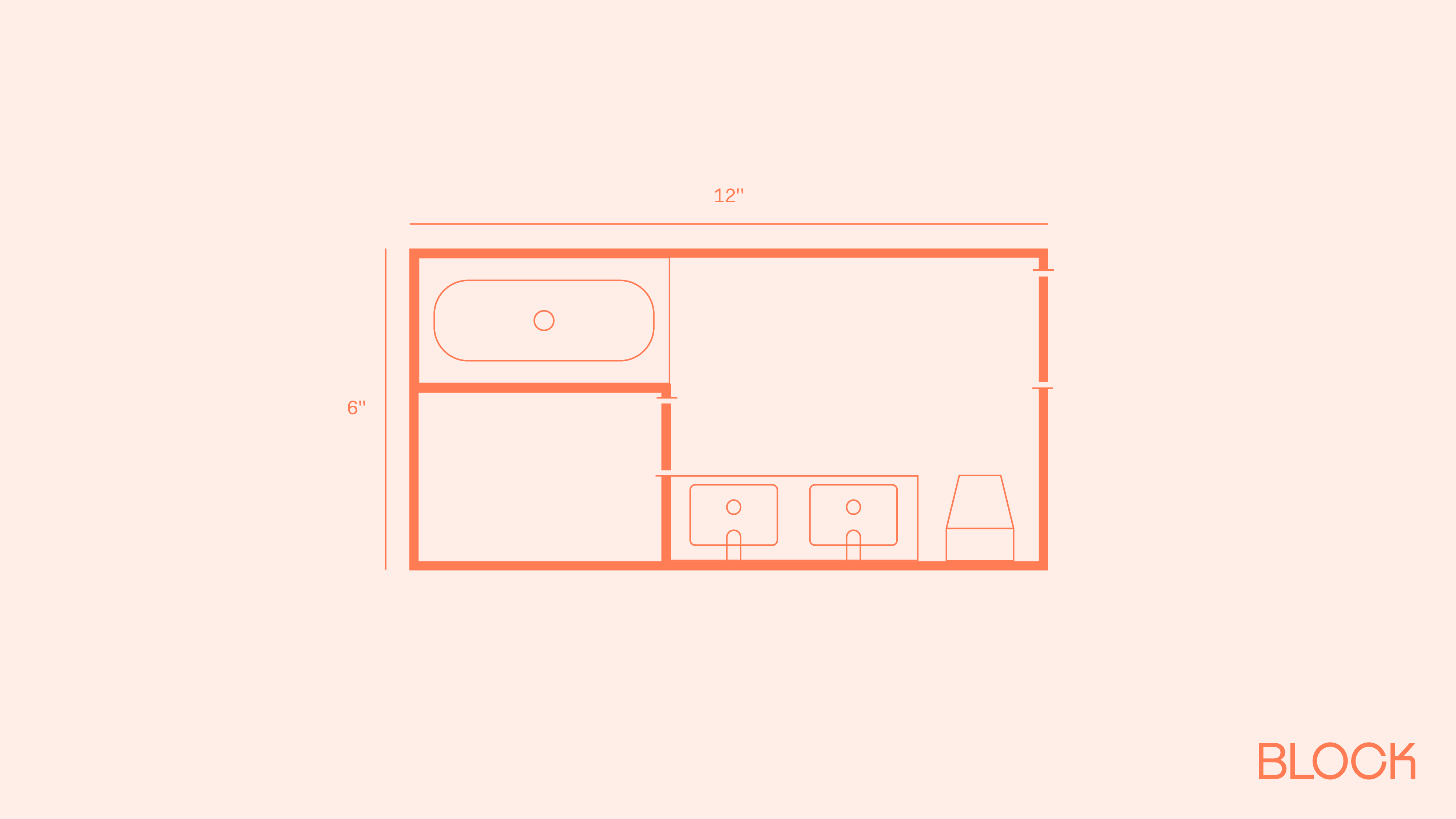

6×12 bathroom floor plan option 4: Soaking tub, shower or WC, double sinks, and toilet

This plan is the most ambitious 6×12 bathroom layout in the group, attempting to fit a soaking tub, a separate shower or enclosed compartment, a double-sink vanity, and a toilet into 72 square feet. The wet zone is well-isolated on the left half of the room. Getting everything to code requires precision.

The zone that demands the most scrutiny is the bottom-right, where the double sinks and toilet share a roughly 6-foot run. The IRC requires 15 inches of clearance from the toilet centerline to each neighboring fixture, which is achievable here but tight. The NKBA’s preferred 18-inch clearance on each side would require a wider vanity configuration than the room’s width may allow. The separate shower or WC compartment in the lower-left also needs a hard look, since its interior footprint must reach at least 30 by 30 inches for a shower or 30 by 60 inches for a toilet compartment, and the plan is right at the edge on both counts.

If there’s one layout that will punish you for skipping the designer conversation early, it’s this one.

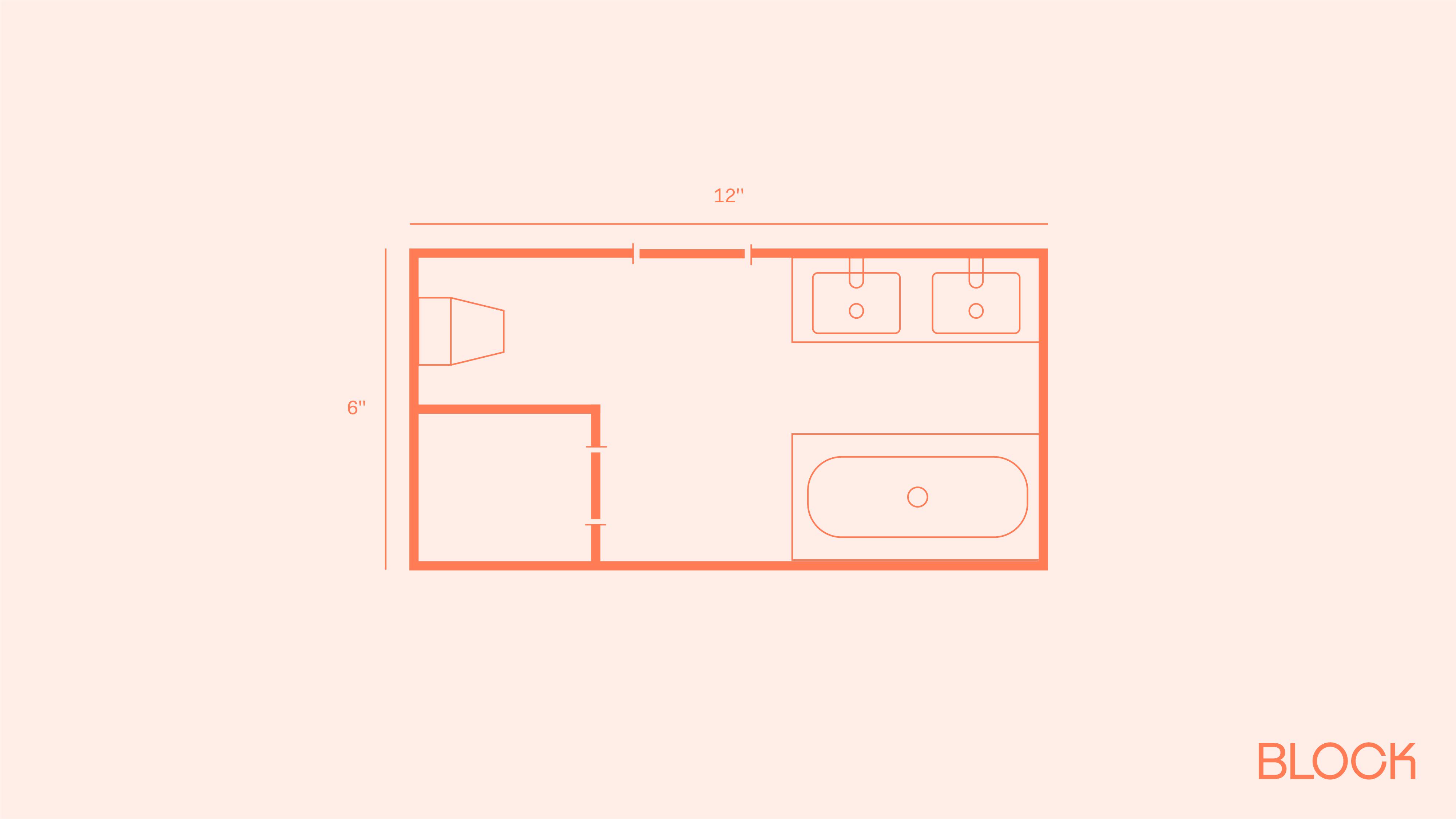

6×12 bathroom floor plan option 5: Soaking tub, separate shower, double sinks, and toilet

This is the one that wants to do too much. A soaking tub, a separate shower stall, a double vanity, and a toilet, all within 6×12 feet.

The shower stall needs to clear the 30-by-30-inch minimum interior dimension, which is tight but potentially achievable. The more serious concern is the bottom-right zone, where the toilet sits directly adjacent to two sinks. The IRC’s 15-inch clearance from toilet centerline to the nearest fixture will be very difficult to meet if both sinks occupy the same wall segment, and the 21-inch frontal clearance for the toilet may also conflict with the vanity counter depth or an inswing door.

This plan is not recommended without verification from a licensed designer or contractor who can confirm that fixture placement meets minimum code requirements. It’s still worth talking through with a contractor, specifically as an example of how adding a second wet fixture forces compromises elsewhere that may not be apparent until the floor plan is measured out at full scale.

Bring Your Dream Bathroom to Life

Explore stunning design ideas, materials, and color schemes tailored to your space—no guesswork, just inspiration.

Start Designing

Why narrow bathroom layouts are harder than they look

Clearances cascade

In a square bathroomroom, a poorly placed toilet might just mean a slightly awkward layout. In a 6-foot-wide, narrow bathroom, it can mean nothing else in the room works either. Because the 6-foot dimension is already close to the minimum for a full bathroom, each fixture’s clearance zone overlaps with its neighbors. Getting four or five fixtures right simultaneously requires the kind of precise sequencing that benefits from experienced eyes.

The wet zone and the circulation path compete

In a wider bathroom, it’s easy to route traffic through a dry zone so that a person can reach the toilet without walking through the wet area. In a 6×12 bathroom layout, the wet and dry zones often share the same central aisle. The strongest floor plans in this guide solve this by concentrating the wet zone at one end of the room and placing the entry at the other.

The door is a wildcard

In a 6-foot-wide room, a standard 30-inch door that swings into the bathroom consumes a meaningful chunk of available floor area. An inswing door near the vanity can create a conflict between the door arc and whoever is standing at the sink. For 6×12 bathroom floor plans, an outswing door, pocket door, or barn door is often worth the added cost. It’s a decision that looks like a style choice but is actually a practical one.

Privacy requires planning

Adding a water closet to a 6×12 bathroom is possible, and options 1 and 3 above both include one, but it requires dedicating roughly a third of the room’s length to that compartment. You gain privacy and multi-user functionality, but you give up floor area that could otherwise go toward a larger vanity or a more comfortable shower.

Ready to plan your bathroom renovation?

A 6×12 bathroom can be genuinely functional and beautiful, but it asks you to make good decisions early. The layouts above show both the range of what’s possible and the real constraints that determine which possibilities are worth pursuing.
