Alcove Tubs vs. Drop-In Tubs: Installation Costs, Tradeoffs & More

The choice between an alcove tub and a drop-in tub influences both your bathroom’s layout and overall comfort. Beyond aesthetics, these two formats differ in cost, structure, and how they fit within limited or generous floor plans. Alcoves win on price and shower compatibility. Drop-ins win on looks and soaking depth. The rest of this guide covers what that costs you in dollars and square footage.

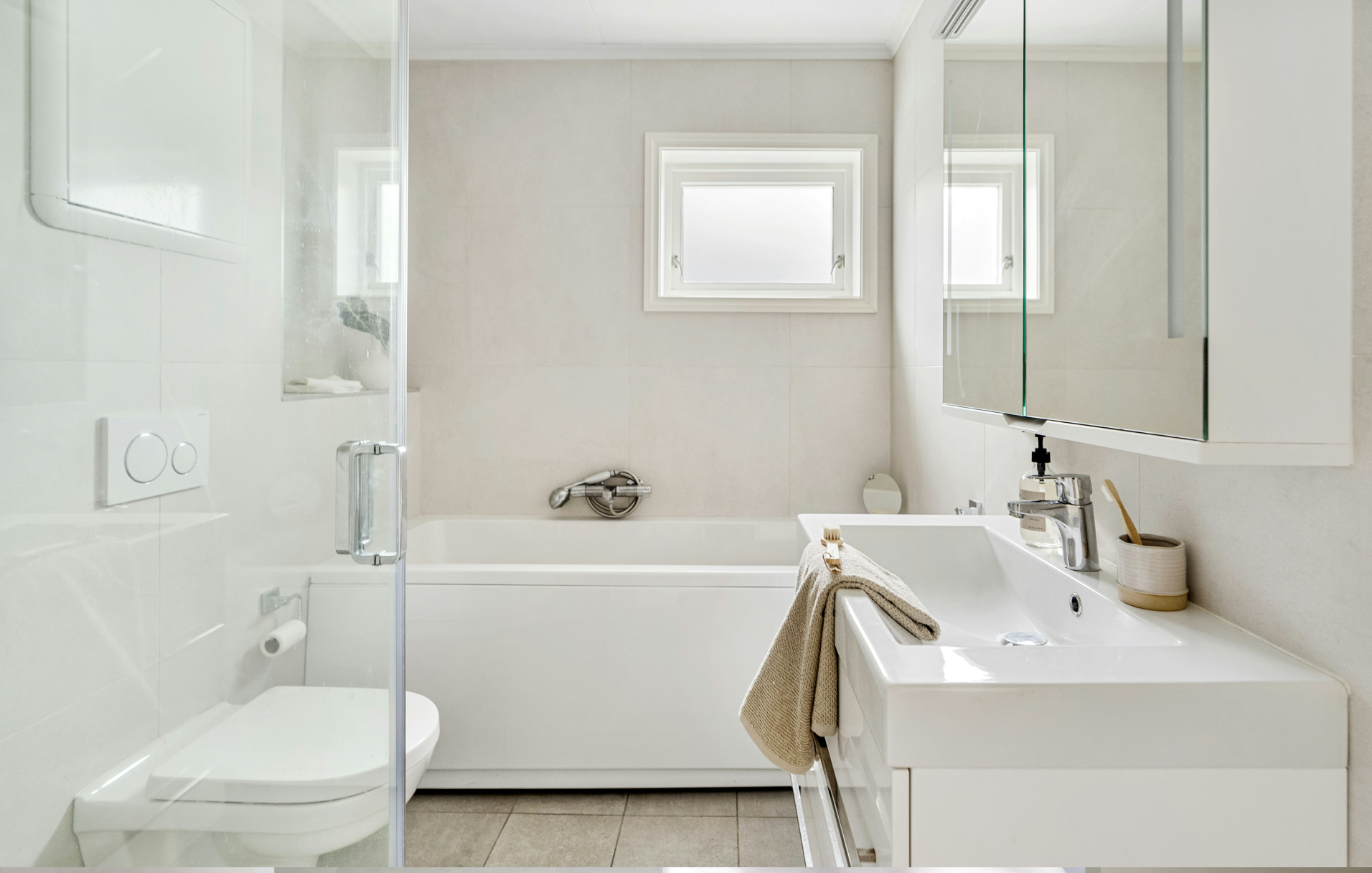

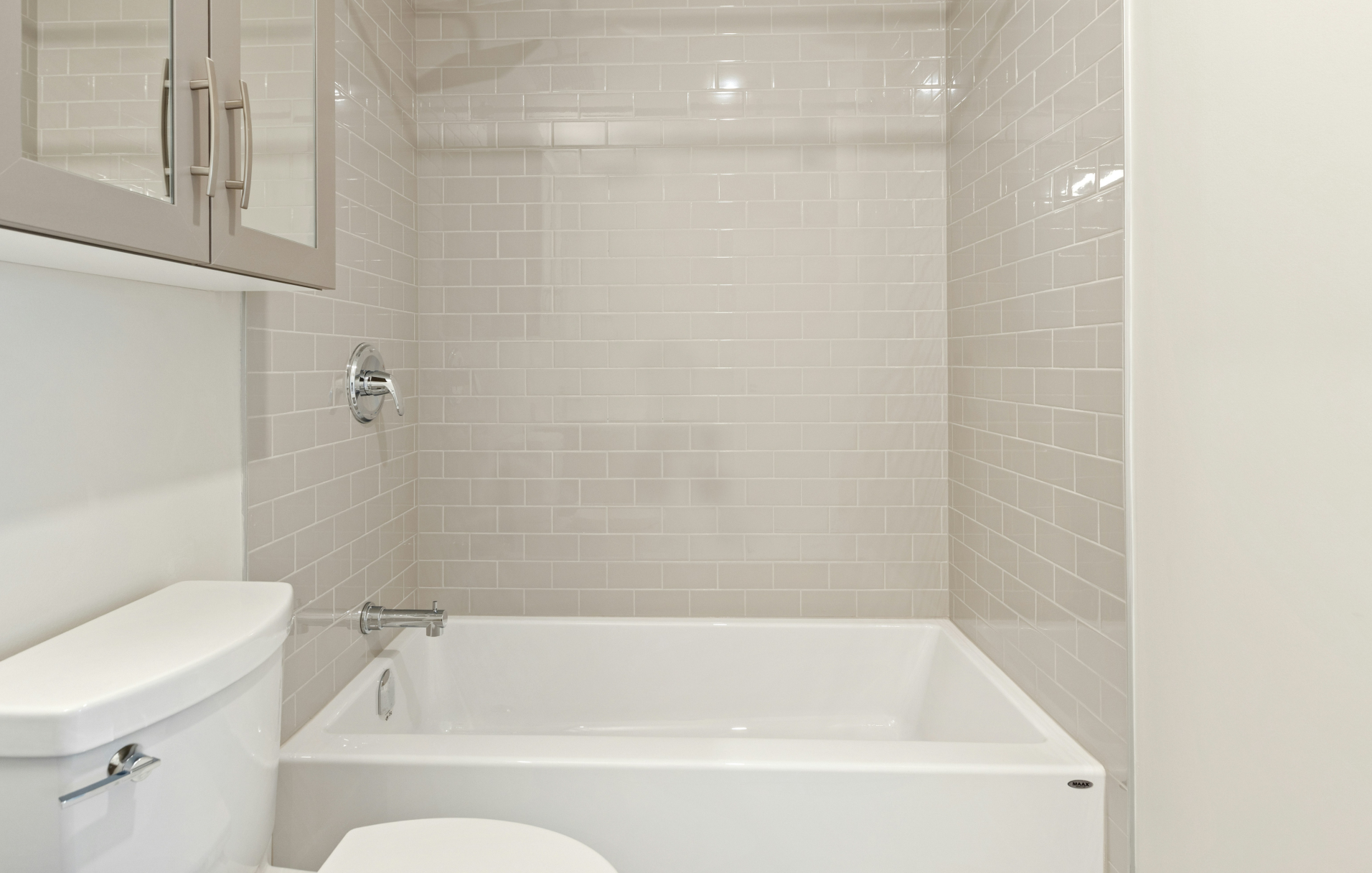

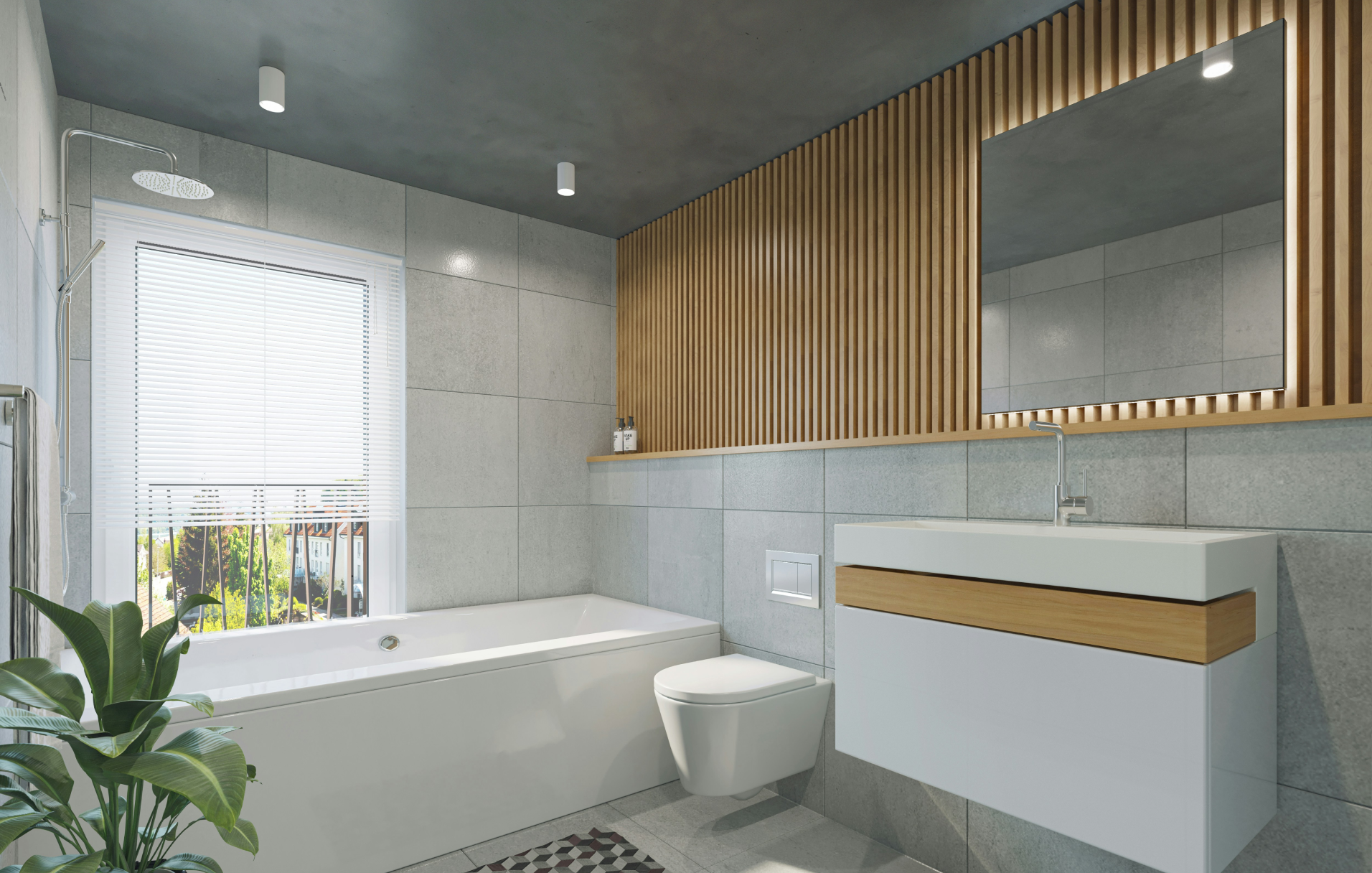

What is an alcove tub?

An alcove tub is designed to fit into a three-wall recess, typically with the front finished by an integral apron and one long side used for a shower.

Most alcove models are standard-sized (often 60 inches long) and pair easily with a tub-shower surround, making them common in space-conscious bathrooms. They’re practical for families and guest baths, offer straightforward alcove tub installation, and are generally more budget-friendly to purchase and install.

An alcove tub’s reduced footprint nature is a double-edged sword; though typically measuring 5’ in length, users will only be able to enjoy 54”–56” of actual interior length. If you or anyone in your household is over 5'10", your knees are sticking out of the water. The fix is a 66" or 72" alcove model, but this diminishes the cost-saving and space-saving upsides of alcove tubs.

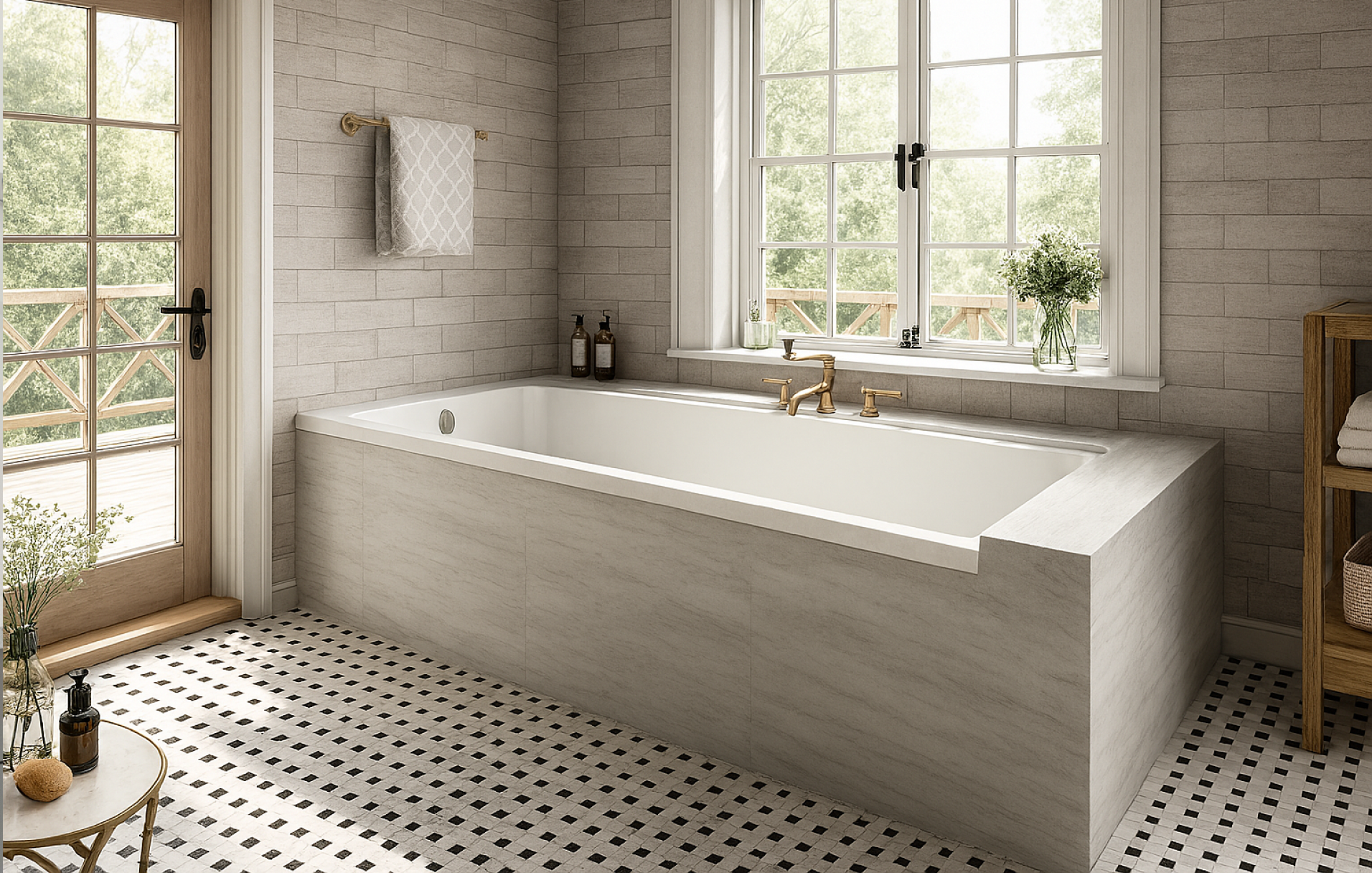

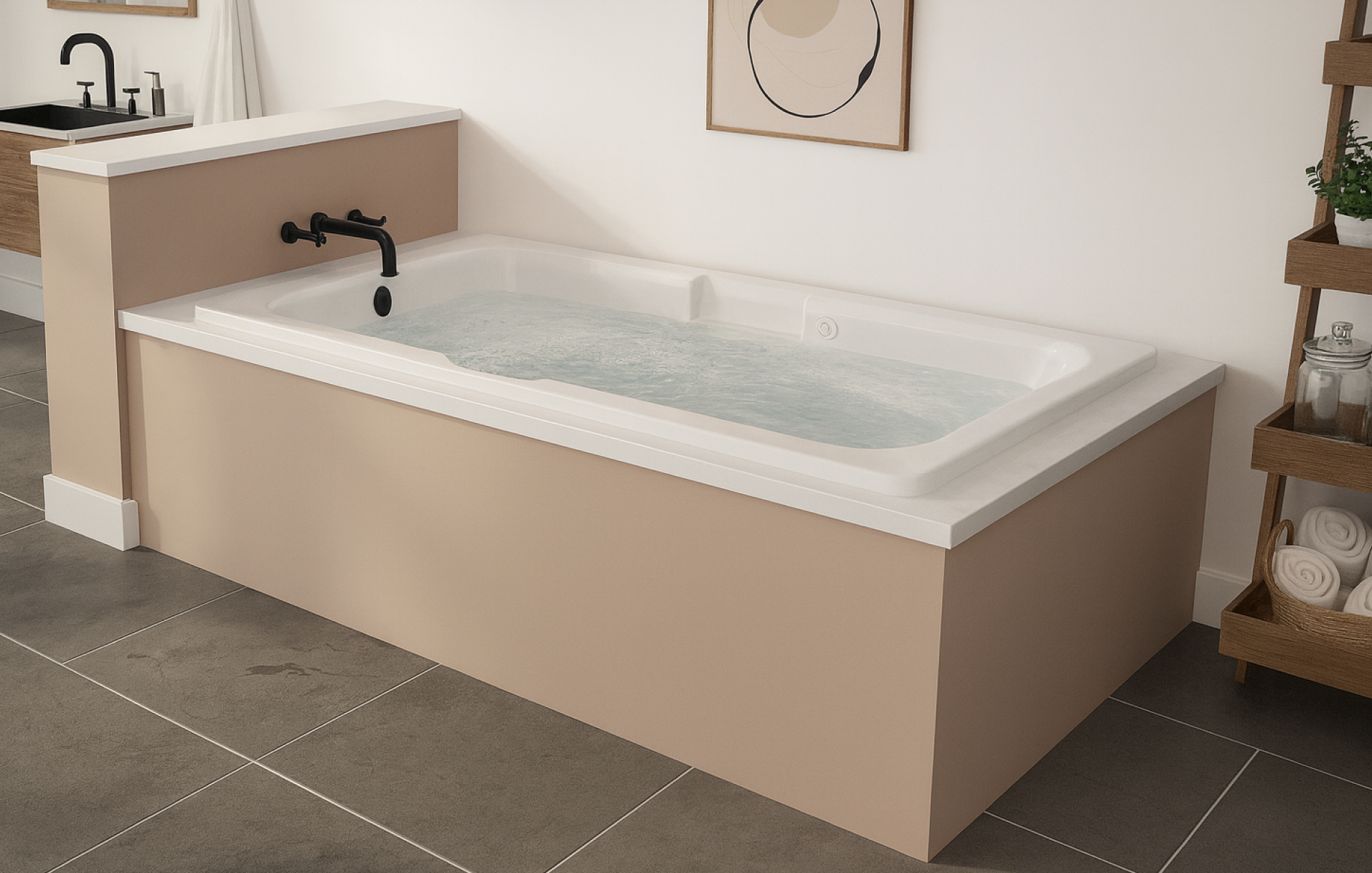

What is a drop-in tub?

A drop-in tub is a shell set into a deck or platform so the rim rests on the surrounding surface, which gives it a built-in look that an alcove tub can't replicate.

These tubs come in varied shapes and sizes, including oval and oversized soaking models. Drop-ins suit larger bathrooms or primary suites, especially considering that the deck, waterproofing, and finishing carpentry require higher costs and construction time.

Standard drop-ins run 60–72" long with 16–18" of water depth to the overflow. Moreover, true soaking models push to 19–22", versus the 12–14" you actually get in a standard alcove. That depth is the real reason people pay the premium.

However, the added depth may require a water heater upgrade. A 100-gallon soaking drop-in needs roughly a 75-gallon heater, and most American homes ship with a 40 or 50-gallon tank.

Alcove tubs vs. drop-in: key differences

Comparing costs: alcove vs. drop-in tubs

Cost of the tubs

Alcove tubs: Most alcove tubs fall in a price range of $1,600–$2,000, especially in standard 60-inch lengths made of acrylic or enameled steel. Cast iron or solid-surface alcove models cost more but still tend to be cheaper than comparable premium drop-ins. The Kohler Bellwether, a 60-inch enameled cast iron alcove tub that runs around $1,700, is a useful benchmark for what most contractors will spec as the upgrade pick within this range.

Features like integrated tiling flanges and textured floors are common without a significant price jump. For value-focused projects or secondary baths, alcove tubs often deliver the best price-to-function ratio.

Drop-in tubs: Drop-in tubs range widely in price due to size, shape, and materials, from affordable acrylic shells to high-end cast iron or solid surface models. An entry-level model like the Kohler Underscore (acrylic, 60x32") starts around $1,400, while premium brands like Victoria + Albert or MTI Baths can push past $5,000 for the shell alone. Oversized soaking or whirlpool features increase costs quickly, and matching a brand-specific drain or trim can add to the total.

Because you also need deck surface material (tile, stone, or solid surface), the overall fixture cost is only part of the equation. Homeowners typically choose drop-ins for primary suites where a larger portion of the budget is allocated to the bath.

Cost of the installation

Alcove tubs: Installation of an alcove tub is usually faster than a drop-in design because the tub fits into a three-wall cavity with an apron supporting the front. The surround can be tile or a prefabricated wall system, and waterproofing centers on the flange-to-wall integration and the shower area. When installing an alcove tub, expect to pay as much as $1,500. Bundling the installation with other bathroom remodeling projects can help reduce labor costs, while modifying plumbing can drive up the price tag.

Drop-in tubs: Installation costs of drop-in tubs are higher than those for alcove tubs because the deck has to be framed and waterproofed to tight tolerances. The rim requires consistent support, the access panel for the drain and any pump equipment must be planned, and the deck surface (tile or slab) adds material and labor. Plumbing may need rerouting to align with the new deck and overflow position. Finishing details and extra steps like templating slab tops extend timelines and budgets. Plan on $1,000–$3,000 for installation alone, before tile and fixtures.

Comparing structural needs and space requirements

Alcove tubs: An alcove tub needs a framed three-wall niche sized to the manufacturer’s specifications, with blocking for the flange and a level, supported base (often mortar-set). The integral apron carries front-edge loads, simplifying support design. Because most alcove tubs are 60 by 30–32 inches, they fit many standard bathroom footprints without layout changes. This compact setup pairs well with an alcove tub and shower combo to maximize function in limited space.

Drop-in tubs: A drop-in requires a platform or deck with structural framing tailored to the tub’s dimensions and load, along with a rigid, level setting bed. The rim must be fully supported around the perimeter, and an access opening is needed for future service. The deck expands the footprint beyond the bathing well, so ensure there’s adequate clearance for circulation and code-required spacing. This option suits larger bathrooms where a separate shower provides daily utility.

Comparing maintenance needs and longevity

Alcove tubs: With fewer horizontal ledges, an alcove tub in a tub-shower configuration tends to collect less dust and soap residue, making it overall easy to clean. Maintenance focuses on keeping grout or surround panels sealed and clean, and ensuring the caulk at the tub-to-wall joint stays intact. Routine care is simple with gentle, non-abrasive cleaners appropriate to the tub material. Proper installation with a firm setting bed and well-detailed flange can yield long service life with minimal issues.

Drop-in tubs: A drop-in tub’s deck introduces more ledges and seams where water and dust can settle, and deck materials like tile or stone require periodic sealing and careful cleaning. Access to the drain and any pump components (for whirlpool/air systems) should be maintained through a removable panel. Longevity depends on the quality of waterproofing at the deck and rim, as well as material selection. With careful detailing and consistent care, drop-ins can last for decades and retain their custom look.

Bring Your Dream Bathroom to Life

Explore stunning design ideas, materials, and color schemes tailored to your space—no guesswork, just inspiration.

Start Designing

Which tub holds resale value better?

The most important factor when comparing the two is that a drop-in tub is separate from the shower. This design choice works in a large primary suite with room and budget for both fixtures. It doesn't work in a bathroom where the tub also has to serve as the household's shower, which covers most starter homes, single-bath homes, and kid or guest baths.

This is important because most future homebuyers want both shower and bathtub functions. According to NAHB's What Home Buyers Really Want study, 72% of first-time buyers rate both a shower stall and a tub in the primary bath as "essential" or "desirable", the top-ranked feature out of 18 surveyed. First-time buyers have a median age of 33, often have young kids, and expect the primary tub to double as their daily shower.

A drop-in only earns back its cost in a luxury primary suite that also has a separate walk-in shower, where buyers expect the full five-piece bathroom. Put a drop-in in a starter or single-bath home and you're spending more to deliver less of what the next buyer wants.

Partner with a knowledgeable remodeler about which option works best for your bathroom

A trusted remodeler can evaluate your layout, framing conditions, and plumbing to recommend an alcove vs. drop-in bathtub that aligns with your space and budget. A good remodeler will tell you whether your existing framing can take a drop-in deck, or whether sticking with an alcove will save you a few thousand dollars in carpentry. If you anticipate a combined alcove tub shower, they can fine-tune waterproofing and fixture placement to make bathing and showering comfortable and safe.
