Smart 5x12 Bathroom Layouts for a Long, Rectangular Space

A 5x12 bathroom layout presents a real design puzzle. At just 60 square feet, you are working with a long footprint that requires careful planning to avoid a cramped or awkward result. But the right layout can make a rectangular 5x12 bathroom feel spacious, functional, and personal.

Block Renovation's design team created seven layout concepts for the 5x12 bathroom footprint, and after evaluating each for feasibility, functionality, and distinctiveness, we narrowed the set down to five standout options. Each takes a different approach to the same rectangular canvas. Some prioritize openness, others prioritize storage or fixture count, and one even imagines what an extra foot of width could do.

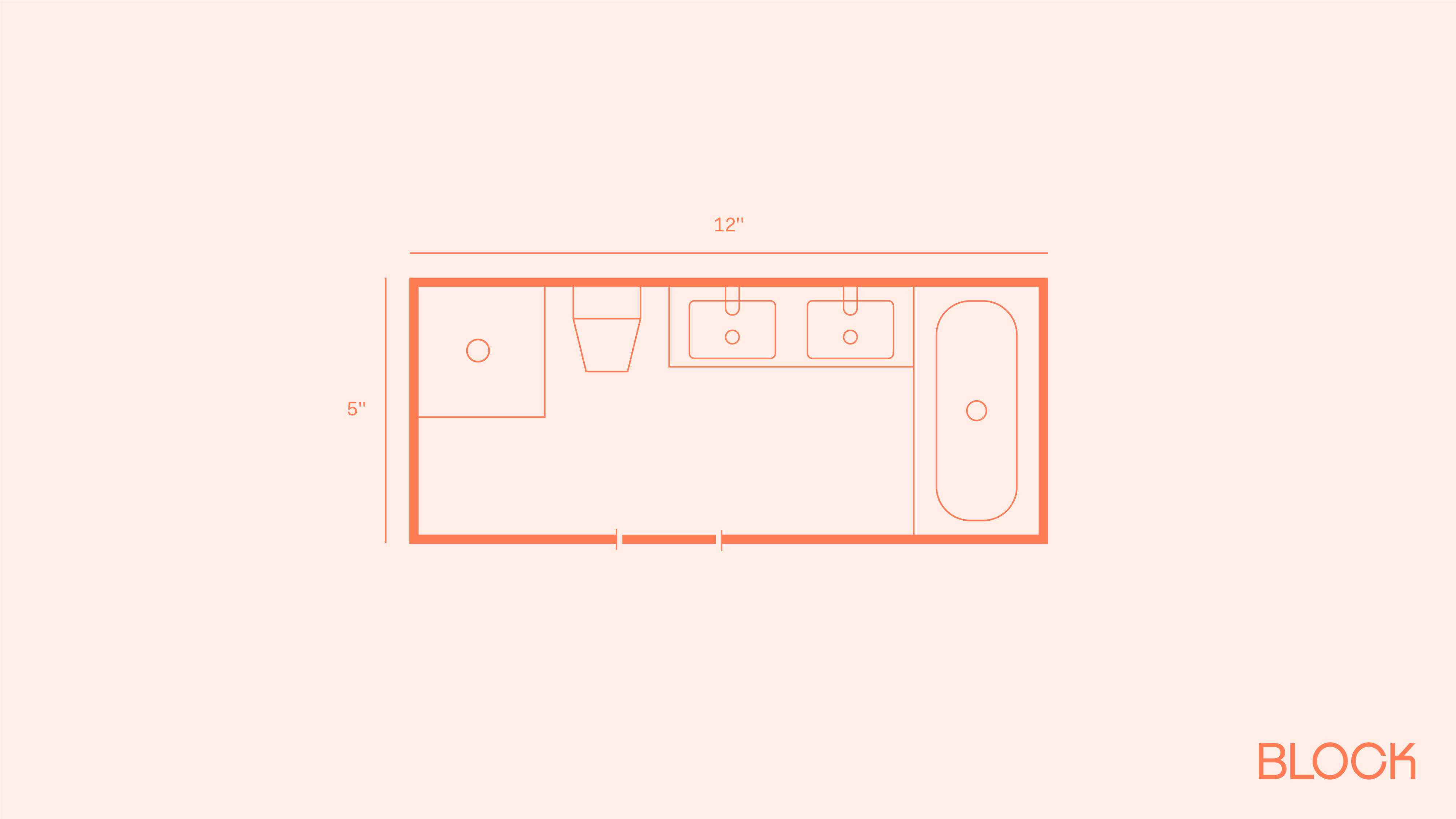

The double vanity powerhouse floor plan for 5x12 bathrooms

This layout is the most ambitious of the five. It lines up a shower stall, toilet, and two vanity sinks along the top wall, with a freestanding tub anchoring the far end of the room.

Advantages

The biggest win here is the double vanity. In a 5x12 bathroom, fitting two sinks is a feat, and this layout pulls it off without making the room feel stuffed. The single-wall wet zone arrangement keeps plumbing runs consolidated, which manages labor costs. The open floor area on the opposite side of the fixtures is generous for a room this size, giving you breathing room when you step out of the shower or tub.

Disadvantages

With this many fixtures packed into 60 square feet, clearances between the toilet, sinks, and shower will be tight. You will want to confirm that your layout meets local code requirements for minimum distances between fixtures. The double vanity also limits wall space for storage like towel bars or shelving, so plan on getting creative with recessed niches or over-toilet cabinetry. From a cost standpoint, more fixtures mean more plumbing connections and a higher materials budget.

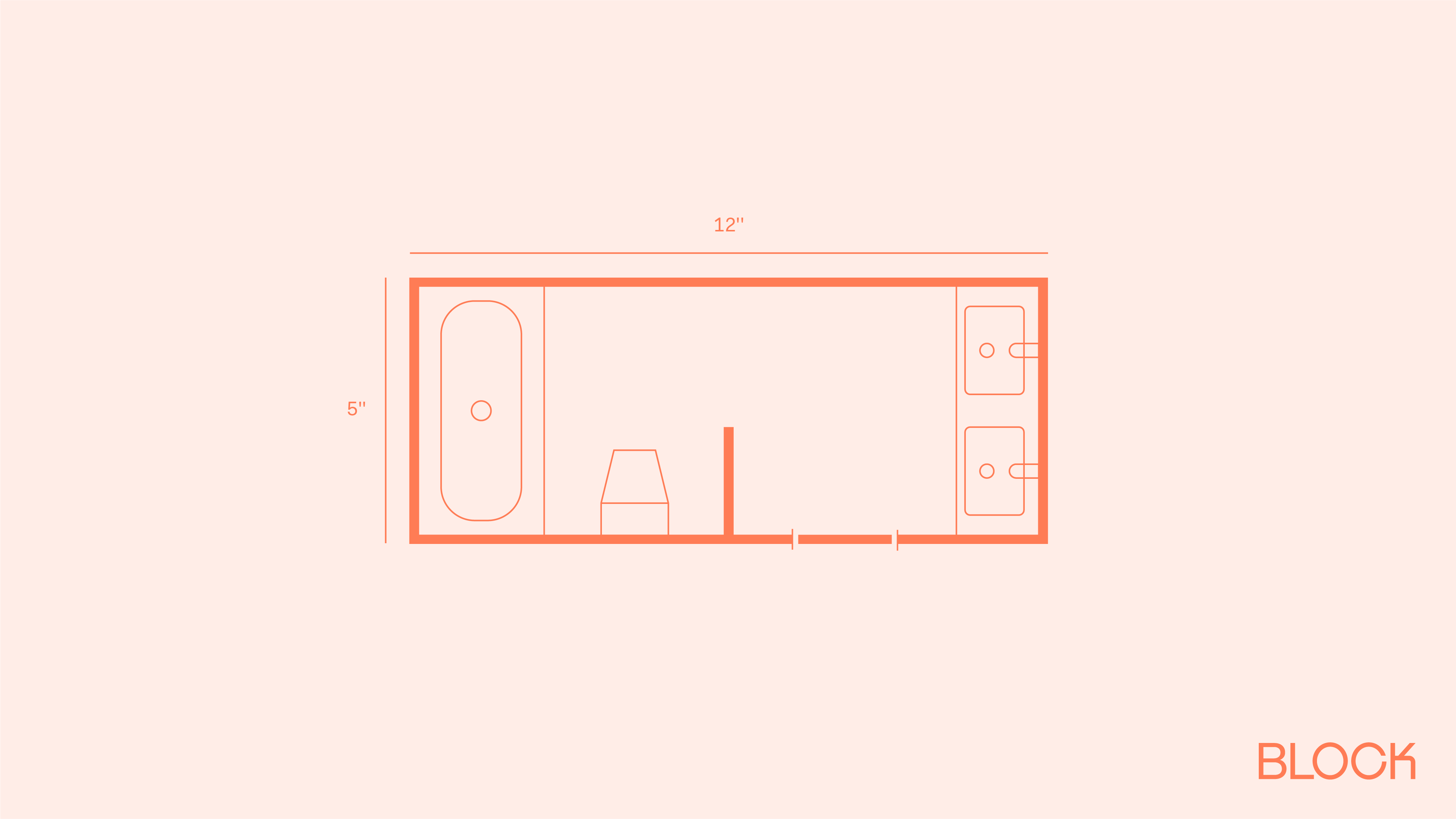

Stacked vanities with wet and dry separation floor plan for 5x12 bathrooms

Here, two vanity units are placed vertically along the right wall, separate from the tub and toilet zone on the left and center. The door sits on the bottom center of the plan.

Advantages

The clear separation between the wet zone (tub and toilet) and the dry zone (vanities) is this layout's strongest quality. Two vanity stations mean two people can get ready at the same time, which is a real upgrade for shared bathrooms. The stacked vanity arrangement also uses vertical wall space efficiently, leaving the center of the room open for movement.

Disadvantages

The right-wall vanity placement makes the left side of the bathroom feel heavier, since that is where the tub and toilet both sit. Running water lines to both the left and right walls adds complexity and cost compared to layouts that consolidate plumbing on one side. The vertical stacking of vanities will also feel unusual to some homeowners, and mirror and lighting placement requires extra thought to make both stations functional.

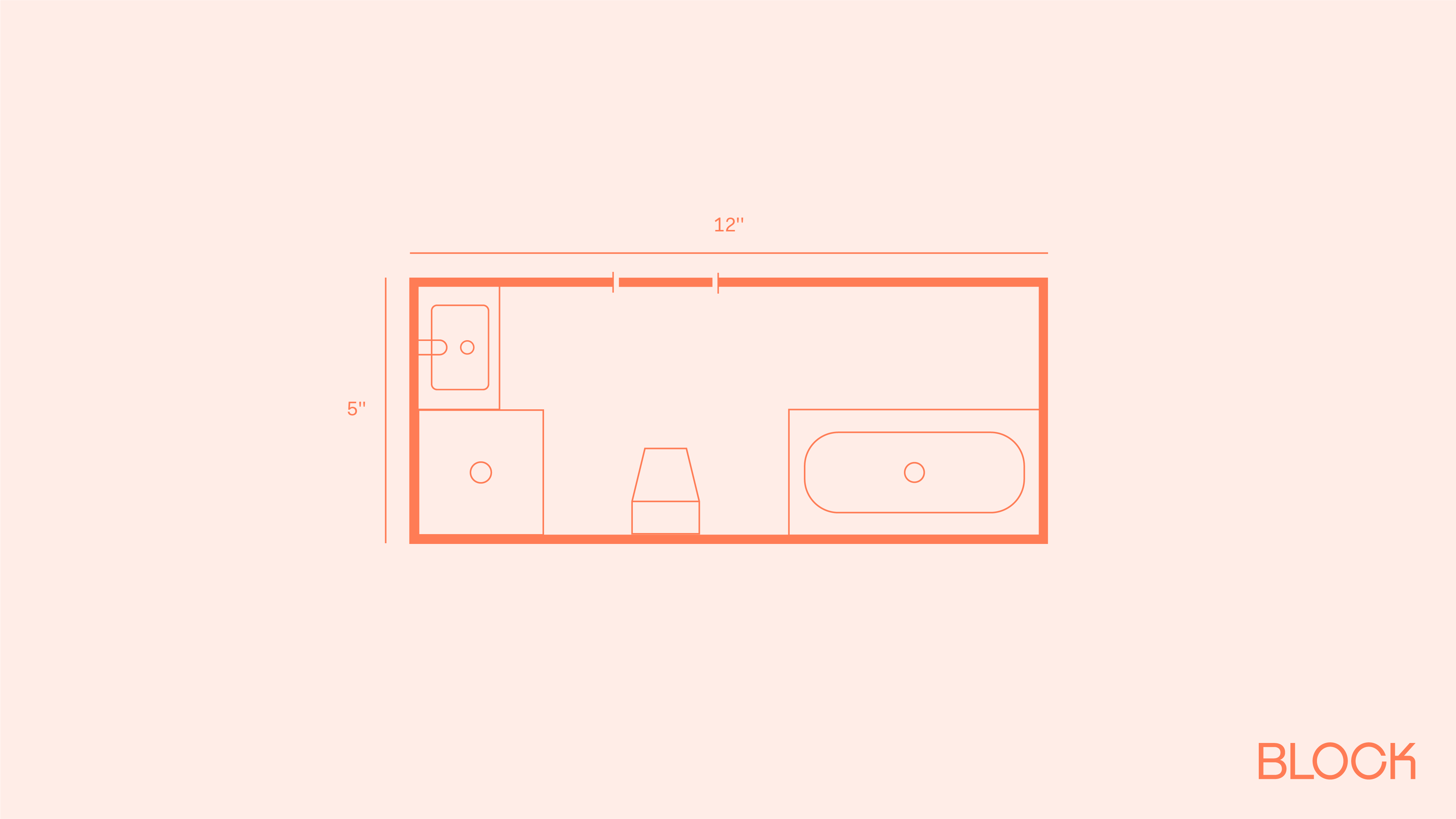

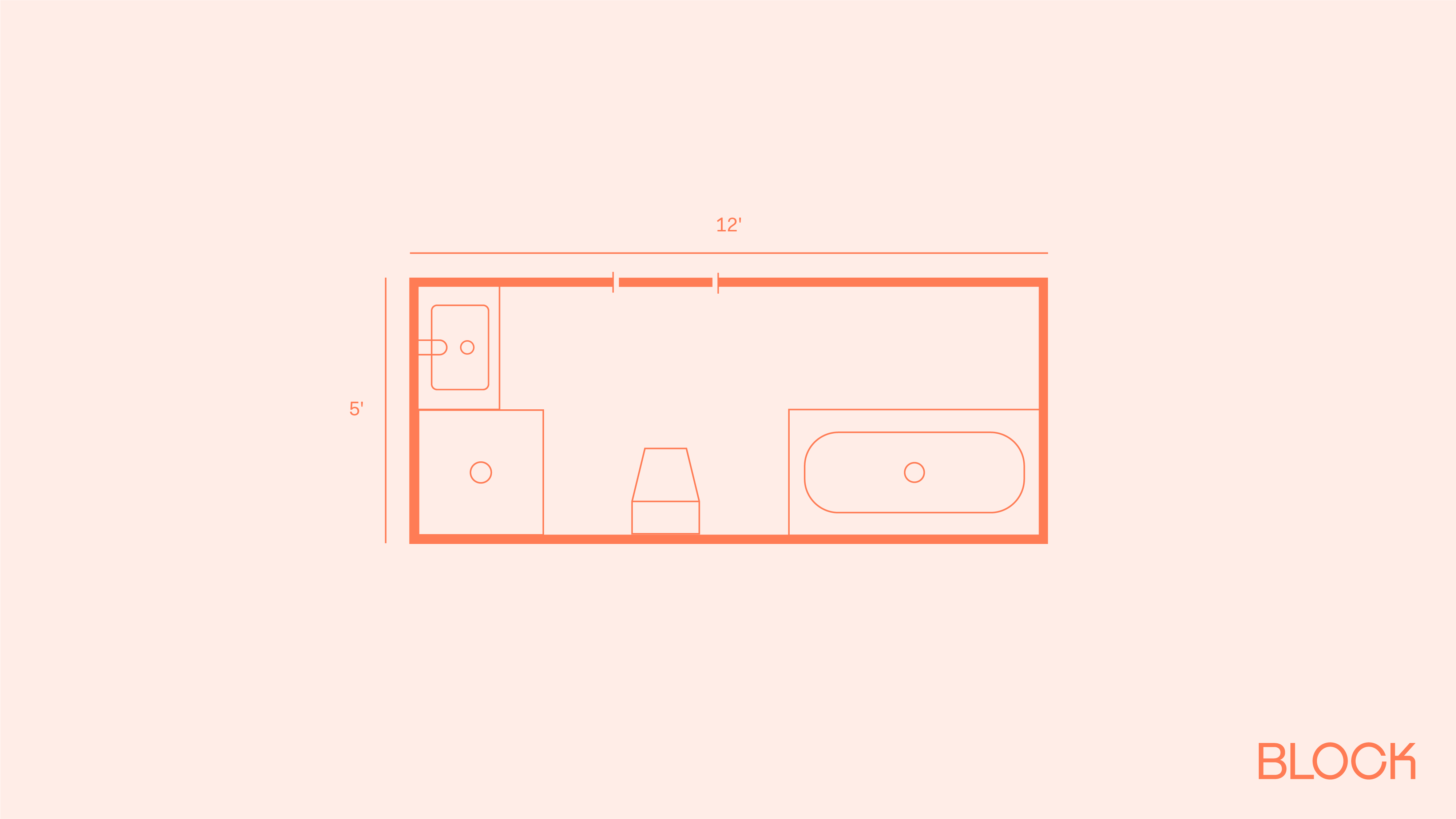

The tub alcove with top-wall entry floor plan for 5x12 bathrooms

In this layout, the sink occupies the upper left corner near the entry door (positioned on the top wall), a small shower stall and toilet sit in the lower left and center, and a freestanding tub is tucked into its own alcove on the lower right.

Advantages

The alcove treatment gives the freestanding tub its own zone, separate from the working part of the bathroom. That separation adds a sense of luxury that is hard to pull off in 60 square feet. The top-wall door placement frees up the longer side walls entirely for fixtures, which is a smart use of the rectangular footprint. The zoning here is clear: you enter near the sink, pass through the functional area, and arrive at the tub as the room's focal point.

Disadvantages

The shower stall in this configuration is on the smaller side, so taller or broader users will find it snug. The alcove arrangement for the tub reduces flexible wall space and makes future layout changes more difficult. If you ever want to swap the tub for a larger shower, the alcove will need to be reconfigured. Plumbing is also spread across multiple walls, which increases installation costs.

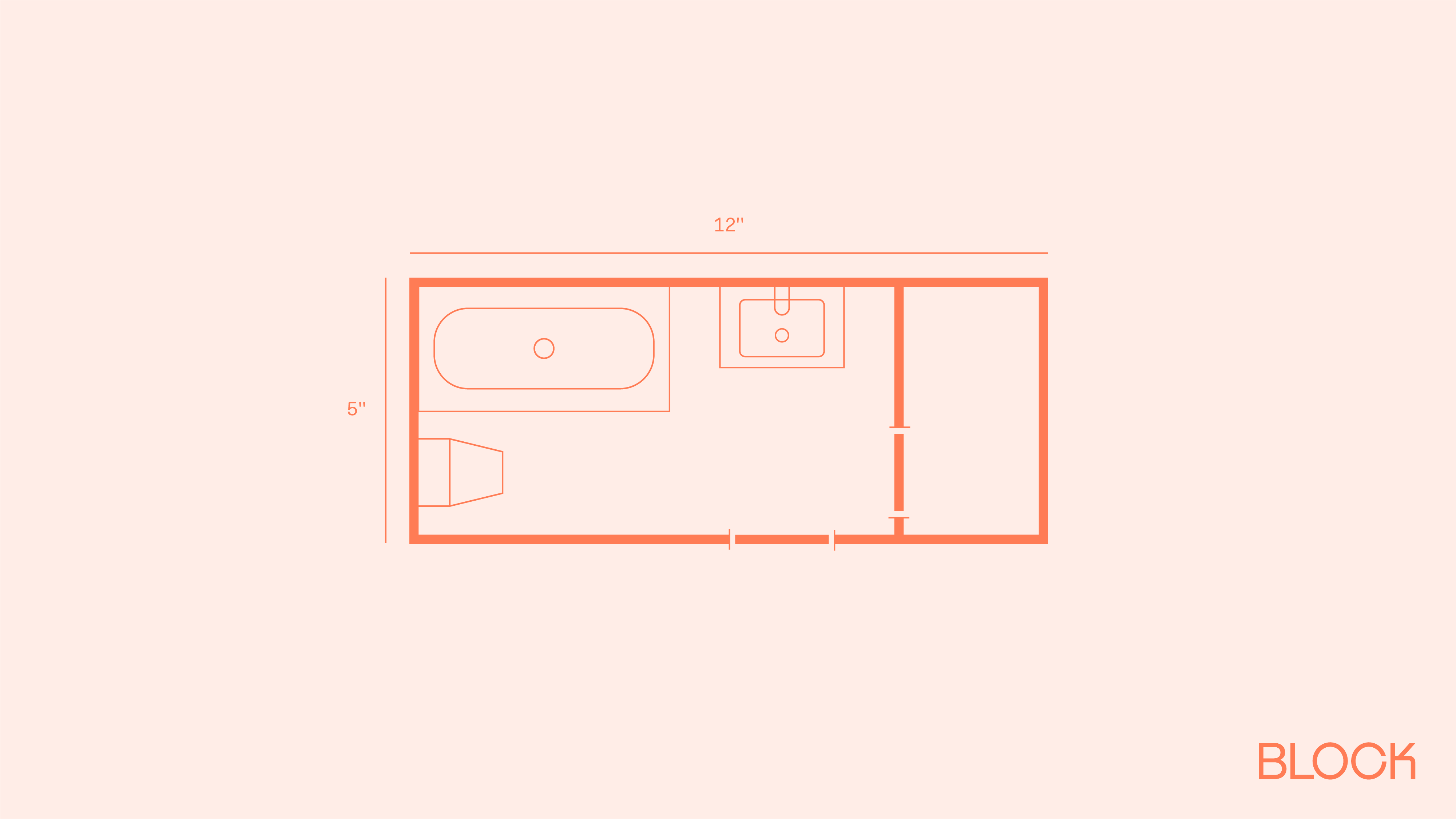

A clean, classic floor plan for 5x12 bathrooms

This is the most traditional of the five layouts. The tub and sink share the upper zone of the room, the toilet sits outside the main wet wall in the lower left, and the door is on the bottom wall.

Advantages

Contractors know this configuration well, and homeowners find it easy to live with day to day. Plumbing is consolidated, which keeps labor costs in check. The open lower portion of the room provides adequate circulation space, and the arrangement suits households that want a clean, no-fuss bathroom without unusual spatial choices.

Disadvantages

From a design perspective, nothing here stands out. If you want a bathroom that feels unique or makes a statement, this arrangement will feel too standard. There is only one vanity, which limits functionality for shared use. The toilet placement outside the main wet zone feels exposed depending on the door swing and sightlines from adjacent spaces.

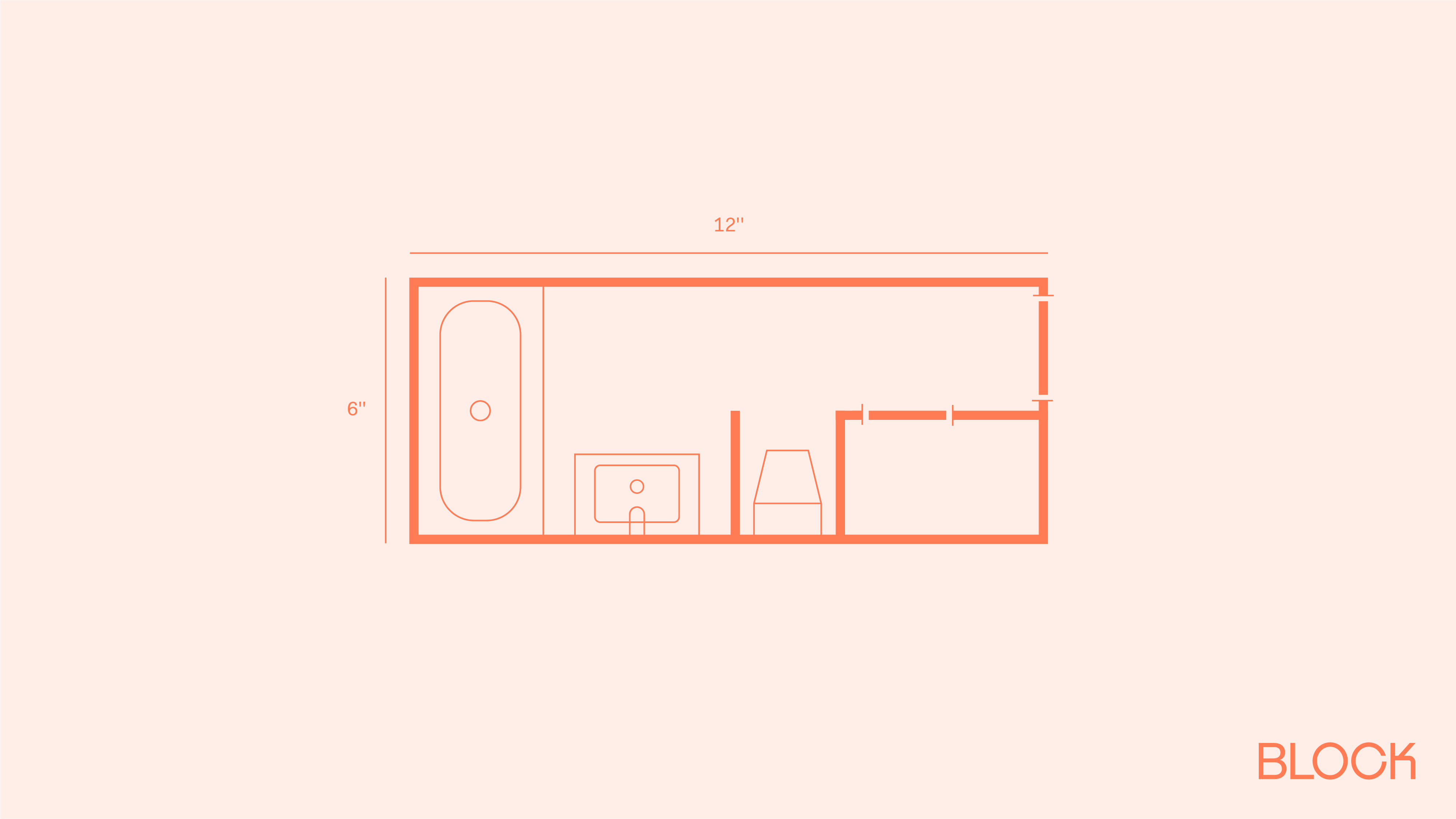

What one extra foot of width can do for a 5x12 bathroom

Same basic logic as several of the other plans (tub on the left, sink in the center, toilet and shower enclosure on the right), but drawn at 6 feet wide instead of 5. That single additional foot changes the experience of the room noticeably.

Advantages

The extra 12 inches of width transform the feel of the bathroom from narrow to comfortable. Clearances between fixtures become more generous, the shower enclosure feels less confining, and there is enough room to move without brushing against walls or fixtures. If your space can accommodate the wider footprint, consider whether you can borrow a foot from an adjacent closet or hallway.

Disadvantages

The obvious limitation: it requires more space than a true 5x12 footprint. If your bathroom dimensions are fixed, this is aspirational rather than actionable. The arrangement itself is also fairly conventional, so its appeal hinges almost entirely on the additional width rather than on a creative use of space.

To see what an extra few feet can achieve, look to our guide for 8x12 bathroom layouts.

Transparent Pricing You Can Trust

Start your renovation using Block’s Price Assurance. See a detailed cost breakdown with no unexpected expenses along the way.

Get Started

Your checklist for choosing and designing a 5x12 bathroom layout

• Confirm your actual room dimensions. Measure the space carefully, including any irregularities like angled walls, soffits, or protruding pipes. A 5x12 room on paper may have quirks that affect fixture placement in practice. If you discover you have even a few extra inches, explore whether a wider layout becomes viable.
• Check local code requirements for fixture clearances. Most building codes specify minimum distances between the toilet and adjacent walls or fixtures, minimum shower dimensions, and required clear floor space in front of each fixture.
• Decide on your fixture priorities. Do you need a bathtub, or would you prefer a larger walk-in shower? Is a double vanity essential for your household, or would a single sink with more counter space serve you better? Rank your must-haves before choosing a layout so you are not retrofitting priorities into a plan that was designed around different goals.
• Think about plumbing consolidation. Layouts that group wet fixtures along one or two walls tend to cost less in plumbing labor than layouts that spread fixtures across all four walls. If budget is a primary concern, favor plans that keep the sink, toilet, and shower or tub connections close together.
• Evaluate door placement and swing direction. In a 5x12 bathroom, the door swing eats into usable floor space fast. Consider a pocket door or an outward-swinging door if the inward swing conflicts with fixtures. Also think about sightlines: when the door is open, what is visible from the hallway or bedroom?
• Plan your storage strategy early. A 5x12 bathroom does not have extra wall space to spare. If your chosen layout limits opportunities for vanity cabinets or freestanding storage, plan for alternatives like recessed medicine cabinets, built-in shower niches, or floating shelves above the toilet.
• Consider ventilation and lighting placement. Long, rectangular bathrooms get dark and stuffy without proper planning. Identify where your exhaust fan will go and whether your layout allows for layered lighting (overhead, task lighting at the vanity, and accent lighting if space permits). Do not neglect the shower area, which is often the dimmest corner of a compact bathroom. A recessed wet-rated light, a strategically placed window, or even a solar tube can make the shower feel significantly more open and comfortable.
• Account for material and finish choices in your budget. The layout determines how much tile, countertop, and flooring material you need, but the specific products you choose will drive a significant portion of your total cost. Floor-to-ceiling tile across every wall, for instance, will cost considerably more than tiling only the wet areas and painting the rest. Use Block's Renovation Studio to see how different material selections affect your estimate before you commit.

Visualize your 5x12 bathroom layout with Renovation Studio

Block's free Renovation Studio lets you experiment with different configurations, swap out tile and fixture options, and watch your cost estimate update in real time as you make changes.

In a rectangular 5x12 bathroom, small shifts in fixture placement or material choices can have an outsized impact on both the feel of the room and your bottom line. Renovation Studio gives you a clear picture of those tradeoffs before any demolition begins.
