6x10 Bathroom Layout Ideas: 5 Floor Plans That Prove 60 Square Feet Can Feel Like a Lot More

A 6x10 bathroom layout is bigger than a standard half bath but still compact enough that your choices really show. The rectangular 6x10 bathroom layout naturally divides into zones (wet on one end, dry on the other), which gives you a strong organizational logic to work with from the start.

What makes this size interesting is how much the layout alone can change the character of the room. The same 60 square feet can feel like a tight, efficient guest bath or a surprisingly generous primary bathroom, depending entirely on how you arrange the fixtures and where you place the door. Here are five 6x10 bathroom layout ideas that show just how different the same footprint can feel.

Five 6x10 bathroom layout ideas

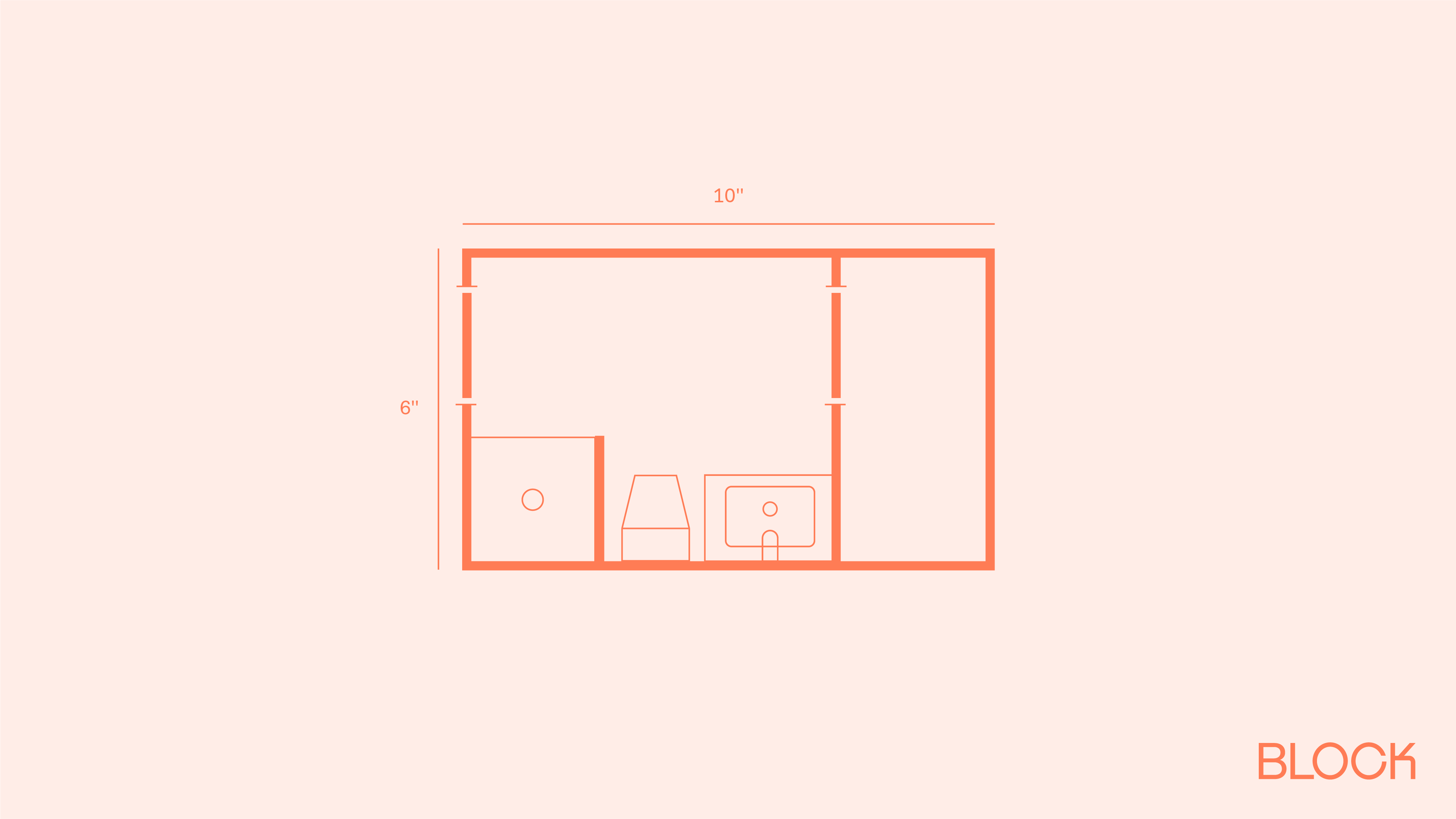

Layout 1: A simple 6x10 bathroom layout with shower

Fixtures: Shower stall with partition wall, toilet, single sink

This is probably the layout most homeowners picture when they think "bathroom," and it is easy to see why: it just works.

• Partition wall creates an enclosure. The shower feels separated from the rest of the room without a full glass surround eating into floor space.
• Plumbing stays consolidated. Everything runs along two walls, which keeps the labor scope (and the budget) straightforward.
• Flexible use case. Works equally well as a hall bath, a guest bath, or a secondary bathroom in a family home.

If you are renovating an existing bathroom of this size and want to keep the budget tight, maintaining a similar layout where the plumbing stays roughly in place is one of the most effective ways to do it. For a sense of how much even a modest layout change can transform a small space, see these small bathroom remodels before and after.

Choose this 6x10 bathroom layout if you want a reliable, no-surprises bathroom that gets the job done without any wasted space.

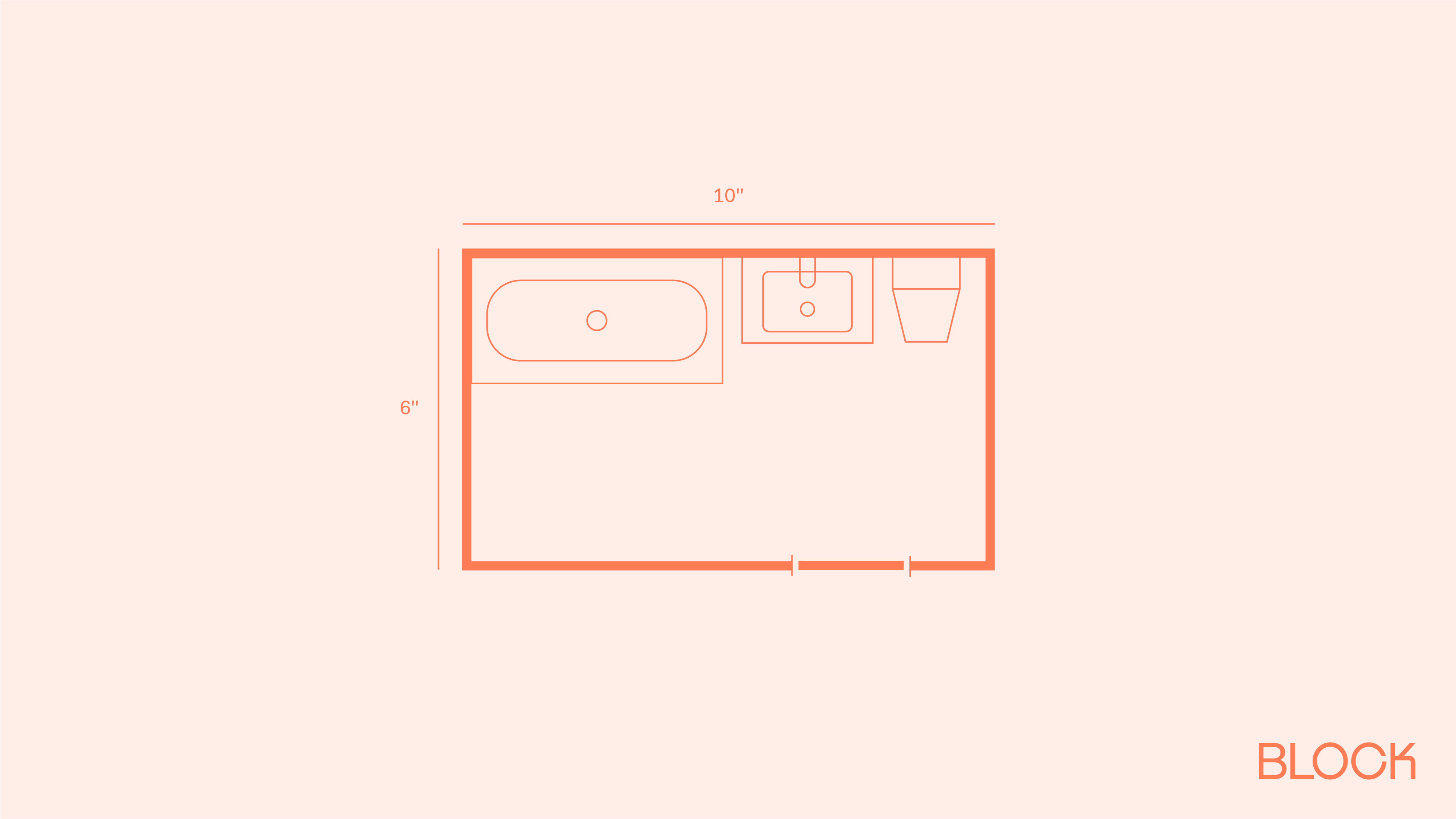

Layout 2: A 6x10 bathroom layout with tub, toilet, and sink in a row

Fixtures: Freestanding-style bathtub, single sink, toilet

Here, the bathtub, sink, and toilet line up along the top wall with the door on the opposite side.

• Single wet-wall plumbing. All supply and drain lines run along one plane, making this one of the most cost-effective configurations you can choose.
• Open floor area. With all fixtures pushed to one side, the lower half of the room stays clear, giving you a generous landing zone, room for a bathmat, or space for a small stool or hamper.
• Tub without compromise. You get a real soaking tub without crowding the rest of the room.

This is a bathroom layout that feels open and uncluttered and where a tub is nonnegotiable.

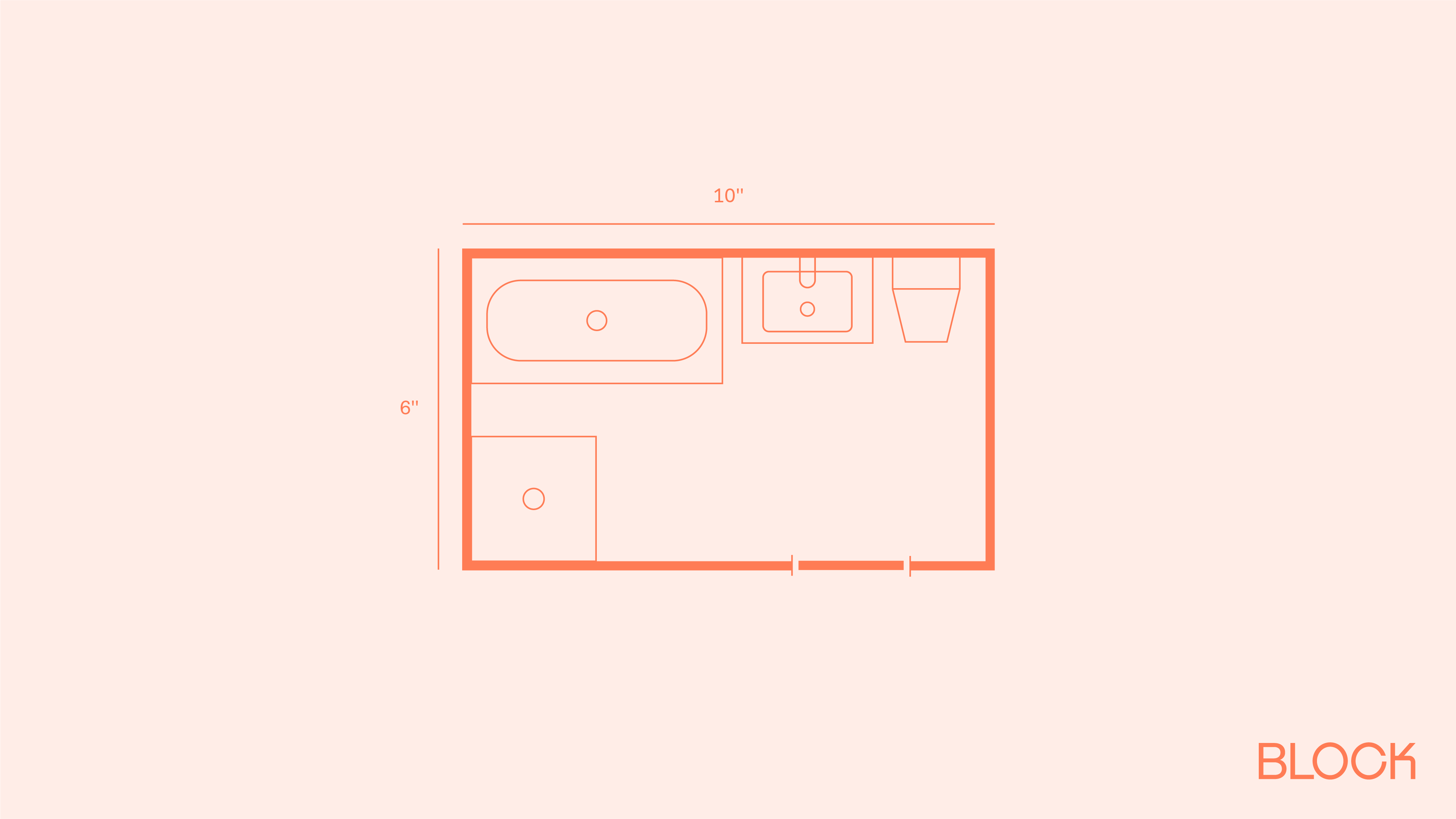

Layout 3: A 6x10 bathroom layout with tub and shower

Fixtures: Freestanding-style bathtub, separate shower stall, single sink, toilet

Same bones as Layout 2, but with a dedicated shower stall added in the lower corner.

• Both a tub and a shower in 60 square feet. The soaking tub handles evenings and weekends. The separate shower handles busy mornings.
• Open floor shrinks. The shower stall occupies the corner that was empty in Layout 2, so the room will feel more filled-in.
• Plumbing on two walls. Expect the additional wet wall to show up as added cost in your contractor's proposal.

Choose this 6x10 floorplan if you are part of a household that uses a tub and shower at different times and do not want to choose between them.

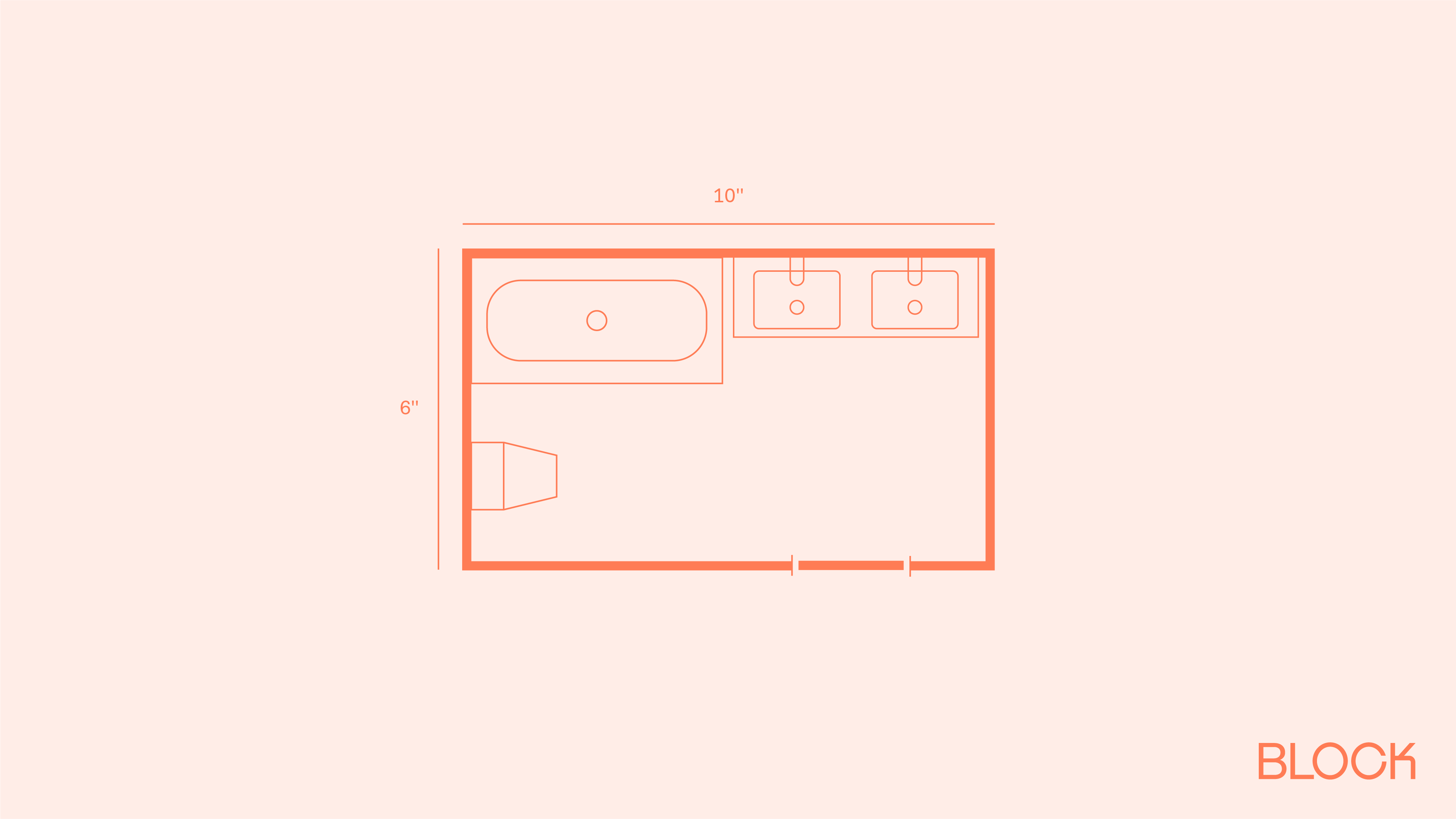

Layout 4: Double vanity with a tub in a rectangular 6x10 bathroom layout

Fixtures: Freestanding-style bathtub, double sink vanity, toilet

Two sinks in a 6x10 bathroom is an aspiration a lot of couples share, and this layout makes it work.

• Primary bathroom feel. The double vanity changes the morning routine. No more jockeying for mirror time.
• Freestanding tub as focal point. The bathtub anchors the upper-left wall and gives the room a centerpiece that makes the whole space feel deliberate.
• Higher plumbing complexity. You are running supply and drain to both the tub wall and the vanity wall. Your contractor will likely note this in the scope, and it is worth understanding how that affects the estimate before committing.

This 6x10 floor plan is ideal for couples sharing a primary bathroom who want the convenience of two sinks and the presence of a bathtub.

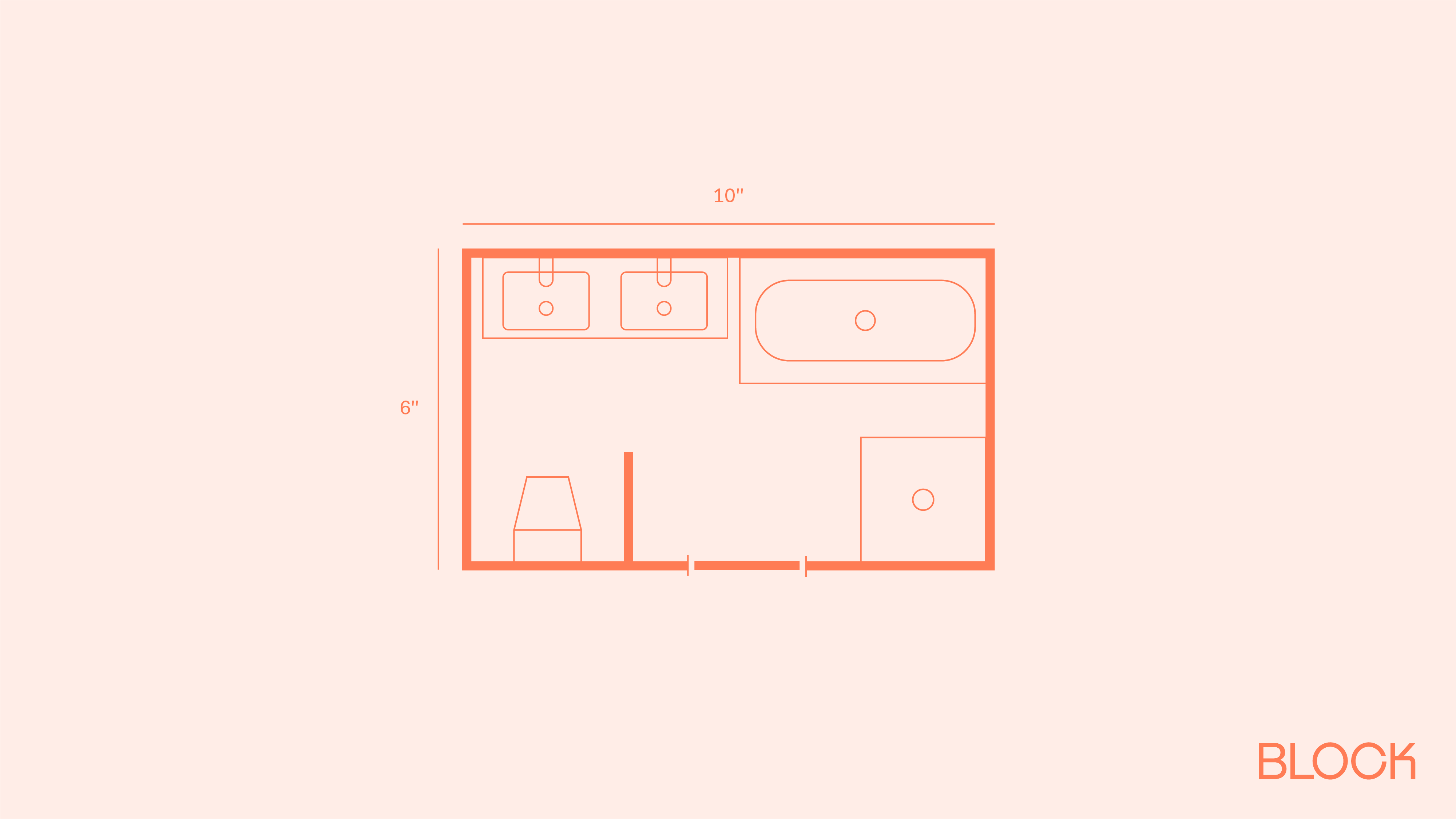

Layout 5: The maximalist 6x10 bathroom layout

Fixtures: Double sink vanity, freestanding-style bathtub, toilet, separate shower stall

This 6x10 bathroom layout pushes the rectangular footprint to its limit. Double sinks and the bathtub occupy the top wall, the toilet sits in the lower-left, and a shower stall fills the lower-right.

• Four fixture zones in 60 square feet. This is the most fixture-dense configuration of the five, and it asks the most of the space.
• Tight clearances. The distance between the toilet and the shower will be snug, and the room will feel more structured than spacious.
• Plumbing on nearly every wall. Your contractor's bid will reflect that. This is not the layout to choose if you are trying to minimize cost. It is the layout to choose if you have made your list of must-haves and decided that nothing comes off.

Do you want a primary-bath functionality in a secondary-bath footprint, and are willing to invest accordingly? If yes, this floor plan makes sense for your 6x10 space.

What a 6x10 bathroom layout might cost

Bathroom renovation costs depend heavily on where you live, the condition of your existing space, and the materials you select. But a few patterns hold true across these five plans.

• Fewer wet walls, lower cost. Layouts that consolidate plumbing on one or two walls (Layouts 1 and 2) will generally come in at the lower end of your local cost range. Every time you add a fixture or move plumbing to another wall, the labor portion of the budget increases.
• More fixtures, higher cost. Layout 5, with four fixture zones spread across multiple walls, will sit at the higher end. Layouts 3 and 4 fall somewhere in between, depending on how much rerouting your existing plumbing requires.
• Materials are the flexible variable. The difference between ceramic tile at $3 per square foot and natural stone at $20-plus is significant in any bathroom. But in a 60-square-foot room, the total square footage is small enough that upgrading to a premium material does not always blow the budget the way it would in a larger space.

Block Renovation's free Renovation Studio can help you see how different material and layout choices affect your estimated project cost in real time, so you can make those trade-offs with actual numbers in front of you rather than guessing.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

There is more to a 6x10 bathroom layout than the floor plan

A layout tells you where things go. It does not tell you how the room will feel when you step into it at six in the morning, or how it will hold up five years into daily use. The materials you pick, the fixtures you invest in, the details that do not show up in a bird's-eye diagram: those are what separate a bathroom you tolerate from one you actually like being in. (For more on how to push a compact bathroom toward something that feels genuinely elevated, see our guide to small luxury bathroom design ideas.)

Tile that does more than cover the floor

In a 60-square-foot bathroom, tile is the single largest visual surface. The choice you make here sets the entire mood of the room.

• Large-format tiles reduce visual noise. Sizes like 12x24 or bigger mean fewer grout lines, which makes a small room feel calmer. Running them horizontally on the walls can emphasize the length of the room and subtly counteract the narrow 6-foot dimension.
• Color matters more than pattern. A consistent, light-toned tile across floor and walls will make the room feel larger, a principle central to Scandinavian-inspired bathroom design. A darker floor with lighter walls creates grounding and contrast. Going dark everywhere can be dramatic (think art deco bathroom design), but it requires strong lighting to avoid making the room feel smaller.
• Splurge in the shower, save everywhere else. Run your statement tile inside the shower zone (where it gets the most visual impact) and use a simpler, less expensive tile or even paint on the remaining walls. You get the design moment without paying to tile every surface.

Fixtures that earn their place

In a bathroom this size, every fixture is on display. There is no distant corner where a budget faucet goes unnoticed. You will see and touch the sink, the showerhead, and the toilet multiple times a day, so quality matters here more than almost anywhere else in the house.

• Showerhead and valve set. This will affect your daily experience more than any other single fixture. Worth the upgrade. If you are not sure where to start, Block's guide to luxury bathroom brands for fixtures and accessories covers a range of price points.
• Faucet with a good handle feel. You notice a cheap faucet every single morning. A solid one costs more upfront but earns it back in how the room feels to use.
• Toilet. A reliable mid-range model from a reputable manufacturer will serve you just as well as a premium one. Save your budget for what you touch and see up close.
• Freestanding tub costs beyond the tub itself. If you are considering one (Layouts 2 through 5), you will also need a floor-mounted or wall-mounted tub filler, and the plumbing rough-in is different from a standard alcove installation. Make sure your contractor's scope includes these details.

Lighting that actually works

Bathrooms get a lot of things right during renovation and then settle for a single overhead fixture. In a 6x10 room, you have both the opportunity and the need to think about lighting in layers.

• Vanity lighting at face level. Sconces flanking the mirror (or a vertical LED bar on each side) eliminate the harsh shadows that a ceiling-mounted light creates.
• Dedicated shower light. A recessed fixture rated for wet locations keeps the shower bright without relying on ambient light from the rest of the room.
• A dimmer or accent strip. A warm LED strip under a floating vanity, or a dimmer on the overhead fixture, lets you shift the room from bright and functional in the morning to softer and quieter at night.

Storage that does not clutter the room

The floor plan gets the major fixtures placed, but storage is what keeps the room feeling organized after move-in day.

• Recessed medicine cabinet. Adds meaningful storage without projecting into the room, and replaces a standard mirror so you are not giving up wall space.
• Built-in shower niche. Tiled to match the walls, it gives you a permanent home for bottles and soap without a hanging caddy. Spec it during the tile layout phase so it aligns with your grout lines.

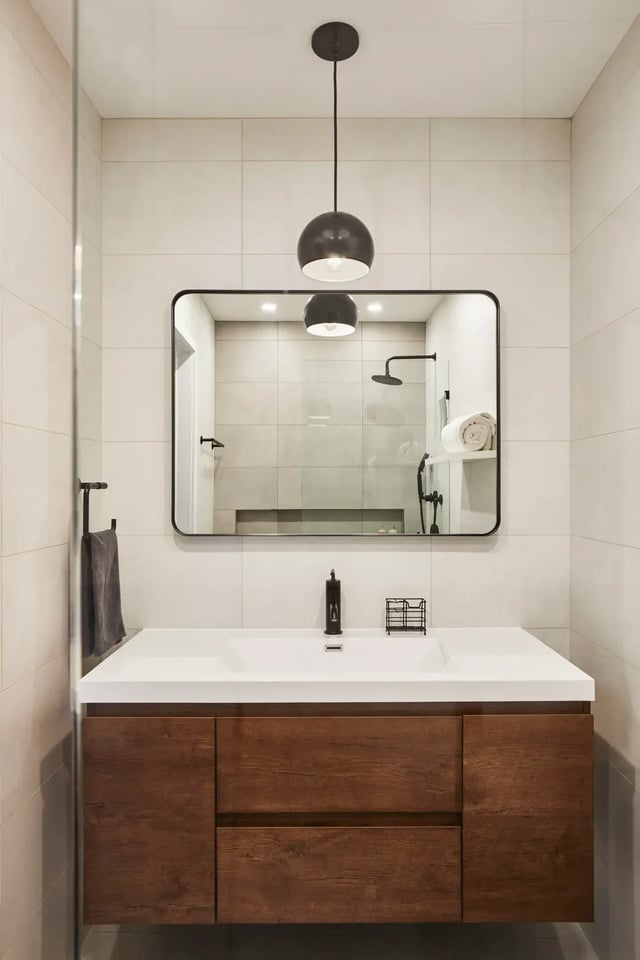

• Floating vanity. Creates visible floor space below, which makes the room feel larger. The trade-off is less enclosed storage than a traditional vanity, so consider how much you actually need to store at the sink versus elsewhere.

Ventilation, the detail no one photographs

Proper ventilation is not glamorous, but in a bathroom that sees daily showers, it protects every other investment you have made.

• Size the fan to the room. A quality exhaust fan rated for the room's cubic footage, vented to the exterior (not into the attic), will prevent moisture damage to your new tile, paint, and fixtures.
• Low sone rating. If noise bothers you, look for a quieter model. Many newer fans include a humidity sensor that turns the unit on and off automatically, which means it actually gets used, even when you forget.
