The 12x10 Kitchen Puzzle: Four Layouts that Come Together

At 12 by 10 feet, a kitchen has 120 square feet to work with. Enough to hold the full set of appliances and a little breathing room, but not so much that every layout is viable. A 12x10 forces choices that larger kitchens let you dodge. Island or table, dining or counter space, single cook or two.

The answer depends on how the puzzle pieces fit. The work triangle between your sink, stove, and fridge. The counter runs that connect them. Where the doorway lands, and whether you want a dining table in the room. Shift one piece and the others have to move with it.

The starting constraints for a 12x10 kitchen

Before comparing layouts, a few things worth keeping in mind for any 12x10 kitchen:

• The work triangle (fridge, sink, stove) should total between 13 and 26 feet, with no single leg shorter than 4 feet or longer than 9.
• You need at least 42 inches of clearance between counters and any island or table, and 48 inches is better if two people cook together.
• Walkways that double as work zones need 42 to 48 inches. Pure walkways can go down to 36.
• Each major appliance wants a counter next to it: 15 inches beside the fridge on the handle side, 12 to 15 inches on both sides of the cooktop, 18 to 24 inches next to the sink.

Layout 1: The U-shape 12x10 kitchen with casual dining

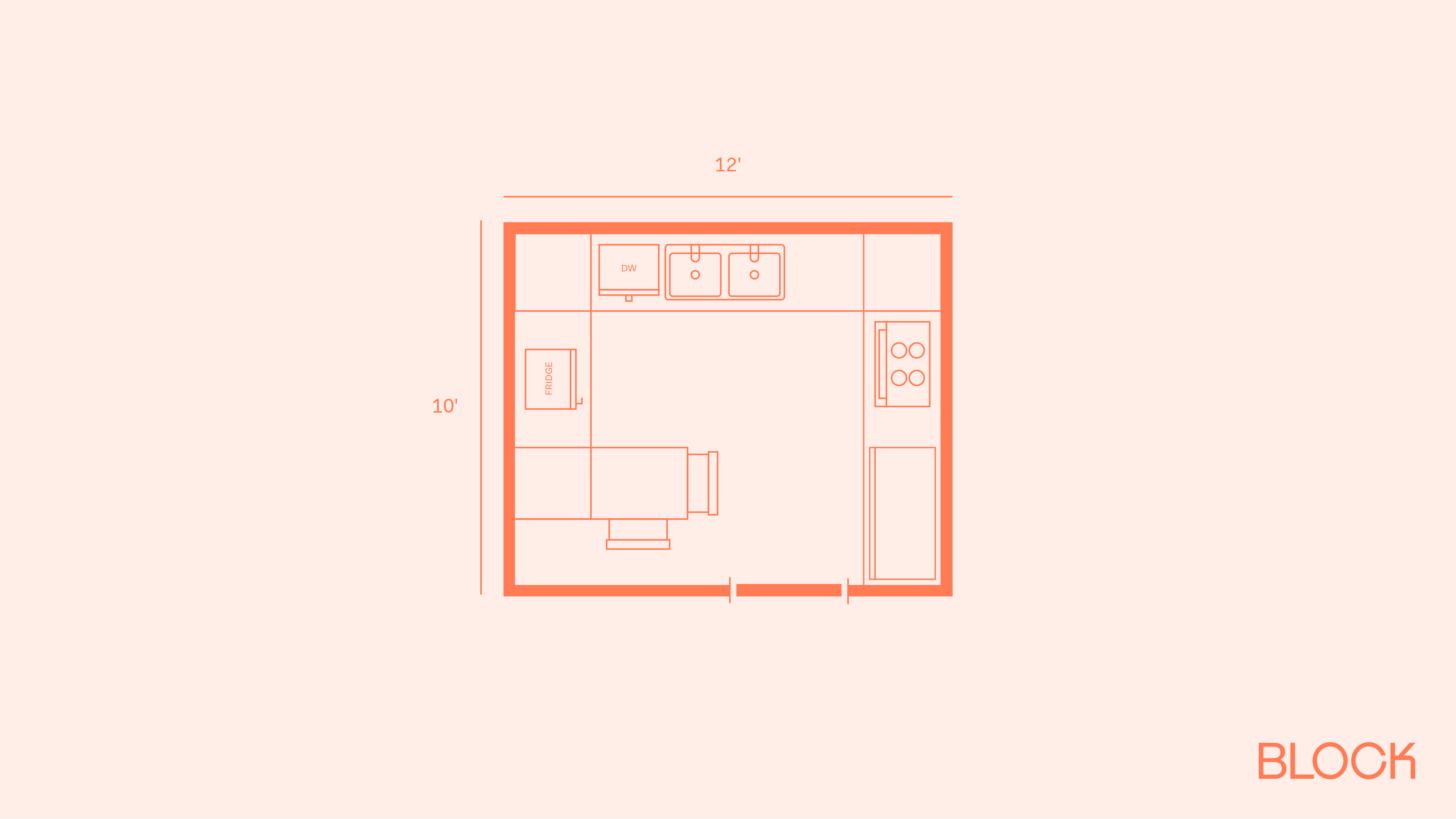

A three-wall U-shape wraps the room: DW and sink on the top wall, fridge anchoring the left leg, and stove on the right leg. A small table with one chair tucks into the bottom-left corner for casual seating. Doorway at the bottom-right.

In a room this size, the U-shape is usually the strongest play. Every appliance has counter beside it. The triangle between fridge, sink, and stove stays tight, and you never have to cross the room for anything. Three walls of prep space in 120 square feet is hard to beat.

The small table is what makes this layout feel livable instead of purely functional. It won't seat a dinner party, but it's enough for morning coffee, homework, or the one person eating while the other cooks. If you've been told a 12x10 can't have both a real kitchen and a place to sit, this plan is the counterargument.

Who it's for: households where someone cooks most days and wants the appliances close at hand, but doesn't need a full dining room in the kitchen itself.

The trade: the table only seats one or two. If you regularly eat with three or more people at the table, you'll want dining in an adjacent room.

Layout 2: The L-shape 12x10 kitchen with a proper table

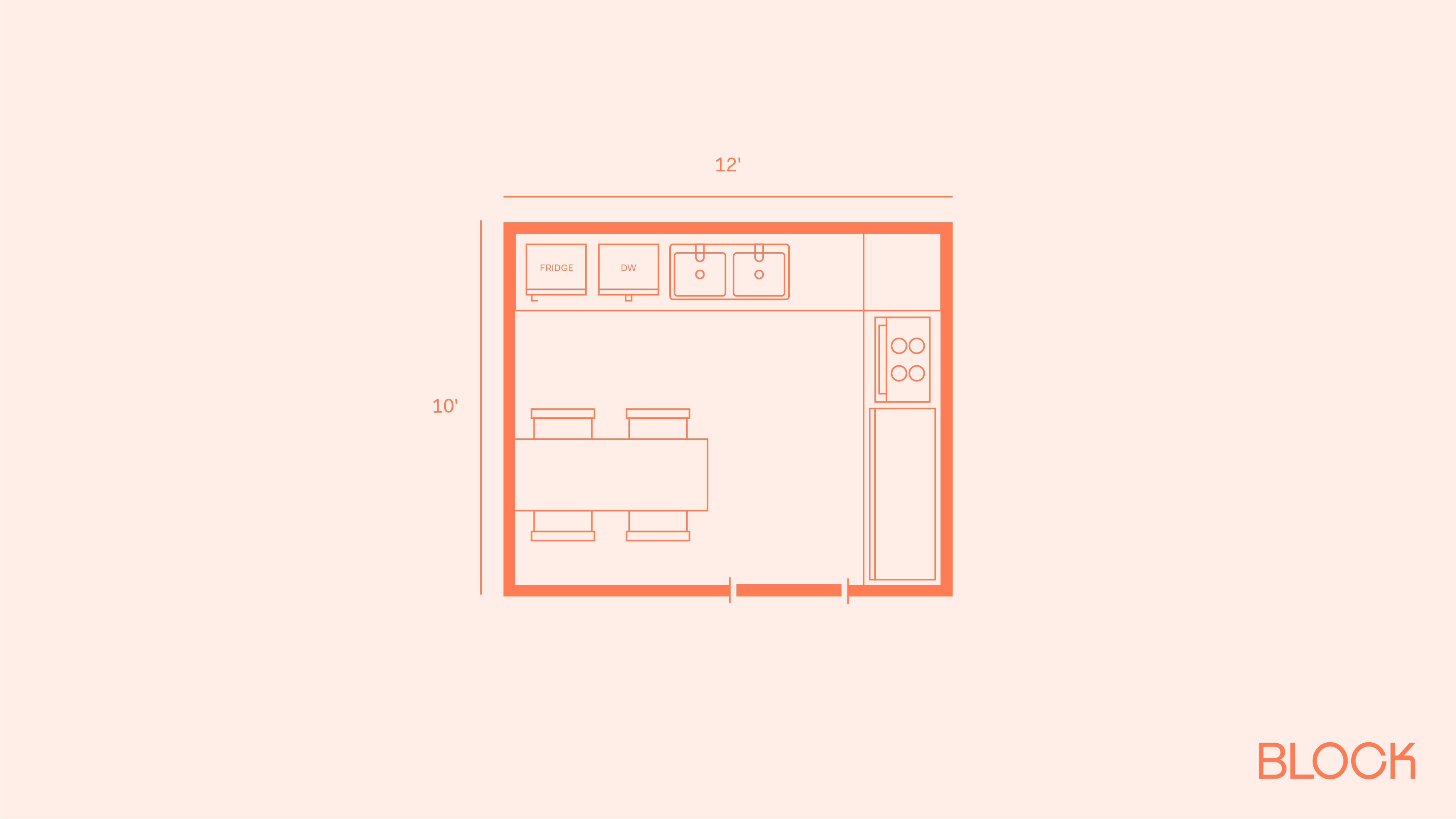

L-shape with fridge, dishwasher, and sink along the top wall and the stove on the short right leg. A rectangular table seating four sits on the left side of the room. Doorway at the bottom-right.

This is the layout for people who want a real table in a small kitchen. Four chairs, full meals, homework spread across the surface. The L handles the cooking side efficiently: sink between fridge and DW on the longer wall is the order plumbing wants, and the stove on the short leg keeps the work triangle tight.

The one thing to watch is the stove position near the bottom-right doorway. Hot-pan traffic and people walking in from the next room share the same corner. Not a dealbreaker, but worth planning around. If the door can land on the opposite side or if traffic from that direction is light, this becomes one of the strongest layouts for a small kitchen.

Who it's for: small households or couples who want to eat at a proper table in the kitchen without sacrificing the work triangle.

Layout 3: The single-wall 12x10 kitchen with a banquette

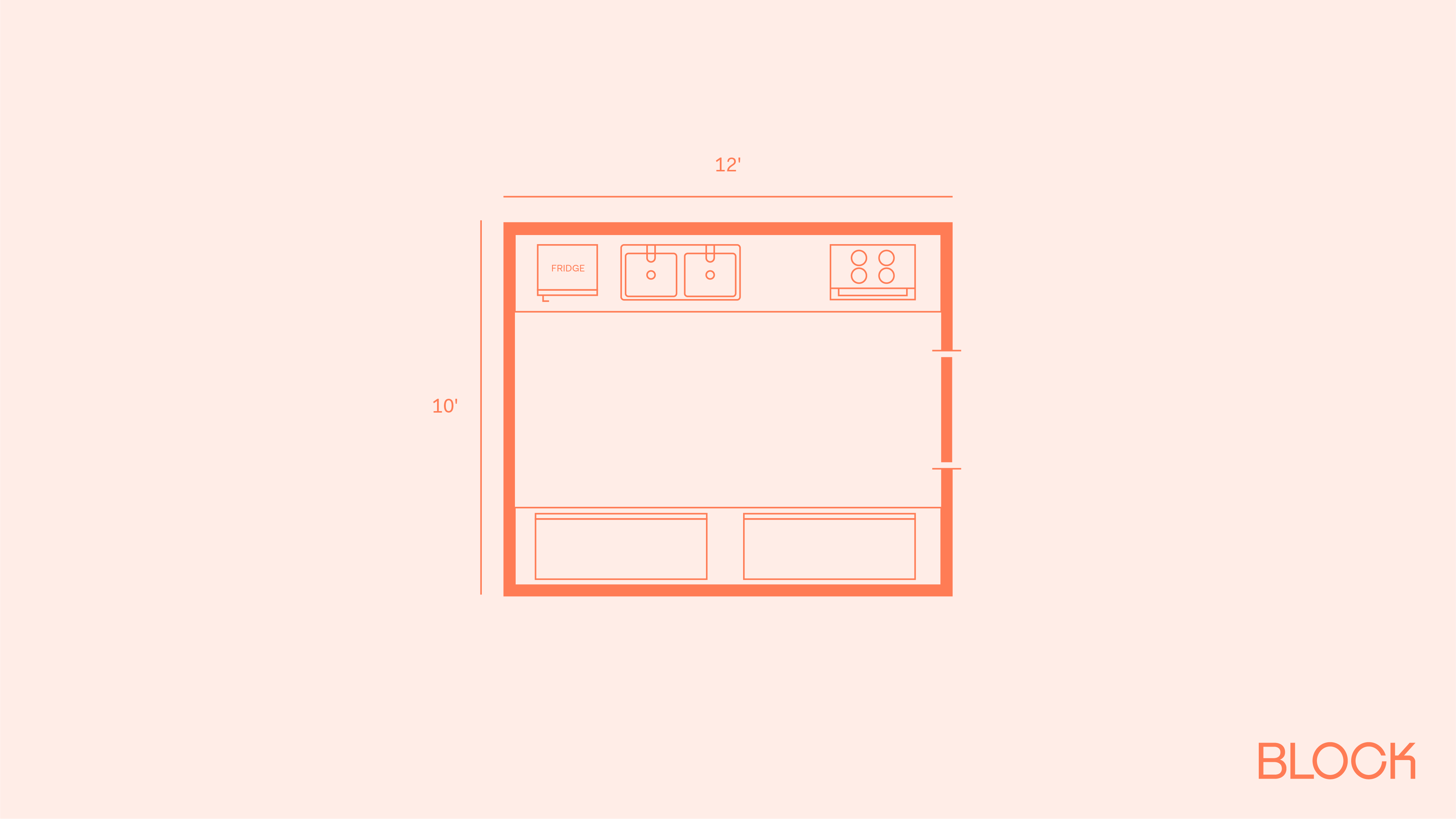

Fridge, sink, and stove lined up on the top wall, with a built-in banquette running along the bottom wall. Doorway on the right wall. The room reads as a long narrow galley with seating across from the work wall.

This is the layout that trades one convention for another. You lose the dishwasher, or you tuck it into the banquette side as a drawer unit, but you gain built-in seating that no freestanding table can match. A banquette uses every inch of the wall behind it, which in a 10-foot-deep room is exactly what you need.

The single-wall work run is shorter than it would be in a 14-foot kitchen, but 12 feet of counter still comfortably holds three appliances plus prep space. The banquette turns the kitchen into a place people want to sit, not just pass through.

Who it's for: smaller households, renters considering a long-term renovation in a rowhouse or narrow floor plan, or anyone who prioritizes built-in seating over a separate dining room setup.

The trade: losing a built-in dishwasher, or getting creative about where to fit one.

Layout 4: The U-shape 12x10 kitchen without dining

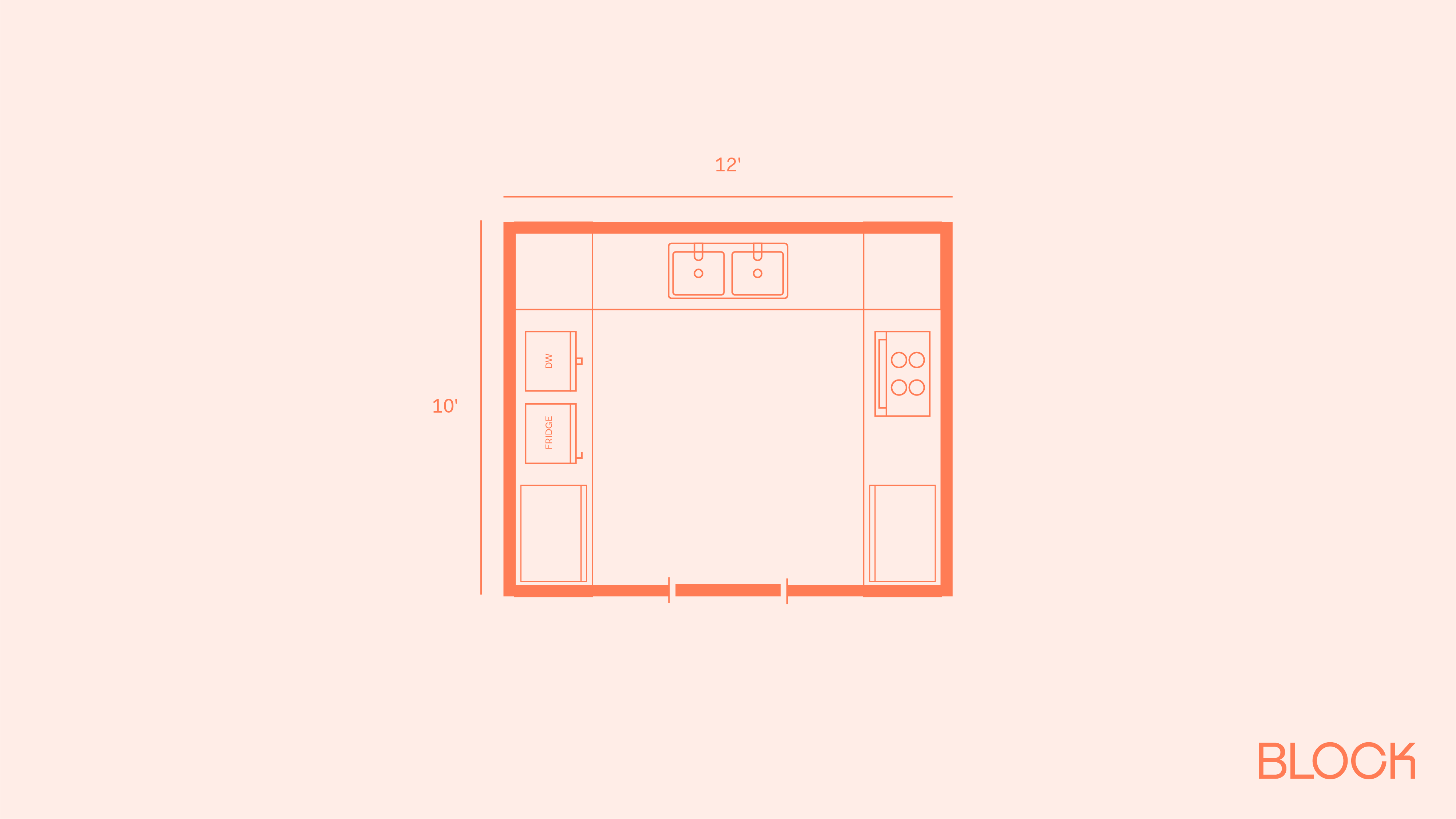

A U-shape with the sink centered on the top wall, fridge and DW anchoring the left leg, and stove on the right leg. Doorway at the bottom-center. Open floor in the middle.

Some people don't want a table in the kitchen. They have a dining room or a breakfast nook next door, and they'd rather use the 120 square feet for pure kitchen. This layout leans into that choice. Counter space on all three walls, clear floor in the middle for circulation, and room for two people to cook without bumping into each other.

The open center isn't wasted space, even if it looks empty in plan view. It's where the cook stands, where someone leans on the counter to chat, where a portable cart can park when you need more surface area. In a kitchen this size, the empty middle is the feature, not a flaw.

Who it's for: homes with a separate dining area, or cooks who'd rather have more counter than a table.

How to choose between these 12x10 kitchen layouts

A few questions that usually clarify which layout fits:

• How many people eat at a table in the kitchen? None: Layout 4. One or two: Layout 1 or 3. Three or four: Layout 2.
• Do you have a separate dining room? If yes, Layout 4 lets you maximize kitchen function. If no, Layouts 1, 2, or 3 bring seating into the room.
• Is the dishwasher non-negotiable? Most households say yes. That narrows you to Layouts 1, 2, or 4. Layout 3 can work if you're willing to integrate a drawer dishwasher elsewhere.
• How many cooks at once? One cook fits any of these layouts. Two cooks need the defined zones of Layouts 1, 2, or 4.
• Does your existing kitchen have plumbing or gas in a fixed location? If yes, start there and work backward. Moving a gas line can run $500 to $2,000. Moving a main drain stack can run much higher.

If none of the 12x10 floor plans felt quite right in your space, find more inspiration with our guides to our 11x12 and 12x12 kitchens.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

What these 12x10 kitchen design plans don't show

Every drawing above is a 2D plan, which means a lot of the kitchen's actual feel isn't on the page. The pieces that matter most, and that no floor plan can capture:

• Window placement and natural light. Where the light lands at 7am versus 7pm shapes how the kitchen feels more than any layout choice. In a 120-square-foot room, a single well-placed window can change the whole experience.
• Ceiling height. A layout that looks fine in plan view can feel cramped in person if the ceiling is low. The smaller the footprint, the more vertical space matters.
• Sightlines into adjacent rooms. In a 12x10 kitchen, whether you can see through to the living room or dining area changes how large the space feels. A wall that opens into a pass-through can make the kitchen feel twice its size.
• Material and finish choices. Cabinet color, counter material, and backsplash do half the work of making a kitchen feel like yours. Light cabinets and reflective surfaces make small kitchens feel bigger.
• Budget. A 12x10 kitchen renovation in most markets runs $30,000 to $90,000 depending on finishes, appliance grade, and how much you're moving around. Every wall you move, line you reroute, or structural change you make pushes that number up.

The cheapest version of any of these layouts is the one that works with your existing plumbing, electrical, and walls. Set aside 10 to 20% of the total budget as a contingency. For a $50,000 kitchen, that's $5,000 to $10,000 held back for the surprises that show up once walls come down.

Ready to build your 12x10 kitchen

A 12x10 kitchen rewards honest self-assessment. The room is too small to hedge, so the layout that matches your real habits is the one worth building. Think about what you reach for on a Tuesday night, not what you'd want on Thanksgiving.
