Building a Laundromat: Why Your Infrastructure Is Your Business Model

Most laundromat guides start with equipment. Which washers, which dryers, how many of each. That's important, but it puts the cart before the horse. When you're building a laundromat, the infrastructure you pour into the floor, run through the walls, and vent through the roof determines how much revenue your machines can actually generate. An undersized drain line means machines back up during peak hours—and customers leave. Inadequate makeup air means dryers take longer to finish cycles—and you process fewer loads per day. An electrical panel that's maxed out on day one means you can't add machines when demand grows.

Whether you're doing a ground-up build or retrofitting an existing retail space (the more common path for first-time operators leasing in strip malls or commercial plazas), these infrastructure decisions carry the same weight. In a retrofit, the challenge is often greater: you're working within the constraints of a building that was never designed for the water volume, gas load, and ventilation demands of a commercial laundry operation. Discovering that a former nail salon's 4-inch sewer lateral can't handle 28 washers draining simultaneously is the kind of surprise that blows budgets and timelines.

Plumbing: the system that sets your revenue ceiling

Plumbing is the most expensive and least forgiving infrastructure system in laundromat construction. Get it wrong, and you'll either limit your machine count, slow your cycle times, or face backups that shut down operations during your busiest hours.

Water supply

Commercial washers fill fast—a large-capacity machine can pull 20+ gallons per minute through ¾-inch inlet valves. Multiply that across a bank of machines running simultaneously during a Saturday afternoon rush, and your water supply line needs to deliver serious volume without losing pressure. Most laundromats require a 1½- to 2-inch water main, though the exact sizing depends on your machine count and local water pressure. If your incoming pressure is low (common in older commercial strips), you may need a booster pump—an expense that's far cheaper to plan for during construction than to retrofit later.

Hot water matters just as much. Commercial water heaters for laundromats are typically rated at 200,000+ BTU, and undersizing means longer fill times on hot wash cycles. Every extra minute per fill, multiplied across five fills per cycle, multiplied across dozens of machines, adds up to meaningful lost throughput over a day.

Drainage

This is where many first-time laundromat builders get caught. Each commercial washer dumps 15–30 gallons per cycle in a fast gravity drain (commercial machines don't pump out like home washers—they release water all at once). When a row of 14 machines finishes a cycle within the same few minutes, your drainage system needs to handle that surge without backing up.

The standard approach is a drain trough—a recessed channel in the concrete floor that runs behind a bank of washers, sloped at ¼ inch per linear foot toward a main drain. The trough acts as a buffer, catching the surge and metering it into your branch drain at a manageable rate. Main drain lines are typically 3–4 inches in diameter, though conservative builders go to 6 inches on the building drain to avoid issues as the business scales. Most jurisdictions also require lint interceptors on your sewer connection ($2,000–$5,000 installed). A drainage system that can't keep pace with your machines means you either run fewer machines simultaneously or deal with backups that take machines offline entirely—neither is acceptable in a business where peak hours generate a disproportionate share of revenue.

Water heating

Gas-fired commercial water heaters are standard for laundromats due to their recovery rate (how quickly they can reheat water between draws). Tankless systems can work but require careful sizing—commercial washers draw water at rates that overwhelm most residential-grade tankless units.

Some operators invest in water recycling systems that recapture warm rinse water for the next wash cycle's fill, reducing both water consumption and heating costs. This is a meaningful operational savings that's far easier to plumb during initial laundromat construction than to add later.

Electrical: capacity today, headroom for tomorrow

Your electrical system determines not just how many machines you can run today, but how easily you can expand or add services later. Building a laundromat with an undersized electrical panel is one of the most common—and most expensive—mistakes to correct after the fact.

Panel sizing and service

A typical 30- to 40-machine laundromat with gas dryers needs 200- to 400-amp service, depending on the equipment mix and ancillary loads (lighting, HVAC, payment kiosks, security cameras, signage). If you're running electric dryers instead of gas, your electrical requirements roughly double—dryers are by far the heaviest electrical load in the building.

Size your panel for 20–30% more capacity than your opening-day equipment requires. The cost difference between a 400-amp and a 600-amp panel during initial construction is modest (often $2,000–$5,000). Upgrading after the fact—tearing into walls, pulling new wire, potentially upgrading your utility company's service drop—can cost $15,000–$30,000 or more.

Gas service: the cost that catches people

If your laundromat will use gas dryers (most do, for their faster heat and lower operating cost), your building needs adequate gas service. This is one area where costs can spike without warning. In some markets, gas utilities are charging new commercial customers $10,000–$20,000 or more for gas main upgrades—and in extreme cases, the bill has exceeded $70,000 when the existing main needs to be resized for hundreds of feet.

Before you sign a lease or commit to a location, request a gas capacity assessment from your utility provider. This should happen during due diligence, not after you've started construction. If the upgrade cost is prohibitive, it may be worth evaluating a different location or planning for electric dryers with the corresponding electrical service upgrade.

Circuit planning

Each bank of washers and dryers should be on dedicated circuits, not just for code compliance but for operational reliability. A tripped breaker that takes out an entire row of machines during peak hours costs you real money. Work with your electrician to map circuits to equipment groups so that any single failure affects the smallest number of machines possible.

Plan dedicated circuits for your payment system, security system, lighting, and any ancillary services (vending, Wi-Fi equipment, wash-dry-fold stations). These should be completely independent of your machine circuits.

Ventilation: the invisible bottleneck

Dryer ventilation is the infrastructure system that most directly affects your per-machine revenue—and it's the one most often underthought during laundromat construction.

Exhaust and makeup air

Every commercial gas dryer exhausts hot, moisture-laden air and needs a dedicated duct run to the exterior. The standard maximum is 14 feet of straight duct with two 90-degree bends, though shorter and straighter is always better. Longer runs, kinks, or undersized ducts create back pressure that forces dryers to work harder and run longer. A dryer that takes 45 minutes instead of 35 to finish a load doesn't just frustrate customers—it reduces the number of cycles that machine can process in a day by roughly 20%.

The flip side is makeup air: fresh air that replaces what the dryers exhaust. Without adequate makeup air, dryers are starved for oxygen—gas dryers in particular will underperform and may create safety concerns. Your HVAC design should include mechanical louvers sized to the combined CFM output of all dryers, positioned to provide even airflow without creating uncomfortable drafts in the customer area.

Why this is a revenue conversation

Consider a 20-dryer laundromat where poor ventilation adds 10 minutes to each dry cycle. At an average of $1.50 per cycle and 8 cycles per machine per day, that's roughly 1.5 lost cycles per machine daily—or about $45 per day across the floor. Over a year, that's more than $16,000 in revenue you never see. Proper ventilation design during construction costs a fraction of that.

Flooring: built for punishment, designed to drain

Laundromat floors take extraordinary abuse—constant moisture, heavy foot traffic, rolling carts, chemical exposure, and machine vibration. The floor system also needs to integrate with your drainage infrastructure, which means this is a construction decision, not just a finish selection.

• Sealed concrete. The most common and cost-effective option. Durable, easy to clean, and can be sloped toward drains during the pour. A solid baseline for most laundromat builds.
• Epoxy coating over concrete. Adds chemical resistance and a cleaner appearance. Proper surface preparation is critical—a poorly prepped epoxy floor will peel within months. Worth the investment if done right.
• Quarry tile. Offers the best combination of durability and slip resistance but costs more to install. Requires proper grouting for moisture control. A strong choice for high-traffic, high-moisture environments.
• Slope and drainage integration. Whatever finish you choose, the floor must slope toward your drain troughs and floor drains. This slope is established when the concrete is poured—it can't be fixed later without tearing out the slab.
• Equipment pads. Large-capacity washers, particularly hard-mount models, may need reinforced concrete pads or sections. Soft-mount machines (which have internal suspension systems) are more forgiving but still benefit from a level, properly cured surface.

Layout: customer flow as revenue strategy

Your laundromat's layout determines how efficiently customers move through the space—and how many machines you can run without the floor feeling chaotic. The best layouts create an intuitive path: enter, load washers, wait, transfer to dryers, fold, exit.

Equipment placement and spacing

Washers and dryers should be grouped by capacity (small, medium, large) with clear sightlines between zones. The Coin Laundry Association recommends matching your linear footage of folding space to your linear footage of dryers—a ratio that's easy to skimp on when you're focused on fitting more machines, but stingy folding space creates a bottleneck that slows turnover across the entire floor.

Aisle widths should be a minimum of 36 inches for ADA compliance, but 48–60 inches between machine rows is a more realistic target for a laundromat where customers are navigating with baskets, carts, and children. Tight aisles save a few square feet but create friction that drives customers to competitors.

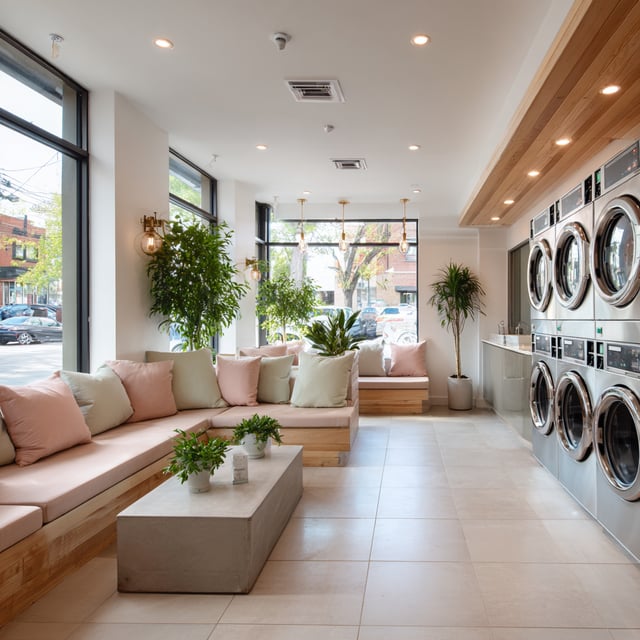

The customer area: comfort drives loyalty

It's tempting to fill every square foot with revenue-generating machines. But the laundromats that build repeat business invest in the experience between cycles—comfortable seating, good lighting, clean restrooms, Wi-Fi, and a pleasant atmosphere. Consider dedicating 15–20% of your floor space to amenities: seating, folding areas, vending, and a kids' zone if your demographics support it.

These amenities need to be planned into your construction, not squeezed in afterward. Seating areas need adequate lighting circuits. Vending equipment needs dedicated electrical and potentially plumbing. A café counter needs a health-department-compliant sink. Build them into the plan from the start.

Service areas

If you plan to offer wash-dry-fold service (a high-margin revenue stream that's growing rapidly), plan the layout for it from day one. These operations need a dedicated work area with counter space, sorting bins, garment racks, and their own machines—ideally separated from the self-service floor so commercial workflows don't interfere with customer experience.

Restrooms (required by code in most jurisdictions, ADA-compliant) should be positioned away from the main machine floor but visible and accessible. A utility/mechanical room for your water heater, booster pump, and chemical injection system should be planned into the footprint early—these systems need regular maintenance access.

Payment systems: build the infrastructure even if you start simple

The laundromat industry is in the middle of a technology shift from coin-operated to card and app-based payment. Whether you launch with coins, cashless, or a hybrid, your laundromat construction plan should include the electrical and network infrastructure for a fully digital operation.

That means dedicated electrical circuits for payment kiosks, Cat6 or fiber conduit to each machine bank, and a centralized network closet with power and climate control. Running conduit during construction costs almost nothing compared to cutting into finished walls later. Even if you open with coin-op machines, having the infrastructure in place lets you upgrade without a construction project.

What does laundromat construction actually cost?

Total laundromat construction costs typically range from $200,000 to $500,000 for a mid-size facility, though larger or higher-end builds can exceed $1 million. That range includes the building shell or tenant improvement buildout, plumbing and electrical infrastructure, HVAC and ventilation, flooring, finishes, and equipment.

Here's how the major cost buckets tend to break down for a mid-size laundromat (roughly 3,000–4,000 square feet with 30–40 machines):

• Equipment (washers, dryers, payment systems): $100,000–$300,000. This is typically the single largest line item. New commercial washers run $5,000–$15,000 each depending on capacity; dryers run $6,000–$10,000. Card or app-based payment systems add $40,000–$80,000. Used equipment can lower the upfront cost significantly, though it comes with shorter useful life and higher maintenance risk.
• Buildout and construction: $75,000–$200,000. This covers demolition (if retrofitting), concrete work, framing, plumbing rough-in and finish, electrical, HVAC/ventilation, flooring, and interior finishes. The range depends heavily on whether you're building into a raw shell or converting an existing retail space that already has some infrastructure.
• Plumbing and gas infrastructure: $25,000–$75,000. Often the most variable line item. A space with existing commercial plumbing may need minimal work; a space that needs new drain troughs, upsized sewer lines, a water heater installation, and a gas main upgrade can push well into the higher end.
• Permits, design, and professional fees: $10,000–$30,000. Architectural plans, engineering, permit applications, and inspections. General contractor fees (typically 10–15% of the construction total) are usually built into the buildout number above.
• Furniture, fixtures, and finishing touches: $5,000–$20,000. Folding tables, seating, signage, vending machines, security cameras, and the small details that make the space functional and welcoming.

The wide ranges reflect the reality that two laundromats of similar size can cost very different amounts depending on the starting condition of the space, the local cost of labor and permits, and the finish level you're targeting. Getting multiple contractor proposals and comparing them line by line is the best way to understand where your specific project will land.

Future-proofing: the cheapest decisions you'll make

The most cost-effective choices when building a laundromat are the ones that prepare for growth. During initial build-out, when walls are open and concrete hasn't been poured, adding capacity costs a fraction of what it will later:

• Extra capped plumbing stubs for machines you might add in year two or three
• Oversized electrical panel and conduit for additional circuits
• Makeup air capacity rated above your opening-day dryer count
• Network infrastructure to every machine location, even if you don't connect it immediately
• A drain trough designed for your maximum machine layout, not just your opening-day count

These investments typically add $5,000–$15,000 to initial construction but can save $50,000 or more in retrofit costs down the road.
