10x10 Kitchen Floor Plans: Smart Layouts That Make Every Inch Count

A 10x10 kitchen sits right at the intersection of efficiency and possibility. It’s large enough to support full-size appliances and thoughtful storage, yet compact enough that layout decisions matter immediately. Every cabinet run, clearance, and appliance placement has a ripple effect on how the kitchen feels and functions.

10x10 kitchens can be found most anywhere, but they’re especially common in urban apartments, townhomes, and older houses where space is finite but expectations are high. The goal isn’t to cram in features—it’s to design a layout that works hard, feels open, and holds up to daily use.

Below, we break down three distinct 10x10 kitchen floor plan configurations. Each uses a clean, modern, architectural approach inspired by the soft grayscale palette and bright orange accents in the reference image—think calm neutrals, precise linework, and intentional focal points rather than visual noise.

What Defines a Successful 10x10 Kitchen

Before diving into layouts, a few constants apply across all 10x10 kitchens:

• Clear circulation paths of at least 36 inches

• A compact, efficient work triangle between sink, stove, and refrigerator

• Smart cabinet hierarchy, balancing base storage with upper cabinets or open space

• Visual restraint, so the kitchen feels architectural rather than crowded

Turn your renovation vision into reality

Get matched with trusted contractors and start your renovation today!

Find a Contractor

Floor Plan 1: Single-Wall Kitchen With Open Clearance

Layout Overview

All cabinets and appliances are placed along one 10-foot wall, leaving the rest of the room open. The refrigerator anchors one end, followed by a prep zone, sink, dishwasher, and stove. Upper cabinets are used selectively, often stopping short of the ceiling line to preserve visual breathing room.

Advantages

• Maximum openness: With only one working wall, the kitchen reads larger than its footprint.

• Flexible adjacent space: Ideal when the kitchen opens into a dining or living area.

• Lower build cost: Fewer cabinets, shorter plumbing and electrical runs.

Disadvantages

• Limited counter space: Prep zones must be carefully planned.

• Reduced storage: Requires disciplined cabinet design or nearby pantry storage.

• Less separation: Not ideal if you want the kitchen to feel distinct from surrounding rooms.

This layout works best in homes where the kitchen is part of a larger open plan and visual calm is a priority.

Floor Plan 2: L-Shaped Kitchen With Corner Efficiency

Layout Overview

Cabinetry runs along two adjacent walls, forming an L. The sink typically sits at the corner or along the longer leg, with the stove and refrigerator placed on opposite runs to maintain an efficient triangle. This is often the most balanced option for a 10x10 footprint.

Advantages

• Strong work triangle: Short, intuitive movement between key appliances.

• More counter space: Dedicated prep and landing zones.

• Adaptable storage: Allows for a mix of base cabinets, uppers, and specialty storage.

Disadvantages

• Corner cabinets require planning: Lazy Susans or pull-outs are essential.

• Slightly tighter circulation: Clearances must be carefully maintained.

• Less wall space elsewhere: Limits where windows or doors can go.

This is a reliable choice for homeowners who cook regularly and want a kitchen that feels purposeful without being enclosed.

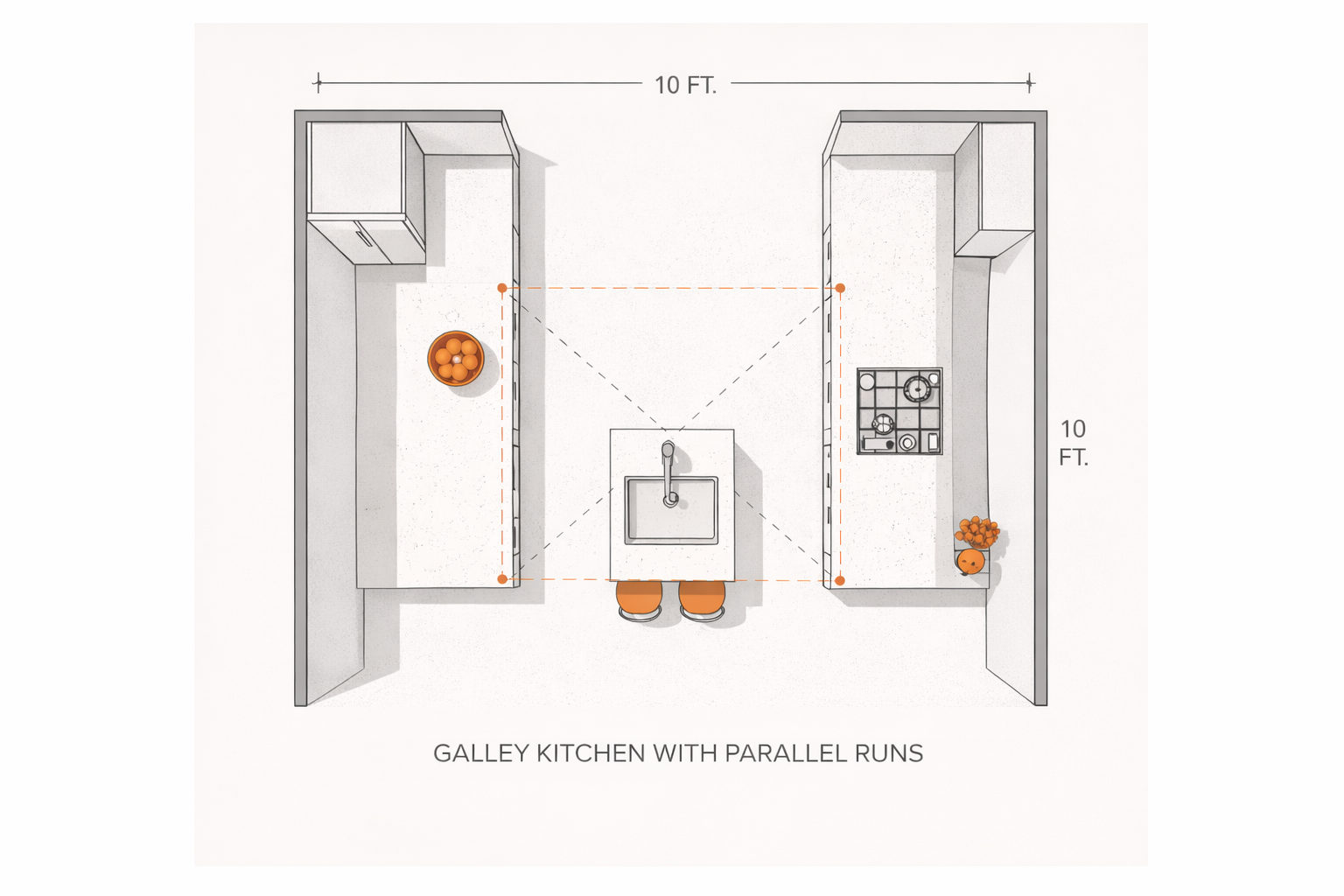

Floor Plan 3: Galley Kitchen With Parallel Runs

Layout Overview

Two parallel cabinet runs face each other, typically 8 to 9 feet long, with a central aisle of 40 to 42 inches. One side may carry the sink and dishwasher, the other the stove and refrigerator, creating a highly efficient linear workflow.

Advantages

• Exceptional efficiency: Minimal steps between tasks.

• High storage density: More base cabinets than most 10x10 layouts.

• Clear zones: Cooking, prep, and cleanup stay organized.

Disadvantages

• Can feel enclosed: Especially if both sides have upper cabinets.

• Less social: Not ideal for entertaining or open living.

• Lighting is critical: Requires strong task and ambient lighting to avoid feeling tight.

Galley kitchens excel in apartments and townhomes where function is the primary driver and every inch needs to earn its keep.

Cost Considerations for a 10x10 Kitchen Renovation

A 10x10 kitchen is often used as a pricing benchmark, but real costs depend heavily on layout and finish choices.

Typical ranges:

• Basic refresh: $25,000–$35,000
  Cabinet replacement, standard appliances, minimal layout changes.

• Mid-range renovation: $35,000–$55,000
  Semi-custom cabinetry, upgraded appliances, improved lighting, modest plumbing or electrical updates.

• High-end renovation: $55,000–$75,000+
  Custom cabinetry, premium appliances, layout reconfiguration, and architectural detailing.

Layouts like single-wall kitchens tend to land at the lower end, while L-shaped and galley kitchens can increase costs due to additional cabinetry and utility runs. The key is aligning the layout with how you actually use the space—not just what fits on paper.

How to Make a 10x10 Kitchen Feel Larger

• Limit visual clutter in the layout. Avoid filling every wall with cabinetry, and consider leaving one wall partially open or reducing the number of upper cabinets to create breathing room. Selective use of open shelving can further lighten the space without sacrificing functionality.

• Use light, continuous finishes. Lighter cabinet colors, reflective surfaces, and consistent materials across countertops and backsplashes reduce visual breaks and help the kitchen feel more expansive. Extending cabinets to the ceiling can also draw the eye upward and make the room feel taller when kept clean and minimal.

• Protect clearances and circulation. Maintain at least 36 inches for walkways and closer to 40 inches in galley layouts to prevent the kitchen from feeling cramped. Integrated appliances and low-profile hardware keep sightlines clean and uninterrupted.

• Prioritize layered lighting. Combine recessed ceiling lighting with under-cabinet task lighting to eliminate shadows that can make a small kitchen feel enclosed. Whenever possible, preserve or enhance natural light through windows to visually expand the space.

Designing for Longevity, Not Just Square Footage

A 10x10 kitchen doesn’t succeed by squeezing in more features. It succeeds when circulation feels natural, storage is intentional, and the space supports daily routines without friction.

Approach these kitchens with the same rigor you’d apply to larger spaces—because good design isn’t about size. It’s about clarity, proportion, and making smart decisions early so the finished kitchen feels calm, capable, and built to last.
