5x10 Bathroom Floor Plans: Narrow by Dimension, Not by Design

A 5x10 bathroom is one of the most common footprints in American homes. It shows up in postwar ranches, older apartments, row houses, and split-levels — often as the hall bath that everyone uses and nobody loves. The numbers are familiar: 50 square feet, one wall that is always 10 feet long, and another that is always only 5.

That 5-foot width is what makes this bathroom feel constrained. Fifty square feet is a workable amount of space for a toilet, a vanity, and either a tub or a shower. The challenge is that 5 feet does not give you room to be casual about where things go. A fixture placed on the wrong wall, or projecting too far into the room, and you have turned a corridor into an obstacle course.

The good news is that the 10-foot length is genuinely useful. It creates natural separation between fixtures that a square room of the same area could never offer. A toilet at one end and a vanity at the other, with an open floor between them, is not a compromise in a 5x10 bathroom. It is the right answer. The layouts below show what that looks like in practice, and how the proportions of this room can work in your favor when you plan with them rather than against them.

Turn your renovation vision into reality

Get matched with trusted contractors and start your renovation today!

Find a Contractor

What a 5x10 bathroom renovation typically costs

At 50 square feet, a 5x10 bathroom is one of the smaller full-bath footprints you will encounter, and the renovation costs reflect that — though not as dramatically as the square footage might suggest. Labor minimums do not scale down with room size, and the same trades that a larger bathroom requires apply here just as fully.

A basic refresh, covering new tile, updated fixtures and hardware, a vanity replacement, and paint with plumbing staying in place, typically runs $8,000 to $15,000. A mid-range renovation with a full retile, a vanity upgrade, improved lighting, and one fixture relocation runs $15,000 to $28,000. A high-end renovation with custom tilework, a frameless glass shower enclosure, premium fixtures, and a full layout reconfiguration typically starts at $28,000 and rises from there.

Labor accounts for 60 to 70 percent of total project cost. In a 5-foot-wide bathroom, tight quarters can actually slow some trades down. Tile installers and plumbers have less room to maneuver, and sequencing tasks carefully in a confined space takes more coordination than in a larger room. It is worth knowing that going in.

Renovate with confidence every step of the way

Step 1: Personalize Your Renovation Plan

Step 2: Receive Quotes from Trusted Contractors

Step 3: Let Us Handle the Project Details

Get Started

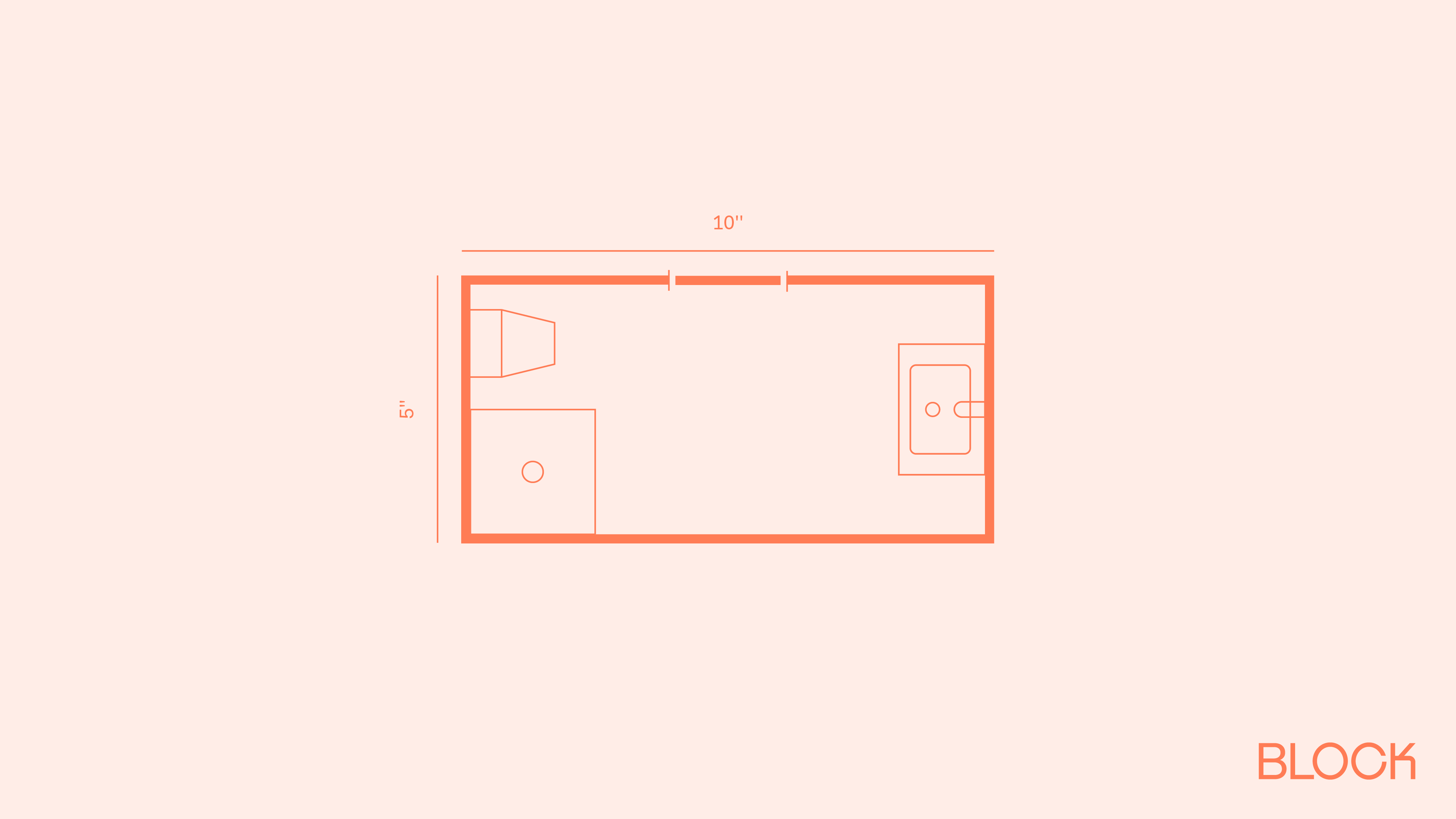

5x10 layout idea: Shower stall and toilet on the left wall with single vanity on the right

In a narrow bathroom, the single best organizational decision you can make is keeping fixtures on the same wall rather than letting them face each other across the 5-foot width. This layout does exactly that. The shower stall and toilet share the left wall, stacked along the 10-foot length, while the vanity sits on the right wall at the far end. The center of the room stays clear from the door all the way to the vanity, which makes the room feel considerably more open than its dimensions suggest.

The separation between the toilet and the vanity is also worth noting. In a 5x10, the 10-foot length is your primary design asset, and this layout uses it to put real distance between those two fixtures. Walking past the toilet to reach the vanity is not an issue here because the path is clear, unobstructed, and direct.

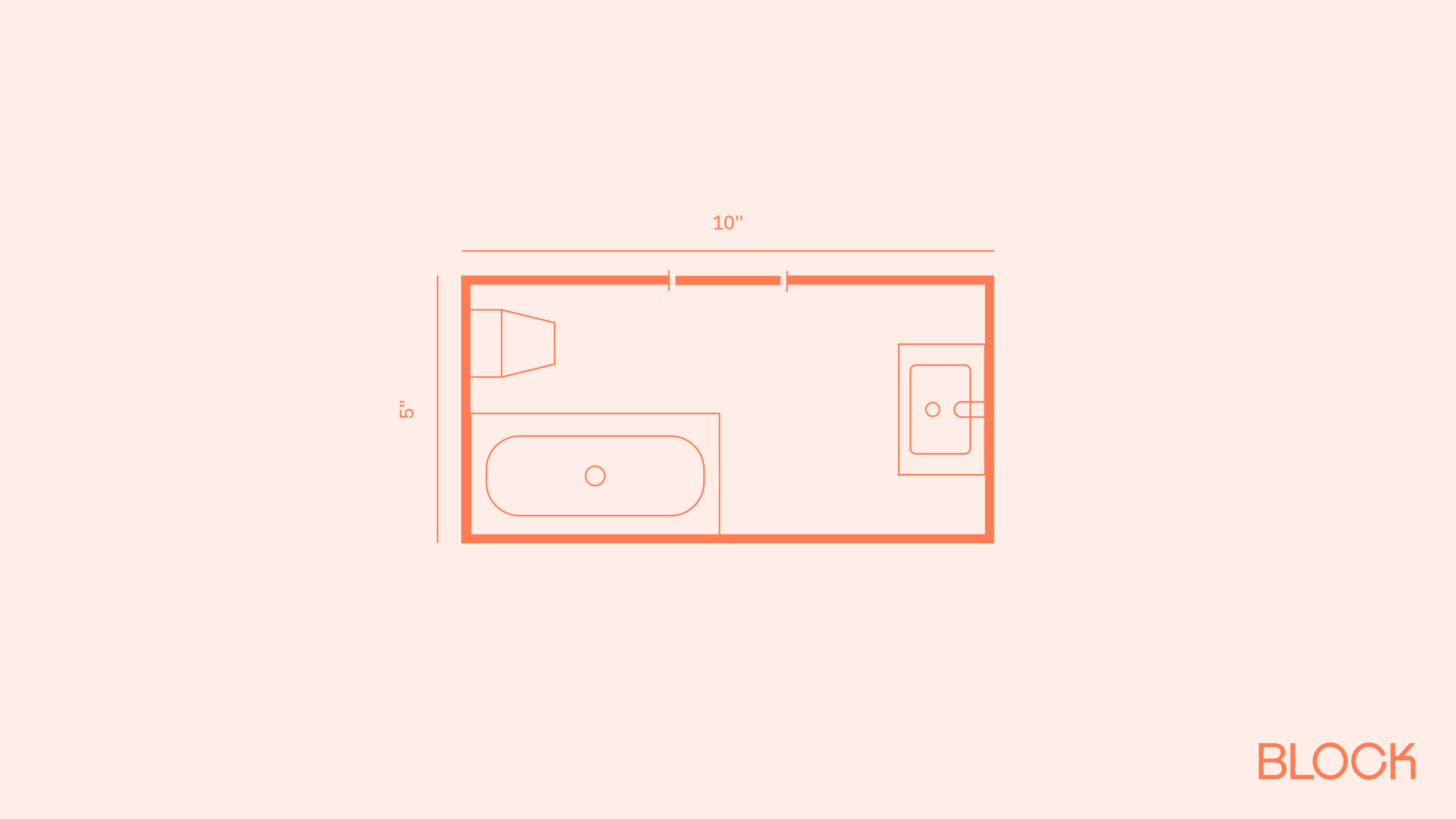

5x10 layout idea: Tub and toilet on the left wall with single vanity on the right

Swapping the shower stall for a tub in this configuration is a straightforward trade, and the layout logic remains the same. All the wet fixtures stay on the left wall, the vanity holds the far end of the right wall, and the corridor down the center of the room stays open. What changes is the commitment the tub requires: a standard 60-inch alcove tub takes up the left wall from roughly the midpoint all the way to the end, with the toilet occupying the remaining upper portion.

For a bathroom where a tub is a genuine priority, this is a clean solution. The tub fits along the long wall without consuming any of the 5-foot width in a way that would compromise movement through the room. The toilet and vanity are separated by the length of the room, which keeps the daily-use sequence — enter, use the toilet, wash your hands at the vanity — feeling natural and unhurried.

5x10 layout idea: Tub on the left wall with toilet and single vanity on the right

This layout distributes fixtures across both long walls, which is a slightly different approach than the previous two. The tub occupies the left wall and the toilet and vanity share the right. It is a configuration that works well when the existing plumbing rough-in is already split across both walls, because keeping fixtures near their existing supply and drain lines avoids the cost of extending them.

The trade-off is that with fixtures on both long walls, the corridor between them is defined by the clearance between the tub and the toilet or vanity across the 5-foot width. In a room this narrow, that clearance is adequate but not generous. The key detail to get right is the vanity depth: a wall-mounted vanity or a shallower cabinet at 18 inches or less keeps the walkway comfortable where a deeper model at 21 inches or more would start to feel pinched.

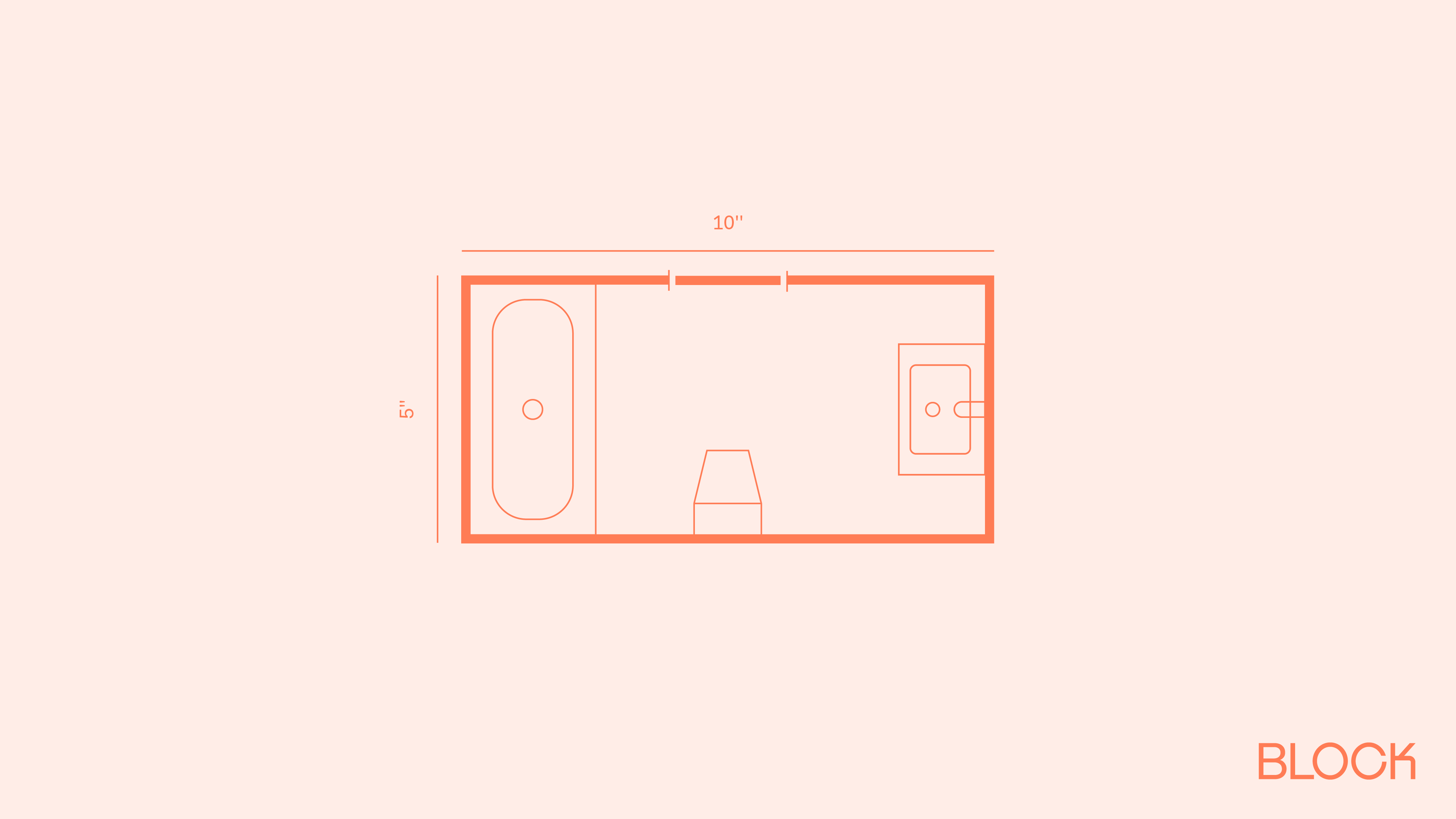

5x10 layout idea: Tub on the lower wall with toilet and single vanity on the right

This is the most unconventional layout in the set, and it works because it uses the 5-foot width purposefully rather than fighting it. The tub runs horizontally along the lower short wall, oriented with its length across the room's width rather than along its length. The toilet sits in the upper-left corner, and the vanity occupies the right wall. The center of the room is a genuinely open floor.

A standard 60-inch tub fits a 5-foot wall with no room to spare on either side, so this configuration works best with a compact tub in the 54 to 58-inch range, or in situations where the tub alcove can be framed to fully absorb the fixture into the end wall. The payoff for getting it right is a bathroom where the tub does not consume any of the long wall space, leaving the full 10-foot length available for the toilet and vanity to be positioned with real breathing room between them.

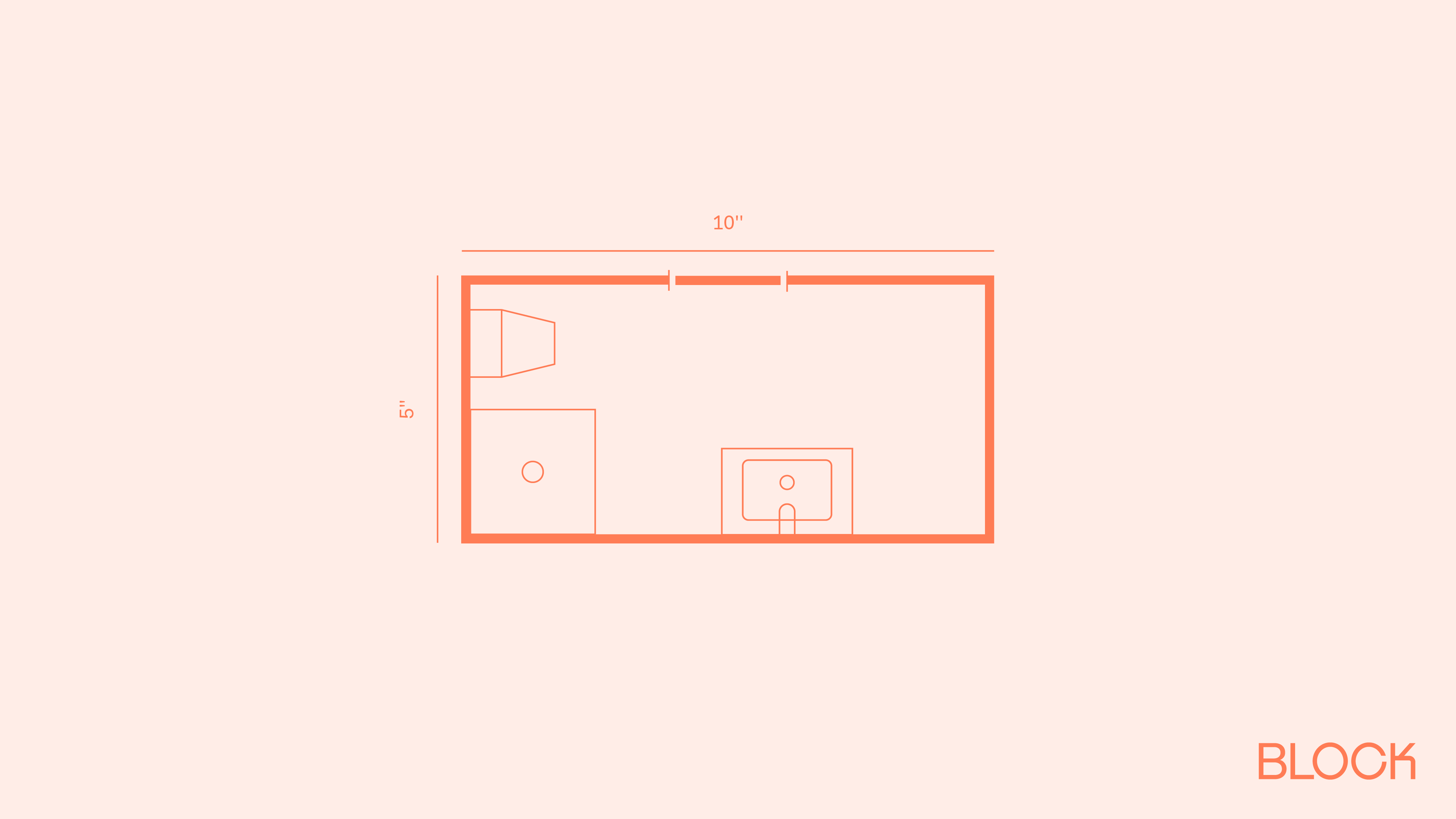

5x10 layout idea: Toilet and shower on the left wall with single vanity centered on the lower wall

This layout is a close relative of the first one, with one meaningful variation: the vanity moves from the right wall to the center of the lower short wall, facing directly down the length of the room. That repositioning creates a symmetrical composition when you look at the bathroom from the door — toilet and shower along the left, open floor down the center, and the vanity anchoring the far end like a focal point.

The centered vanity works particularly well here if you are investing in a piece with some visual presence, whether that is a furniture-style cabinet, a statement mirror, or distinctive hardware. When the vanity is the first thing you see from the door and it is centered on the wall ahead of you, it sets the tone for the whole room in a way that a side-wall position simply cannot. For a bathroom where the goal is to feel intentional rather than just functional, this layout is worth the slightly more complex plumbing routing it may require.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

Design tricks for making a 5x10 bathroom feel wider

The 5-foot width of this bathroom is a fixed dimension. Nothing you do during a renovation will change it. But the way a room feels has very little to do with what a tape measure says, and a well-considered 5x10 bathroom can feel significantly more open than its numbers suggest. These are the design moves that make the most difference.

Run tile continuously from floor into the shower

One of the most effective ways to make a narrow bathroom feel wider is to eliminate the visual boundary between the wet zone and the dry zone. When you continue the floor tile into the shower enclosure, especially with a curbless entry, the eye reads the floor as a single unbroken surface rather than two small ones. That perceived continuity makes both the shower and the room around it feel larger. It works best with large-format tile, which has fewer grout lines to interrupt the visual flow.

Use large-format tile on the floor

Fewer grout lines mean fewer visual interruptions, and fewer visual interruptions make a floor read as one continuous surface rather than a grid. A 12x24-inch or 24x24-inch tile in a light neutral tone will make the floor of a 5x10 bathroom feel longer and wider than a 4x4 ceramic or a mosaic would. If you use a rectangular tile, lay it with the long edge running perpendicular to the narrow dimension — across the 5-foot width — to visually stretch the room.

Use mirrors to multiply the sense of space

A well-placed mirror is one of the most cost-effective tools in a narrow bathroom. The most common mistake is choosing a mirror sized to the vanity and nothing more. In a 5x10 bathroom, a mirror that runs the full width of the vanity wall — from counter height to ceiling, or close to it — doubles the perceived depth of the room by reflecting the length back at you. That reflected length is exactly what a narrow bathroom needs more of.

A mirror on the short wall opposite the door is particularly effective. When you walk in, you see the full length of the room reflected back, which immediately makes the space feel twice as long. If budget allows, a full-length mirror panel on the end wall is one of the highest-impact upgrades you can make in a bathroom this shape. It does not need to be framed or elaborate. A simple frameless mirror cut to fit the wall does the job better than a smaller decorative piece would.

Mount the vanity on the wall

A floor-standing vanity cabinet fills the visual field from floor to counter height, which in a narrow room can make the space feel boxy and enclosed. A wall-mounted vanity exposes the floor beneath it, which creates a sense of visual lightness and makes the room easier to clean. Even 6 to 8 inches of visible floor under the vanity changes the feel of the room meaningfully. Wall-mounted vanities are available in widths as narrow as 18 inches, which is a useful option when the right wall does not have much to give.

Keep wall colors light and consistent

A single light color across all walls and the ceiling makes the boundaries of the room less obvious and the walls feel farther apart than they are. Avoid accent walls in dark or contrasting colors. They visually shorten the room, which is the last thing a 5x10 bathroom needs. White, warm gray, soft sage, and pale blue all recede in a way that makes the walls feel more distant. The goal is a room where your eye travels comfortably from one end to the other without stopping.

Add vertical elements to draw the eye up

A narrow bathroom has a natural tendency to emphasize its width, or lack of it. Vertical elements redirect attention toward the ceiling, which shifts the room's perceived proportions in your favor. Floor-to-ceiling tile in the shower, a tall narrow mirror above the vanity, or vertically stacked shiplap or tile on a feature wall all serve this purpose. In a 5x10 bathroom with standard 8-foot ceilings, there is a lot of vertical surface area that most renovations leave underutilized. Using even one wall to make a vertical statement changes how the whole room feels.

Use recessed niches instead of projecting shelves

Any shelf, cabinet, or storage unit that projects from the wall into a 5-foot-wide bathroom narrows the already tight corridor. Recessed niches solve this by putting the storage inside the wall rather than in front of it. A niche framed between studs in the shower wall holds shampoo, conditioner, and soap without claiming any floor space or reducing clearance anywhere in the room. A niche above the toilet at a comfortable reach height holds spare toiletries without projecting at all.

The time to plan recessed niches is during rough-in, before the walls are closed. Your contractor can frame the cavities while the walls are already open, which adds minimal cost compared to cutting into finished tile later. In a narrow bathroom, recessed storage is not just a design preference. It is the only kind of storage that does not make the room feel smaller every time you add something to it.

Renovate your 5x10 bathroom with Block Renovation

A 5x10 bathroom done well requires more precision than almost any other renovation. The margin for error is smaller, the fixture placement decisions matter more, and the difference between a layout that flows and one that frustrates comes down to details that are much easier to get right before demolition than after.

Block Renovation connects you with thoroughly vetted local contractors who have real experience with bathrooms exactly like this one. You will receive detailed, comparable proposals with line-item pricing so you can evaluate your options clearly. Every project comes with progress-based payments, expert scope review to minimize change orders, and a one-year workmanship warranty on every job.
