5x5 Bathroom Floor Plans: How to Choose the Right Fixtures and Layout for a Small Bathroom

Twenty-five square feet is a real bathroom. Not a generous one, but a real one, with enough room to fit a toilet, a sink, and if you plan carefully, even a small bathtub. That last part surprises a lot of homeowners, but it's true: a standard 60-inch alcove tub is exactly five feet long, which means it can span an entire wall in a 5x5 room.

Whether you're converting a half bath into a full bathroom or building a new small bathroom from scratch, the question isn't just "what fits?" but "what should I actually put in here?" The wrong fixture in a 5x5 room doesn't just waste space. It can make the room feel frustrating to use every day, and it can add cost that a different choice would have avoided.

Four floor plans for a 5x5 bathroom

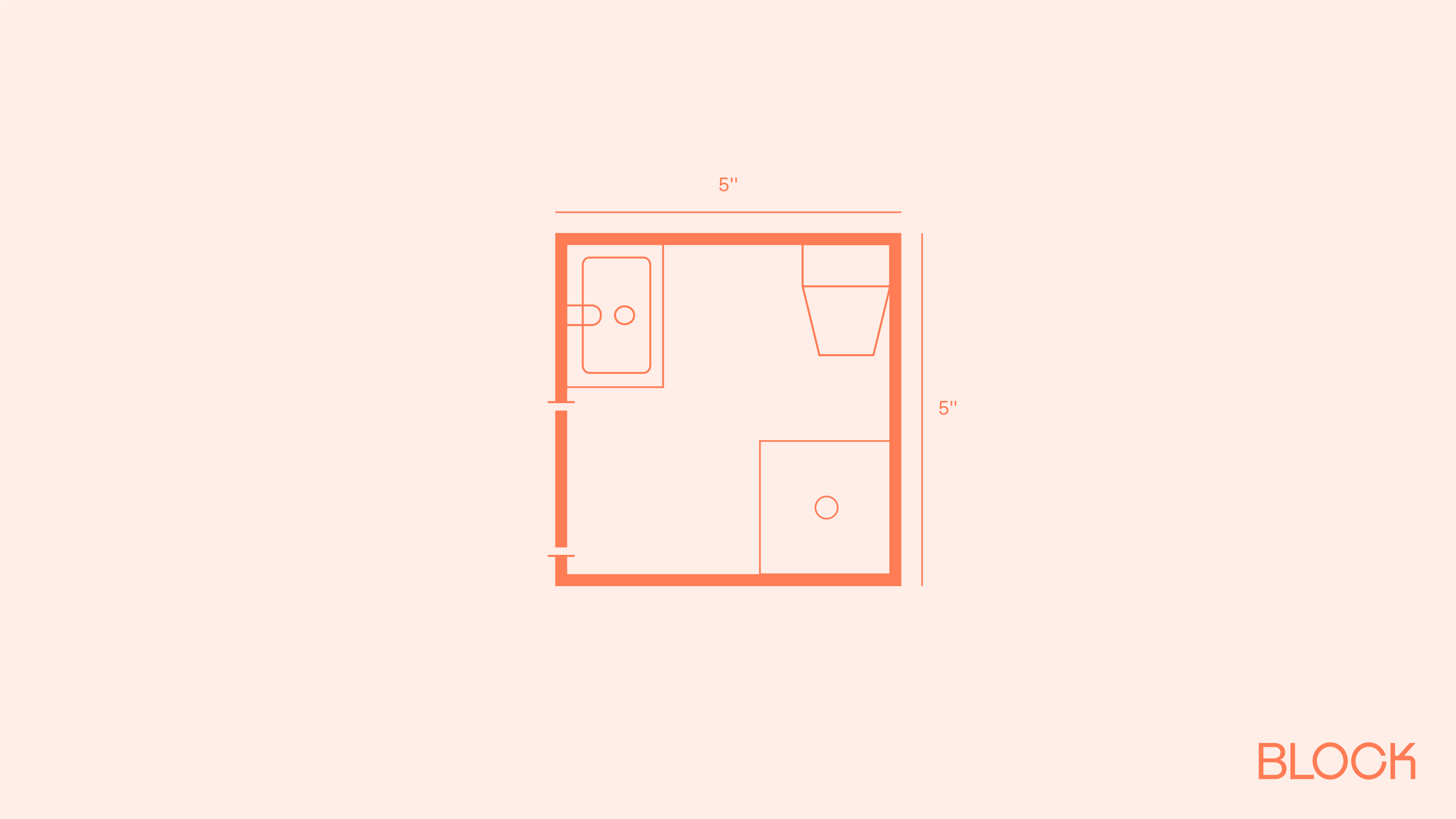

Vanity and toilet on opposite corners, sink anchoring the lower right

This layout places the vanity in the upper-left corner and the toilet in the upper-right, with a sink positioned in the lower-right quadrant. The door enters from the left wall. The toilet and vanity share the top wall but aren't crowded together, and the sink in the lower portion of the room keeps handwashing separate from the toilet area.

Consider this layout if you need a powder room or half bath that gets regular household use, not just guest visits. There's enough breathing room between fixtures that mornings won't feel rushed.

Vanity upper-left, toilet and sink in the lower half

Here the vanity stays in the upper-left, but the toilet moves to the lower-left and the sink to the lower-right. The door is on the right wall. This creates a clear horizontal divide: the upper half of the room is dedicated to the vanity and mirror area, while the lower half handles the toilet and handwashing. You walk in and immediately face the vanity, which is a nice detail if the room is visible from a hallway.

Consider this layout if sightlines matter to you. Because the toilet is tucked into the lower-left corner, it's less visible when the door is open. A smart pick for a half bath off a main living area.

Toilet upper-left, sink upper-right, vanity lower-right

This plan spreads fixtures across three corners, leaving the lower-left open for door clearance and circulation. The toilet and sink share the top wall on opposite sides, and a larger vanity sits in the lower-right. The door enters from the left.

Consider this layout if you want a wider vanity with some countertop space. In the other half bath layouts, the vanity is compact. Here, there's room in the lower-right for something in the 24 to 30 inch range, which gives you a bit of surface area for soap, a small tray, or a candle. Those are the kinds of details that make a powder room feel considered rather than purely utilitarian.

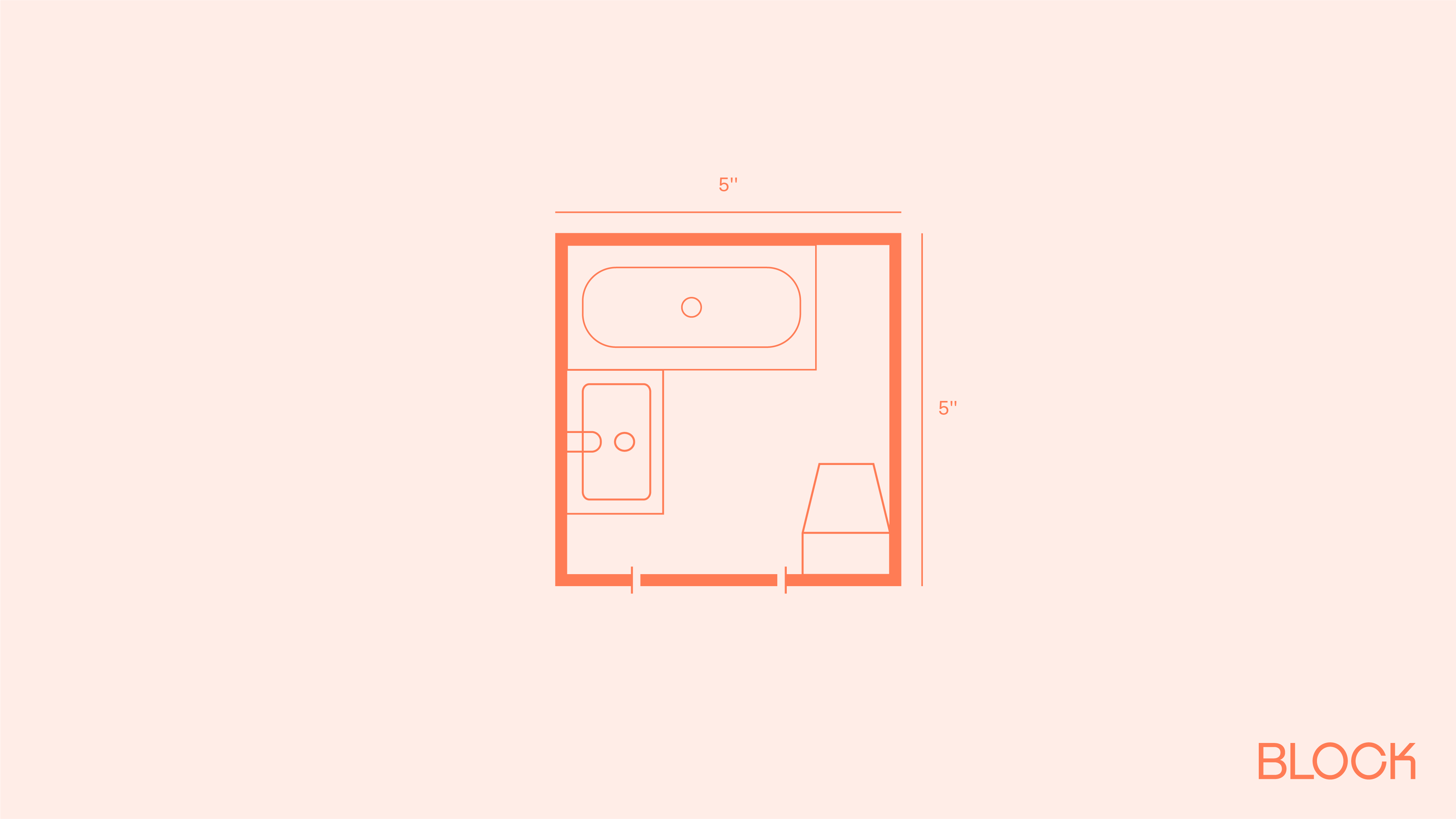

Full bath with a tub spanning the top wall

This is the only full bath in the set. A standard 60-inch alcove tub runs wall-to-wall across the top of the room. The vanity is in the lower-left, the toilet is in the lower-right corner, and the door enters from the bottom wall between them.

Consider this layout if you're converting an existing half bath into a full bathroom, particularly in a home that only has one full bath and needs a second. It's tight, and you should know that going in. The floor space below the tub is roughly 5 by 2.5 feet, shared between the vanity, toilet, and door swing. A pocket door is nearly mandatory here, and you'll want compact fixtures throughout. But if the goal is to add bathing capability to a 5x5 room, this is how it's done.

Half bath or full bath: which makes sense at this size

A 5x5 half bath is comfortable. You have room for a decent vanity, good clearance around the toilet, and enough floor space that the room doesn't feel claustrophobic. For a guest bath, a powder room, or a second bathroom in a household that already has one full bath, a half bath at this size is a strong choice.

A 5x5 full bath is functional but snug. Adding a tub means the lower half of the room gets crowded. You're standing in about 12 square feet of usable floor space while getting dressed, using the vanity, or reaching for a towel. If your household genuinely needs a second full bath (families with kids, homes with only one bathroom), it's worth the tradeoff. But if the tub would mostly go unused, you're giving up comfort for a fixture that takes up half the room.

One middle ground: skip the tub and install a corner shower stall instead, as outlined in the fixtures section above. A neo-angle shower takes up about half the space of a tub and still gives you bathing capability without making the rest of the room feel cramped.

Know the Cost Before You Start

Get real-time estimates for materials and labor so you can plan your renovation with confidence—no surprises.

Get an Estimate

Choosing the right fixtures for 25 square feet

In a larger bathroom, fixture selection is mostly about style. In a 5x5 room, it's about fit, literally. The difference between a 14-inch-deep pedestal sink and a 22-inch vanity is eight inches, which in a room this size represents almost a full step of floor space.

Showers that are friendly to limited footprints

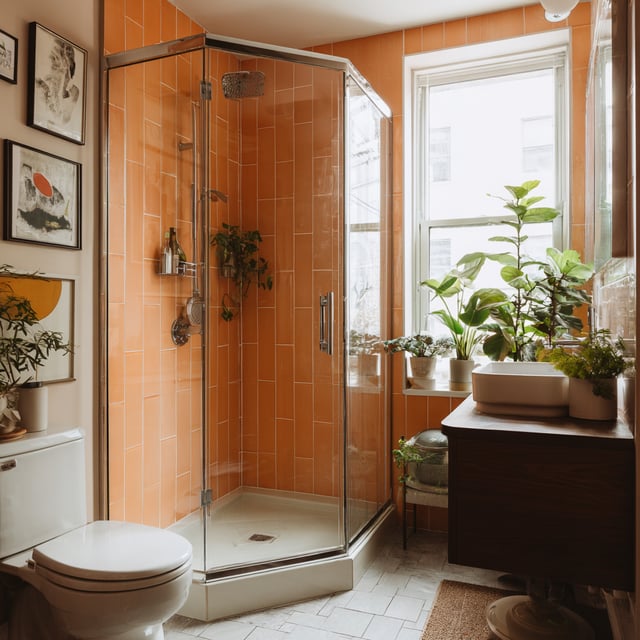

If you're turning a half bath into a full bath but don't want to commit to a tub, a corner shower stall is worth a serious look. A 32x32-inch neo-angle unit tucks into the corner and takes up roughly seven square feet, substantially less than a 60-inch tub. Some manufacturers offer 36x36-inch models that feel more spacious while still fitting comfortably in a 5x5 layout. The DreamLine Prism, for example, is a 36x36-inch frameless neo-angle kit with a low-profile base that comes in chrome, brushed nickel, and matte black finishes.

A curved glass door on a neo-angle shower also helps, since it doesn't swing outward into the room the way a hinged door would. Sliding barn-style shower doors are another option for keeping the entry compact. If you go this route, confirm with your contractor that the dimensions meet your local code requirements, since some jurisdictions set minimum interior shower dimensions at 30x30 inches.

Want to add a tub to your 5x5 bathroom? It’s possible

The standard 60x30-inch alcove tub is your best and likely only option for your 5x5 layout. It's designed to fit between three walls, and at five feet long, it spans the room exactly. Freestanding tubs won't work because they need clearance on all sides. Some manufacturers make 54-inch tubs for tighter spaces, but in a 5x5 room, the standard 60-inch version fits perfectly wall to wall with no wasted gap.

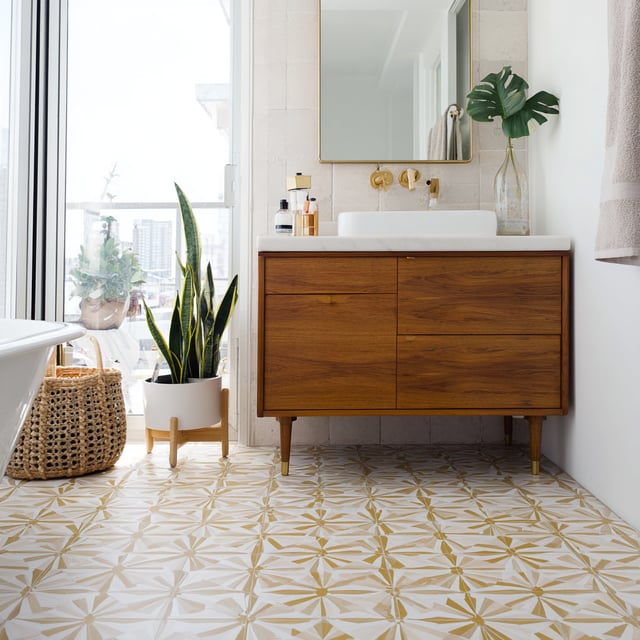

Sinks and vanities done right

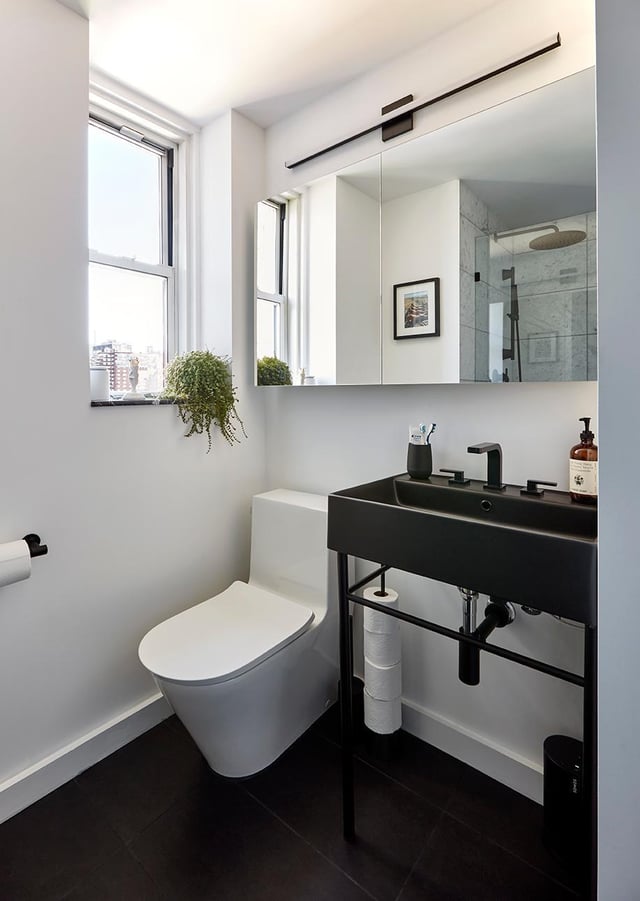

If you’re designing your 5x5 space to be a half bath, you have flexibility. A pedestal sink keeps the floor open. A wall-mounted sink does the same while giving you a clean modern look. A small vanity in the 18 to 24 inch range adds storage, which is valuable in a room where there's nowhere else to put a spare roll of toilet paper or hand towels.

For 5x5 full bath layouts, go as compact as possible on the vanity since the tub is consuming most of the room's real estate.

Smart tips for doors

In every one of these layouts, a pocket door is the strongest choice. In the full bath layout, it's close to essential because an inswing door would collide with either the vanity or the toilet. Even in the half bath layouts, swapping a swinging door for a pocket door reclaims several square feet of usable floor. If you can't do a pocket door because of plumbing or electrical in the wall, an outswing door is the fallback.

Design ideas that make your 5x5 space feel bigger than it is

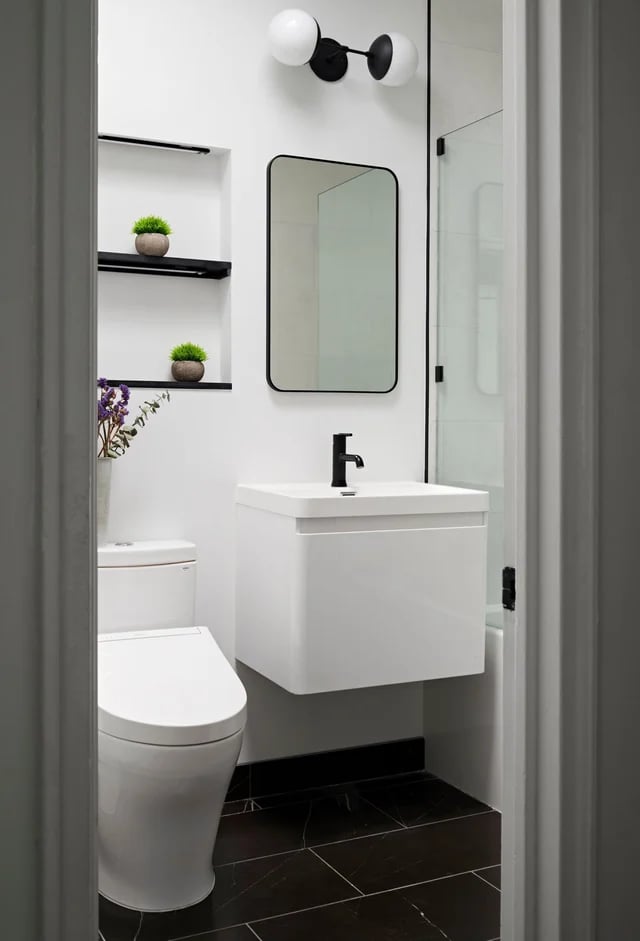

Use the vertical plane aggressively

In a room this small, the walls are your storage. A recessed niche between studs (typically 14.5 inches wide and 3.5 inches deep) costs almost nothing to frame in during construction and gives you a built-in shelf for toiletries without stealing any floor space. Stack two or three of them vertically next to the vanity and you've created meaningful storage where there was only drywall.

Put the mirror to work structurally

Rather than hanging a standard vanity mirror, run a mirror the full width of one wall. In a 5x5 room, this effectively doubles the perceived depth of the space and bounces light into corners that would otherwise feel dim. A full-wall mirror is inexpensive (a custom-cut frameless mirror for a five-foot wall runs roughly $100 to $250) and does more for the room than almost anything else at that price.

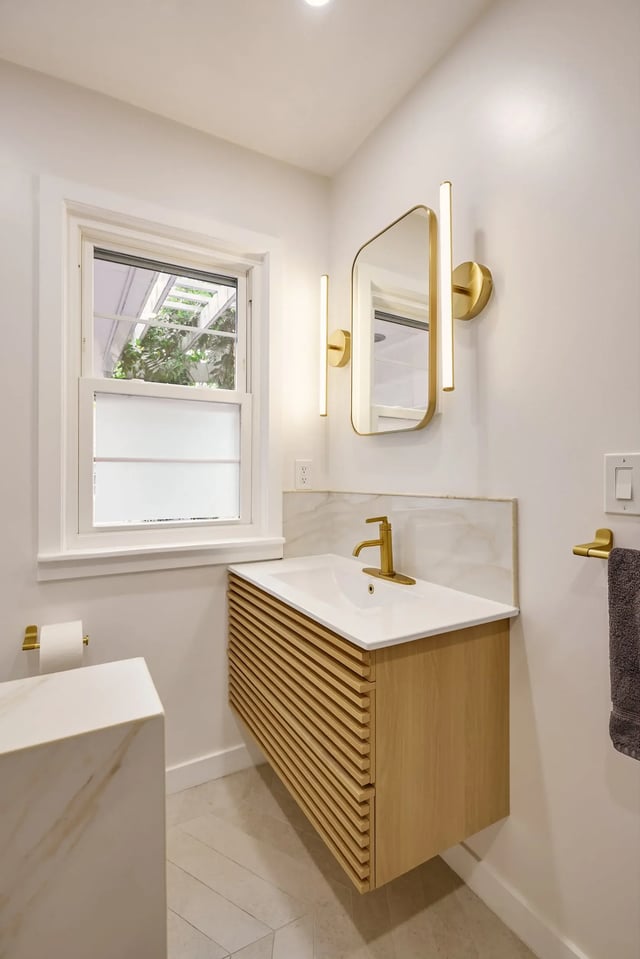

Float everything you can

A wall-mounted vanity, a wall-hung toilet, and wall-mounted accessories all lift objects off the floor. Seeing more continuous floor makes the room look bigger than it is. This also makes cleaning easier, since there's no pedestal base or vanity legs to reach around.

Think about the threshold

In a bathroom this small, even the transition strip at the doorway affects the feel of the room. You have a few options:

• Run the same flooring material from the hallway into the bathroom so there's no visual break
• Choose a flush transition strip rather than a raised one
• Use large-format tile (fewer grout lines) to reduce the visual "busyness" of the floor

Choose fixtures in the same finish family

In 25 square feet, mismatched finishes create visual noise because your eye bounces between them in a space where everything is within arm's reach. Pick one finish for faucets, towel bars, and hardware, and commit to it. It reads cleaner.

See your bathroom before you build it with Block's Renovation Studio

Choosing between a pedestal sink and a vanity is one thing when you're reading about it. It's another when you can see it in your room, with your tile, at your price point.

Block's Renovation Studio is a free tool that lets you design your bathroom visually. Swap materials and get a cost estimate that updates as you make changes. Try subway tile on the walls, then switch to large-format porcelain and watch the number move. See what happens to your budget when you drop the tub and go with a corner shower instead. For a 5x5 bathroom, this kind of real-time feedback matters because the margin for error is so small.

Plan your small bathroom with Block Renovation

A 5x5 bathroom doesn't leave much room for mistakes. A vanity that's two inches too deep, a door that swings into the toilet, a tub that looked fine on paper but leaves nowhere to stand. These problems only show up after the walls are framed, and they're expensive to fix at that point.

Block Renovation connects you with up to four vetted, licensed contractors matched to your project. You'll receive detailed proposals you can compare side by side, with a dedicated project planner to help you review every line item. Block's built-in protections, including price assurance, progress-based payments, and a one-year workmanship warranty, keep you covered from first demo to final walkthrough.
