9x12 Bathroom Floor Plans: Upgrading Your Primary Bathroom

A 9x12 bathroom is one of the more generous footprints a primary bath can occupy. At 108 square feet, you have enough room for a double vanity, a soaking tub, a separate shower, and a private toilet zone—and still have open floor at the center of the room that makes the whole space feel considered rather than crammed. The rectangular shape is an advantage here, too. The 12-foot length creates natural separation between zones that a square room of the same area simply cannot offer.

What makes a 9x12 renovation particularly rewarding is that the room is large enough to absorb real design ambition. This is the size where material choices, fixture selection, and layout decisions stop being compromises and start being expressions of how you actually want to live. A double vanity that gives two people genuine independence in the morning. A shower that feels like it was designed rather than fitted. A tub that has space around it to be what it is supposed to be.

The five floor plans below show how the proportions of this room can be organized to support all of that, and the section that follows covers what it takes to bring a 9x12 bathroom fully into the present.

Turn your renovation vision into reality

Get matched with trusted contractors and start your renovation today!

Find a Contractor

What a 9x12 bathroom renovation typically costs

At 108 square feet, a 9x12 renovation sits at the upper range of primary bath projects in both ambition and budget. A basic refresh covering new tile, updated hardware, a vanity replacement, and paint with plumbing in place typically runs $14,000 to $22,000. A mid-range renovation with a full retile, stone countertops, improved lighting, and one or two fixture relocations runs $25,000 to $48,000.

A high-end bathroom renovation with custom tilework, a frameless glass shower enclosure, a soaking tub, heated floors, and a full layout reconfiguration typically starts at $48,000 and rises depending on finish level and the complexity of any partial walls or zoning elements.

Labor accounts for 55 to 65 percent of total project cost. At this size, tile installation is a significant investment of time and skilled work, and any layout that distributes plumbing across multiple walls adds meaningful cost in extended supply and drain lines.

Renovate with confidence every step of the way

Step 1: Personalize Your Renovation Plan

Step 2: Receive Quotes from Trusted Contractors

Step 3: Let Us Handle the Project Details

Get Started

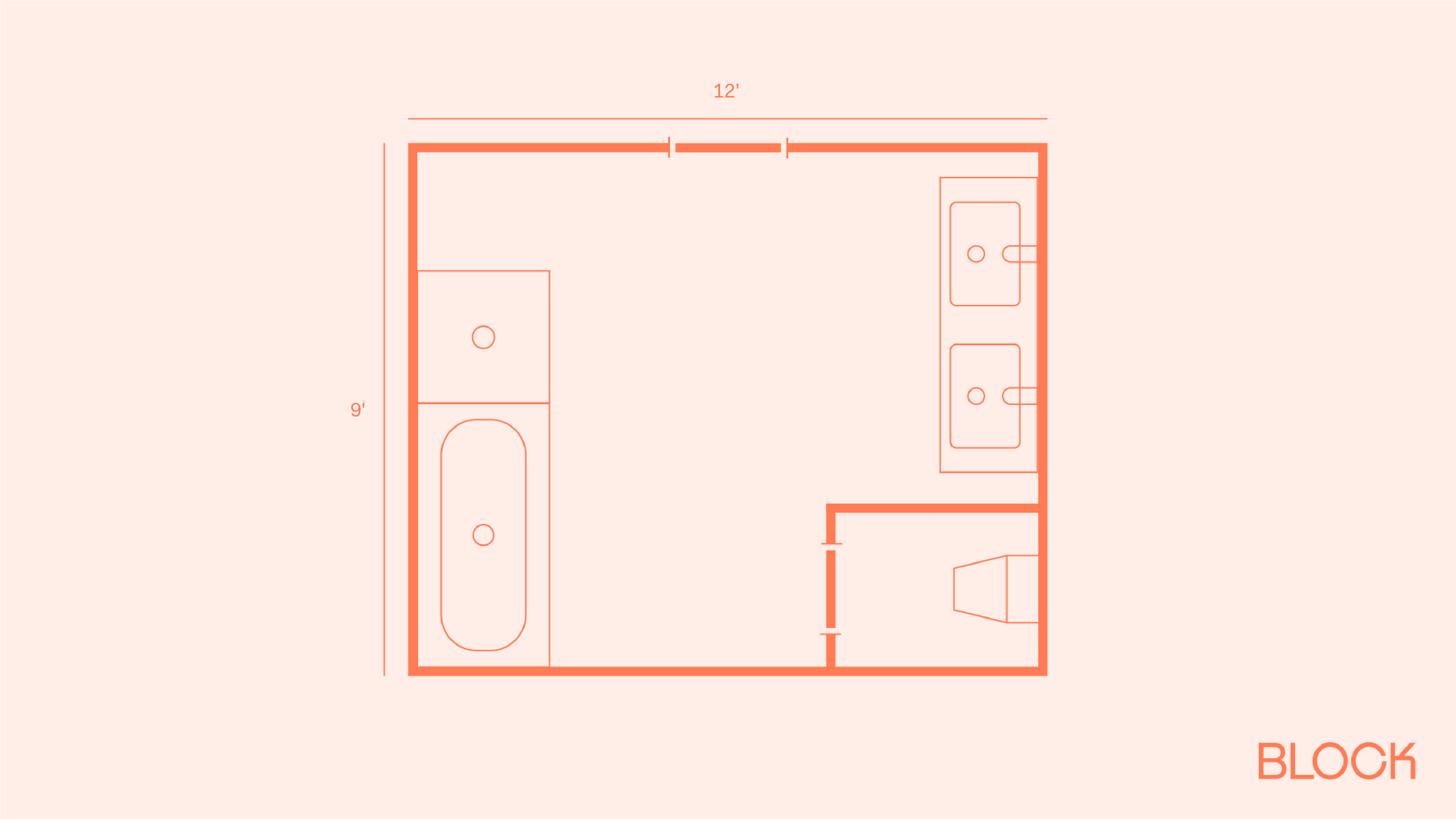

9x12 layout idea: Shower and tub on the left, double vanity and private toilet on the right

This layout puts everything a primary bath needs on opposite walls, with open floor running through the center. The shower and tub share the left wall, stacked along the 9-foot depth. The double vanity claims the upper-right wall, and a partial wall in the lower-right creates a private toilet compartment that sits out of sight from both the vanity and the tub. The center of the room is entirely yours.

What makes this layout particularly functional is the clear separation between the daily-use zone and the private zone. Two people can be at the double vanity simultaneously while the toilet compartment remains its own space. The shower and tub being on the same wall keeps plumbing concentrated and rough-in costs lower than layouts that split wet fixtures across the room.

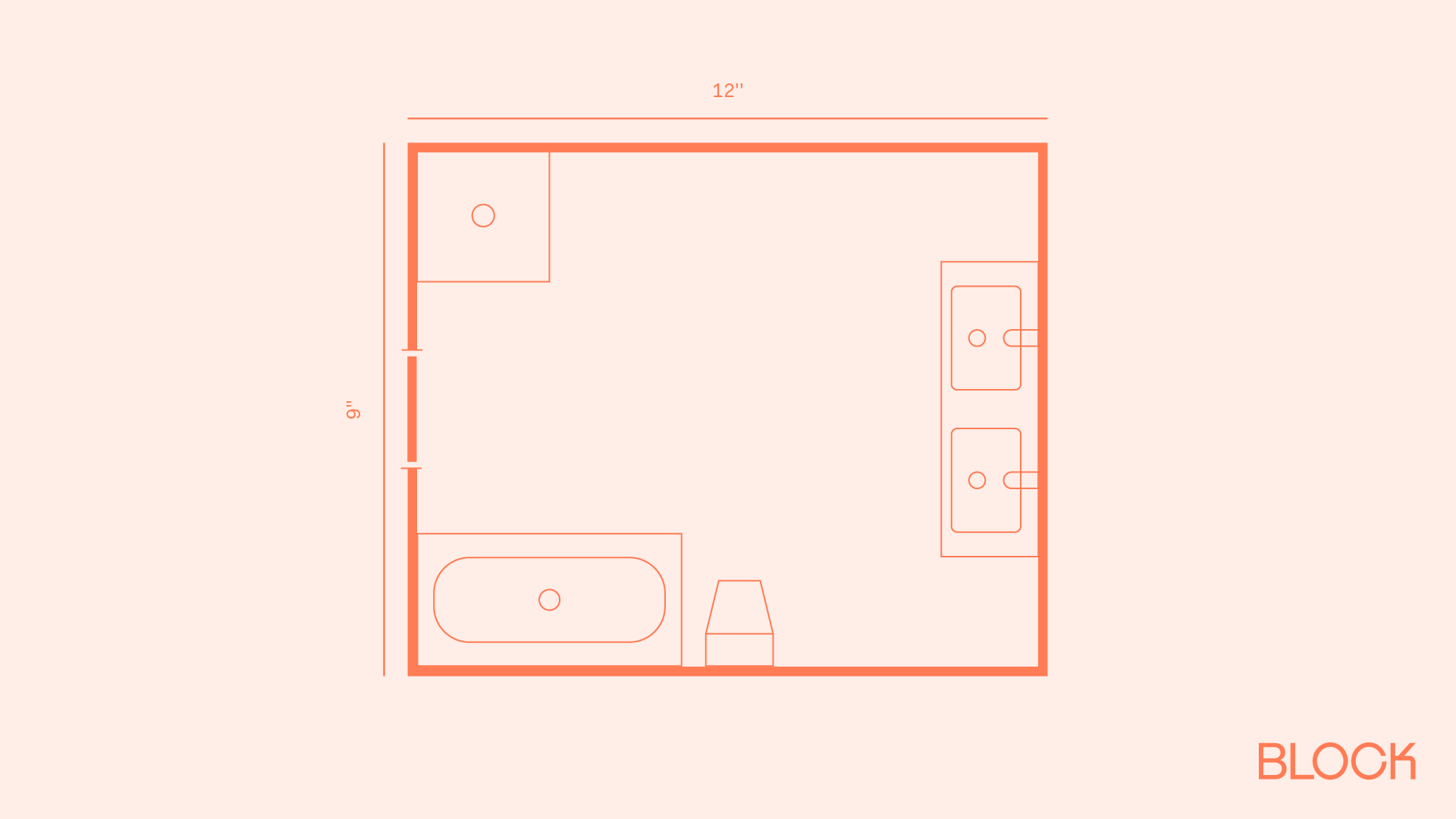

9x12 layout idea: Shower in the corner, tub and toilet on the lower wall, double vanity on the right

The shower occupies the upper-left corner here, behind its own partial wall, while the tub and toilet share the lower wall. The double vanity runs along the center of the right wall with a door behind it. The left side of the room handles all the wet work, and the right side handles all the grooming.

This layout creates an unusually generous center floor zone. Neither wall intrudes into the middle of the room, which makes it feel more spacious than its square footage alone would suggest. For a household where two people have genuinely different routines—one a shower person, one a tub person—this layout gives each fixture its own defined territory without either one feeling like a compromise.

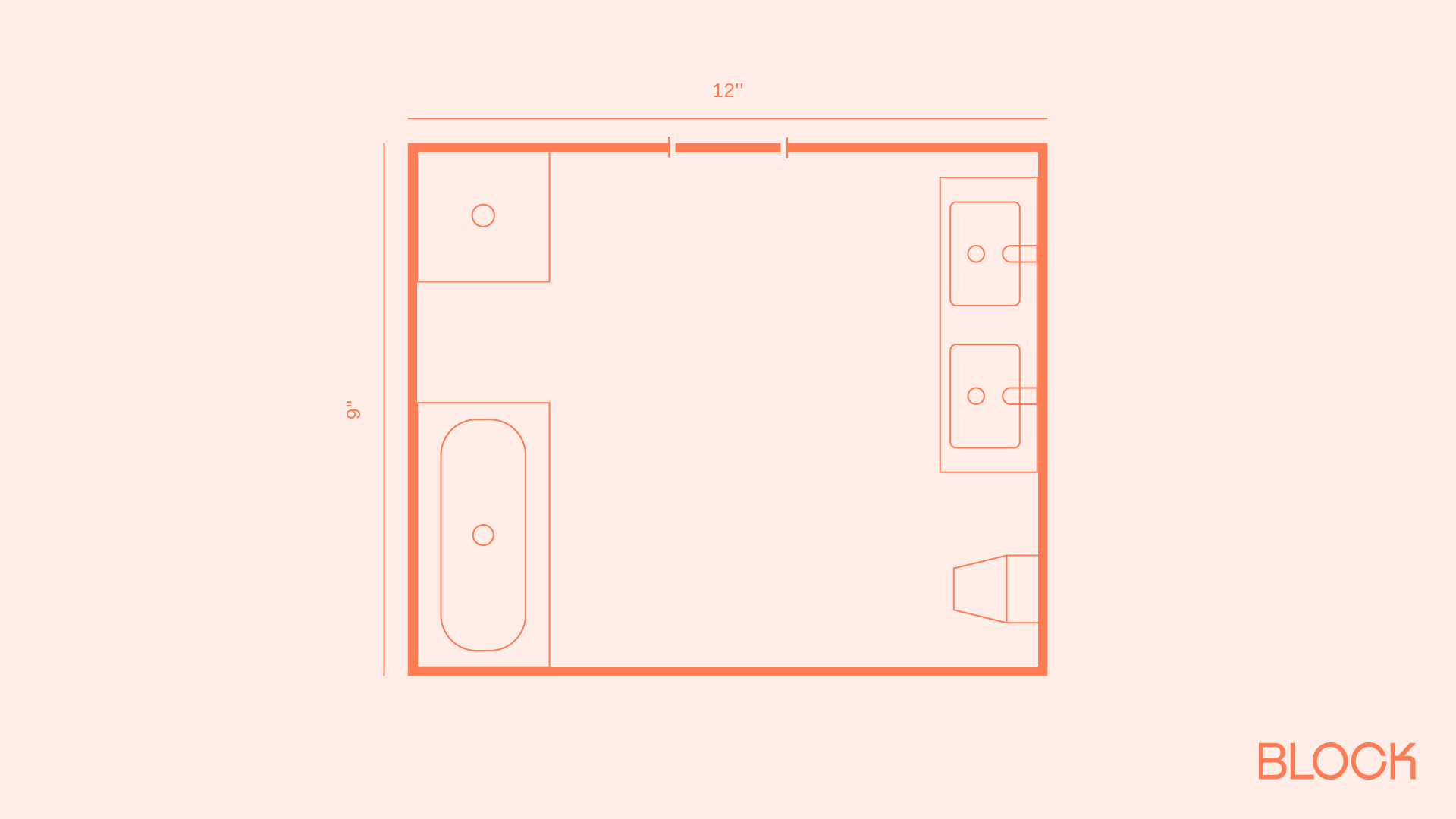

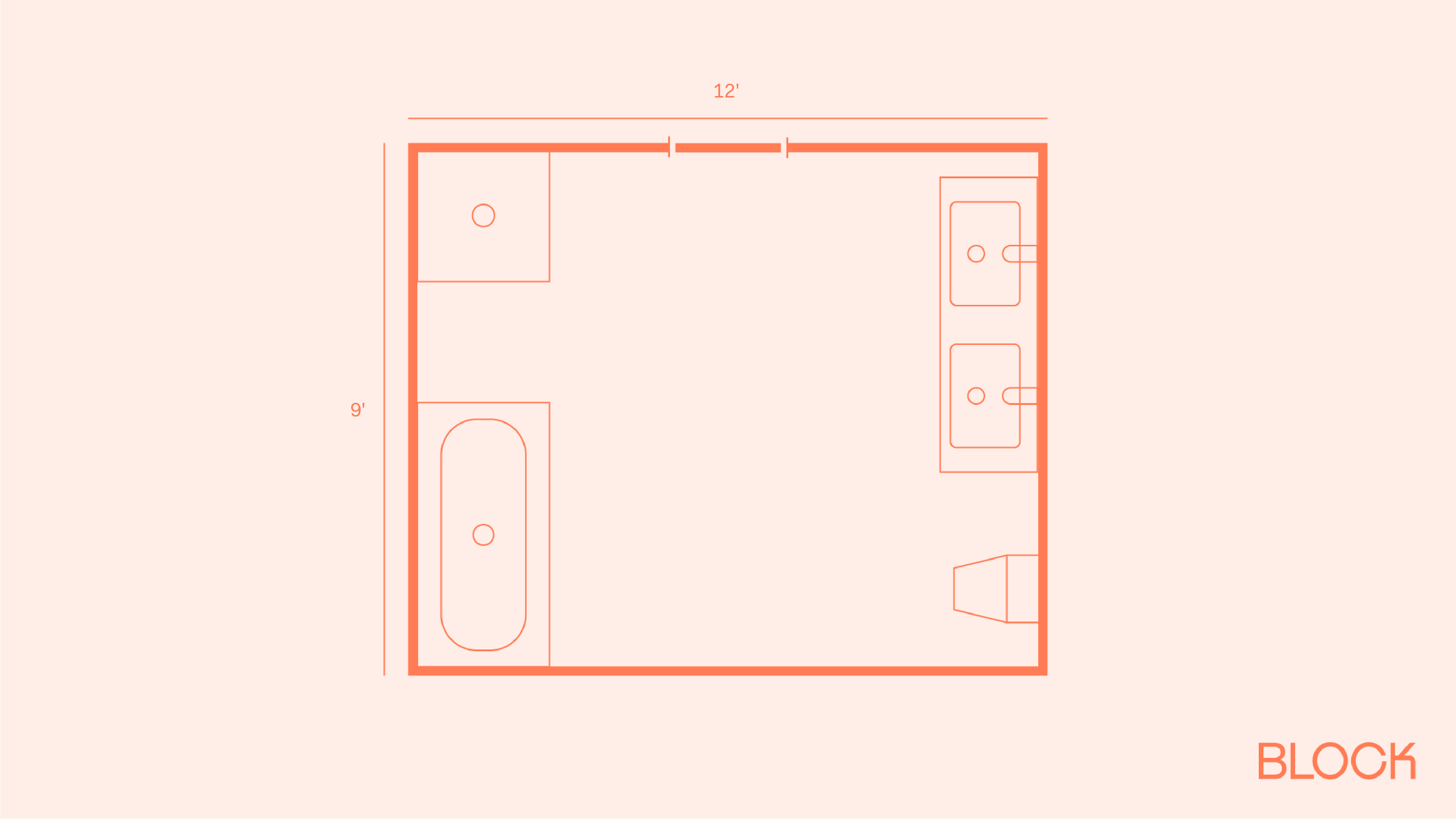

9x12 layout idea: Shower and tub on the left, double vanity and toilet on the right

This is the layout for a homeowner who wants both a tub and a dedicated shower without either one feeling secondary. The shower occupies the upper-left, behind a partial wall that gives it privacy. The tub runs along the lower-left wall. The double vanity holds the right wall, and the toilet sits in the lower-right corner. Every fixture has its own zone and its own clearance.

The 12-foot length is what makes this possible. In a shorter room, fitting both a shower and a tub on the left side without creating congestion would be difficult. Here, the length absorbs both comfortably and still leaves a generous center floor zone. For a shared primary bath where daily showers and occasional soaking are both genuine priorities, this is the configuration that honors both.

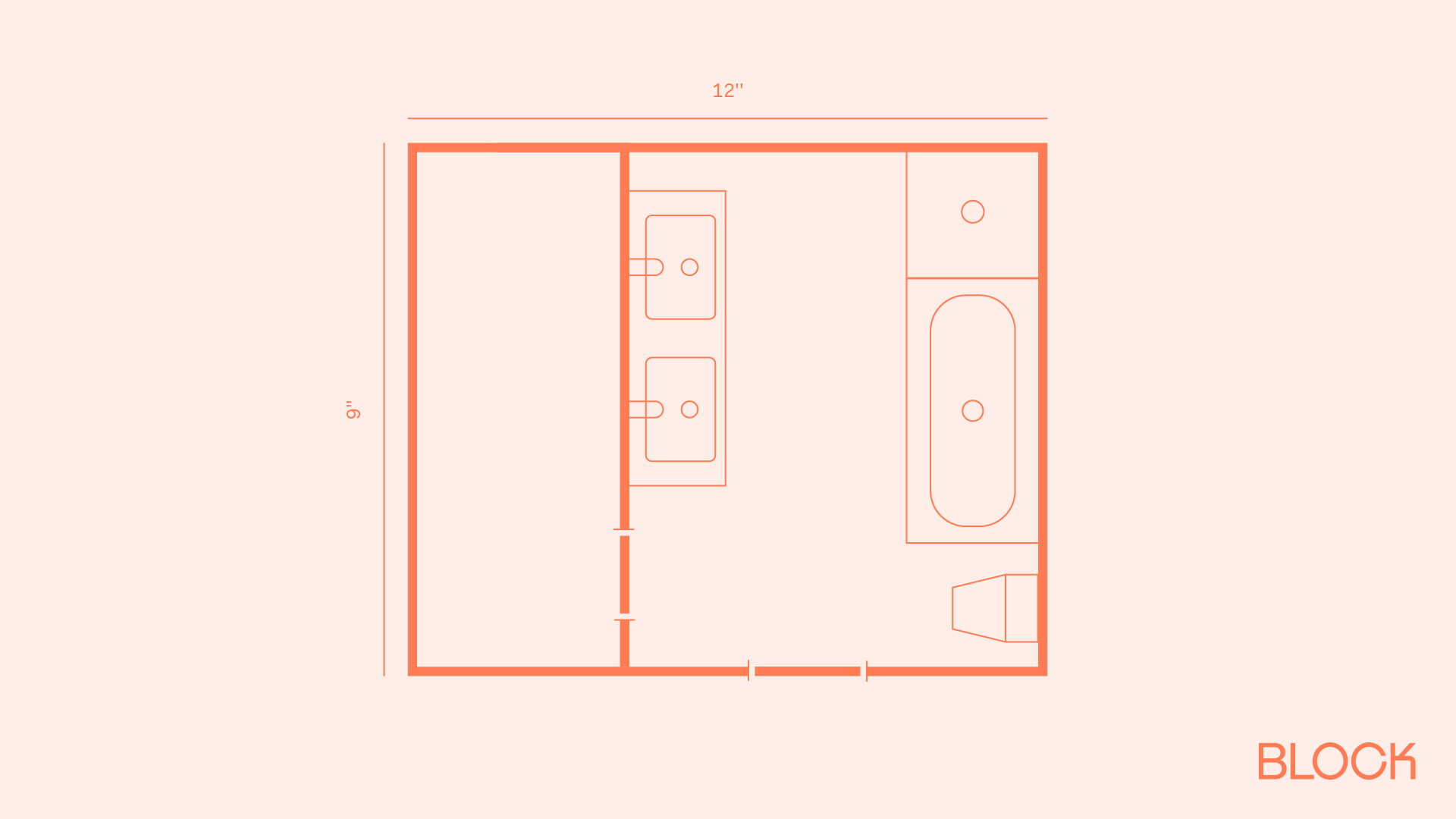

9x12 layout idea: Walk-in closet on the left, double vanity in the center, wet zone on the right

This is the most spatially organized layout in the set. A full partial wall on the left side of the room creates a dedicated walk-in closet zone, completely separated from the bathroom. The double vanity occupies the center of the room, facing inward, with open floor on either side of it. The tub, shower, and toilet share the right wall. The door enters from the lower center.

What this layout achieves that most others cannot is a true suite experience within a single footprint. The closet, the grooming zone, and the bathing zone each feel like their own room because each has a defined boundary. The centered double vanity is particularly striking—positioned between the closet and the tub zones, it reads as the organizing centerpiece of the whole space. For a homeowner who wants a primary bath that functions with the kind of intention you would find in a hotel suite, this layout delivers it.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

Modernizing your 9x12 bathroom

A 9x12 bathroom has the square footage to support real design ambition, and a renovation is the right moment to make choices that bring the room fully into the present. The upgrades below are not about following trends. They are about replacing what is dated and underperforming with things that work better, look better, and age more gracefully.

Replace the tub surround with large-format tile

If your bathroom has a tiled tub surround from the 1980s or 1990s, replacing it is one of the highest-impact changes you can make to the room's overall feel. Small ceramic tiles with busy grout lines visually fragment the wall and date the room immediately. Large-format tile—24x48 inches or larger, in a stone-look porcelain or a honed marble—reads as clean, current, and considered. The larger the tile, the fewer the grout lines, and fewer grout lines mean a wall that is easier to clean and much easier to look at.

At a 9x12 scale, a full tub surrounded in large-format tile is a meaningful investment in materials and installation, typically running $3,000 to $7,000 depending on the tile specification and substrate condition. It is also one of the renovations with the most visible return per dollar spent.

Upgrade to a floating double vanity

A floor-standing vanity with doors and drawers is functional, but it is also one of the clearest signals that a bathroom has not been touched in a while. A floating double vanity—wall-mounted, with clean lines and integrated or undermount sinks—changes the entire character of the grooming zone. It makes the floor feel larger, makes cleaning easier, and brings the room's most used fixture into the current century.

At a 9x12 scale, a 60 to 72-inch floating double vanity with stone or quartz countertops typically runs $2,500 to $6,000 for the fixture, plus $400 to $800 for installation. The material of the vanity face matters as much as the size: matte lacquer, white oak, and walnut veneer are all durable, current choices that hold up well in a bathroom environment and look significantly better than the oak or cherry cabinetry that defined primary baths for the past three decades.

Convert a shower-tub combo to a dedicated walk-in shower

If your current bathroom has a shower-tub combo in an alcove, converting it to a dedicated walk-in shower is one of the more transformative changes you can make. A walk-in shower with a curbless entry, a linear drain, large-format tile on the floor and walls, and a frameless glass enclosure looks and functions categorically differently from the tub-shower combo it replaces. It also frees up the footprint of the tub alcove to become a more generous shower stall—typically 36x48 inches or larger—that you will actually enjoy using every day.

A custom walk-in shower conversion in a 9x12 bathroom typically runs $6,000 to $14,000 depending on the size of the enclosure, the tile specification, and the glass configuration. It is a significant budget item, and it is also the renovation that most consistently produces the feeling that a room finally belongs to you rather than the previous owners.

Replace overhead lighting with a layered plan

A single overhead fixture is the default lighting plan in most bathrooms built before 2010, and it produces flat, unflattering light that makes the room feel like a utility space rather than a personal one. A layered lighting plan—recessed fixtures for overall illumination, sconces flanking the vanity mirror at face height, and accent lighting in the shower or above the tub—changes how the room feels at every hour of the day.

Sconces at face height on either side of the vanity mirror eliminate the shadows that overhead lighting creates, which matters more than most people realize until they experience the difference.

Dimmer switches on the vanity and shower circuits let you adjust the room for morning routines versus evening wind-downs. The total cost for a complete lighting upgrade in a 9x12 bathroom, including new fixtures and electrical work, typically runs $1,500 to $4,000.

Update the toilet

A toilet installed before 2010 is almost certainly using significantly more water per flush than current models do. High-efficiency toilets with dual-flush mechanisms use as little as 0.8 gallons per flush on the liquid cycle, compared to the 3.5 to 5 gallons that older models consume. Wall-hung toilets eliminate the visible trapway and base, make floor cleaning much easier, and give the bathroom a cleaner, more intentional look. A quality wall-hung toilet with the in-wall carrier frame typically runs $800 to $2,000 installed. If a full gut renovation is already planned, it is one of the easier swaps to incorporate while the walls are open.

Modernize your plumbing fixtures and finishes

Faucets, shower heads, toilet handles, towel bars, and robe hooks are easy to overlook during a renovation because none of them are structural decisions. They are also among the most visible details in a finished bathroom, and mismatched or dated hardware can undercut everything else you invested in.

A cohesive hardware finish—matte black, brushed nickel, brushed gold, or unlacquered brass—applied consistently across every fixture in the room ties the renovation together in a way that feels intentional rather than assembled. Want to combine multiple finishes? There’s a right way to go about mixing metals in the bathroom.

Beyond aesthetics, the functional upgrades in plumbing fixtures have come a long way. A thermostatic shower valve, which maintains a precise water temperature regardless of what else is running in the house, eliminates the scalding-then-freezing cycle that older pressure-balance valves produce. A rain head paired with a handheld wand on a slide bar gives the shower significantly more flexibility for different users and different uses. Upgrading a standard faucet to a wall-mounted model at the tub frees up the deck and changes the entire look of the fixture. These are not cosmetic choices. They are the difference between a bathroom that functions adequately and one that functions well.

Renovate your 9x12 bathroom with Block Renovation

A 9x12 bathroom renovation touches more trades, involves more material decisions, and requires more careful coordination than almost any other project in the home. Getting it right means working with a contractor who understands how to sequence tile work, plumbing, electrical, and finish carpentry without one trade undoing what another just completed, and who brings the kind of precision that a room this size deserves.

Block Renovation connects you with thoroughly vetted local contractors who provide detailed, comparable proposals with line-item pricing. Every project comes with progress-based payments, expert scope review to minimize change orders, and a one-year workmanship warranty on every job.
