L-Shaped Kitchen Layouts & Designs

An L-shaped kitchen layout uses two perpendicular walls for all its cabinetry and appliances, leaving the rest of the room open. That's the whole concept, and it's why this layout shows up in 400-square-foot condos and 3,000-square-foot single-family homes alike. It adapts.

What makes an L-shaped kitchen work

The L-shape puts the three primary work zones (cooking, cleaning, cold storage) on two adjacent walls that meet at a corner. The fridge usually anchors one end, the sink sits somewhere along the run, and the range lands on the perpendicular leg. Everything else in the room (dining table, island, banquette, pantry) is free to float.

That freedom is the layout's real advantage. A galley kitchen locks you into a narrow corridor. A U-shape commits three walls to cabinetry. The L-shape commits two, which leaves roughly two-thirds of the room available for whatever else you need the space to do.

Three things make or break the design:

• The work triangle. The distance between fridge, sink, and range should total between 13 and 26 feet, with no single leg under 4 feet or over 9. Too tight and you can't stand between zones. Too far apart and cooking becomes a hike.
• The corner. The inside corner where the two legs meet is either usable storage (a lazy Susan, a corner drawer, an appliance garage) or dead space. Plan for it early. Contractors who don't address it will leave you with a 24-inch void behind a cabinet door you can't fully open.
• The leg lengths. The long leg typically runs 10 to 15 feet, the short leg 6 to 10. Asymmetry is fine. Most well-designed L-kitchens are asymmetric. But each leg needs enough run to serve its purpose: at least 36 inches of counter next to the range, 18 to 24 next to the fridge, 30 flanking the sink.

Pros and cons compared to other layouts

An L-shape isn't automatically the right call. Here's how it compares to the other common kitchen layouts:

• L-shape vs. galley. A galley is more efficient for one cook with everything within arm's reach, but it's harder to socialize in, harder to add seating to, and a problem when two people try to use it at once. If your room is narrower than 10 feet and significantly longer than it is wide, galley may actually be the better pick.
• L-shape vs. U-shape. A U-shape gives you more storage and more counter, but it commits a third wall. In open-plan homes that third wall often doesn't exist, which is why U-kitchens are more common in older houses with separate dining rooms.
• L-shape vs. single-wall. A single-wall kitchen has the smallest footprint and the least counter space. It's a fine choice for a studio or a secondary kitchen, but most households outgrow it.
• L-shape vs. island-centric. An island isn't really a layout, it's an add-on. An L-shape with an island is a popular combination (more on that below), but a room planned around an island alone tends to waste perimeter wall space.

The real weakness of the L-shape is storage. With only two walls in play, you have less cabinet run than a U-shape or a galley of equal square footage. Homeowners who cook daily and entertain often tend to add an island, a tall pantry, or both.

How to make an L-shape work in a small space

The smaller the footprint, the less forgiving the L-shape becomes. Below about 80 square feet you lose room for a dining table, the work triangle tightens to the point where you're pivoting in place, and the inside corner becomes the single most important decision in the room. The rule of thumb: keep one leg short and tight (fridge plus a single base cabinet), let the other leg handle the real work, and find your seating somewhere that doesn't intrude on the counter run.

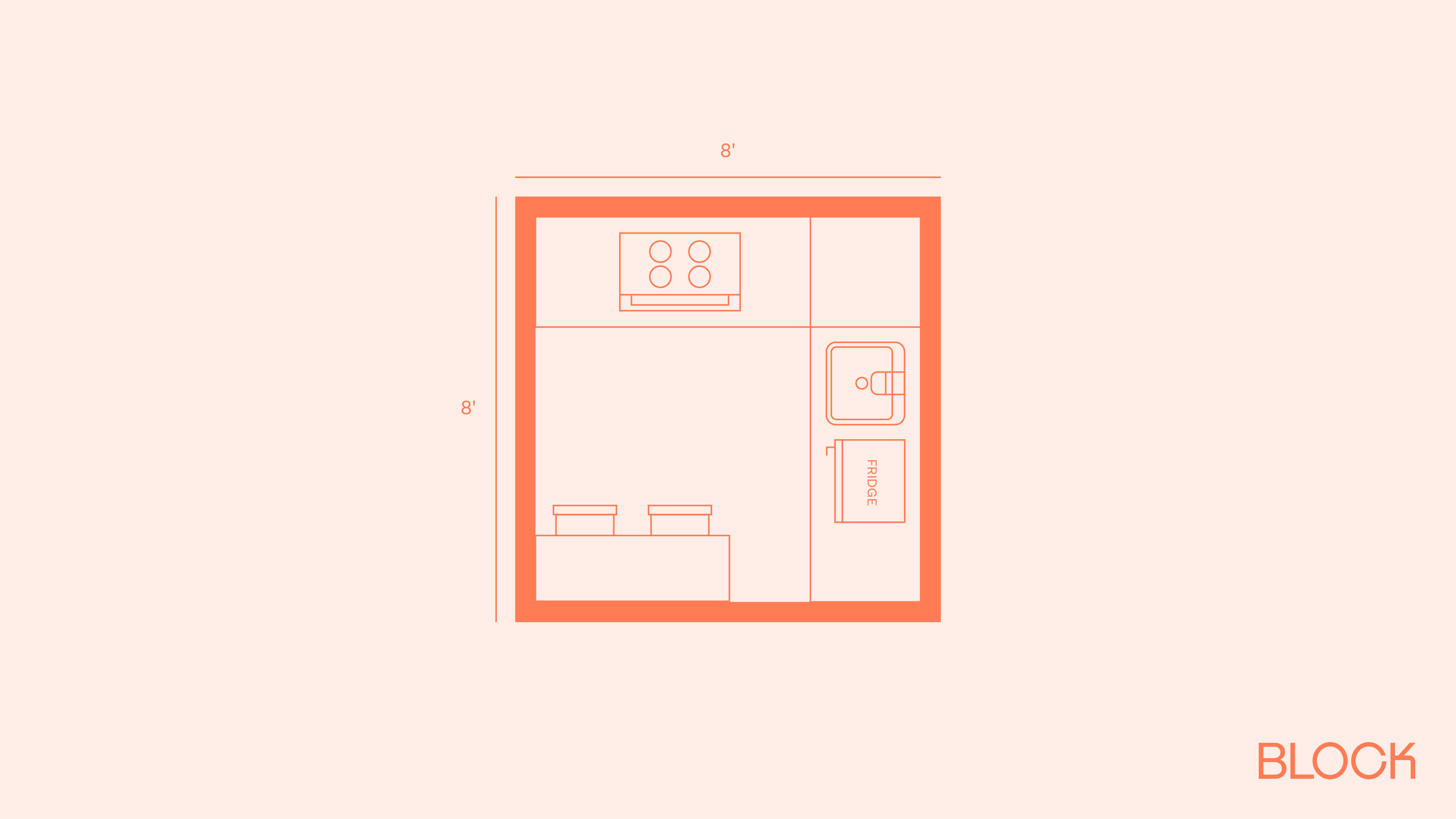

The cooktop sits on the short back wall, the sink and fridge stack along the side leg, and a narrow counter bar with two stools handles the seating. No dining table fits, and the inside corner is almost entirely taken up by the sink base. But the work triangle is tight and functional, and every linear inch earns its keep.

Click here to view more 8x8 kitchen floor plans.

When to put the sink on the side leg

The default L-shape puts the sink under a window on the longer wall with the cooktop on the perpendicular leg. It's a good default, but it assumes the longer wall has a window and that you're fine with cooking relegated to the side leg. Both assumptions are worth questioning. A kitchen where the cooking wall runs uninterrupted (fridge, counter, cooktop, more counter) can feel far more generous, especially in a smaller room. The tradeoff is plumbing. Running supply and drain lines to the side leg costs more than running them along the main wall, and if your existing kitchen already has plumbing on the long wall, reconfiguring is real money.

The sink and dishwasher live on the side leg. The fridge and cooktop share the full back wall as a single uninterrupted run. A small round bistro table anchors the open quadrant. Worth the plumbing cost when the back wall is where you want to cook, and your plumbing is willing to follow.

Click here to view more 12x10 kitchen floor plans.

Using an L-shape in a long, narrow room

Long narrow rooms usually get galleys by default. That's a mistake in rooms where you want seating, or where one of the long walls has a door, window, or other obstruction that kills the galley's second counter run. An L-shape uses one long wall and one short end, which frees the remaining long wall for something else: a dining table, a built-in bench, a run of windows. You lose some counter compared to a galley, but you gain the ability to actually live in the room.

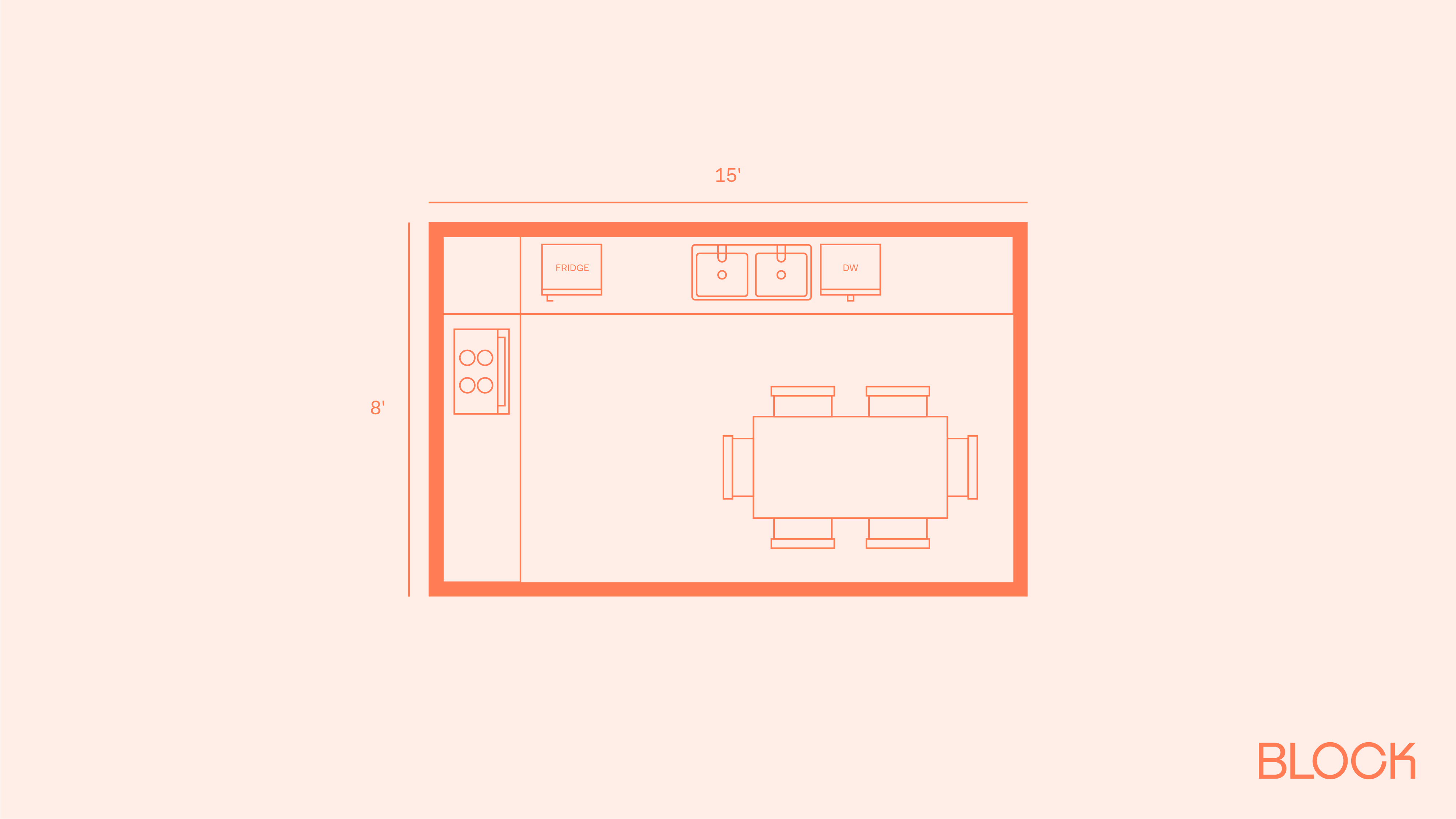

The main appliance wall (fridge, sink, dishwasher) runs the full 15-foot length, and the cooktop anchors the 8-foot short leg. A six-seat dining table slides along the length of the room, parallel to the counter. If your kitchen is shoebox-shaped and you assumed you were stuck with a galley, this is proof you're not.

Click here to view more 15x8 kitchen floor plans

Adding an island to an L-shape

An island is the most common add-on to the L-shape, because the L leaves a large central zone open and that zone begs for something to anchor it. The decision that matters is what the island actually does. A prep counter is simple. A sink adds plumbing. A cooktop adds plumbing for gas (or electrical for induction) plus ventilation, either a downdraft or a ceiling-mounted hood, which is where costs climb fast. But moving the cooktop to the island has a real payoff: it turns the island into the actual center of the kitchen, and it lets the cook face the room instead of the wall.

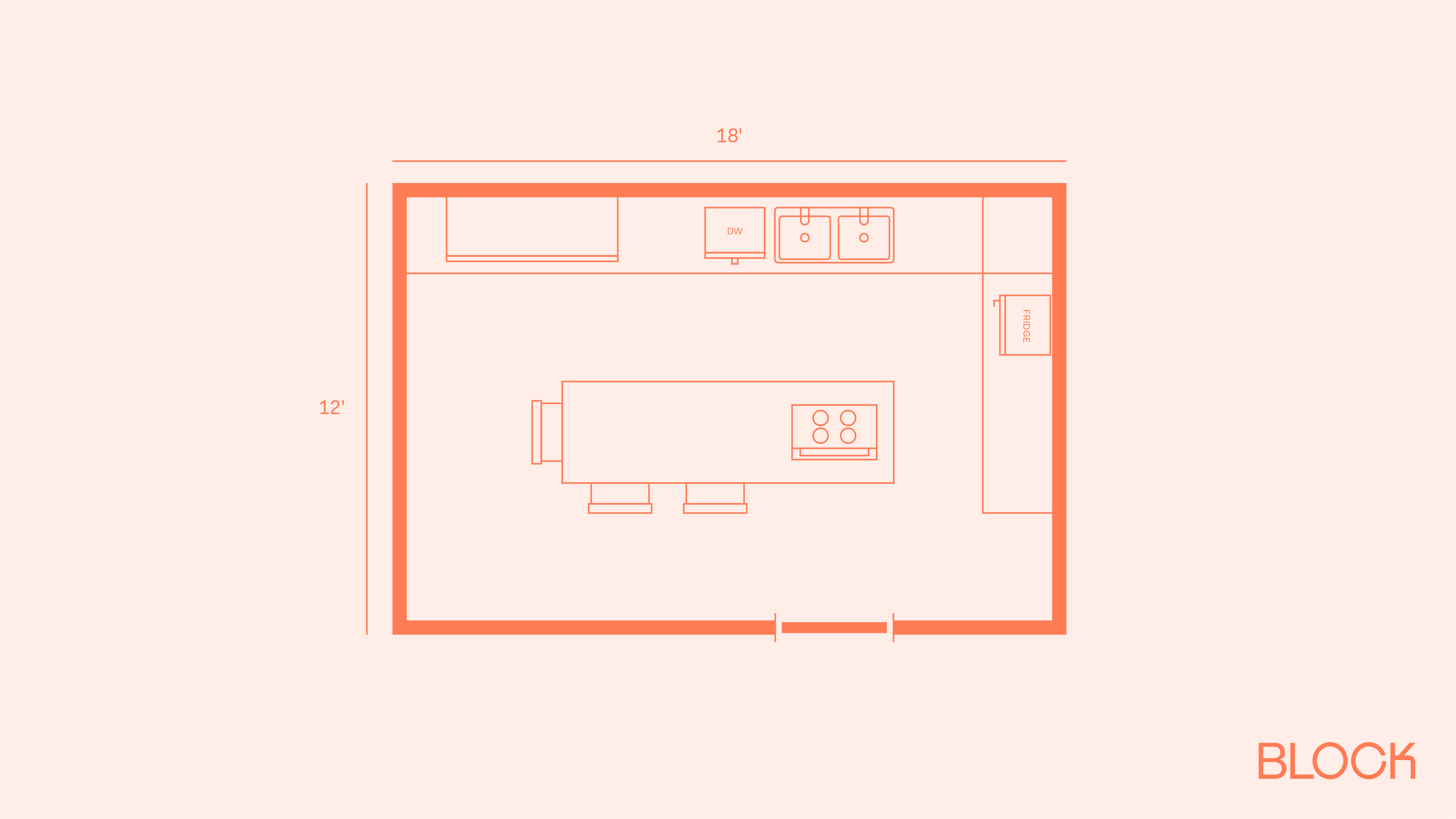

The sink and dishwasher sit on the back wall, the fridge sits at the end of the side leg, and the cooktop moves off the perimeter entirely. What you gain is a center-of-room cooking position and a cook who's part of the conversation. What you pay for is the ventilation hardware, the gas or electrical rough-in, and the structural work to get the range hood where it needs to go.

Click here to view more 18x12 kitchen floor plans

Solving the L-shape's storage problem

The L-shape's biggest structural weakness is storage. With only two walls in play, you get less cabinet run than a U-shape or a galley of equal square footage, and the inside corner eats a meaningful chunk of what you do have. Homeowners with a real cooking habit tend to solve this one of two ways: add an island, or add a walk-in pantry. A pantry is less glamorous but more practical for actual food storage, because you can fit shelving for tall items (cereal boxes, oils, small appliances) that don't fit in standard 12-inch-deep wall cabinets.

The appliances stay on the perimeter: dishwasher, sink, and fridge along the back wall, cooktop on the side leg. The center of the room holds a round four-top dining table. The bottom-left corner gets walled off into a small utility room. You trade a few square feet of open floor for a full additional room of storage.

Bring Your Dream Bathroom to Life

Explore stunning design ideas, materials, and color schemes tailored to your space—no guesswork, just inspiration.

Start Designing

Designing an L-shape for hosting

Large square kitchens are harder to plan than they look. The L-shape works well in them because it concentrates the work zones on two adjacent walls and leaves the rest of the room available for gathering. The move is to think of the kitchen as two rooms in one. The cooking room gets the counter, the appliances, the work triangle. The hosting room gets a real dining table (not a breakfast nook), built-in seating if you have the wall for it, and enough clearance that people can stand around talking without blocking the cook.

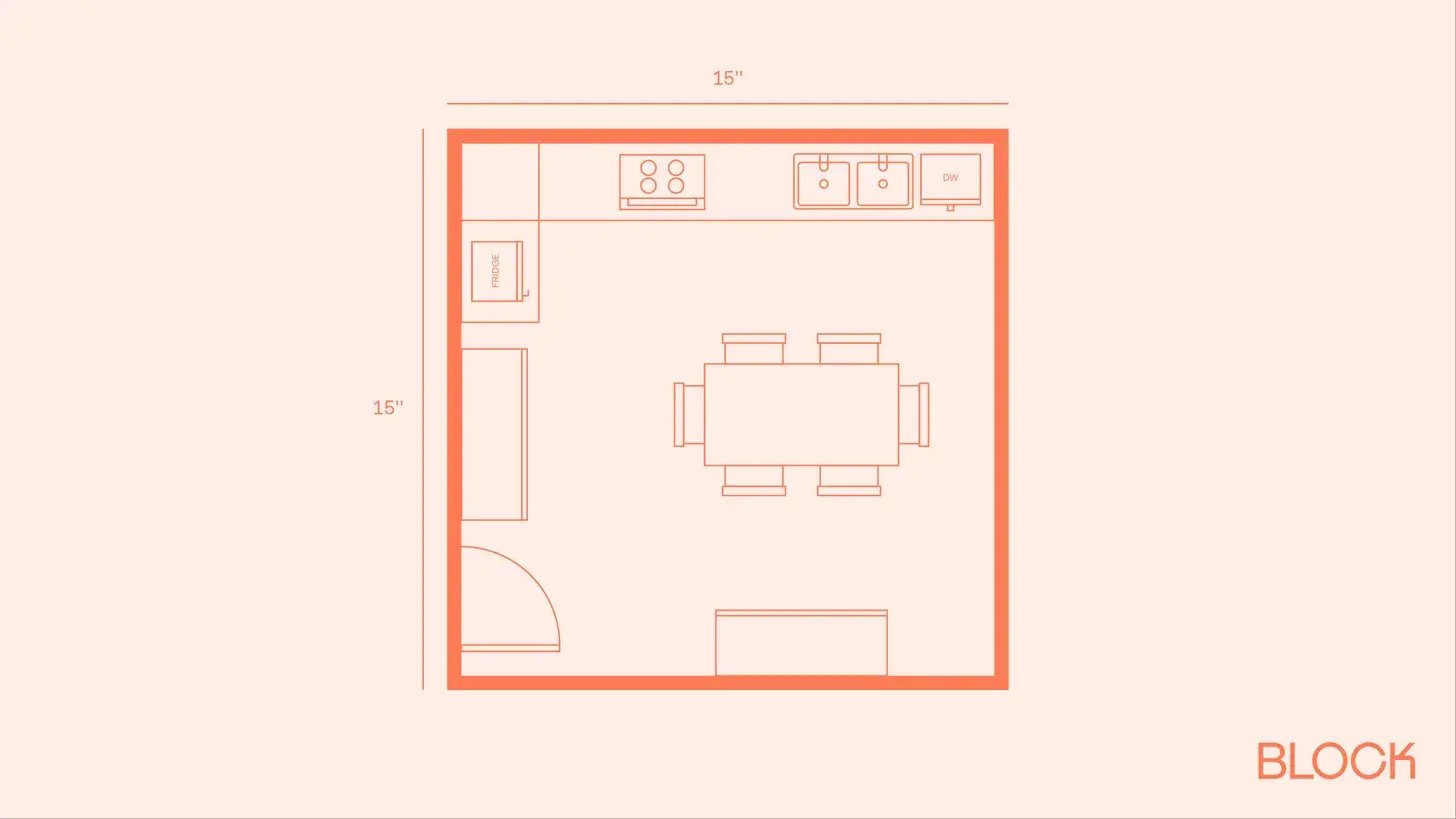

A generous L runs along two walls, with the fridge tucked into a short return off the side leg. A six-seat dining table sits in the center of the room. A bench along the far wall adds seating for four more. It's a kitchen built to hold a dinner party, not just to cook one.

Click here to view more 15x15 kitchen floor plans

Planning your own L-shaped kitchen

A few things worth doing before you commit:

• Measure the actual room, not the room you remember. Corner walls are rarely perfectly square in older homes, and a half-inch of drift over a 12-foot run will matter when cabinets arrive.
• Figure out the corner strategy. Lazy Susan, corner drawer, blind base cabinet with pullout, or diagonal cabinet. Each has tradeoffs, and the decision affects the cabinet order, so make it early.
• Decide whether you want an island before you lock in the leg lengths. An island needs 42 to 48 inches of clearance on all sides, which means a room under 12 feet wide usually can't support one.
• Plan your appliances before your cabinets. Appliance sizes (especially refrigerators and ranges) are fixed. Cabinets get built around them, not the other way around.

See your kitchen before you build it

Block Renovation's Renovation Studio lets you model your kitchen in 3D, swap materials, and see real-time cost estimates before you talk to a contractor. If you're stuck between a 12-by-12 and a 15-by-15, or trying to decide whether you have room for an island, seeing the space rendered with your actual appliances and finishes tends to settle the question fast.
