Adding a Pass Through Window to Your Kitchen

A pass through window is an opening in a kitchen wall that lets you hand plates, drinks, and groceries to the next room without walking around the corner. It sits somewhere between a closed-off kitchen and a full open floor plan, which is exactly why homeowners keep coming back to it. You get sightlines, daylight, and a serving counter while keeping most of the wall, the cabinets mounted on it, and a fraction of the demolition cost.

This guide covers how a kitchen pass through window compares to a breakfast bar or half wall, what it costs, and how to build one.

What is a pass through window?

A pass through window is a framed opening cut into an interior wall, usually with the sill set at counter height (around 36 inches) and a width between 3 and 6 feet. You may also see the same feature called a serving hatch or kitchen hatch, especially in older listings. Some are simple cased openings with a drywall or wood return. Others include a countertop ledge, interior shutters, or a sliding interior window that closes the kitchen off when you want the separation back.

Pass through windows also come in exterior versions that open onto a patio or outdoor bar, but those are full window installations with glass, flashing, and weatherproofing, and a different project entirely. This guide covers the interior kind: an opening between the kitchen and an adjacent room, most often the living room or dining room.

Pass through window vs. breakfast bar vs. half wall

These three options overlap, and many projects combine them. The distinctions come down to how much wall you remove and what you put in its place.

A pass through keeps the kitchen out of full view

The strongest argument for a pass through window is what it hides. A half wall puts everything above counter height on permanent display: the dirty pans, the prep mess, the drying rack, the open dishwasher. A pass through frames a limited view, so the living room sees a slice of the kitchen rather than the whole working surface. Sound behaves the same way. The wall above and below the opening still blocks a good portion of the range hood and the clatter of cleanup, where a half wall lets all of it travel.

It costs less and keeps your upper cabinets

It also costs less to build and to finish. A pass through disturbs the least framing, requires patching only around the opening, and leaves both sides of the wall largely intact. A half wall means capping the entire run, refinishing both rooms where the wall came down, and losing every upper cabinet on that wall. In a kitchen that is already short on storage, giving up those uppers stings. The living room gives something up too, since a half wall eliminates the solid wall that sofas, consoles, and televisions tend to sit against.

Where a half wall wins

The half wall wins on connection. If the goal is keeping an eye on kids in the living room, pulling daylight deep into the kitchen, or making two small rooms read as one larger space, a framed opening can't match a wall that disappears at counter height. A pass through is a window into the next room. A half wall is closer to removing the room boundary altogether.

A pass through is easier to change later

One more point in the pass through's favor: it isn't a permanent commitment to separation. An opening can be enlarged into a half wall in a later phase. Rebuilding a removed wall means paying for framing, drywall, and paint a second time.

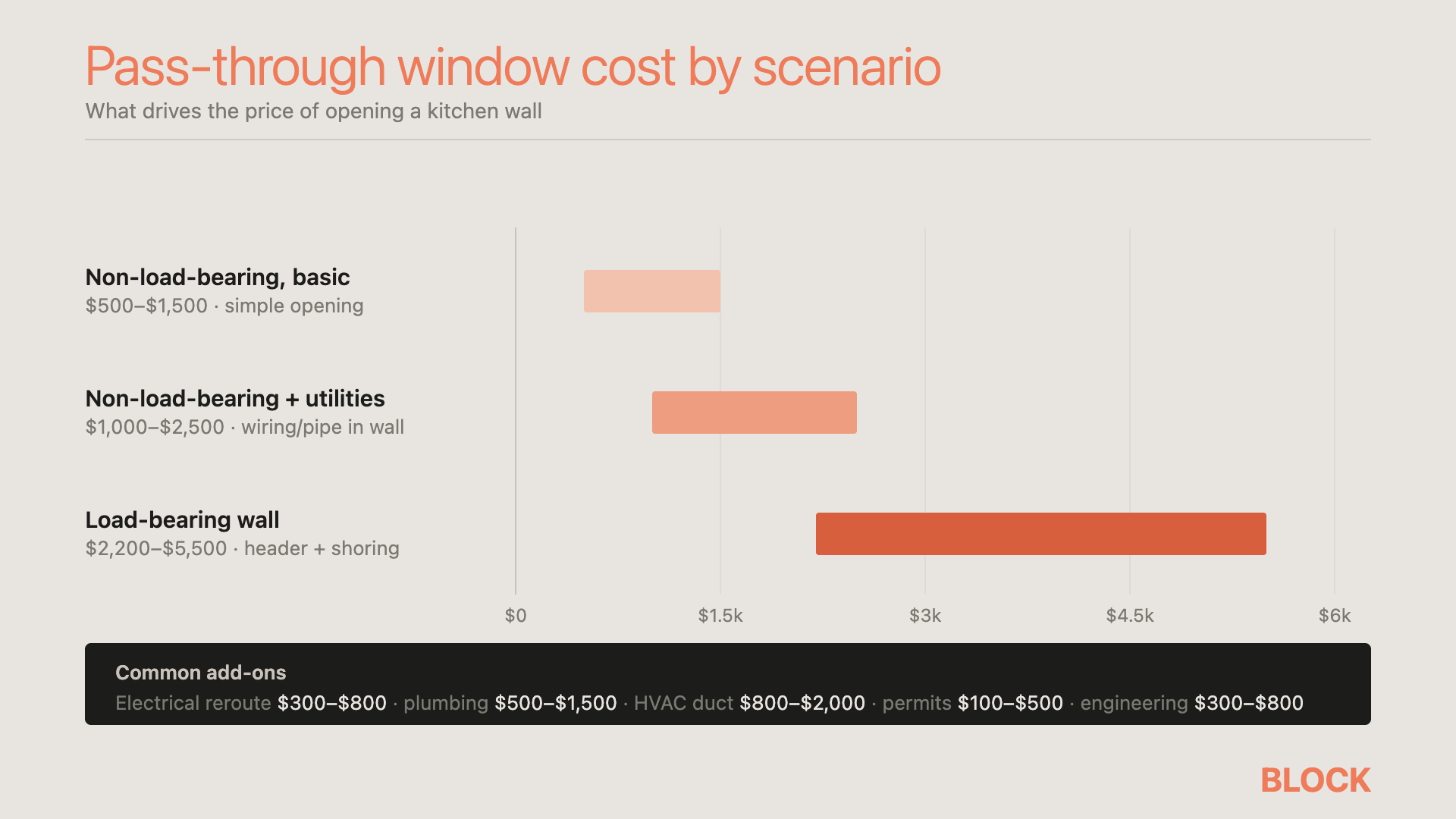

What a pass through window costs

Costs vary widely based on what is in the wall and whether it carries weight:

• Basic opening in a non-load-bearing wall. Expect roughly $500 to $1,500 for cutting, framing, and trim. If wiring or other utilities need rerouting, the range climbs to $1,000 to $2,500.
• Opening in a load-bearing wall. These typically run $2,200 to $5,500, covering temporary shoring, an engineered header, framing, and finish work. Engineering fees are usually billed separately and run $300 to $800.
• Utility rerouting. Moving electrical circuits runs about $300 to $800, plumbing lines $500 to $1,500, and HVAC ductwork $800 to $2,000.
• Permits. Fees often land between $100 and $500, though structural permits in some cities run higher.

For context on how this fits into a larger project, see Block Renovation's kitchen renovation cost guide.

Kitchen pass through window to living room

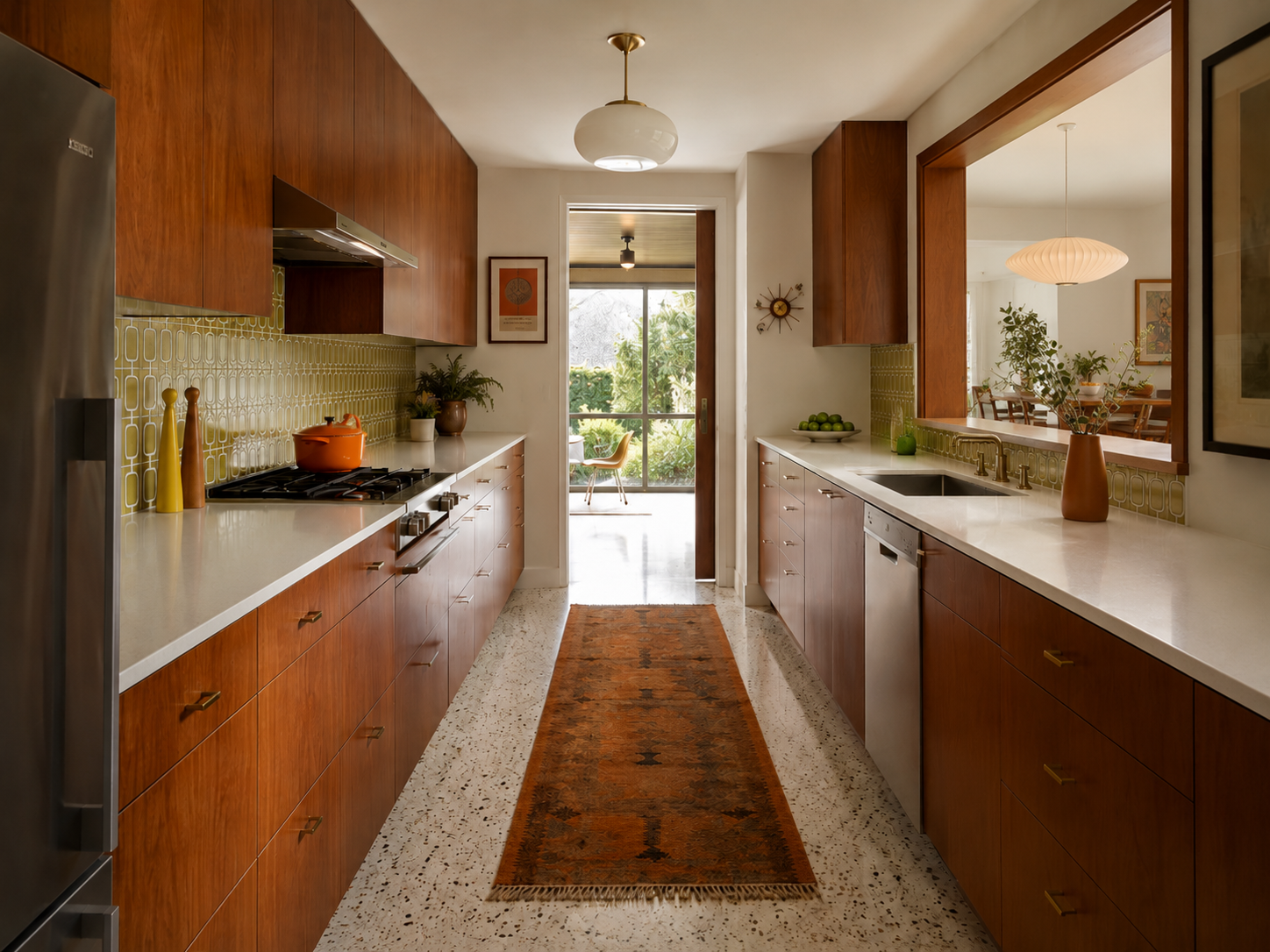

The kitchen pass through window to living room layout is the most common configuration, and it solves a specific problem: a closed kitchen that feels dark and isolated, in a home where removing the whole wall costs too much or simply isn't what the owners want.

A pass through gives you a view of the living room while you cook, lets daylight from living room windows reach an interior kitchen, and creates a natural spot to set out food and drinks when people are over. A ledge at least 12 inches deep works as a serving counter, and 15 inches or more supports stools on the living room side. Most kitchen pass through window ideas start from this layout, then layer on a deeper ledge, bar seating, or one of the door options covered below.

How contractors build a pass through window

Here is how to build a pass through window from the contractor's side of the job. Most projects follow the same sequence.

1. Find out what is inside the wall. Kitchen walls are the most crowded walls in the house. Electrical circuits, plumbing supply lines, drain and vent stacks, HVAC ducts, and sometimes gas lines all route through them. A contractor will often open a small inspection section before quoting a final price.
2. Determine whether the wall is load bearing. Walls that run perpendicular to floor or ceiling joists, or that sit under a beam or wall above, are likely structural. A structural engineer can confirm and, if needed, design the header that will carry the load across the new opening.
3. Pull permits. Cutting an opening into a wall counts as a structural alteration in most municipalities, even for interior walls. Expect plan review and at least one framing inspection.
4. Open the wall and reroute utilities. Anything running through the opening area gets relocated by licensed trades before framing begins.
5. Frame the opening. For a load-bearing wall, the crew installs temporary supports, then a header with king and jack studs to transfer the load. Non-load-bearing walls get simpler framing plus a sill plate at counter height.
6. Finish the opening. Drywall returns or wood casing wrap the cut edges, followed by a ledge or countertop, paint, and trim to match the rooms on both sides.

A non-load-bearing wall with nothing inside it is a reasonable weekend project for a skilled DIYer. The moment the wall turns out to be structural, or a vent stack shows up in the opening, it becomes contractor work. Block's guide to removing a load-bearing wall covers the structural side in more detail.

Doors or no doors: know your options

Most pass throughs stay open all the time. Still, there are nights you'll want to shut the kitchen away: a dishwasher running during a movie, or party cleanup you'd rather deal with tomorrow. Here are the main options:

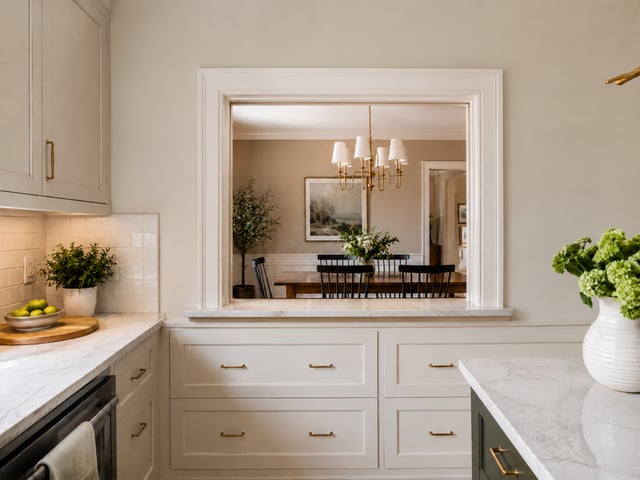

• No door at all. Leaving the opening bare is the default and the cheapest route. A cased or trimless opening keeps light and conversation flowing at all hours, but there is no shutting out the noise or the mess when you want to.

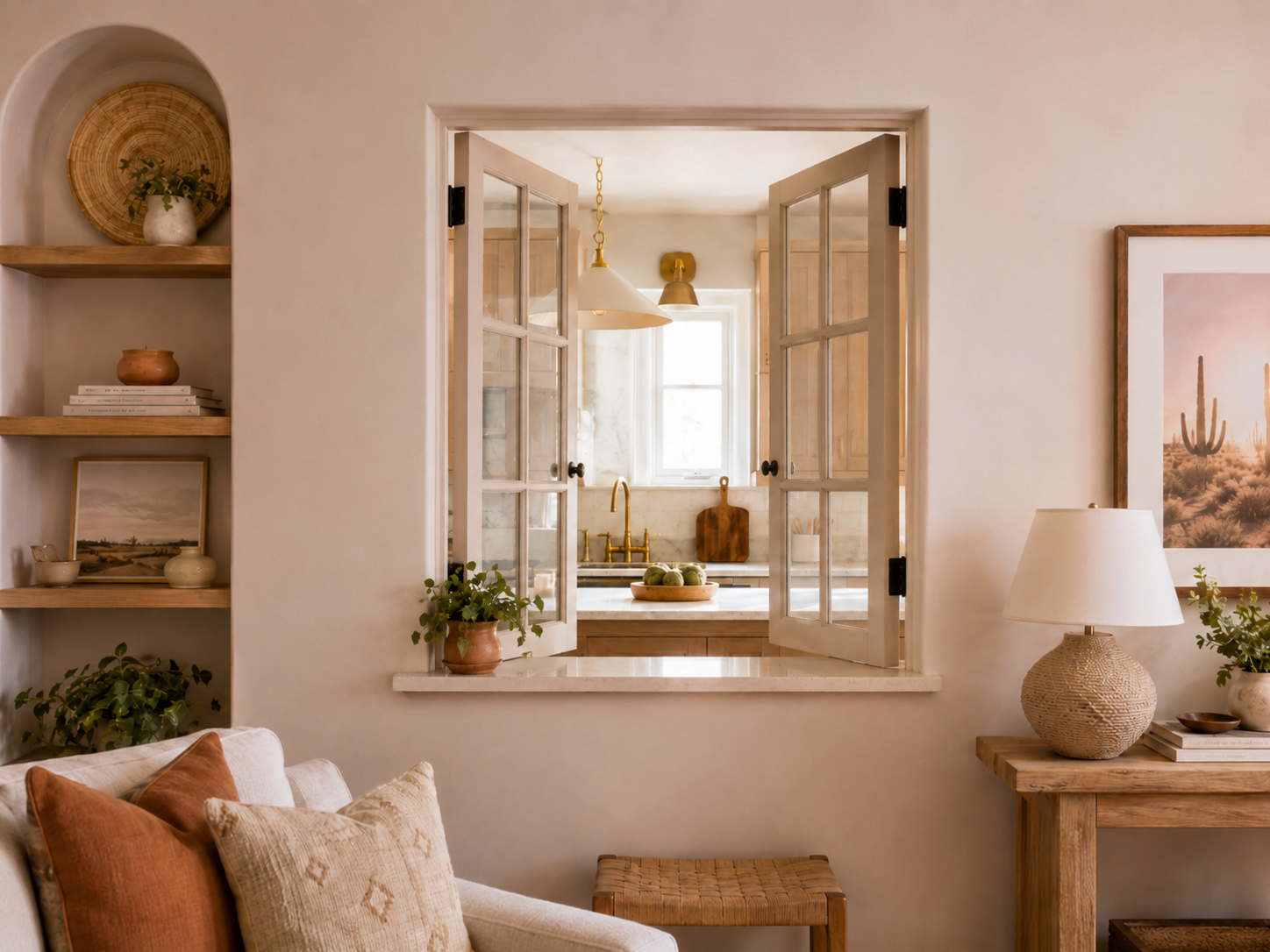

• Bifold or café shutters. These hinged panels fold closed across the opening. They suit traditional and cottage kitchens, install easily on the existing frame, and block the view, though not much sound. They need clearance to swing on one side.
• Interior sliding glass. Glass panels slide on a track within the opening. This is the best option for blocking cooking smells and kitchen noise while keeping daylight moving between rooms, and it costs the most of the off-the-shelf choices. Most units are custom-ordered to the opening's dimensions, so build the lead time into your project schedule.
• A sliding barn-style panel. A solid panel hangs from an exposed track mounted above the opening. It closes the kitchen off completely and adds a design element, but it needs open wall space beside the opening at least as wide as the panel.
• A pocket panel. This door slides into the wall cavity and disappears entirely. It is the cleanest look, and the most demanding: the cavity next to the opening has to be free of studs, wiring, and plumbing, and the framing work adds real cost. If a pocket panel is on your wish list, decide before the wall is framed, because retrofitting one into a finished opening means reopening the wall.
• A curtain or roller shade. This is the budget retrofit. A rod or shade mounted above the opening softens the look and hides the kitchen on demand, with no construction beyond a few screws. Choose a washable fabric or wipeable shade material, since anything hanging next to a kitchen opening collects cooking residue over time.

What surprises homeowners about adding a pass through window

Some of the costliest discoveries happen after demolition starts:

• Interior walls need permits too. Many homeowners assume permits only apply to exterior or structural work. Most building departments treat any new wall opening as a structural alteration requiring a permit and inspection.
• Kitchen walls hide more than any other wall in the house. The wall between a kitchen and living room frequently carries the circuits for countertop outlets, plumbing for the sink, and the drain vent stack that runs to the roof. A vent stack in the middle of your planned opening can add $1,000 or more in rerouting, or force you to shift the opening over.
• Load bearing is not obvious from looking. Plenty of interior walls carry weight from the floor or roof above. The engineer's visit feels like an annoying expense until you consider what an unsupported opening does to a ceiling over time.
• Garage walls have fire rules. If the kitchen wall borders an attached garage, it is part of a required fire separation, and codes sharply restrict openings in it. Most jurisdictions will not allow a pass through there at all.
• Small openings are sometimes viewed as dated. The narrow, heavily trimmed pass throughs of the 1970s and 80s are part of why some buyers wince at the term. Current versions are wider and barely trimmed, which keeps the opening from looking like a holdover.

Add a kitchen pass through window with Block Renovation

A pass through window looks like a small job, but it touches structural framing, electrical, and often plumbing, and a bad cut into the wrong wall is expensive to undo. Block matches homeowners with vetted contractors who handle this kind of structural kitchen work, with pricing and scope laid out before demolition starts. Block can also help you decide whether a pass through, half wall, or full wall removal makes the most sense for your layout and budget.
