Bathroom Floor Plans With Walk-In Closets

If your morning routine involves walking from the bathroom through the bedroom to a closet on the far wall, you already know the case for combining the two. A bathroom with a connected walk-in closet puts getting ready in one contained zone, keeps early risers from waking anyone still asleep, and turns dead square footage into storage. The five floor plans below show how the combination works at footprints from 8 by 18 feet up to 9 by 24 feet, and the sections after them cover the dimensions, costs, and layout decisions that determine whether a walk in closet and bathroom floor plan actually functions or just looks good on paper.

Five bathroom floor plans with walk-in closets

Each plan below is drawn to scale with door swings, fixture clearances, and closet dimensions worked out. Use them as starting points, then adjust for your plumbing locations and window positions.

Compact suite with laundry: 8 by 18 fee

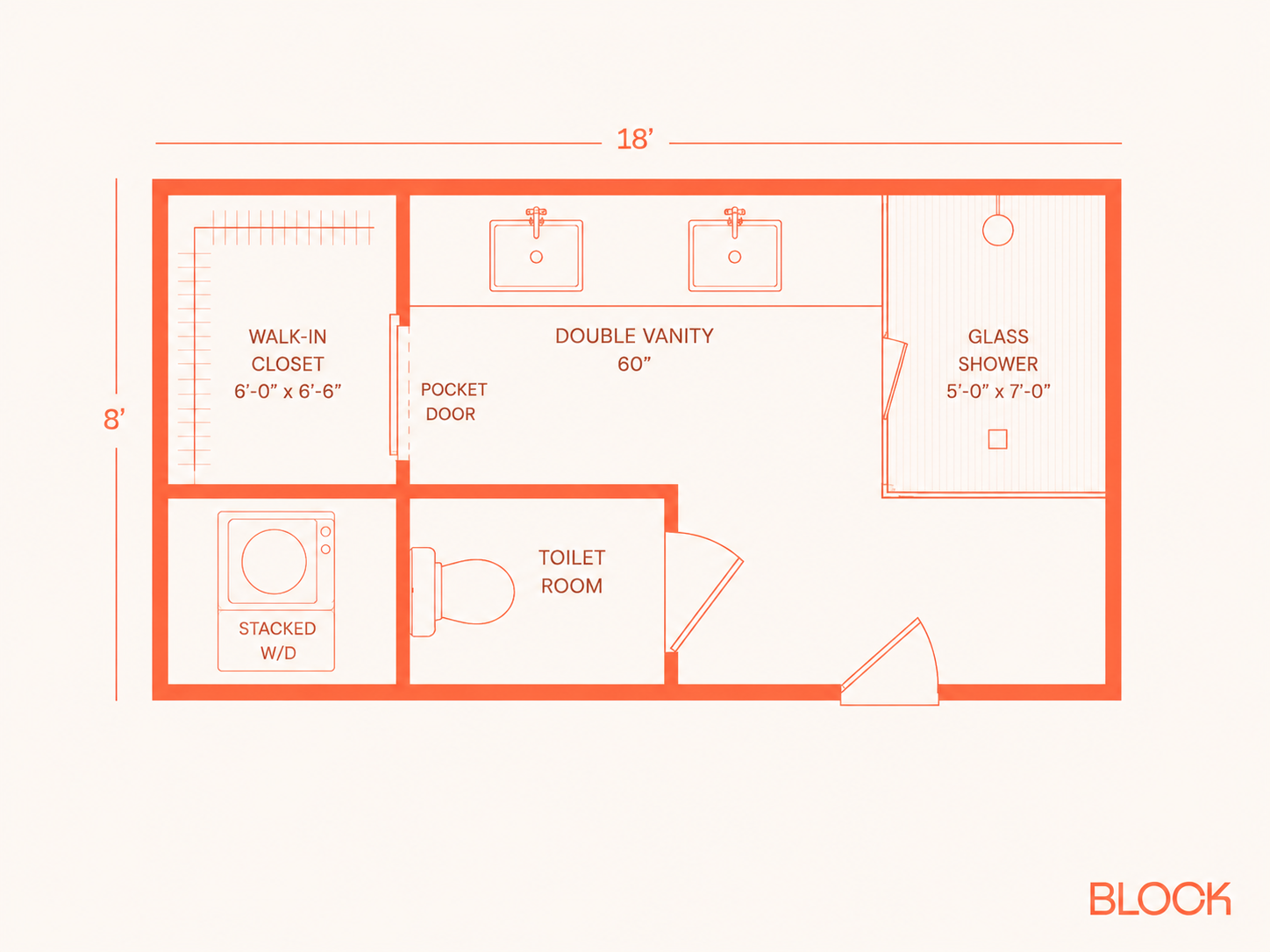

This layout proves the combination does not require a sprawling primary suite. The 144 square foot footprint holds a 6'-0" by 6'-6" walk-in closet behind a pocket door, a 60 inch double vanity, a 5 by 7 foot glass shower, a private toilet room, and a stacked washer and dryer.

• The pocket door is what makes the closet fit. A swing door would eat the floor space between the closet and vanity, and the pocket keeps the full aisle clear.
• The stacked washer and dryer sits between the closet and toilet room. Laundry lands steps from where clothing is stored, which is the whole argument for putting it here.
• Hanging runs along two walls of the closet with the aisle meeting the 24 inch minimum. At this footprint the aisle doubles as the dressing area, so keeping it clear matters more than adding a third rod.

Square footprint: 11 by 11 feet

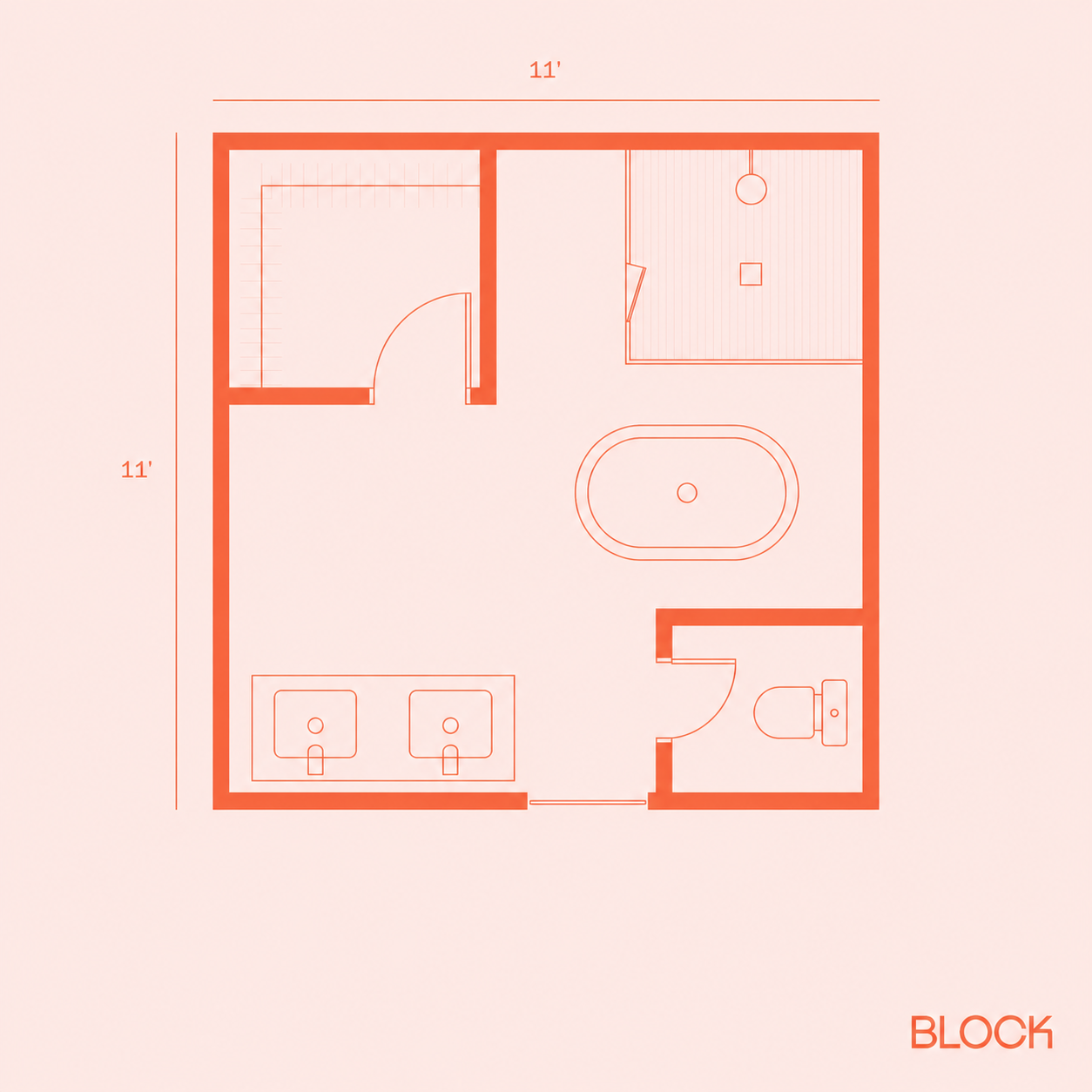

A square room resists the natural front-to-back zoning of a rectangle, so this plan carves the corners instead. The walk-in closet takes the top left corner with its own door, the glass shower takes the top right, and the toilet compartment tucks into the bottom right, leaving the center open for a freestanding tub.

• The closet door keeps shower humidity out. In a square plan the closet sits closer to the wet zone than it would in a long rectangle, so the door does real protective work.
• The double vanity runs along the bottom wall with clear floor between it and the tub. Placing it opposite the wet corners keeps two people from crossing paths during the morning rush.
• The toilet compartment's door opens against its own partition wall, clear of the entry and the tub's walkway.

Classic primary suite: 15 by 13 feet

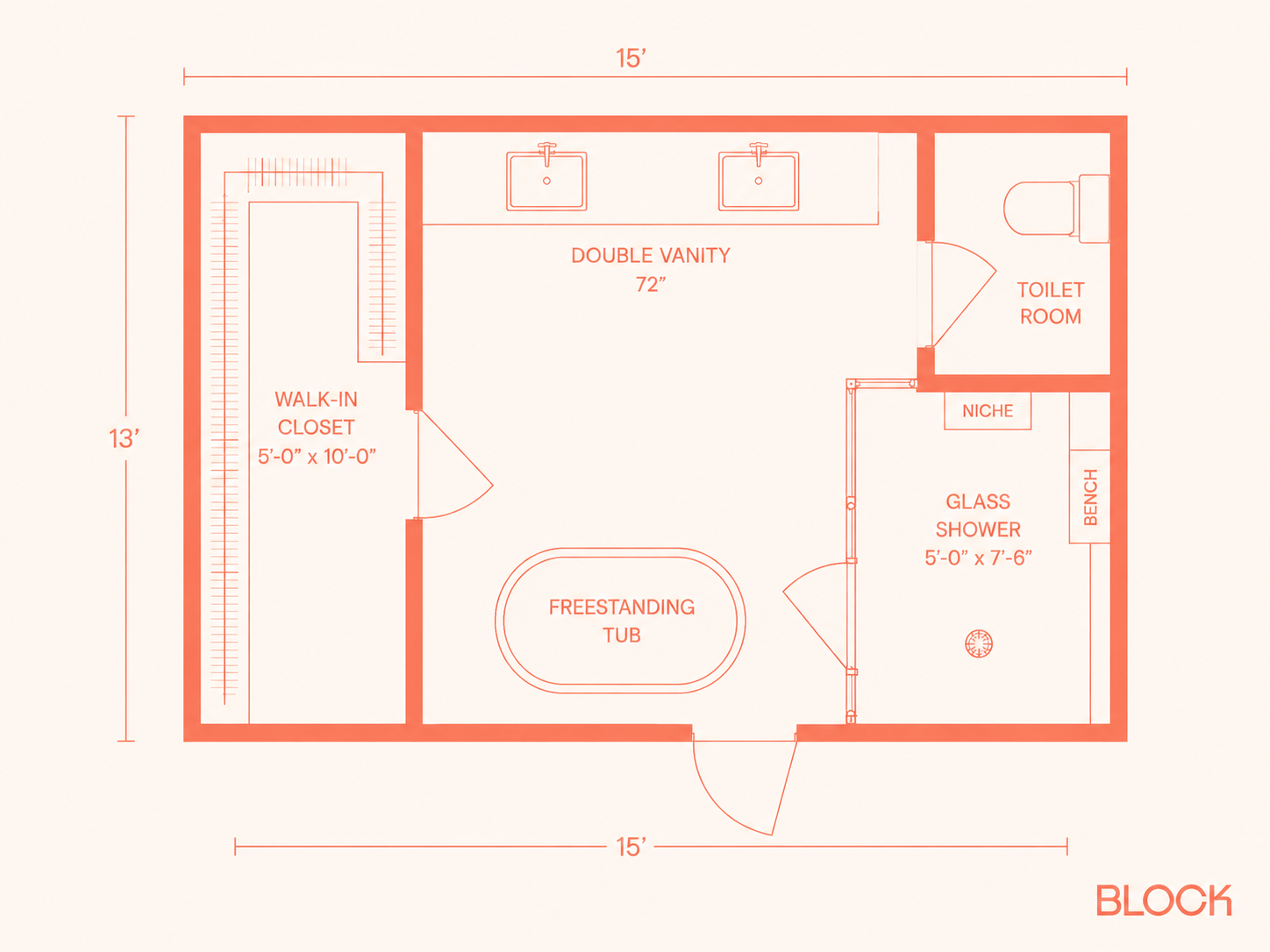

This is the layout most homeowners picture when they search for a bathroom walk in closet floor plan: closet on one side, bathing zones on the other, vanity spanning the top. The 5'-0" by 10'-0" closet runs the full depth of the room with single-wall hanging, and the bathroom side holds a 72 inch double vanity, a freestanding tub, a 5'-0" by 7'-6" glass shower with a niche and bench, and a private toilet room.

• Single-wall hanging is the right call at 5 feet of width.
• The shower's glass wall faces the tub, which keeps both wet zones on one plumbing run.

Long suite with separated wet rooms: 20 by 10 feet

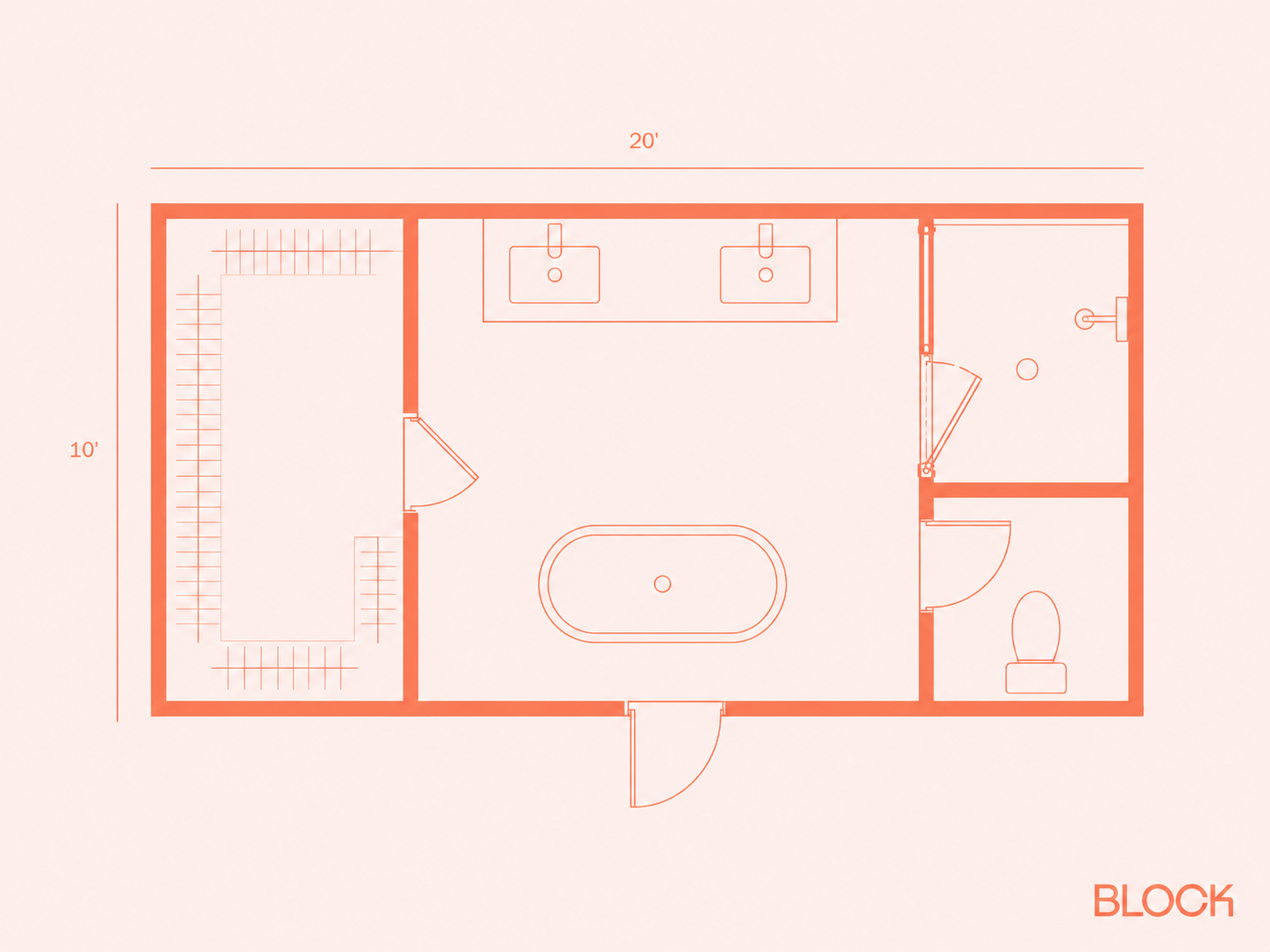

At 200 square feet, this plan gives the shower and toilet their own enclosed rooms along the right wall, each with a door. The closet occupies the left third with a U-shaped hanging run, and the center holds the double vanity, a linen cabinet, and a freestanding tub.

• Two enclosed wet rooms let two people use the bathroom with full privacy. The shower room and toilet room function independently, which matters on shared morning schedules.
• The U-shaped closet maximizes hanging per square foot. The run wraps three walls, and the plan holds the center aisle at the width the wrap requires.

Gallery suite: 24 by 9 feet

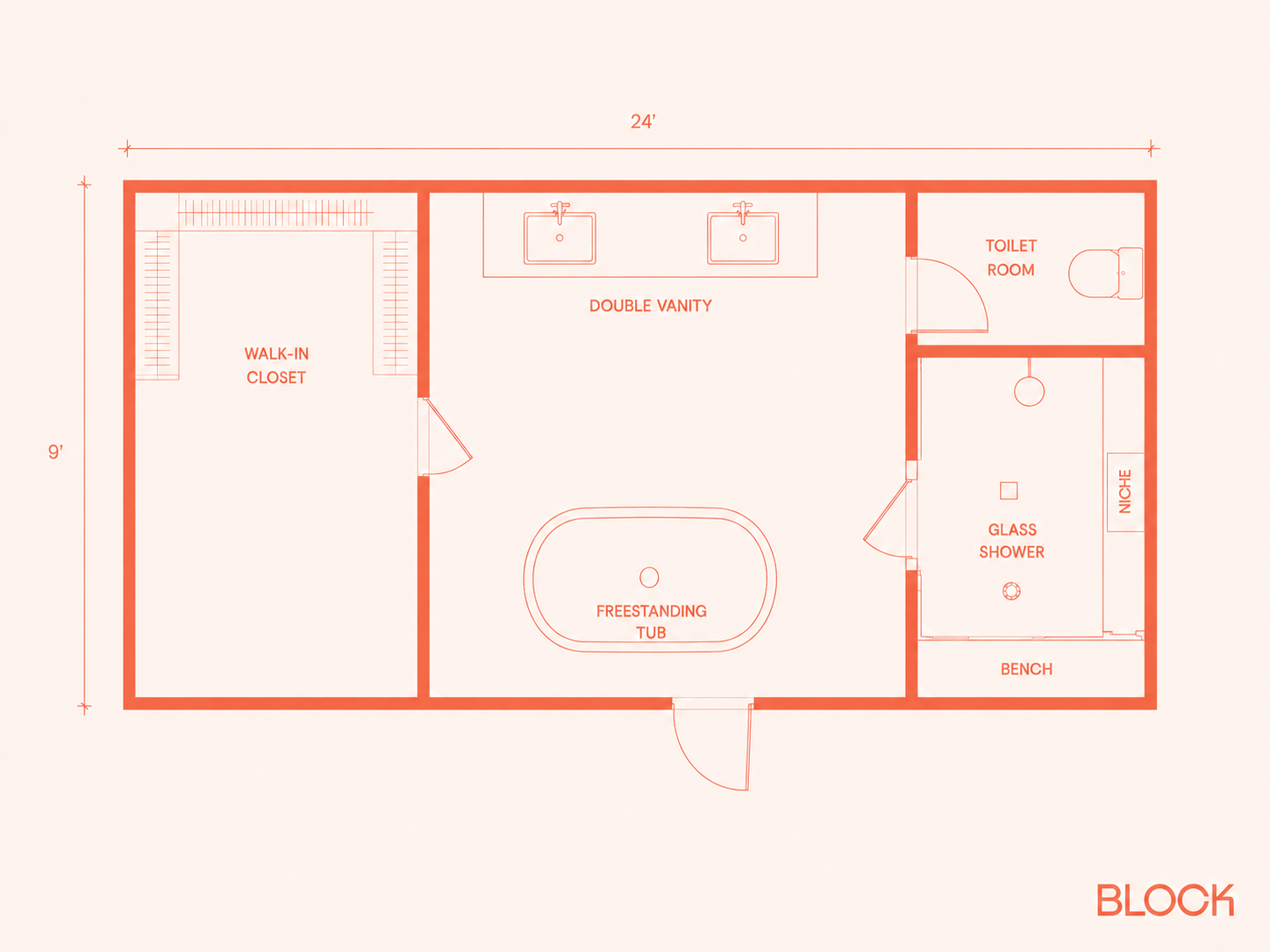

Long and narrow footprints, common in row houses and additions over garages, suit a gallery layout where the rooms unfold in sequence. The walk-in closet takes the left third with hanging on three walls, the center holds the double vanity and freestanding tub, and the right end stacks a toilet room above a glass shower with a niche and bench.

• Two full zones separate the closet from the shower, so hanging clothes stay dry even with the doors open.
• The 9 foot depth keeps every zone wide enough for its clearances without wasted corridor.

Minimum dimensions that actually work

A walk-in closet starts at 4 by 6 feet. That footprint fits a single row of hanging on one long wall with a 24 inch aisle beside it, which is the smallest layout that still lets you stand inside and close the door. Anything narrower functions as a reach-in, whatever the listing calls it.

Common configurations and the width they need:

• Single-sided hanging needs 4 feet of width. The math is one 24 inch rod plus a 24 inch aisle.
• Double-sided hanging needs 6.5 feet of width. Two 24 inch rods face each other with a 30 inch aisle between them.
• An island needs a footprint of roughly 10 by 12 feet or more. You need 36 inches of clearance on all four sides of the island, so anything smaller turns the centerpiece into an obstacle.

The bathroom side has its own minimums. Keep 30 inches of clear floor in front of the vanity, 24 inches in front of the toilet, and 15 inches from the toilet centerline to any wall or fixture. When the combined suite drops below about 80 square feet, something on this list usually gives, and it is better to know which one before framing starts.

What it costs to add a walk-in closet during a bathroom renovation

The closet itself is cheap. Framing and drywalling a partition wall, adding a door, and running a light typically lands between $2,000 and $5,000 when the work rides along with a bathroom renovation already in progress. The cost drivers sit on either side of that wall.

Pulling square footage from an adjacent bedroom stays in that range because no plumbing or structure moves. Reworking the bathroom layout to make room is a different project: relocating a toilet or shower drain adds $3,000 to $10,000 or more depending on what the floor is made of and where the existing lines run. A bump-out addition sits at the top of the scale, often $20,000 to $50,000, since it involves foundation, roofing, and exterior walls for a relatively small gain in floor area.

Closet interiors are the line item people forget. Wire shelving runs a few hundred dollars, while built-in systems with drawers and adjustable rods commonly run $1,500 to $6,000. Get the interior priced in the same scope as the renovation so it competes for budget honestly instead of arriving as an afterthought.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

Plumbing constraints decide where the closet goes

Every bathroom has a wet wall, the wall carrying supply lines and drain stacks for the sink, toilet, and shower. Fixtures cluster around it because every foot of distance from the stack adds pipe, slope requirements, and cost. The closet belongs on the opposite side of the room, along the dry walls, where nothing needs water.

This is why every plan above puts the closet at one end and the fixtures at the other. A closet wedged into the wet zone forces one of two bad outcomes: fixtures get relocated, or clothing shares a wall with a shower.

Moving fixtures to clear space for a closet is possible but rarely the smart order of operations. A vanity can shift a few feet along the same wall for a modest plumbing charge. A toilet is the expensive one to move, since the drain is the largest pipe in the room and re-sloping it can mean opening the floor below. If a layout only works by relocating the toilet, ask your contractor to price a version that leaves it in place before committing.

Choosing the door between bathroom and closet

The door between the bathroom and closet does two jobs: it saves floor space and it keeps shower humidity away from clothing. Different doors handle those jobs differently.

• A pocket door is the default answer for tight suites. It consumes zero swing space and seals the opening when closed. The cost is in the framing, since the wall cavity must be free of plumbing and wiring, which is another reason to keep the closet on a dry wall.
• A standard swing door works when the floor plan has room for the arc. It seals better than a pocket door and costs less to install. Swing it into the closet, not into the bathroom's clearance zones.
• A cased opening with no door keeps the suite feeling open. It also lets every shower's humidity drift into the closet. If you go doorless, the bathroom exhaust fan does the protective work, so size it generously and run it 20 to 30 minutes after each shower.

Barn doors show up in inspiration photos but seal poorly on all four edges, which defeats the humidity purpose. Between a barn door and a cased opening, choose the cased opening and put the savings toward a stronger exhaust fan.

Lighting and electrical

Code treats closet lighting differently than the rest of the house. Surface-mounted incandescent fixtures need 12 inches of clearance from shelving and hanging storage, and LED or fluorescent fixtures need 6 inches. Bare bulb fixtures are prohibited in closets entirely. In a small walk-in, those clearances effectively decide the fixture for you: a flush-mount LED in the center of the ceiling, or recessed cans if the ceiling is being opened anyway.

Plan for at least one outlet inside the closet. Steamers, irons, and cordless vacuum chargers all end up living there, and adding a receptacle during rough-in costs a fraction of what it costs after drywall. A motion-sensor switch is worth the small upgrade, since closet lights get left on more than any other light in the house.

One boundary to respect: bathroom-side outlets need GFCI protection, and any outlet within 6 feet of a sink or tub falls under that rule. An outlet inside the closet, behind a door, on a dry wall, typically does not, but your electrician makes that call based on the final layout.

Build your bathroom and closet combination with Block Renovation

A walk in closet and bathroom floor plan succeeds or fails on the details above: aisle widths, drain locations, door swings, and the partition wall that has to land in exactly the right place. A contractor who has built this combination before will catch the plan that only works on paper. Block Renovation matches homeowners with vetted local contractors who compete for the project, with every scope reviewed up front to catch missing line items before construction starts.
