Square Bathroom Floor Plans & Layout Tips

If your bathroom is roughly as wide as it is long, you have more layout options than almost any other homeowner starting a renovation. Four equal walls mean no bottleneck dimension forcing every fixture into a line, so the same square footage supports arrangements a narrow room could never hold: a freestanding tub in the center of the floor, a double vanity on any wall, a private toilet compartment that doesn't choke circulation. That flexibility shows up at every scale, from a 16 square foot powder room to a 144 square foot primary bath.

The ten floor plans below come from Block Renovation's size-specific layout guides, and each one demonstrates a different way to use a square room, from concentrating plumbing on a single wall to carving out privacy with partial walls to handing the entire floor to one fixture. Together they cover the range of what a square footprint can do, along with the layout principles that apply at any size.

Renovate with confidence every step of the way

Step 1: Personalize Your Renovation Plan

Step 2: Receive Quotes from Trusted Contractors

Step 3: Let Us Handle the Project Details

Get Started

Ten square bathroom floor plans, from 4x4 to 12x12

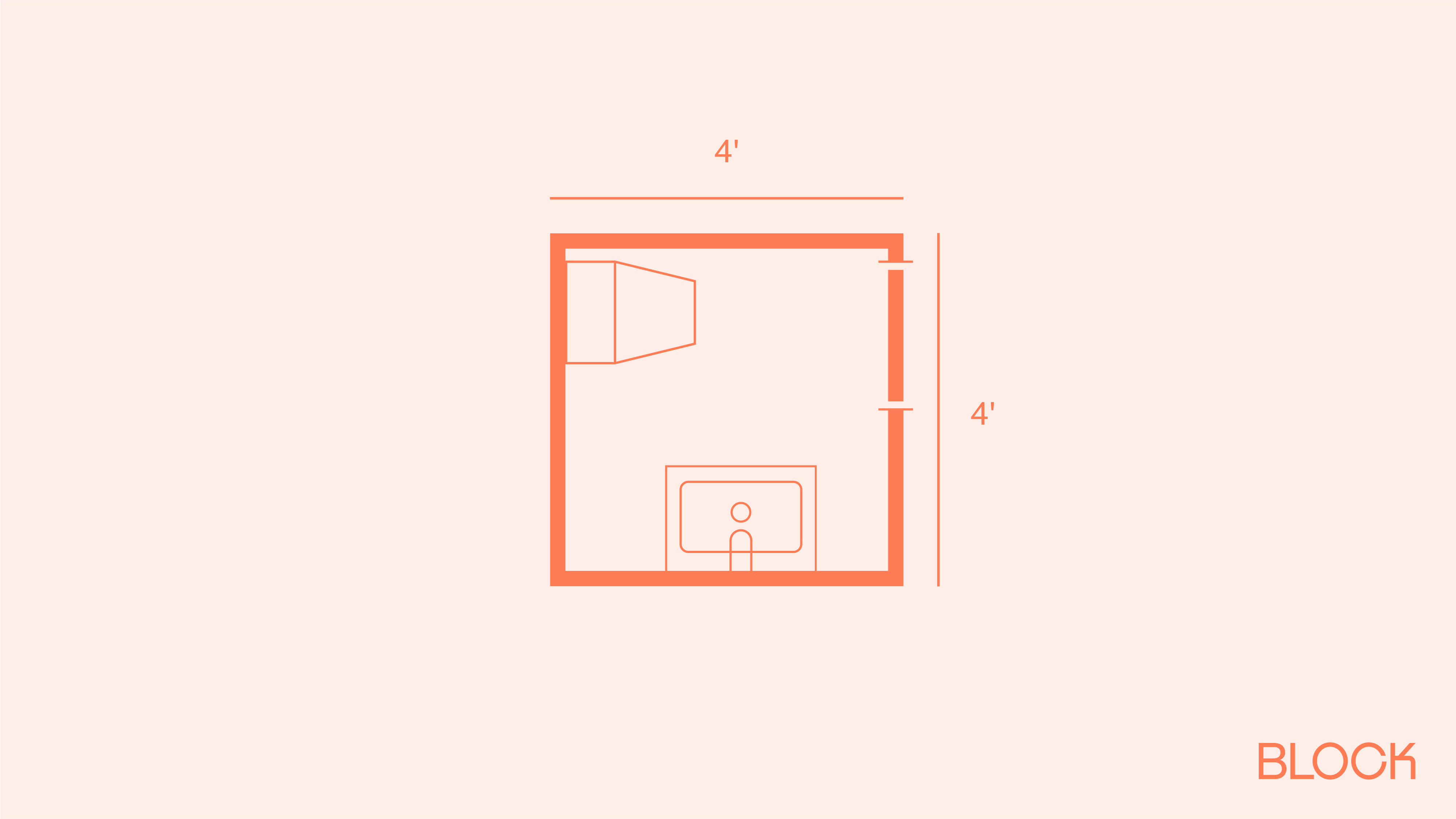

The 4x4 powder room: toilet and sink at opposite ends

At 16 square feet, a square footprint holds everything a half bath needs. This plan, the strongest of the four in our 4x4 half bath floor plans guide, places the toilet in the upper-left corner and a small vanity centered on the bottom wall, with the door opening from the right. The separation between the two fixtures gives each one full clearance, and the centered vanity is the first thing a guest sees, which sets the right tone for a room built for visitors.

It's also a familiar arrangement that a contractor can price without questions, and the vanity placement leaves room for a real countertop rather than a bare pedestal.

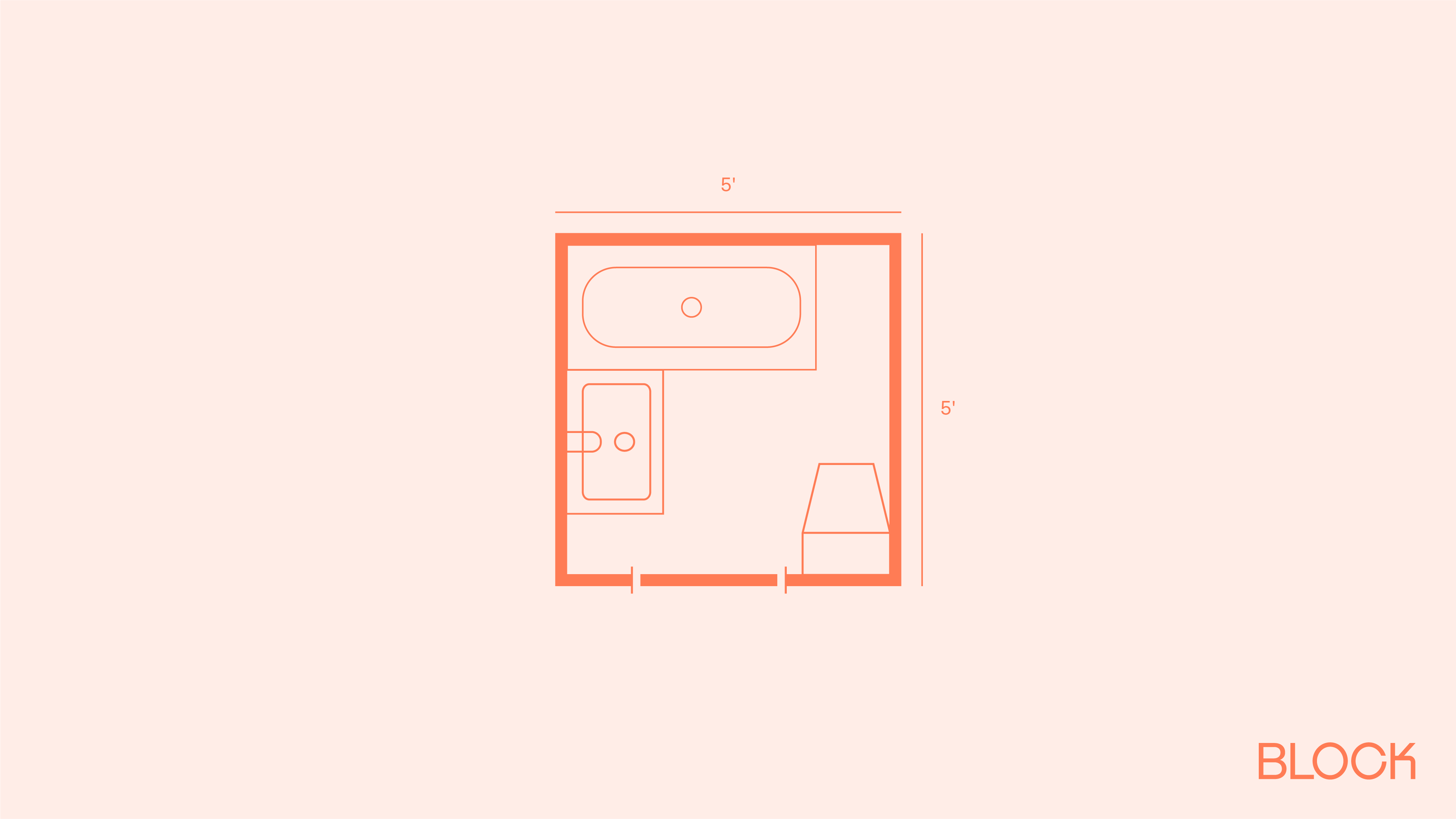

The 5x5 full bath: a tub spanning the entire wall

A standard 60-inch alcove tub is exactly five feet long, which means it fits wall to wall across a 5x5 room with no gap on either side. This plan is built around that fact: the tub runs across the top wall, the vanity sits in the lower-left, and the toilet occupies the lower-right corner, with the door entering between them.

It's tight, and a pocket door is close to mandatory here, but this is the layout that turns a half bath into a full bath at the smallest possible footprint. For households with one bathroom that need a second place to bathe, that capability outweighs the squeeze. Our 5x5 bathroom floor plans guide covers the fixture choices that make it work.

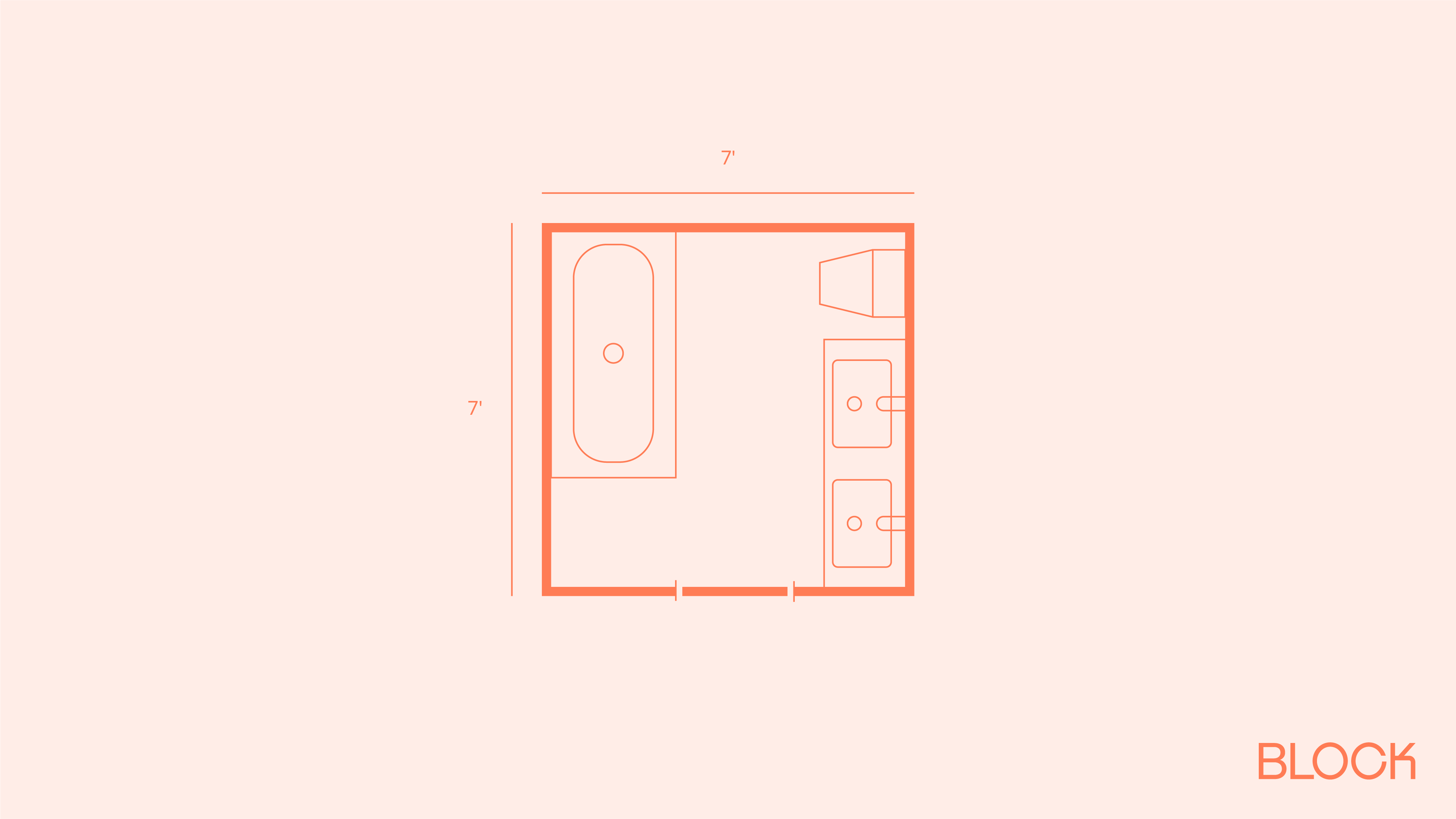

The 7x7 shared bath: a double vanity at 49 square feet

A double vanity in a 7x7 room sounds ambitious, and this plan, one of five in our 7x7 bathroom layouts guide, makes room for it by keeping every other decision simple. The tub anchors the left wall, and the toilet and a compact 36 to 42-inch double vanity share the right. The door opens at the bottom, so the first thing you see on entry is the tub rather than the toilet. The vanity is smaller than the 60-inch models found in larger primary baths, but it still delivers two sinks and dedicated counter space for two people, which is a genuine upgrade in any shared bathroom.

Plumbing runs to two walls here. Expect modifications in the $2,000 to $4,000 range over a same-wall configuration.

The 8x8 soaking bath: a freestanding tub in the center of the room

A freestanding soaking tub sits in the middle of this plan with clearance on all sides, set apart from everything else in the room, while the toilet and single vanity group along the lower wall to keep plumbing concentrated in one zone. The tub is the first thing you see when you walk in, and no other square layout gives it this much prominence.

One honest note: there is no shower. This plan suits a home where a separate shower exists nearby, or a secondary bath designed specifically for soaking. If a daily shower is non-negotiable, the other layouts in our 8x8 bathroom layouts guide keep one in the room.

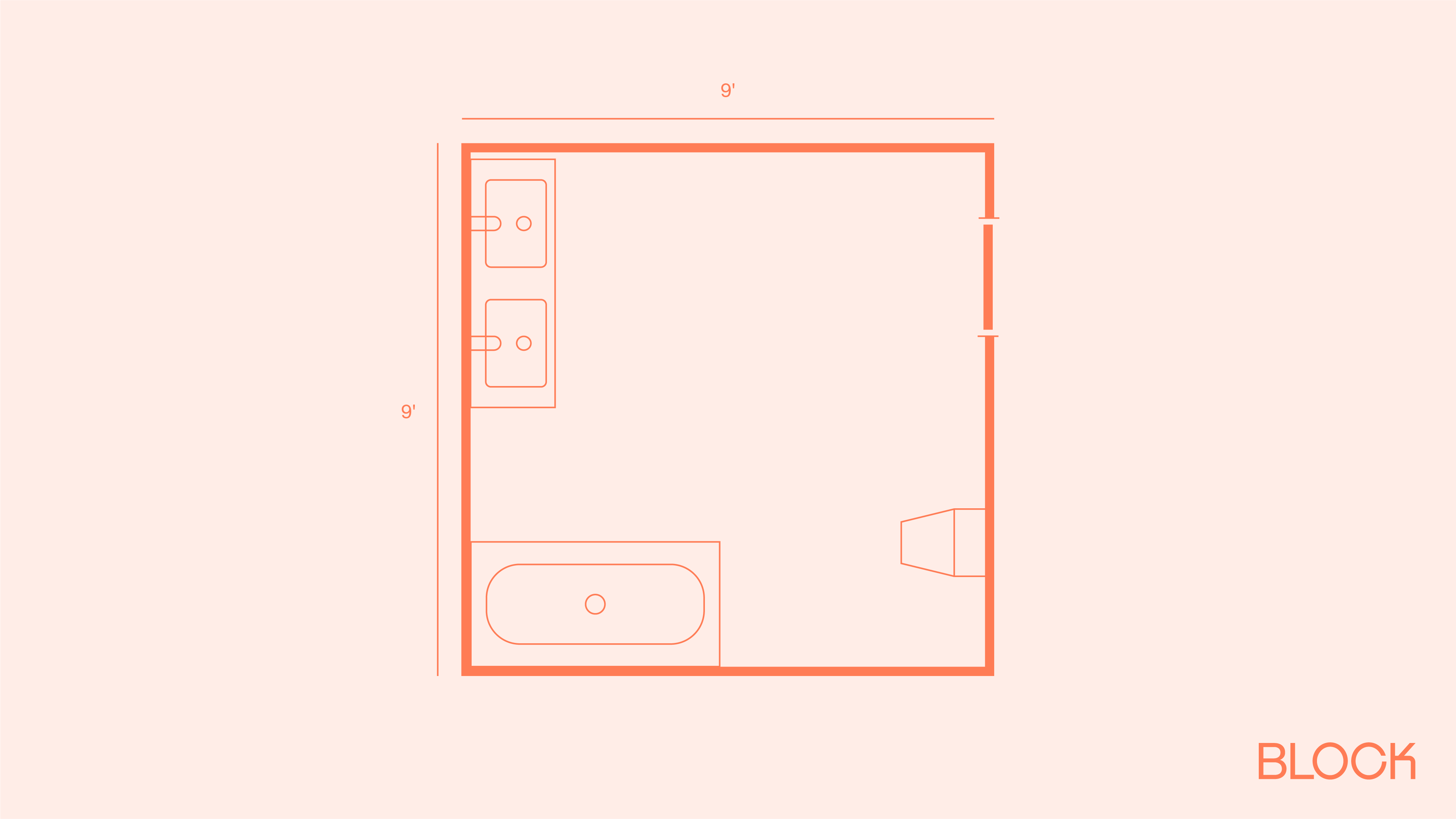

The 9x9 open-floor plan: a horizontal tub and double vanity on one wall

Concentrating all the plumbing on a single wall is one of the smartest budget moves in bathroom design, and this plan shows what that looks like at 81 square feet. The double vanity holds the upper portion of the left wall, the tub runs horizontally beneath it, and the toilet sits alone on the right. A 9-foot wall accommodates a standard tub lengthwise without pressing into corners, which is what makes the orientation possible, and our 9x9 bathroom floor plans guide covers four more layouts built on the same wall length.

The result is the largest stretch of open floor of any plan in this set. For homeowners who value uncluttered space as much as the fixtures themselves, this is the layout to study first.

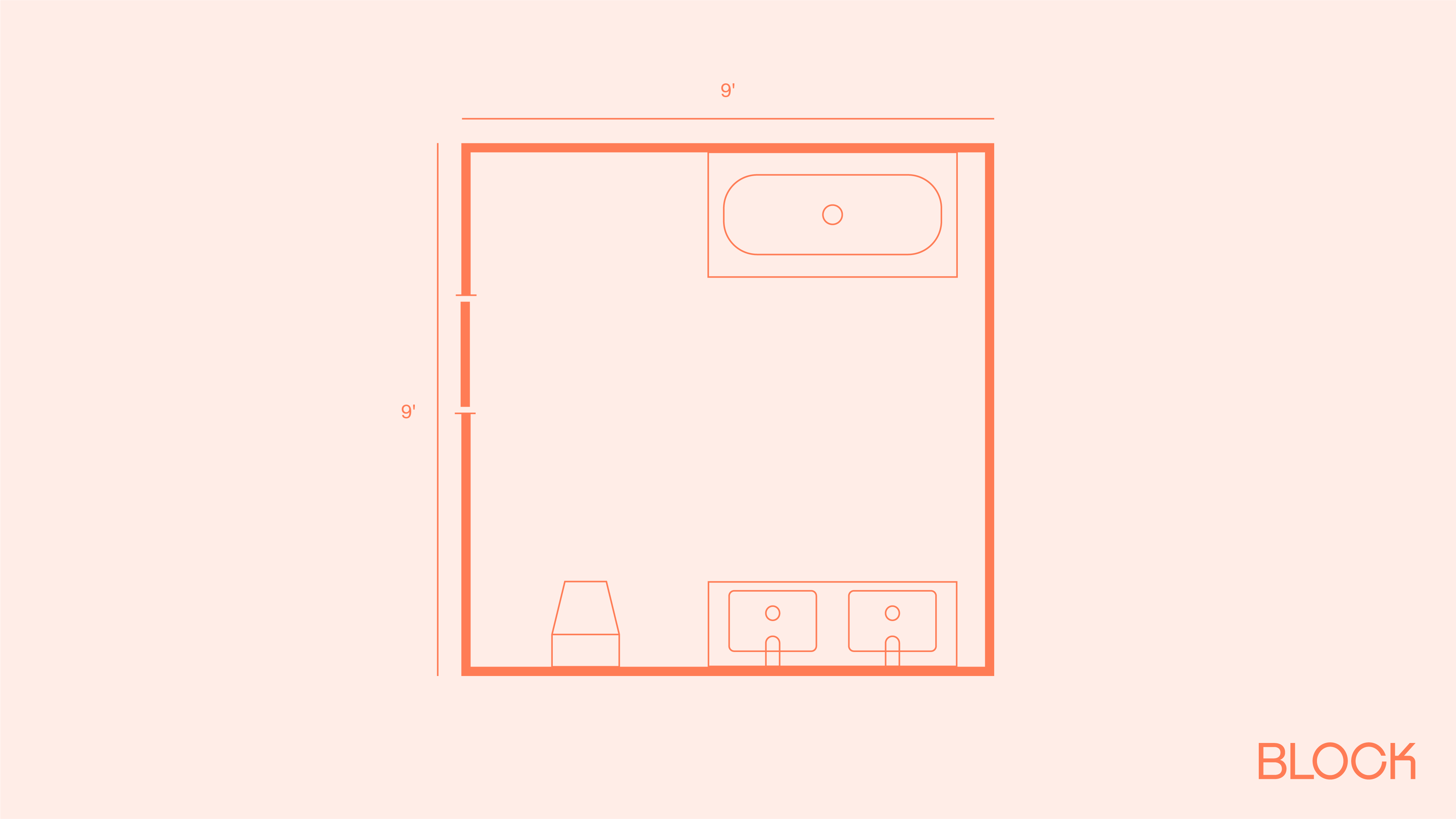

The 9x9 symmetrical plan: two zones facing each other across open floor

This plan organizes the room across its center axis rather than around the perimeter. The tub runs along the upper wall, the double vanity and toilet share the lower wall, and the space between them stays open. The centered vanity creates a symmetry that lands the moment you open the door, especially when paired with a statement mirror, and a square room is the footprint where that composition works best, since neither dimension stretches it thin.

The 10x10 zoned plan: a partial wall separating daily use from private use

At 100 square feet, you can stop filling the room and start zoning it. This plan, from our 10x10 bathroom floor plans guide, puts the shower and double vanity, the two fixtures you reach for every day, in the upper portion of the room, while a partial wall creates a private alcove below for the tub and toilet. Two people can use the vanity and shower zone at the same time without interfering with anyone in the lower half, and for a shared primary bath with busy mornings, that separation justifies its framing cost.

The 12x12 open plan: separate tub and shower with no interior walls

This is the only plan in the set that includes both a separate tub and a separate shower without any interior walls, and it comes from our 12x12 bathroom layouts guide. The tub sits in the top-left corner, the shower in the top-right, and a long double vanity runs across the bottom wall with the toilet tucked into the lower-left. Each fixture gets its own zone, and light carries across the full width of the room because nothing interrupts it.

The arrangement fits couples who get ready at the same time, since the vanity offers real counter space and the toilet sits off the main sightline. Plumbing runs along three walls here, which puts rough-in costs above a layout with concentrated wet walls. That plumbing premium is the cost of getting both fixtures while keeping the open feel.

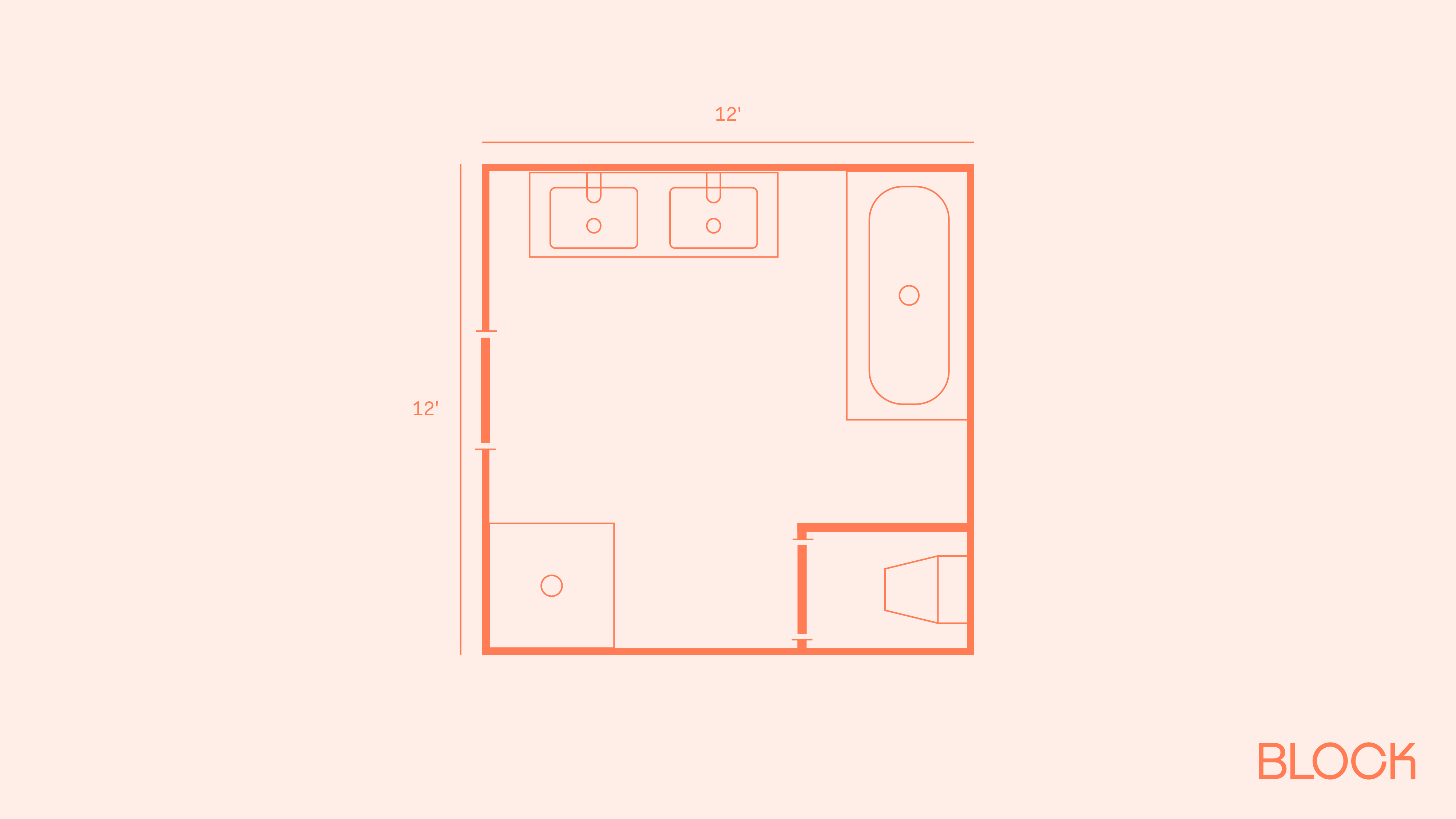

The 12x12 private plan: an enclosed water closet

A separate water closet is one of the clearest signals a bathroom was built for two people sharing a morning routine. In this plan, the toilet gets its own small room behind a door, while the rest of the 144 square foot footprint holds a double vanity along the top wall, a soaking tub in the upper-right corner, and a shower zone built into the enclosed area.

The enclosure does cut into circulation space, so the plan suits homeowners who value privacy over a fully open floor. A pocket door on the water closet reclaims a few inches of swing space, and it's a detail worth specifying up front.

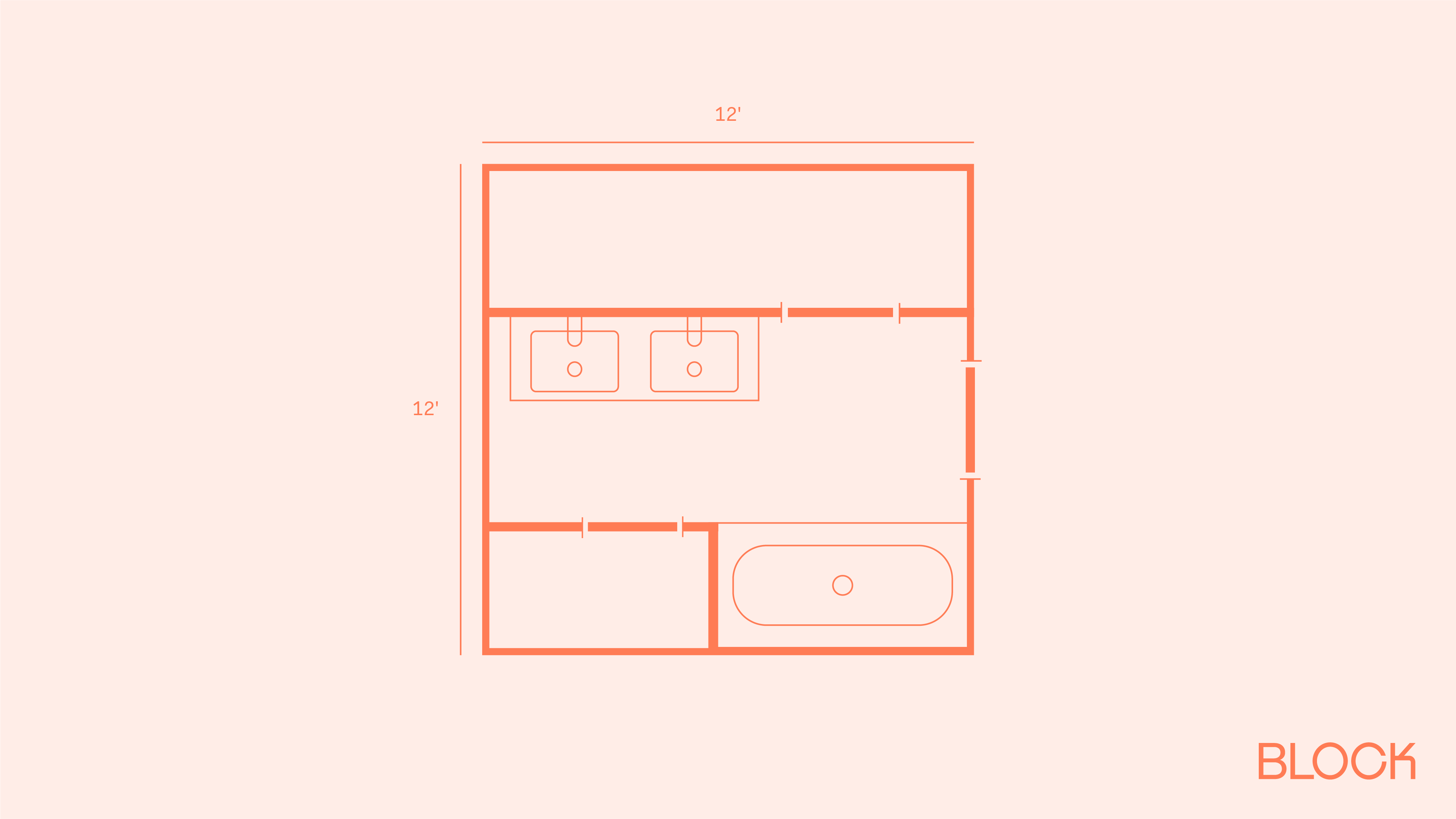

The 12x12 suite plan: a bathroom that lives like two rooms

The most ambitious plan in the set treats the bathroom as two connected rooms, separated by a partial wall and door openings:

• The upper zone works as a vanity and dressing area. A long double-sink counter and open floor give two people room to finish getting ready outside the wet zone.
• The lower zone holds the water. The tub sits on one side and the shower with toilet on the other, so steam and noise stay behind the partial wall instead of fogging the vanity mirror.

The appeal is functional sequencing. One person can finish at the sink while another is still in the shower, which matters in a primary suite shared by people on different schedules.

Layout tips that apply to any square bathroom

Choose the room's job before you place a single fixture

The ten plans above succeed because each one commits to a single idea: a soaking room, a shared getting-ready space, a private suite, a guest stop. Square rooms tempt you to hedge because everything technically fits somewhere. Decide what the room is for before placing anything, give the fixture that serves that purpose the best position, and arrange the rest around it.

Concentrate plumbing on one or two walls

Every wall that carries supply and drain lines adds rough-in cost, and a square room makes it easy to scatter plumbing across three or four walls without noticing. The 9x9 single-wall plan and the 12x12 three-wall open plan sit at opposite ends of that spectrum, and the budget difference between those approaches can run several thousand dollars at any size. When two layouts appeal equally, pick the one with fewer wet walls.

Use the equal proportions for symmetry or zoning, not both

Square rooms support two organizing strategies. Symmetry depends on an open room and an unbroken sightline, like the centered vanity facing the centered tub in the 9x9 cross-axis plan. Zoning relies on partial walls instead, the way the 10x10 and 12x12 plans do. Mixing them muddles both, because a partial wall breaks the sightline that symmetry needs, so pick one strategy and build the room around it.

Let the door decide what you see first

In a square room, the door can often go on any of the four walls, which means you get to choose the entry sightline. Aim it at the tub or the vanity, never the toilet. Several of the plans above, including the 7x7 double vanity plan, work specifically because shifting the door one wall over fixed the first impression.

Match the tile to the proportions

Square rooms are forgiving for tile because you're not correcting a skewed proportion. Large-format tiles in a straight lay make the floor a single clean surface, and a diagonal lay draws the eye toward the center of the room, which suits a square footprint well. The one approach to avoid is small mosaic as the primary floor surface, since the volume of grout lines makes the room busier and harder to maintain than it needs to be.

Turn your renovation vision into reality

Get matched with trusted contractors and start your renovation today!

Find a Contractor

What a square bathroom renovation costs by size

Renovation budgets scale with square footage, fixture count, and how far plumbing has to move. As planning ranges:

• A 4x4 half bath conversion typically runs $5,000 to $15,000.
• A 5x5 or 7x7 full bath runs $8,000 to $28,000 for a basic to mid-range scope.
• An 8x8 or 9x9 room runs $12,000 to $40,000 depending on finish level and fixture relocations.
• A 10x10 mid-range renovation runs $25,000 to $45,000.
• A 12x12 primary bath typically lands at $40,000 to $120,000.

Labor accounts for 50 to 70% of the total at every size. These ranges are a starting point, and real numbers come from contractors who have walked your specific space and priced your specific scope.
