# U-Shaped Kitchen Layouts and Floor Plans

 By Tenzin Dhondup

05.28.2026

[![Share on Facebook](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/facebook-f.svg)](http://www.facebook.com/share.php?u=https%3A%2F%2Fwww.blockrenovation.com%2Fguides%2Fu-shaped-kitchen-layouts-floor-plans-8-designs) [![View Block's Instagram](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/icon-instagram-black.svg)](https://www.instagram.com/blockrenovation) [![Share on LinkedIn](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/icon-linkedin-black.svg)](http://www.linkedin.com/shareArticle?mini=true&url=https%3A%2F%2Fwww.blockrenovation.com%2Fguides%2Fu-shaped-kitchen-layouts-floor-plans-8-designs) [![Share on Pinterest](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/icon-pinterest-black.svg)](http://pinterest.com/pin/create/button/?url=https%3A%2F%2Fwww.blockrenovation.com%2Fguides%2Fu-shaped-kitchen-layouts-floor-plans-8-designs&media=https://4612653.fs1.hubspotusercontent-na1.net/hubfs/4612653/82305461-b855-4ba1-a04b-40e71e98ac36.jpg)

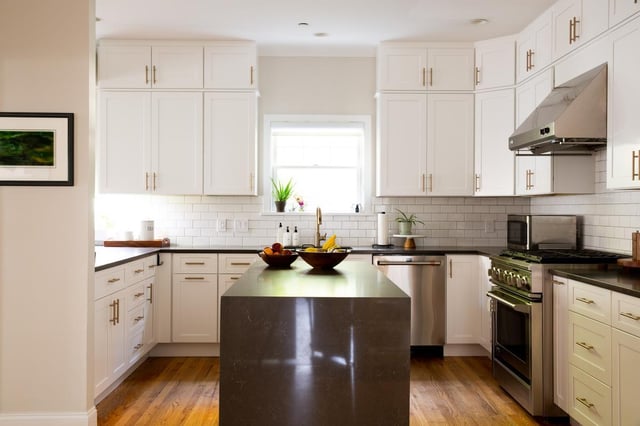

![A bright, modern kitchen with white cabinets, gold-colored hardware, a dark countertop on the center island, stainless steel appliances, and wood flooring.](https://www.blockrenovation.com/hs-fs/hubfs/82305461-b855-4ba1-a04b-40e71e98ac36.jpg?width=640&name=82305461-b855-4ba1-a04b-40e71e98ac36.jpg)

In This Article

In the 1940s, Cornell University researchers [built the kitchen work triangle around a U-shaped layout](https://www.thefoodhistorian.com/blog/when-kitchens-worked-the-rise-and-fall-of-functional-kitchens). They needed a configuration where the fridge, sink, and stove each had their own wall so they could measure how one cook moved between them. The U-shaped kitchen was already the most efficient floor plan in American homes. Eighty years later, that hasn't changed.

Done badly, though, a U feels cramped and buries storage in dead corners. The plans below walk through what works at different sizes and where the layout falls apart.

## The work triangle in a U-shaped kitchen

The work triangle connects the three points you visit most while cooking: refrigerator, sink, and stove. Each leg should fall between 4 and 9 feet, with a total perimeter under 26 feet. Under 12 feet total and the cook feels boxed in. Over 26 and you're walking too much.

[U-shaped kitchen designs](https://www.blockrenovation.com/guides/small-u-shaped-kitchen-design-tips?hsLang=en) make the triangle natural. Each appliance gets its own wall, so doors don't collide and the cook doesn't backtrack.

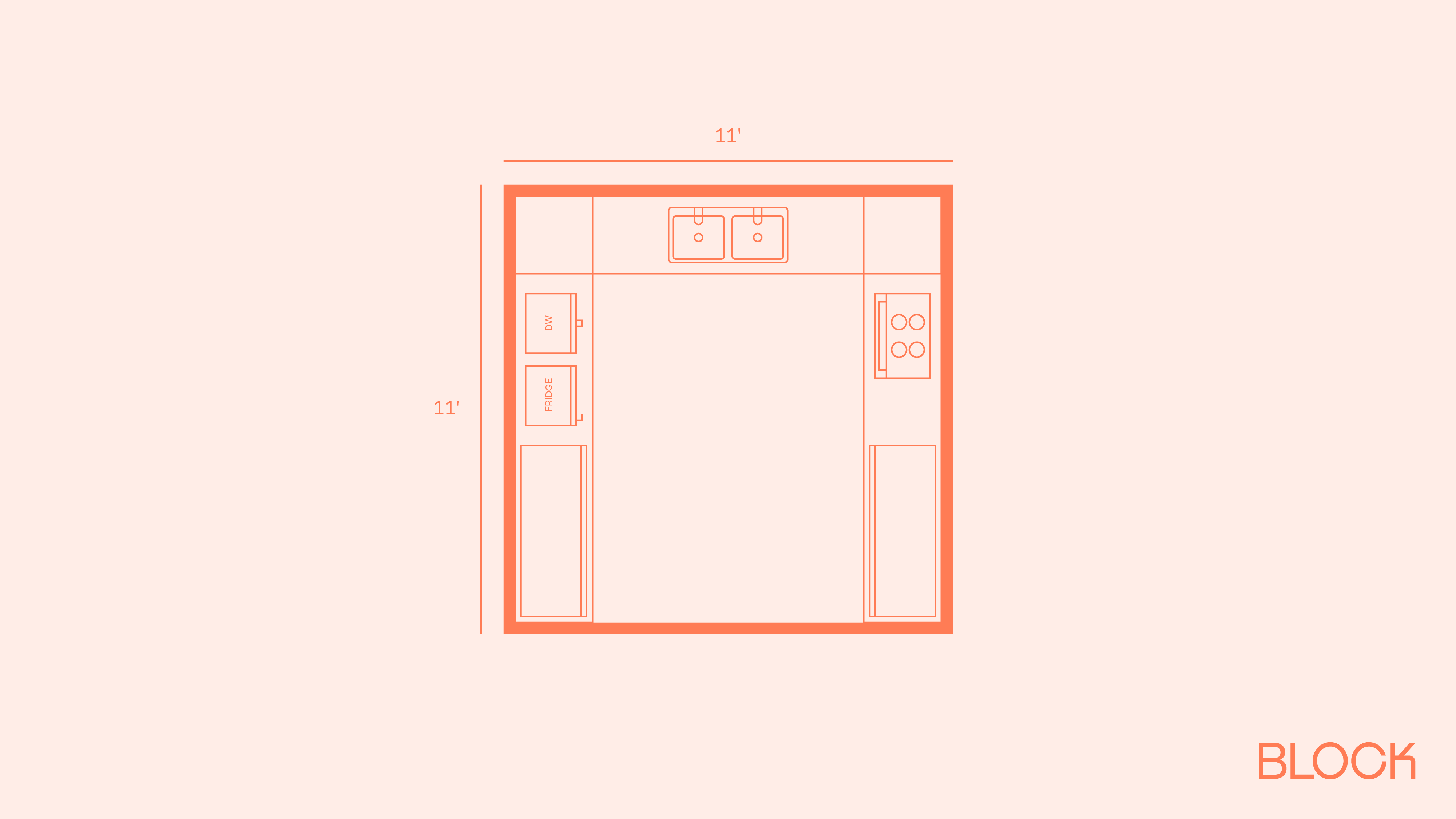

![Block\_\_Block\_Plans\_Kitchen\_11x11-24](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_11x11-24.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_11x11-24.png)

The 11x11 plan above is the textbook version. The fridge sits on the left wall, the sink is centered on the back wall, and the cooktop is on the right wall. The cook turns a few degrees to move between any two stations. No part of the kitchen is more than four steps from any other part.

One note on the triangle: it assumes a single cook. If two people are in the kitchen at once, the U can feel tight at the open end. The fix is a slightly larger footprint or a wider opening, not a different layout.

## U-shaped kitchen dimensions and clearance to plan around

Three measurements matter more than anything else when planning a U-shaped kitchen layout.

- The distance between facing counters should be at least 42 inches, or 48 inches if two cooks share the space. The National Kitchen and Bath Association sets these as minimums. [Anything under 36 inches starts to feel like a hallway](https://www.blockrenovation.com/guides/minimum-hallway-width-residential-code-guide?hsLang=en).
- Counter depth runs 24 inches for a standard base cabinet, plus a 1-inch overhang. That eats 25 inches off each wall, so a 9-foot back wall yields roughly 9 feet of usable counter once both side runs are subtracted.
- Clear floor space in front of appliances should be at least 36 inches per code in most jurisdictions. If the opposite counter is closer than that, the dishwasher or oven door won't open fully.

Get these three numbers right and the rest of the design has room to breathe. Get them wrong and no amount of beautiful cabinetry will fix the daily annoyance of bumping into the island while opening the fridge.

Design a Home That’s Uniquely Yours

 Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

[Get Started](https://www.blockrenovation.com/planner/route?hsLang=en)

![](https://www.blockrenovation.com/hs-fs/hubfs/raw_assets/public/block-theme-v2/images/ctas/cta-inline-hire-block.jpg?width=600&height=400&name=cta-inline-hire-block.jpg)

## Tips for U-shaped kitchen layouts by size

The principles above hold at any size, but the tradeoffs shift as the footprint changes. Small U-shaped kitchens demand harder choices about which appliances make the cut. Larger ones invite competing functions like dining and lounging into the space. Here's how the layout adapts.

### Small U-shaped kitchens under 100 square feet

81 square feet is roughly the floor for a U-shape. The 9x9 plan below sits right at the edge.

![Block\_\_Block\_Plans\_Kitchen\_9x9-18](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_9x9-18.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_9x9-18.png)

The plan keeps things minimal. The cooktop occupies the left wall, the fridge centers on the back wall, and the sink takes the right wall. The dishwasher gets dropped because there isn't a continuous run long enough to fit one without crowding the sink. The opening between facing counters is roughly 39 inches, which works for a single cook but feels tight with two adults in the room.

A slightly larger 8x12 small U-shaped kitchen opens things up by stretching one dimension.

![8x12 Floor Plan U-Shaped](https://www.blockrenovation.com/hs-fs/hubfs/8x12%20Floor%20Plan%20U-Shaped.webp?width=1456&height=819&name=8x12%20Floor%20Plan%20U-Shaped.webp)

That extra width along the back wall lets you fit the full work triangle, including a proper dishwasher next to the sink. The fridge, sink, and cooktop each occupy their own wall, which plays to the U-shape's strength. At 96 square feet, it's the smallest layout that comfortably accommodates a family-sized kitchen.

One thing such kitchens will lack is storage. Small U-shaped kitchens give up pantry space and dedicated baking zones to make the triangle work. Pull-out cabinets and vertical dividers help, as does a tall cabinet anywhere you can fit one.

![Kitchen before and after renovation](https://www.blockrenovation.com/hs-fs/hubfs/raw_assets/public/block-theme-v2/images/ctas/tools/kitchen-comparison.jpg?width=800&height=1000&name=kitchen-comparison.jpg)

Kitchen remodel visualizer

Visualize your kitchen in a new style

![](https://www.blockrenovation.com/hs-fs/hubfs/raw_assets/public/block-theme-v2/images/ctas/tools/kitchen-coastal.jpg?width=240&height=320&name=kitchen-coastal.jpg)

![](https://www.blockrenovation.com/hs-fs/hubfs/raw_assets/public/block-theme-v2/images/ctas/tools/kitchen-contemporary.jpg?width=240&height=320&name=kitchen-contemporary.jpg)

![](https://www.blockrenovation.com/hs-fs/hubfs/raw_assets/public/block-theme-v2/images/ctas/tools/kitchen-farmhouse.jpg?width=240&height=320&name=kitchen-farmhouse.jpg)

[Visualize your kitchen](https://www.blockrenovation.com/tools/kitchen-remodel-visualizer?hsLang=en)

### Mid-size U-shaped kitchen layouts from 100 to 160 square feet

At 12x11, the kitchen finally has the footprint for a proper work triangle without forcing cabinets to share zones.

![Block\_\_Block\_Plans\_Kitchen\_12x11-28](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_12x11-28.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_12x11-28.png)

The plan above uses the same triangle approach as a smaller U, with a few more inches between stations. The 12x14 layout below pushes a bit larger.

![Block\_Plans\_Kitchen\_April\_Block\_Plans\_Kitchen\_14x12-07](https://www.blockrenovation.com/hs-fs/hubfs/Block_Plans_Kitchen_April_Block_Plans_Kitchen_14x12-07.png?width=4001&height=2251&name=Block_Plans_Kitchen_April_Block_Plans_Kitchen_14x12-07.png)

The sink sits on the closed end of the U here, not the back wall. The dishwasher tucks in next to it. The fridge gets its own wall, and the cooktop sits opposite. It's a layout worth considering when a window dictates where the sink can go, or when the back wall is better used for [a tall pantry stack](https://www.blockrenovation.com/guides/how-to-use-pantry-wall-cabinets-for-an-organized-kitchen?hsLang=en) and the closed end has plumbing access.

A 12x11 U-shaped kitchen with a dining table inside the U takes the layout in a different direction.

![Block\_\_Block\_Plans\_Kitchen\_12x11-31](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_12x11-31.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_12x11-31.png)

This version trims the side counter runs to make room for a small in-kitchen dining table. The U holds together. Three walls of counter, work triangle preserved. The kitchen just reads more like a family room with cooking on the perimeter.

### Large U-shaped kitchens over 200 square feet

Past 200 square feet, the kitchen has room for things beyond cooking. A dining table or small island fits in the middle without compromising the work triangle. The 15x15 layout below shows what that looks like.

![Block\_\_Block\_Plans\_Kitchen\_15x15-08](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_15x15-08.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_15x15-08.png)

The U occupies three walls, with the cooktop and fridge on the back wall, the sink and dishwasher on the right wall, and pantry cabinets on the left. A six-seat dining table fills the center. Because the kitchen is square, the table doesn't feel like an afterthought stuck in the leftover space. It anchors the room.

The work triangle still measures inside the recommended 12 to 26 foot range, but only because the appliances are placed strategically. Spread them too wide and you'll feel it every time you carry a pot from the stove to the sink. Cluster the triangle on two adjacent walls. Let the third wall carry pantry storage or a secondary task zone like a coffee station.

[Find tips for large kitchen designs](https://www.blockrenovation.com/guides/large-kitchen-designs-practical-layouts-and-inspiring-ideas?hsLang=en)

## U-shaped kitchen with island: the G-shape variation

A U-shaped kitchen with an island in the middle is technically a G-shape, named for the additional cabinet run that extends into the room like the cross-stroke of the letter G. It's the most common evolution of the U-shape as kitchens get larger, and it's worth understanding when the swap makes sense.

![Block\_\_Block\_Plans\_Kitchen\_15x20-21](https://www.blockrenovation.com/hs-fs/hubfs/Block__Block_Plans_Kitchen_15x20-21.png?width=4001&height=2251&name=Block__Block_Plans_Kitchen_15x20-21.png)

At 20x15, this plan has the room to support a 10-foot island with a cooktop and seating on the open side. The U on three walls covers prep and washing. The island carries the cooktop and the seating. Two cooks can work without bumping into each other, and the island doubles as the social center when guests are over.

The rule of thumb on adding an island to a U-shaped kitchen is straightforward. You need at least 14 feet between the back wall and the opposite wall, plus the 42-inch clearance on either side of the island itself. That puts the minimum footprint right around 200 square feet. Smaller than that and the island chokes the work triangle.

## Common U-shaped kitchen layout mistakes to avoid

A few patterns show up in U-shaped kitchen designs that don't quite work.

- Putting the sink in an inside corner kills prep space on one side and forces awkward body positioning at the dishwasher.
- Placing two appliances back to back on the same short wall means doors swing into the same space, and one person can't work at either while the other is open.
- Ignoring the corner cabinets is the most expensive mistake by square foot. Lazy Susans, blind-corner pull-outs, or a 45-degree angled cabinet should be planned from the start, not added as an afterthought.
- Forgetting upper cabinets above the open end leaves the two flanking walls underutilized. A tall pantry or a deep cabinet on each side recovers most of the storage.
- Undersized walkways are the issue homeowners regret most. Anything under 42 inches between facing counters feels tight in daily use.

Most of these surface during scope review, before the cabinets get ordered. That's where they should die.

## Renovating your U-shaped kitchen with Block

U-shaped kitchens involve more linear feet of cabinetry than most layouts, which means more decisions, more line items, and more places for a quote to drift. Block Renovation protects homeowners from those drift points. Tell Block your project details once and have your area's best contractors compete for the job, with quotes tailored to your exact scope. Every estimate is reviewed by Block experts to catch missing line items before they turn into change orders. Payments tie to approved project milestones, released only as the work gets done.

Remodel with confidence through Block

![Happy contractor doing an interview](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/ctas/cta-inline-hire-contractor.jpg)

 Connect to vetted local contractors

 We only work with top-tier, thoroughly vetted contractors

![Couple planning their renovation around the Block dashboard](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/ctas/cta-inline-hire-transparency.jpg)

Get expert guidance

 Our project planners offer expert advice, scope review, and ongoing support as needed

![Familty enjoying coffee in their newly renovated modern ktchen](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/ctas/cta-inline-about-block.jpg)

 Enjoy peace of mind throughout your renovation

 Secure payment system puts you in control and protects your remodel

[Get Started](https://www.blockrenovation.com/planner?hsLang=en)

 Renovate confidently with [Block](https://www.blockrenovation.com?hsLang=en). Easily compare quotes from top quality contractors, and get peace of mind with warranty & price protections. Learn about [Block's editorial process](https://www.blockrenovation.com/editorial-policy?hsLang=en).

[Kitchen Floor Plans](https://www.blockrenovation.com/guides/tag/kitchen-floor-plans)

![Tenzin Dhondup](https://www.blockrenovation.com/hs-fs/hubfs/Tenzin.png?width=150&name=Tenzin.png)

 Written by Tenzin Dhondup

Tenzin Dhondup

 Tenzin Dhondup is a Senior Project Planner at Block Renovation, helping property owners make sense of project costs and key decision points. Her work centers on clear, practical guidance around pricing and planning.

## Frequently asked questions

How small can a U-shaped kitchen be?

 The practical minimum for a U-shaped kitchen is about 80 square feet, with a clear opening of at least 39 inches between facing counters. Below that, a galley or L-shape will serve you better. The 9x9 plan above sits right at the edge of what works.

Is a U-shaped kitchen good for two cooks?

 Yes, if the dimensions support it. The work triangle in a U-shaped kitchen is split across three separate walls, so two cooks rarely cross paths. Counter clearance is the real test. You want at least 48 inches between facing runs when two people are in the kitchen at once. Anything tighter and the bay at the open end becomes a bottleneck.

Can I add a peninsula to a U-shaped kitchen instead of an island?

 A peninsula extends from one of the U's existing walls and effectively closes off the fourth side, creating a G-shape kitchen. It's a useful option in rooms that aren't quite wide enough for a freestanding island. The 12x14 layout could accommodate a short peninsula off the right-hand counter run without compromising the work triangle.

Is it easy to turn an L-shaped kitchen into a U-configuration?

 It depends on what's already on the third wall. A bare interior wall makes the conversion a cabinetry and electrical job, usually $8,000 to $15,000 depending on the run length. If the third wall holds a window or a doorway, the project turns structural and costs jump fast. Shared plumbing with an adjacent room adds even more. Either way, measure first. You need at least 42 inches between facing counters once the new run goes in. Anything tighter and you've spent the budget on a layout that doesn't function.

![Woman enjoying making coffee in modern ktchen](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/cta-renovate-confidently.jpg)

Renovate confidently with Block

 Easily compare quotes from top quality contractors, and get peace of mind with warranty & price protections.

[Get Your Estimates](https://www.blockrenovation.com/planner/route?hsLang=en)

 Thousands of homeowners have renovated with Block

![](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/google_logo.svg)

4.5 Stars (100+)

![](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/houzz_logo.svg)

4.7 Stars (100+)

![](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/yelp_logo.svg)

4.5 Stars (75+)

[Read homeowner reviews](https://www.blockrenovation.com/reviews?hsLang=en)

![Woman enjoying making coffee in modern ktchen](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/cta-project-gallery.jpg)

See what homeowners have built with Block

[View project gallery](https://www.blockrenovation.com/customer-gallery?hsLang=en)

## Related Articles

![](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/arrow-left-narrow.svg)

![](https://www.blockrenovation.com/hubfs/raw_assets/public/block-theme-v2/images/arrow-right-narrow.svg)

[![Green galley kitchen with white countertops and dark floor.](https://www.blockrenovation.com/hs-fs/hubfs/d95417b2-7b67-4a06-82d5-4bbe476e2593.jpg?width=640&name=d95417b2-7b67-4a06-82d5-4bbe476e2593.jpg) Kitchen Floor Plans Galley Kitchen Floor Plans and Ideas That Work | Block](https://www.blockrenovation.com/guides/galley-kitchen-floor-plans-and-ideas-that-work-block?hsLang=en)

07.15.2026

[![White kitchen rendering with black countertops and island.](https://www.blockrenovation.com/hs-fs/hubfs/King%20-%20Final%20Kitchen%20(1).webp?width=640&name=King%20-%20Final%20Kitchen%20(1).webp) Kitchen Floor Plans AI Floor Plan Generator: Best Free & Paid Software](https://www.blockrenovation.com/guides/ai-floor-plan-generator-best-free-paid-software?hsLang=en)

06.26.2026

[![A bright, modern kitchen with white cabinets, gold-colored hardware, a dark countertop on the center island, stainless steel appliances, and wood flooring.](https://www.blockrenovation.com/hs-fs/hubfs/82305461-b855-4ba1-a04b-40e71e98ac36.jpg?width=640&name=82305461-b855-4ba1-a04b-40e71e98ac36.jpg) Kitchen Floor Plans U-Shaped Kitchen Layouts & Floor Plans: 8 Designs](https://www.blockrenovation.com/guides/u-shaped-kitchen-layouts-floor-plans-8-designs)

05.28.2026

[![A sunlit L-shaped kitchen with white cabinets, black countertops, and a wood-topped island.](https://www.blockrenovation.com/hs-fs/hubfs/u5821215421_A_sunlit_L-shaped_kitchen_where_one_stretch_of_co_3760400a-356c-4949-b770-6df2fd390155_2.webp?width=640&name=u5821215421_A_sunlit_L-shaped_kitchen_where_one_stretch_of_co_3760400a-356c-4949-b770-6df2fd390155_2.webp) Kitchen Floor Plans Kitchen Floor Plans With Islands: 6 Layouts That Work](https://www.blockrenovation.com/guides/kitchen-floor-plans-with-islands-6-layouts-that-work?hsLang=en)

05.14.2026

[![ Cream Shaker kitchen with rounded marble island and stools.](https://www.blockrenovation.com/hs-fs/hubfs/u5821215421_Classic_shaker_kitchen_with_a_rounded_island_in_c_e50e696e-8076-42c6-b70b-d85480d079ef_2.webp?width=640&name=u5821215421_Classic_shaker_kitchen_with_a_rounded_island_in_c_e50e696e-8076-42c6-b70b-d85480d079ef_2.webp) Kitchen Floor Plans 12x10 Kitchen Layouts: 5 Designs That Work](https://www.blockrenovation.com/guides/12x10-kitchen-layouts-5-designs-that-work?hsLang=en)

04.26.2026

Renovate confidently

- Top quality contractors
- Warranty & price protections
- Expert resources

[Get Your Estimates](https://www.blockrenovation.com/get-started?hsLang=en)

[Get Your Estimates](https://www.blockrenovation.com/get-started?hsLang=en)

Renovate confidently with Block. Easily compare quotes from top quality contractors, and get peace of mind with warranty & price protections

<https://www.blockrenovation.com/?hsLang=en>

- [Ask ChatGPT About Block](https://bit.ly/BlockRenovation)
- [FAQ](https://www.blockrenovation.com/faq)
- [Reviews](https://www.blockrenovation.com/reviews)
- [How It Works](https://www.blockrenovation.com/how-it-works)
- [For Contractors](https://www.blockrenovation.com/contractors)
- [Gallery](https://www.blockrenovation.com/customer-gallery)
- [Guides/Blogs](https://www.blockrenovation.com/guides)
- [Careers](https://www.blockrenovation.com/welcome/careers)
- [Tools](https://www.blockrenovation.com/tools)

- [![facebook](https://www.blockrenovation.com/hubfs/facebook.png)](https://www.facebook.com/blockrenovation/)
- [![instagram](https://www.blockrenovation.com/hubfs/instagram.png)](https://www.instagram.com/blockrenovation/)
- [![Linkedin](https://www.blockrenovation.com/hubfs/linkedin.png)](https://www.linkedin.com/company/blockrenovation/)
- [![pinterest](https://www.blockrenovation.com/hubfs/pinterest.png)](https://www.pinterest.com/blockrenovation/)

Email

[sales@blockrenovation.com](mailto:sales@blockrenovation.com)

Learn more about renovating

Sign Up

[Refer a friend and get up to $1,200](https://www.blockrenovation.com/referral?hsLang=en)

 © Block 2026

- [Terms of Use](https://www.blockrenovation.com/terms)
- [Privacy Policy](https://www.blockrenovation.com/privacy)

```json
{
  "@context" : "https://schema.org",
  "@type" : "BlogPosting",
  "author" : {
    "@type" : "Person",
    "name" : "Tenzin Dhondup",
    "url" : "https://www.blockrenovation.com/guides/author/tenzin-dhondup"
  },
  "dateModified" : "2026-06-08T19:40:40.953Z",
  "datePublished" : "2026-05-28T22:50:50.000Z",
  "headline" : "U-Shaped Kitchen Layouts & Floor Plans: 8 Designs",
  "image" : [ "https://www.blockrenovation.com/hubfs/82305461-b855-4ba1-a04b-40e71e98ac36.jpg" ],
  "mainEntityOfPage" : {
    "@id" : "https://www.blockrenovation.com/guides/u-shaped-kitchen-layouts-floor-plans-8-designs",
    "@type" : "WebPage"
  },
  "publisher" : {
    "@type" : "Organization",
    "logo" : {
      "@type" : "ImageObject",
      "url" : "https://www.blockrenovation.com/hubfs/block%20logo%20orange.jpg"
    },
    "name" : "Block Renovation"
  }
}
```
