6 Walk-Out Basement Floor Plans, From Family Room to In-Law Apartment

If your basement opens to the backyard at grade, you're sitting on the easiest square footage you'll ever add. A walk-out gives you full-height windows, direct outdoor access, and a legal path to bedrooms and rental use that a standard basement can't match without major excavation. That head start only pays off if the floor plan puts the right rooms on the right walls, and the six layouts below show how to do it, from a simple family room to a full apartment with its own kitchen.

Each plan follows the same logic: living spaces claim the walk-out wall where the windows and doors are, while mechanicals, storage, and plumbing hold down the buried side. If your basement has above-grade windows but no exterior door, that's a daylight basement, and most of these layouts still apply once you subtract the patio access.

Six walk-out basement floor plans

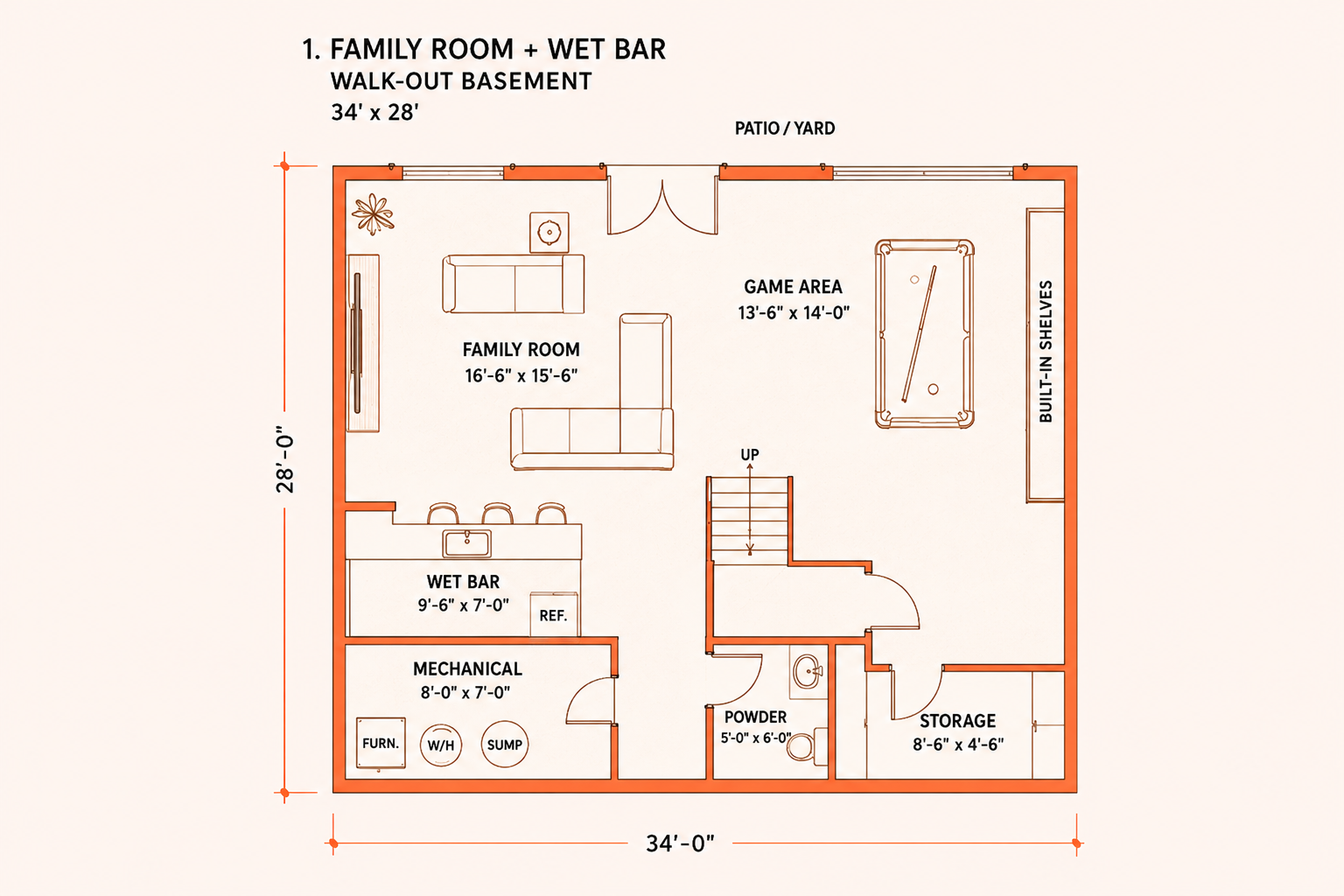

1. Walk-out family room (34' x 28')

A 16'-6" x 15'-6" family room and a 13'-6" x 14' game area share the entire window wall, with double patio doors opening to the yard between them and built-in shelves running down the game area's side wall. A 9'-6" x 7' wet bar with a sink and undercounter fridge sits along the interior wall, close enough to serve both zones without taking daylight from either.

The buried side of the plan absorbs everything that doesn't need a window: a 5' x 6' powder room, an 8'-6" x 4'-6" storage closet, and an 8' x 7' mechanical room holding the furnace, water heater, and sump pump.

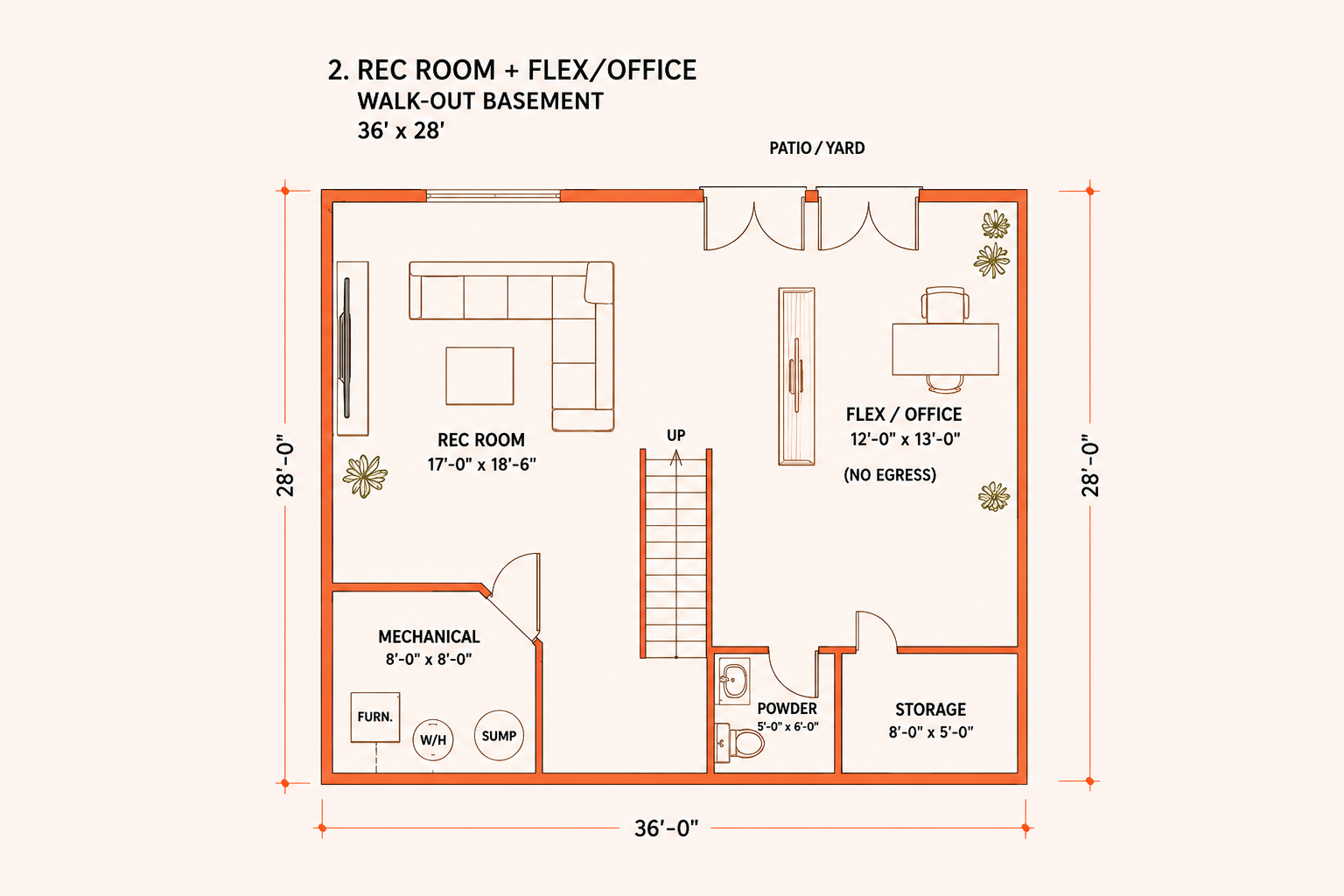

2. Walk-out rec room (36' x 28')

This layout splits the footprint into a large open zone and a closed-off flex room. The 17' x 18'-6" rec room runs the full left side of the plan, while a 12' x 13' flex room with a door works as a home office, gym, or craft room next to the double patio doors.

One thing to know before you list that flex room as a bedroom: it has no egress window, so it can't legally be one. If sleeping space is the goal, the in-law suite or guest suite layouts below are the better starting point. As drawn, the room suits work-from-home use, where a door that closes matters more than a window you can climb out of.

A 5' x 6' powder room, an 8' x 8' mechanical room, and an 8' x 5' storage room fill out the interior corner behind the stairs.

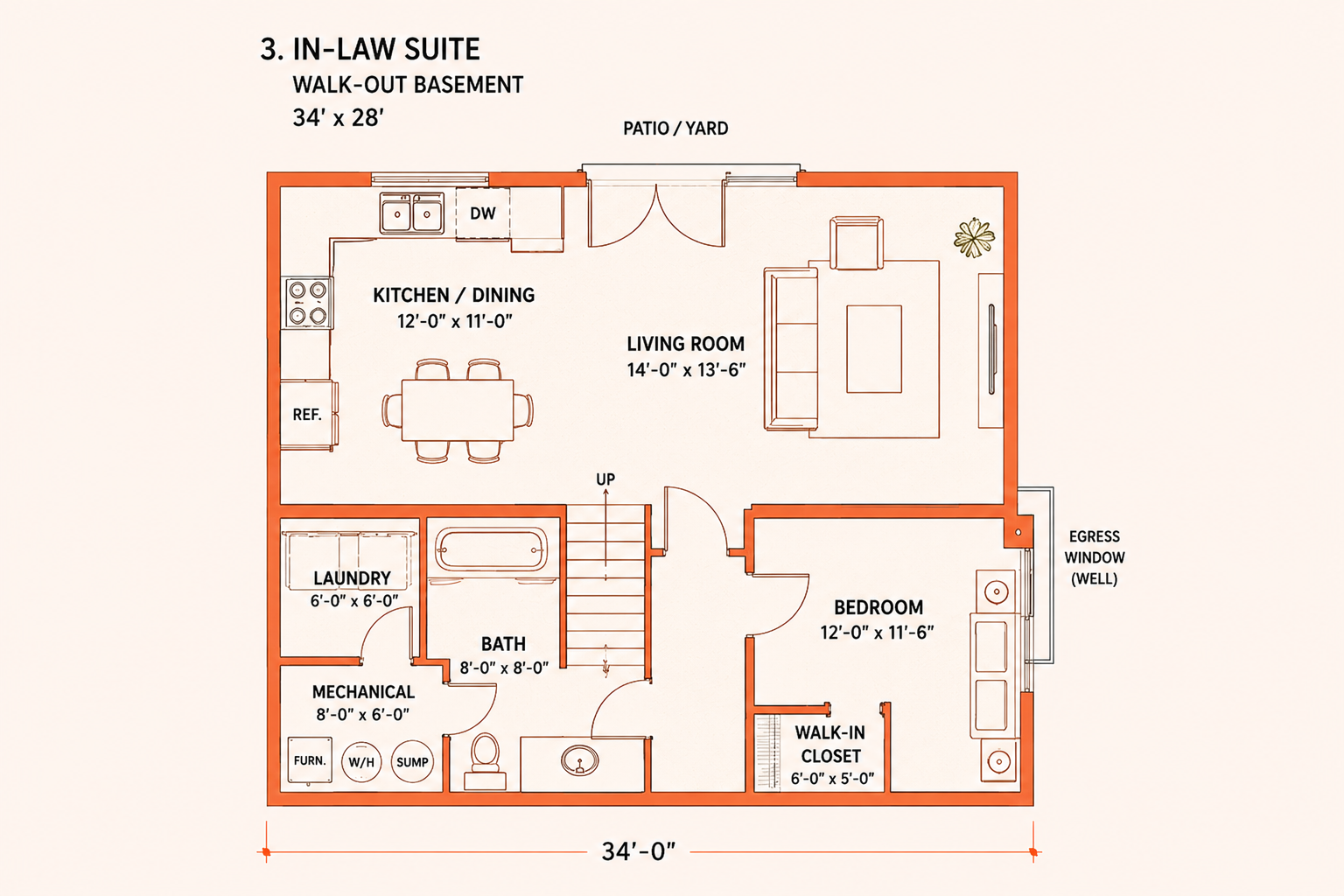

3. Walk-out in-law suite (34' x 28')

The suite version of a walk-out adds a bedroom and a kitchen without dividing the space into a separate unit.

• A 14' x 13'-6" living room and a 12' x 11' kitchen and dining area share the open half of the plan.
• A 12' x 11'-6" bedroom with a code-compliant egress window anchors the far corner, next to a 6' x 5' walk-in closet and an 8' x 8' full bath with a tub.
• A 6' x 6' laundry closet and an 8' x 6' mechanical room line the buried wall.

Because the suite shares the home's main entrance and stair, it typically counts as finished living space rather than a separate dwelling, which keeps permitting simpler than the full apartment below.

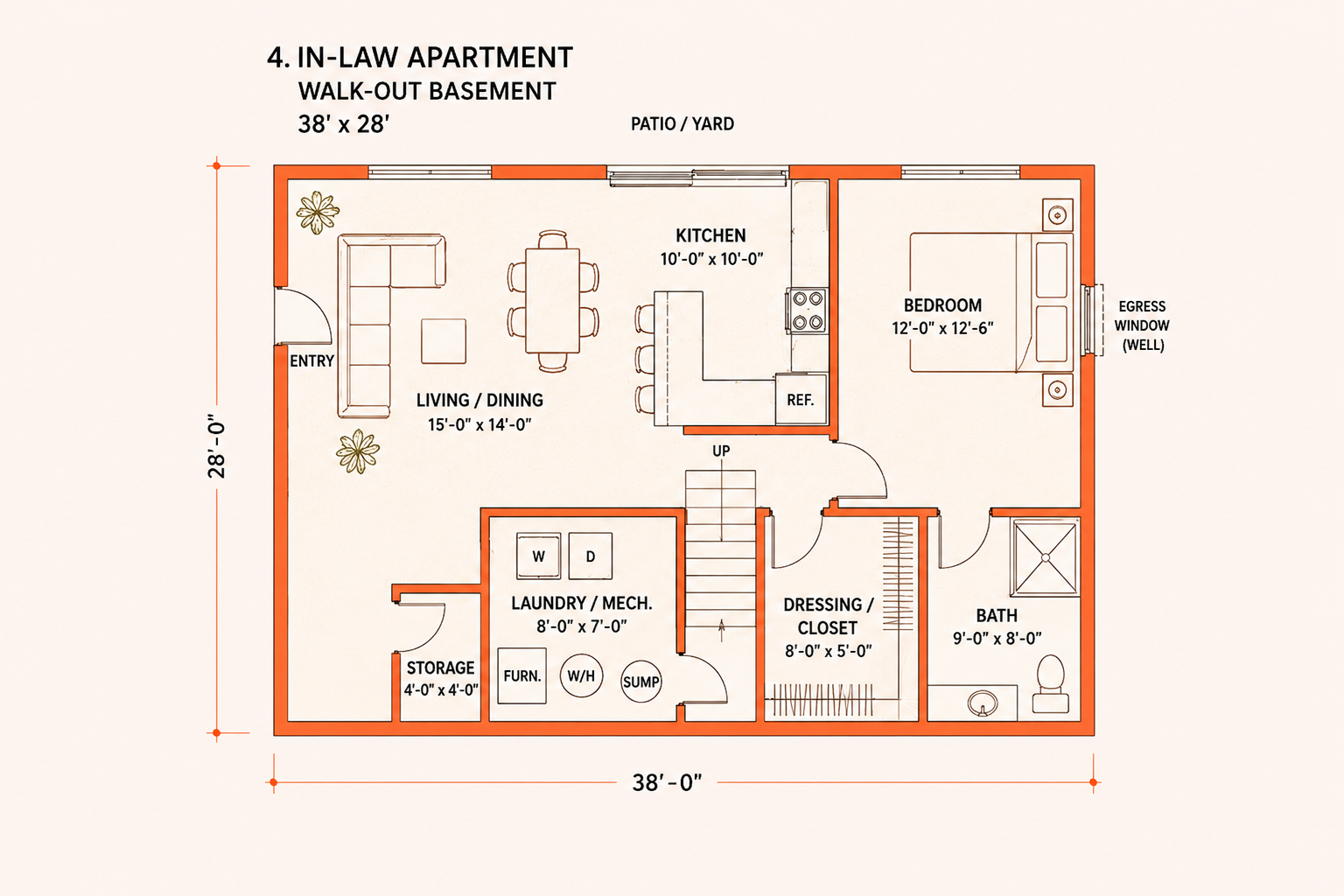

4. Walk-out in-law apartment (38' x 28')

This is the plan for long-term multigenerational living or rental income. A 15' x 14' living and dining space and a 10' x 10' kitchen with an island fill the open half, while a 12' x 12'-6" bedroom with an egress window, an 8' x 5' dressing area, and a 9' x 8' full bath make up a private wing. An 8' x 7' laundry and mechanical room, a 4' x 4' storage closet, and a dedicated entry on the side wall complete the layout.

The word "apartment" carries legal weight. In most jurisdictions, a legal accessory dwelling unit needs its own dedicated entrance, and requirements for separate utilities, parking, and ceiling height vary widely, so check your local code before you commit to the full build-out.

The door does more work here than the windows. It makes the dedicated entrance possible, it functions as a true second front door for a tenant or visiting parents, and during construction it gives crews a way to move drywall, lumber, and debris without carrying any of it through your living room.

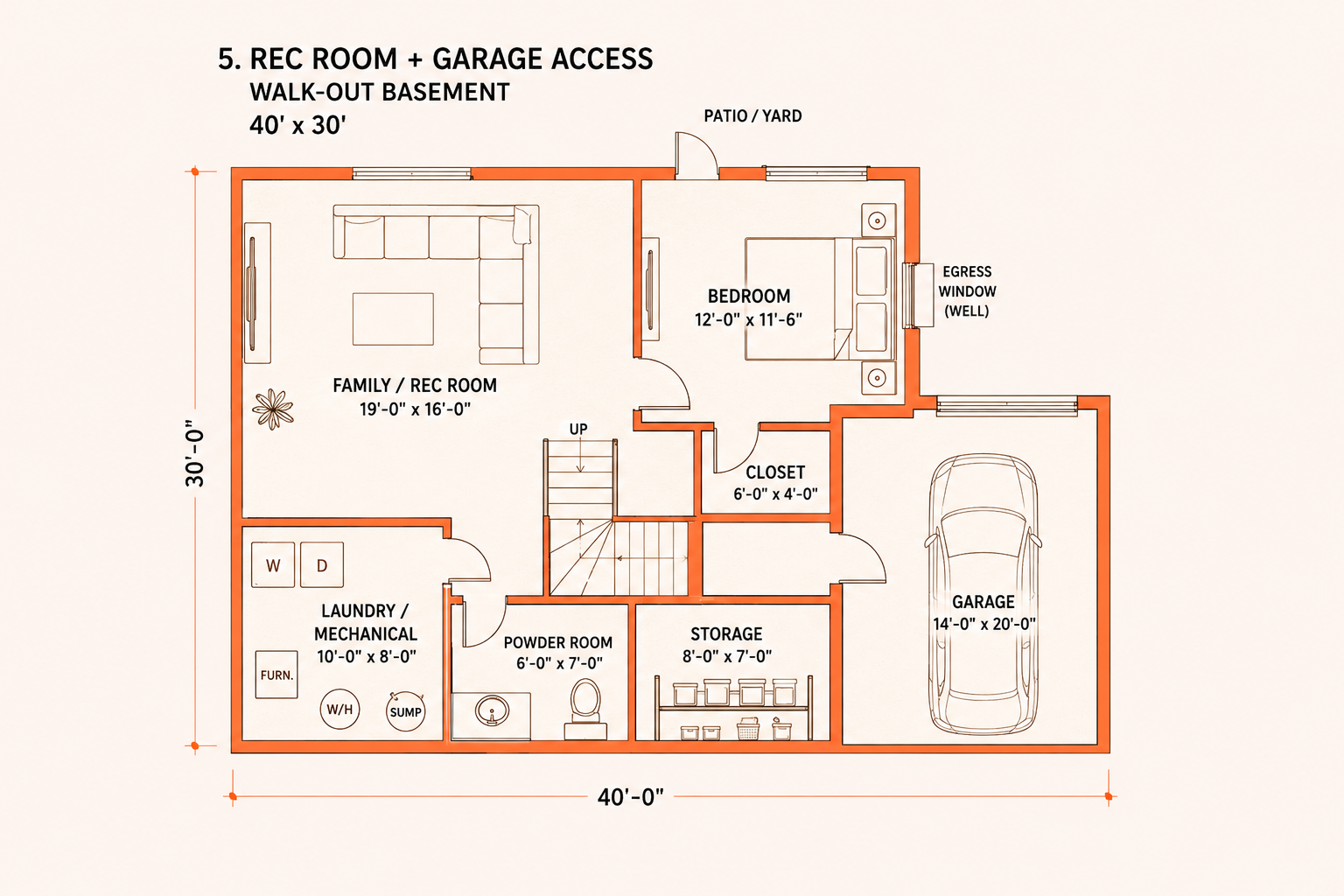

5. Walk-out rec room with garage access (40' x 30')

On sloped lots, the walk-out level often doubles as the garage level, and this plan pairs the two without giving up a bedroom. A 19' x 16' family and rec room holds the left half of the window wall, and a 12' x 11'-6" bedroom with an egress window and a 6' x 4' closet takes the upper right corner beside the patio door.

A 14' x 20' single-car garage fills the lower right of the footprint, entered from the at-grade side. Code requires fire-rated separation between a garage and living space, so budget for the rated wall and self-closing door where the two meet. A 6' x 7' powder room, an 8' x 7' storage room, and a 10' x 8' laundry and mechanical room with the washer, dryer, furnace, water heater, and sump line the buried wall.

The stair lands near the center of the plan, and the pocket behind it holds the powder room and storage, keeping the window wall free for the rooms that need it.

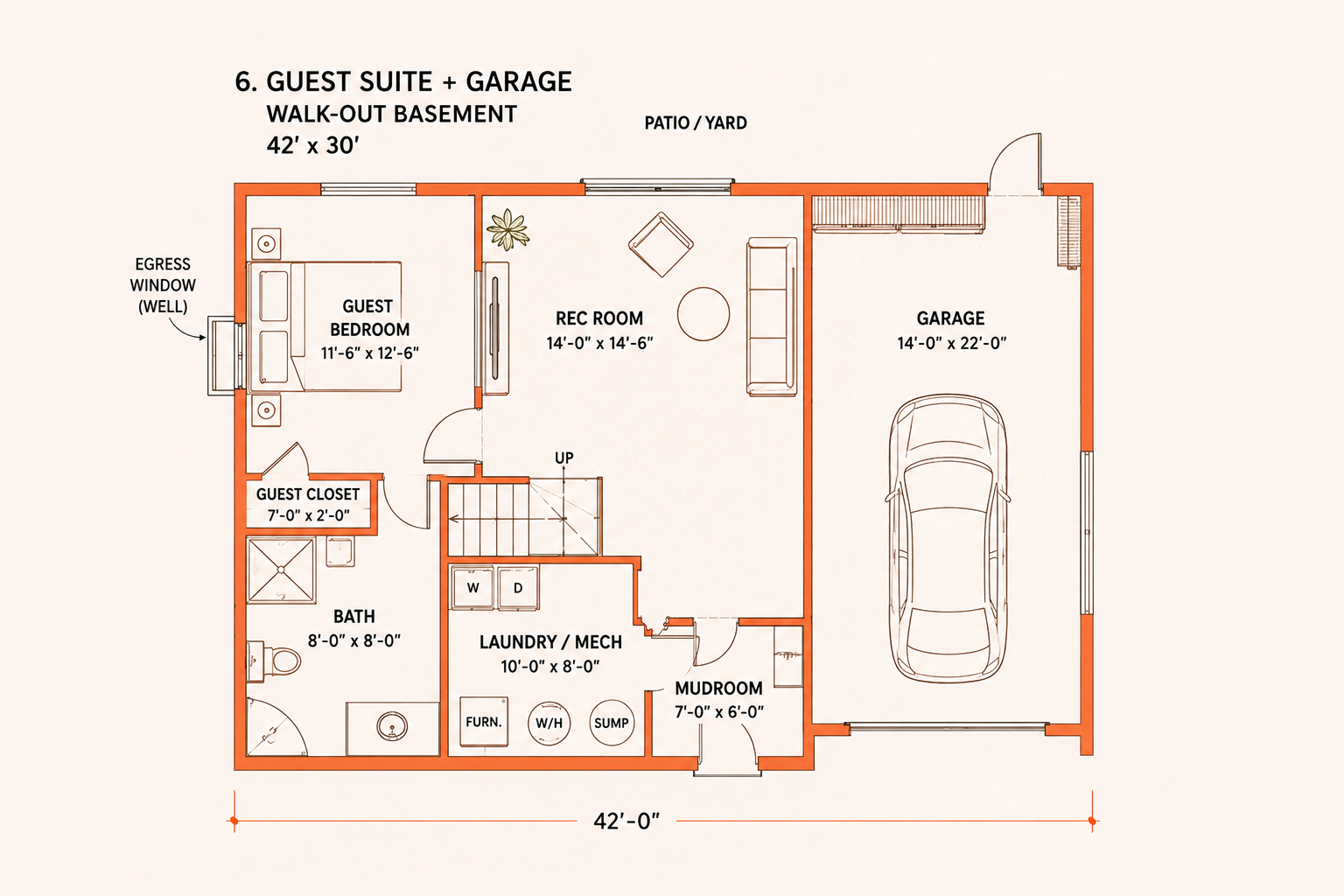

6. Walk-out guest suite + garage (42' x 30')

The largest plan of the six combines a full guest suite with a garage. An 11'-6" x 12'-6" guest bedroom with an egress window, a 7' x 2' closet, and an 8' x 8' bath with a shower occupy the left wing.

A 14' x 14'-6" rec room sits at the center of the plan with direct patio access, so guests get a private living zone without crossing the mechanical side of the basement. A 10' x 8' laundry and mechanical room and a 7' x 6' mudroom connect the living side to the 14' x 22' garage.

This layout suits hosts who want visiting family to have real autonomy. A guest can park, come inside, shower, and settle in without ever using the main floor.

How to choose between them

Start with how many hours a week the space will actually be used, and by whom. A family room justifies its budget through daily use, while an in-law apartment needs rent or avoided assisted-living costs to pencil out, and only if it clears local code as a legal unit.

Whichever plan you pick, consider building to apartment spec even if you're finishing the space as a family room. The expensive parts of a future conversion are rough plumbing under the slab, an entrance-ready exterior door, and egress windows, and all three cost a fraction during the initial finish compared to retrofitting them into a done room. A family room with capped rough-ins behind the wet bar keeps the rental option open for a later owner, and in most jurisdictions that option shows up in the sale price.

A walk-out appraises closer to above-grade space than a standard basement does, so basement-grade choices like drop ceilings and the cheapest vinyl plank shortchange the room. Finish the window wall to the same spec as your main floor and save the economizing for the mechanical side.

Compare Proposals with Ease

Easily compare contractor quotes with intuitive layouts, and side-by-side comparisons to help you make the best choice.

Get a Quote

Perfecting your basement floor plan

Start with what can't move

Three things in a basement are effectively fixed: the stair, the plumbing stack, and any posts or beams holding up the house. Adapting the layouts above to your footprint means arranging rooms around those anchors rather than fighting them. Keep new baths and the laundry room within a short run of the existing stack, put storage and mechanicals in the pocket behind the stair, and treat any structural post as a future wall corner instead of an obstacle in the middle of a room.

The pros and cons of widening the walk-out door

A wider opening, whether French doors, a multi-panel slider, or a full glass wall, changes how the whole level lives. What you gain:

• Daylight reaches deeper into the plan, shrinking the dark zone in the middle of the basement.
• The patio starts functioning as an extension of the rec room instead of a separate destination.
• Sofas, sheet goods, and appliances stop negotiating the interior stairs, which makes every future project easier.

What it costs you:

• Widening the opening in a load-bearing foundation wall requires an engineered header, usually a permit and an engineer's letter, and often $3,000 to $10,000 installed depending on width and wall construction.
• More glass on a below-grade level means more heat loss and a higher condensation risk.

The upgrade makes sense when the yard is genuinely usable and the space will serve as an apartment or daily living area. If the walk-out faces a slope or a drainage path, put the money into the interior instead.

Size rooms around real furniture

A sectional needs roughly 10' x 10' of clear floor to seat five, a pool table needs about 5 feet of cue clearance on all sides, and a queen bed with two nightstands wants an 11' wall. Test the rooms in your plan against the pieces you actually intend to put in them before framing starts, because a game area that's 18 inches too narrow becomes a hallway with a table in it.

Renovate with confidence every step of the way

Step 1: Personalize Your Renovation Plan

Step 2: Receive Quotes from Trusted Contractors

Step 3: Let Us Handle the Project Details

Get Started

Egress, ceilings, and the code basics

Three code requirements shape what a walk-out floor plan can legally contain:

• Every sleeping room needs its own egress opening. That's a door directly to the exterior or a window large enough to escape through, with minimum opening sizes set by the International Residential Code and enforced locally. The patio door in the living area doesn't count for a separate bedroom, which is why every bedroom in the layouts above carries its own egress window.
• Finished space needs at least 7 feet of ceiling height. Limited allowances exist for beams and ducts. Walk-outs usually clear this on the daylight side, but verify the buried side before finalizing a plan, since ductwork tends to concentrate there.
• Permits reach nearly every plan on this page. Adding a bathroom, a bedroom, or a kitchen triggers plumbing, electrical, and often zoning review, and an unpermitted bedroom won't count in your home's listed square footage when you sell.

Run a radon test before any of it. A walk-out doesn't lower radon risk, even though the door and windows make the level feel ventilated, and the EPA recommends testing every home below the third floor regardless of foundation type. Sub-slab mitigation costs little before drywall goes up. After the walls close, the same fix means opening them.

The patio matters more than the plan

Every layout above assumes the door opens onto something worth walking out to. A cramped pad or a patch of yard that collects runoff undoes the premise of the whole level, because the door only earns its keep when the outdoor space works. Budget the hardscape, grading, and drainage at the same time as the interior finish. A walk-out door without a usable patio is a window with a handle.
