1-Bedroom Garage Apartment Floor Plans

If your two-car garage holds more storage than cars, you already own the makings of a rental unit or an in-law apartment. The typical footprint, 400 to 576 square feet, gives you enough living area for a legal 1-bedroom in many American cities, and the structure around it is already built and paid for. That head start is why converting a garage costs far less than building an accessory dwelling unit (ADU) from the ground up. What you can fit inside depends on the layout, so the four 1-bedroom garage apartment floor plans below show two options for a standard 22 by 26 foot garage and two for an oversized 29 by 25, along with the prep checklist and design moves that make the finished space feel like a real home.

Most of the garage with apartment floor plans you'll find online describe new construction, an apartment built above the parking. The four plans here convert the garage itself. And if you only need the bedroom rather than a full apartment, our garage to master bedroom suite conversion guide covers that version of the project.

Garage apartment floor plans for a 22' x 26' two-car garage

At 572 square feet, a 22 by 26 foot garage sits at the top of the standard two-car range. Both options keep the bedroom at the rear of the plan with the egress window every legal bedroom needs, and both assume a wall-mounted tankless water heater, since neither layout sets aside a separate mechanical room.

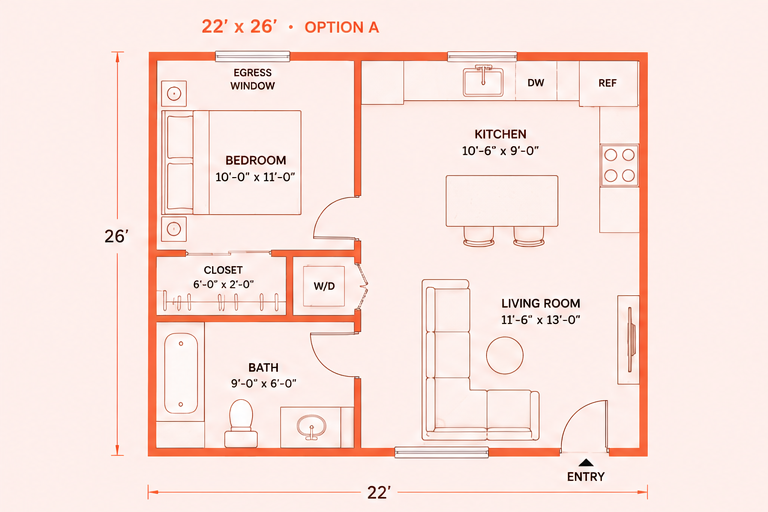

Option A: a private wing and an open main room

Option A divides the garage apartment into a private half and a public one. The bedroom, closet, laundry, and bath stack front to back along the left side, and the right side runs as a single open zone where the island seats two and doubles as the dining table. The split makes the unit simple to furnish and keeps guests in the main room away from the sleeping side entirely.

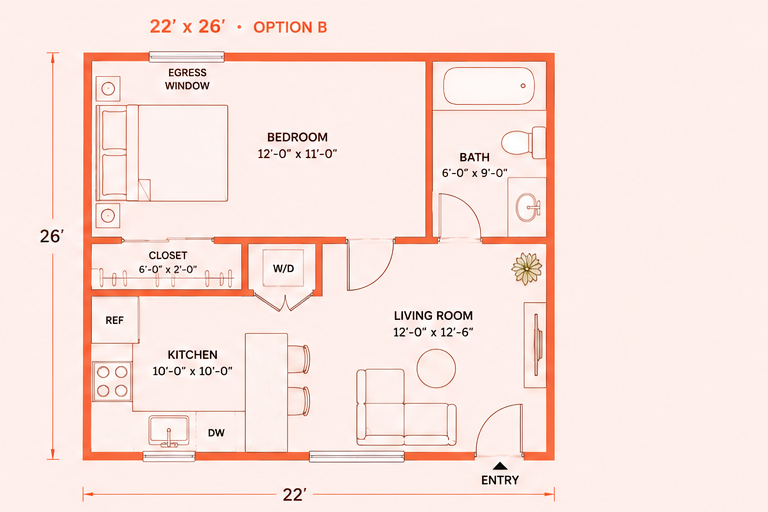

Option B: a bigger bedroom on a quiet rear hall

Option B trades main-room area for a bigger bedroom. At 12 by 11 feet, the bedroom takes up a quarter of the footprint and shares the rear of the plan with the bath, so the path from bed to bath is a few steps across the hall rather than a walk through the apartment.

The kitchen moves to the front corner with counter seating for two, and the 12 by 12'6" living room anchors the entry. The extra bedroom area pays off if you keep a desk or a reading chair where you sleep.

Garage apartment floor plans for an oversized 29' x 25' garage

Oversized two-car and compact three-car garages commonly stretch to 29 feet or wider, and the resulting 725-square-foot footprint changes what the apartment can hold. Both options here gain a real dining arrangement and a dedicated home for the water heater.

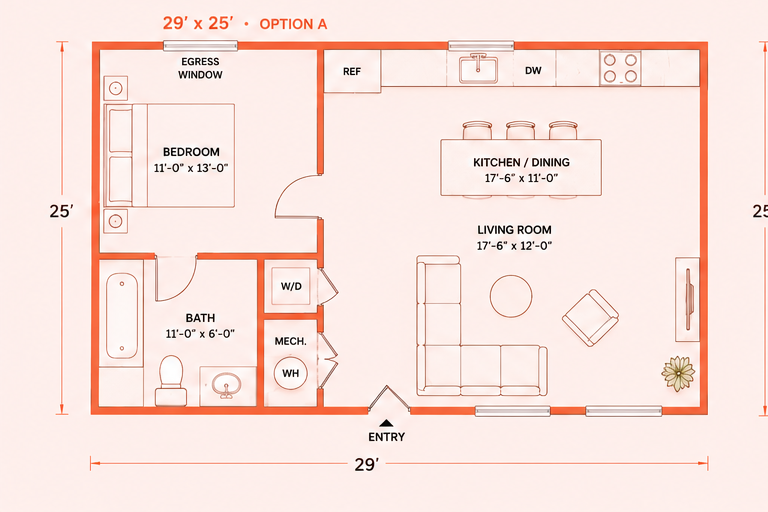

Option A: one continuous main room

Option A keeps the added width in one continuous main room. The kitchen and dining share a 17'6" by 11' zone organized around an island that seats three, and the living area continues the open space at 17'6" by 12'. The bedroom grows to 11 by 13 feet, and the bath stretches to 11 feet along its long wall, enough for a full tub well clear of the vanity. A mechanical closet beside the laundry holds the water heater.

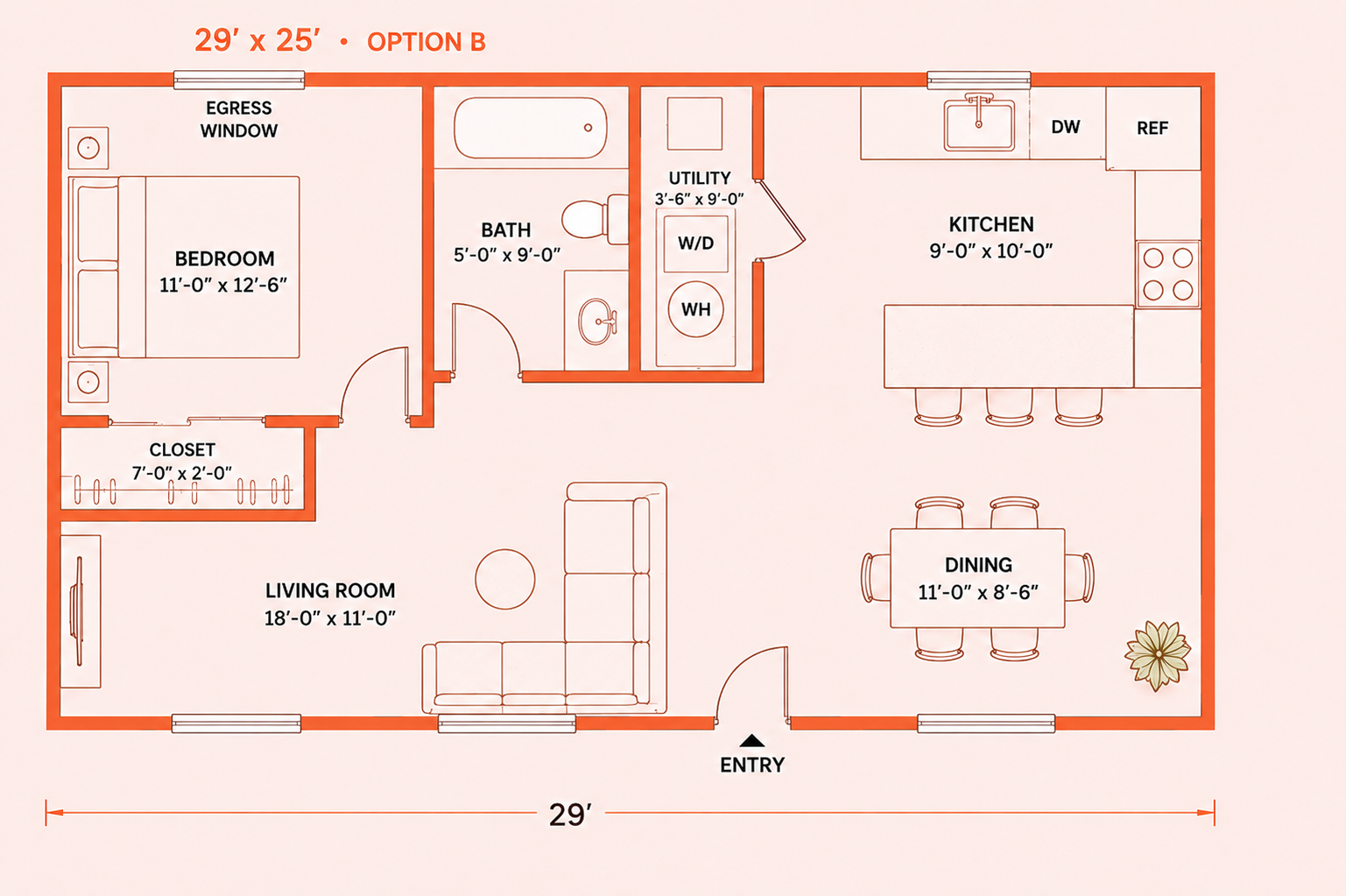

Option B: separate dining area and utility room

Option B carves the same garage apartment into defined rooms. The dining area beside the kitchen seats six, and the living room runs a full 18 feet along the front wall. A 3'6" by 9' utility room between the bath and the kitchen puts the laundry and water heater in their own space, and the bedroom keeps a 7-foot closet just outside its door. This is the layout for having people over.

Pre-bedroom checklist for your garage

A floor plan only works if the garage itself can qualify as living space. Run through this list with your contractor before committing to a layout.

• Confirm zoning and permits before design work starts. Many cities regulate garage conversions under ADU ordinances that set rules on parking replacement, unit size, and owner occupancy. Your contractor or the local building department can confirm what applies to your lot. Our guide to converting a two-car garage into an ADU walks through the approval process in more detail.
• Have the structure inspected. Slab cracks and hidden water damage are far cheaper to address before the walls and floors close up. An inspection also confirms the roof and foundation can support a finished interior.
• Plan for a leveled, insulated floor. Garage slabs slope 1 to 2% toward the door for drainage and sit on the ground with no thermal break. Most conversions add a leveled subfloor with rigid foam insulation. The raised floor also gives the plumbing somewhere to run.
• Bring insulation up to residential standards. Garage framing usually sits outside the home's thermal envelope, so the walls and ceiling have little or no insulation. Your contractor will insulate to the R-values your climate zone requires.
• Fill in the garage door opening. The opening gets framed and insulated, then sided to match the rest of the house or converted to windows or glass doors. The header above it should be evaluated at the same time.
• Verify bedroom egress. Most codes require a bedroom to have an emergency escape opening, typically a window with at least 5.7 square feet of clear opening and a sill no more than 44 inches above the floor. Settle window locations before the floor plan is final. Without compliant egress, the room cannot legally count as a bedroom no matter how finished it looks.
• Extend heating, cooling, and ventilation. A ductless mini-split, which is a small heat pump that needs no ductwork, handles most converted garages on its own. The bathroom will also need an exhaust fan.
• Rough in plumbing and electrical early. A one-bedroom apartment needs its own bathroom and kitchenette, and the dedicated circuits behind them often force a panel upgrade. Cutting the slab for supply and waste lines happens before anything else is built.

Design a Home That’s Uniquely Yours

Block can help you achieve your renovation goals and bring your dream remodel to life with price assurance and expert support.

Get Started

Design tips for making the space feel less like a garage and more like a bedroom

Converted garage apartments give themselves away in predictable ways. The floor feels cold underfoot and the room is one long rectangle. Windows, where they exist at all, were an afterthought.

Raise and warm the floor

A bare slab stays within a few degrees of the ground beneath it, winter included. A sleeper subfloor with rigid foam between the sleepers separates the finished floor from the concrete and brings it closer to the height of the rest of the house. Engineered wood or wood-look resilient flooring on top completes the change, and a large rug at the bedside softens the first step out of bed. While the floor is open, an electric radiant mat can go under the future bathroom tile for very little added cost.

Break up the long rectangle

A two-car garage is a single open span, often around 22 by 26 feet, and leaving it as one room makes the apartment feel like a garage with furniture in it. Interior partitions are worth the framing cost here. A full-height wall between the bedroom and the living area, with the bathroom and closet stacked along one side, divides the span into rooms with normal proportions.

Put the bedroom at the back of the plan, away from the infilled door wall and the driveway. Headlights and street noise concentrate at the front of a garage, and placing the bathroom and closet between the two zones adds a sound buffer without any extra square footage.

Choose windows and doors at residential proportions

Garage windows tend to be small and set high on the wall. Bedrooms call for larger units with sills 24 to 36 inches off the floor, placed for morning light and cross ventilation. The infilled garage door opening is the easiest place to add glass, since the structural opening already exists, and a pair of French doors or a picture window there can light the entire living zone.

Layer the lighting

A single fixture in the middle of the ceiling leaves every corner of the apartment dim once the furniture goes in. Each zone needs its own light.

• Put recessed lights on dimmers in the living and kitchen zones so brightness can shift from task levels to evening levels.
• Light the bedroom with bedside sconces or lamps instead of an overhead fixture.
• Add under-cabinet lighting in the kitchenette to keep counters usable after dark.
• Choose warm bulbs in the 2700K to 3000K range throughout the apartment.

Finish the ceiling, or open it up

Many garages have exposed trusses or a ceiling stained by decades of storage above. At minimum, the conversion should deliver an insulated, smoothly finished ceiling at no less than 7 feet, the height most codes require for habitable rooms.

If the roof is framed with rafters rather than trusses, ask your contractor about vaulting part of the ceiling, with a structural engineer signing off before any framing comes out. Even a partial vault over the living area changes the perceived size of the space more than any furniture choice can, and the bedroom can keep a flat, lower ceiling for warmth.

Add the finish details garages never get

Garages are built to a lower finish standard than living space, and the missing details are a large part of why some conversions still feel unfinished.

• Garages get no trim at all, so install baseboards, window casing, and door trim throughout.
• Build a closet with doors and interior organizers, because appraisers and future buyers expect one in any room presented as a bedroom.
• Curtains and rugs absorb the echo that concrete and fresh drywall create.
• Paint in warm whites or muted colors instead of the bright white common on garage walls.
• Mount the mini-split head out of the main sight line, or choose a recessed ceiling cassette if the budget allows.

Transparent Pricing You Can Trust

Start your renovation using Block’s Price Assurance. See a detailed cost breakdown with no unexpected expenses along the way.

Get Started

Consider what you're giving up with a garage conversion

A conversion trades one kind of usable space for another, and not every market rewards the swap.

"I think homeowners hear too often that adding square footage 'automatically' increases value. More space can help, but only if it improves how the home functions. For example, converting a two-car garage into a living room may add usable square footage, but many buyers still want a garage for parking, storage, or outdoor equipment. Buyers usually place more value on practical layouts and everyday functionality than simply having a larger home."

Federico Zimerman, CEO and Property Revenue Manager at RevFactor, https://www.revfactor.io

The calculation shifts when the conversion produces a rentable ADU rather than extra living area, since the income stream can outweigh the lost parking over time. Before committing, look at recent sales in your neighborhood and ask whether homes without garages sit longer or sell for less.
