Small Attic Floor Plans: Bedrooms & Master Suites

If your family is outgrowing its bedrooms, the only unclaimed square footage in the house is probably sitting over your head. An attic conversion turns that space into a real bedroom, or even a full master suite, without pouring a foundation or building an addition. That head start on framing, roofing, and walls is why converting an attic costs a fraction of building new space from scratch.

The project comes with real challenges:

• Sloped ceilings shrink the usable floor. A 24' x 20' attic rarely delivers 480 square feet of full-height living space.
• Building codes set a high bar. Bedrooms need an egress window, minimum ceiling heights, and a real staircase, not a pull-down ladder.
• The floor may not be ready. Attic joists are often sized for storage loads, not people, furniture, and a freestanding tub.
• Everything has to travel up. Plumbing, heating, and cooling all need a path to the top floor, and the length of that path drives cost.
• Access changes the floor below. A code-compliant staircase claims real square footage from the level underneath, so the attic plan starts with a sacrifice downstairs.

The five floor plans below show what fits in small attic footprints, from a simple bedroom to a luxury master suite, along with what it takes structurally to get there.

What makes an attic layout work

Every attic floor plan answers to three fixed constraints. The first is the staircase, because where it lands upstairs determines where the room can go. The second is ceiling height, since code typically requires 7 feet over at least half the room's floor area, which pushes beds, tubs, and dressers toward the low kneewalls and keeps walking paths near the ridge. The third is egress. A bedroom needs an emergency escape window, and its position on the roof or gable wall shapes where furniture can sit.

The attic staircase deserves the most attention, and homeowners give it the least. A code-compliant stair eats 40 to 50 square feet on the floor below, and where it lands dictates every plan more than the attic itself does. If you can't give up that space downstairs, the conversion is dead before it starts.

With those three constraints in mind, the attic floor plans below scale up from a bedroom-only conversion to a full suite.

Turn your renovation vision into reality

Get matched with trusted contractors and start your renovation today!

Find a Contractor

5 attic floor plans, from simple bedroom to master suite

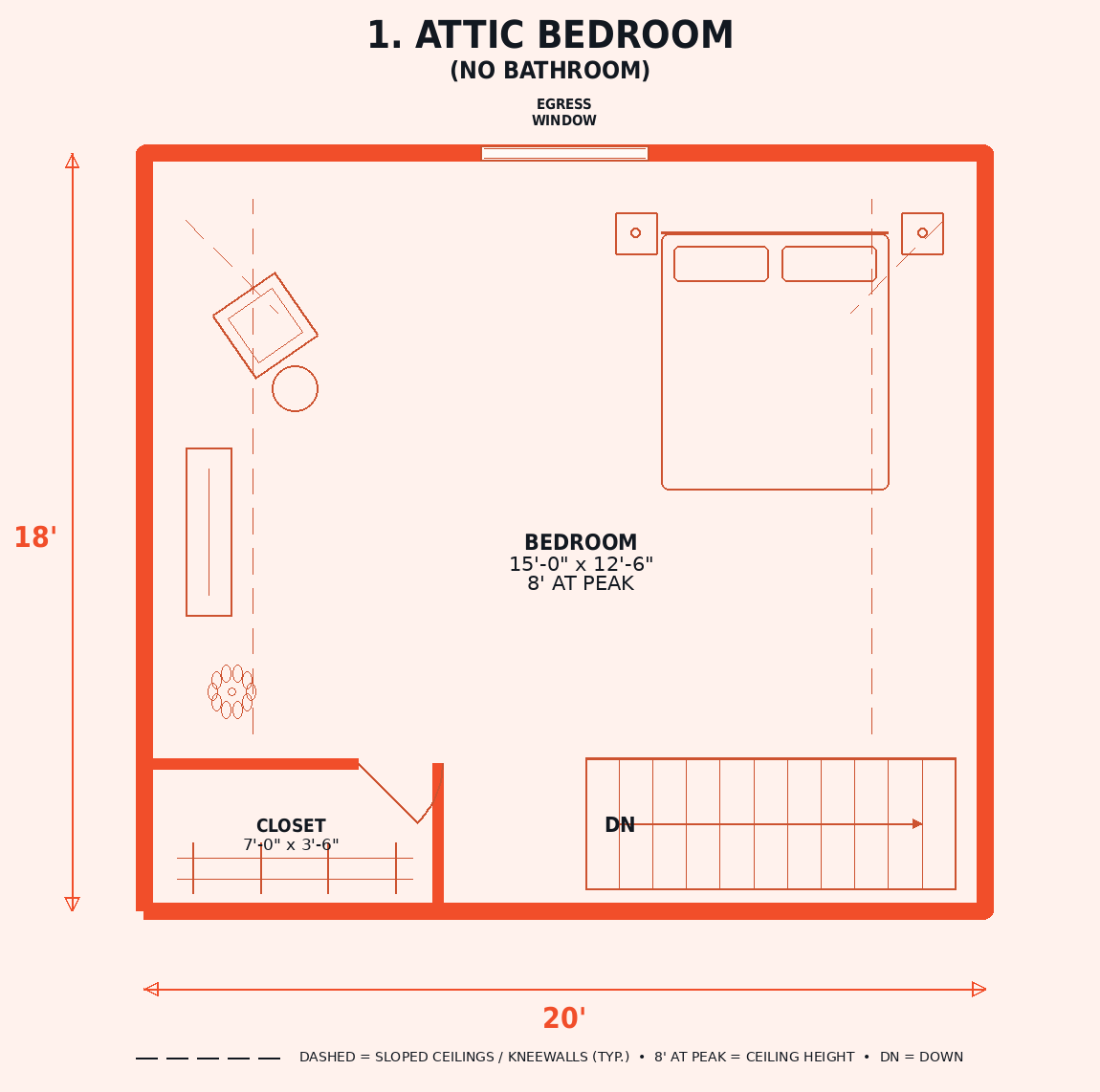

Attic bedroom (20' x 18')

The smallest attic footprint here holds a 15' x 12'-6" bedroom with an 8-foot ceiling at the center, a 7' x 3'-6" closet tucked beside the stair, and nothing else. The bed sits against the gable wall between two nightstands, a dresser runs along the low side, and a reading chair fills the far corner.

A plan like this works when the existing bathroom is one flight down and the goal is simply a legal bedroom, with egress, a closet, and conditioned space at the lowest possible cost.

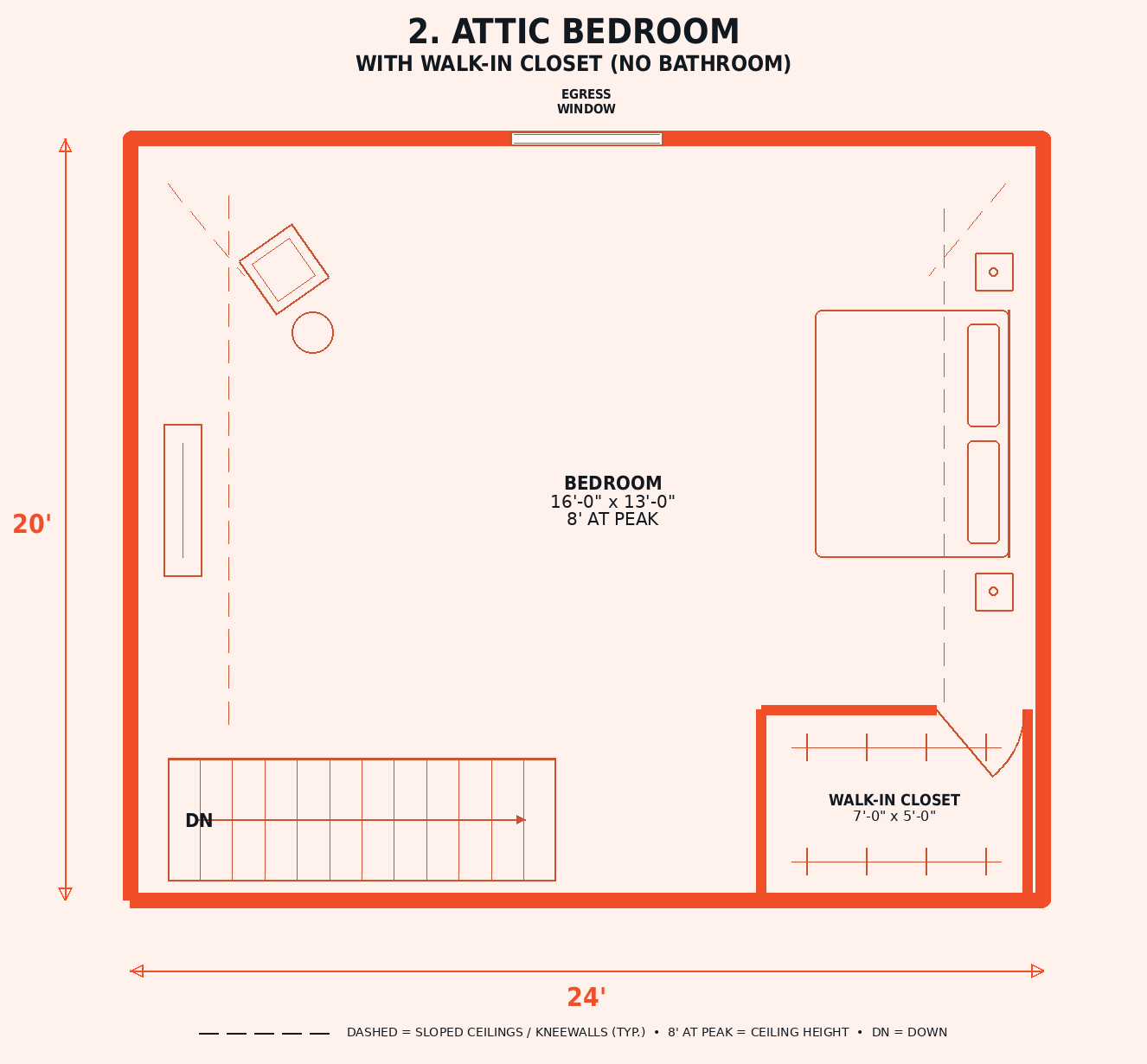

Attic bedroom with walk-in closet (24' x 20')

Four extra feet of length buys a 16' x 13' bedroom plus a 7' x 5' walk-in closet, still with no bathroom. The closet absorbs the lowest-ceilinged corner of the attic, which is exactly where a closet belongs, since hanging clothes don't care about headroom.

Shown in the floor plan, a dresser runs along the low left wall, and a reading chair fills the corner near the egress window. For a teenager's room or a guest room, skipping the bath keeps the budget in check while the walk-in adds storage the rest of the house probably needs.

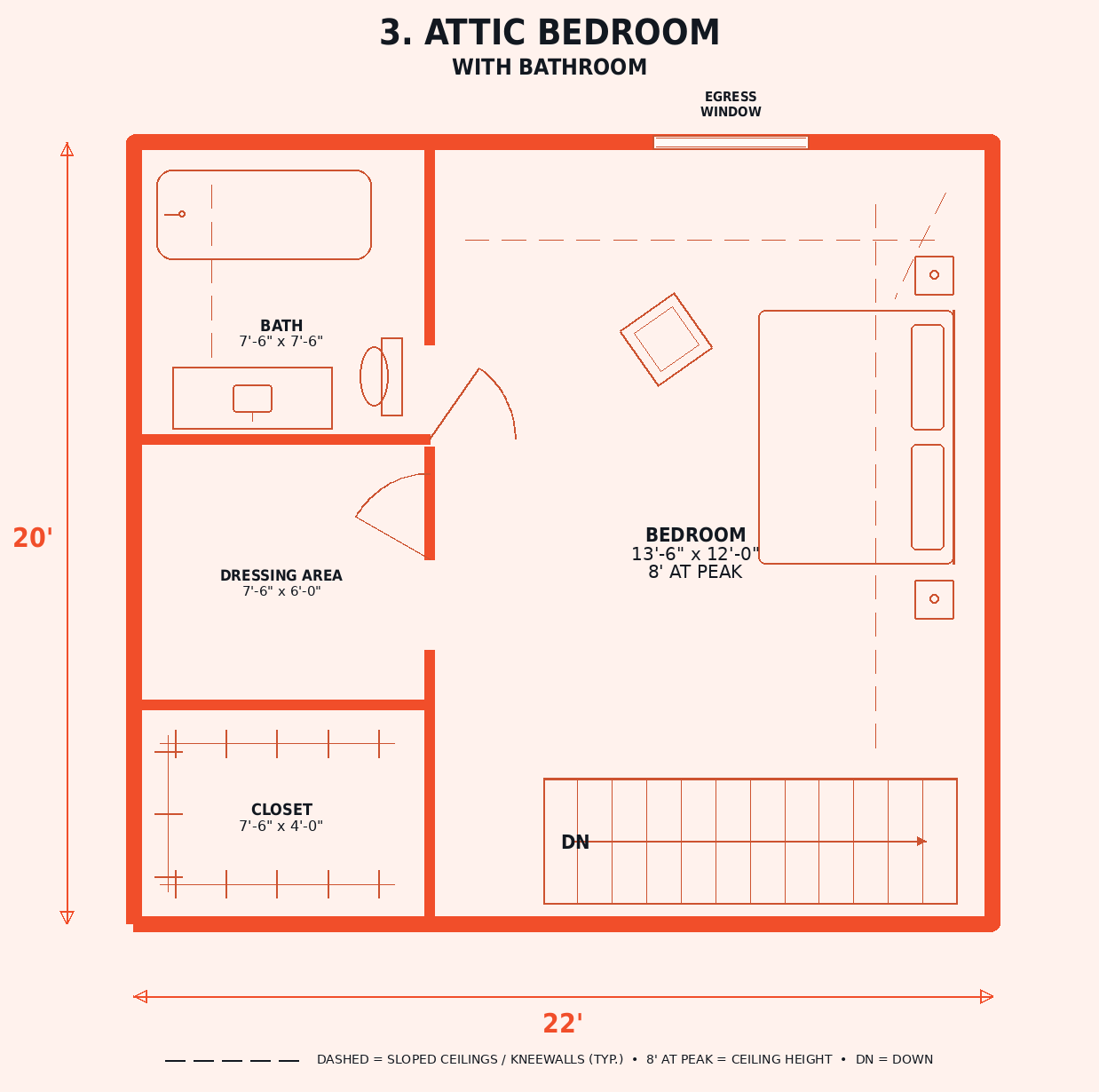

Attic bedroom with bathroom (22' x 20')

This plan fits a 13'-6" x 12' bedroom, a 7'-6" x 7'-6" bath in the corner, and a 7'-6" x 6' dressing area between the bath and the closet. The tub runs along the exterior wall under the roof slope, which is the smartest move in the set. Nobody stands up in a tub, so the lowest ceiling in the attic goes to the one fixture that doesn't need headroom, while the toilet and sink sit toward the interior where the ceiling is taller. The dressing area absorbs the low-ceilinged middle stretch of the kneewall side, space that would otherwise go to waste.

A compact bath like this only pencils out when it can stack near the plumbing below. Skip the attic bathroom entirely unless the plumbing stack is already close. A bath that requires running new waste lines across the house can add more cost than the rest of the conversion combined, and a bedroom one flight from an existing bathroom is a fine outcome.

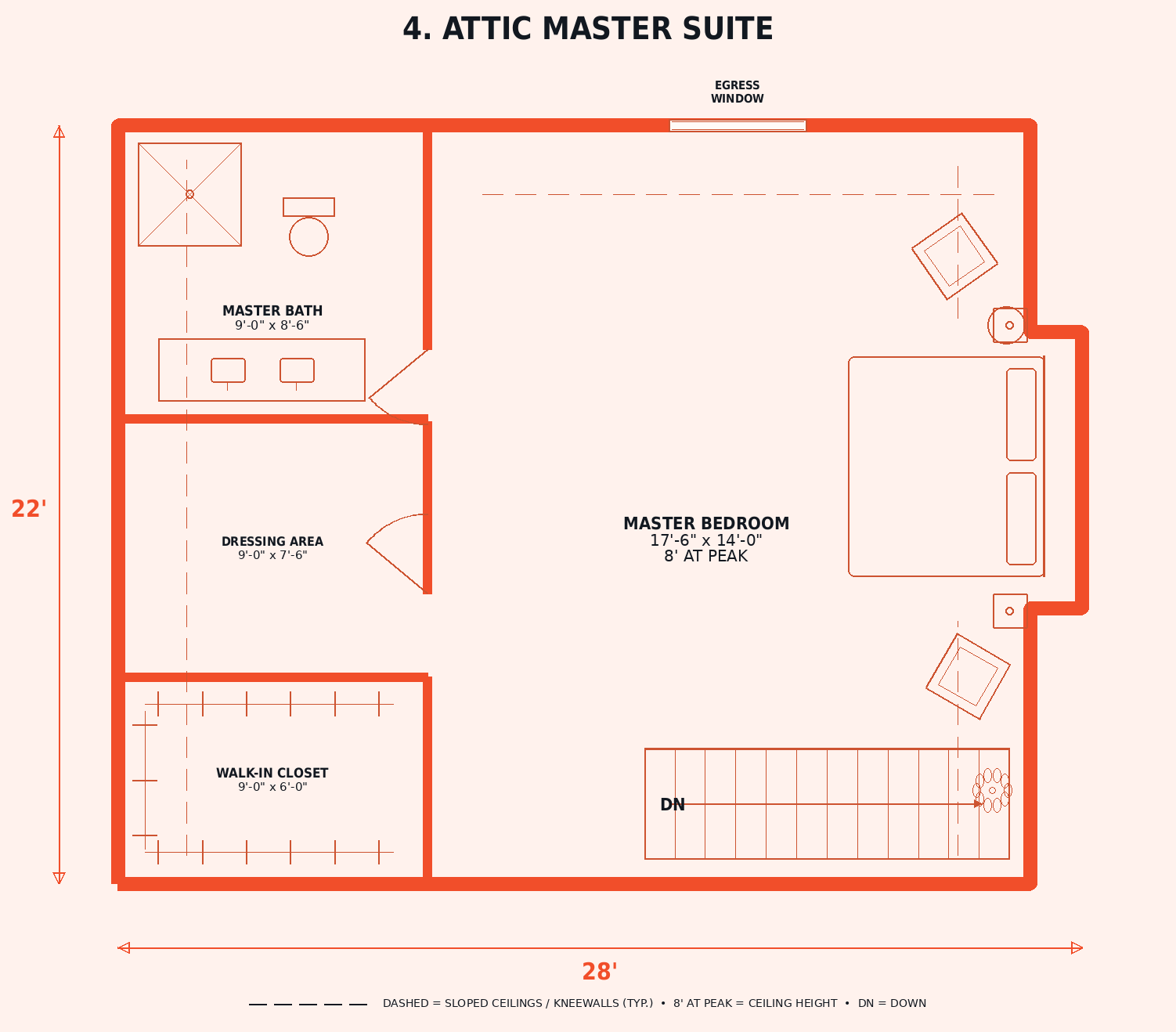

Attic master suite (28' x 22')

At 28 feet long, the attic has room for a full suite. A 17'-6" x 14' bedroom, a 9' x 8'-6" bath with a double vanity, a 9' x 7'-6" dressing area, and a 9' x 6' walk-in closet stack along one end. The bed sits in a dormer bump-out on the gable end, which frames the bed, adds light, and reclaims floor area that would otherwise sit under the slope.

Stacking the bath, dressing area, and closet on the same side keeps all the plumbing in one zone and leaves the rest of the floor plan open.

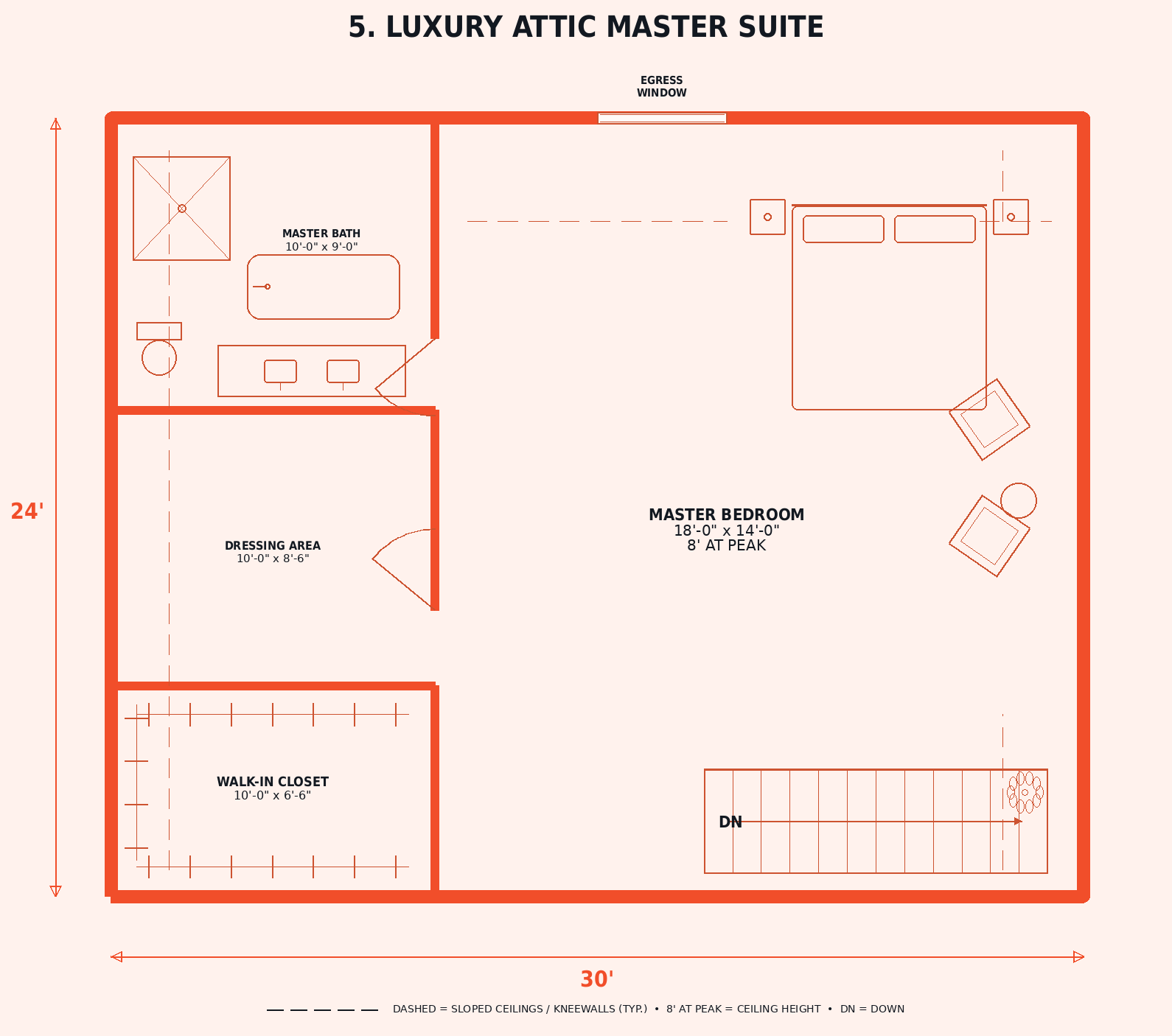

Luxury attic master suite (30' x 24')

The largest plan carries an 18' x 14' bedroom, a 10' x 9' bath with a freestanding tub, separate shower, and double vanity, a 10' x 8'-6" dressing area, and a 10' x 6'-6" walk-in closet. A reading chair and side table fill the far end of the bedroom.

This is the plan that tests every structural limit at once. The tub and wet wall add plumbing weight the joists must carry, the fixture count demands real supply and waste capacity, and the furniture load argues for reinforcing the floor regardless of what the original framing was rated for. It's the most expensive plan here, and most of the extra money goes into things you'll never see.

How to find the right configuration for your attic

1. Start downstairs, not upstairs. Walk the floor below and find where a staircase could land without wrecking a bedroom or hallway. The stair location fixes one end of your attic plan before you've measured anything upstairs.
2. Locate the main plumbing stack. The stack decides whether a bathroom is realistic, because a bath placed directly above or beside it ties in with short pipe runs, while a bath on the far side of the house needs new waste lines with proper slope threaded through the floor structure.
3. Measure the ridge and the 7-foot zone. Find the ceiling height at the ridge and figure out how much of the floor area clears 7 feet, since that percentage tells you whether you're planning a bedroom or planning dormers.
4. Assign the zones. Keep the tall area in the middle for circulation, and push beds, dressers, closets, and tubs to the kneewalls.

If the ridge is under roughly 10 feet, talk to a contractor before you talk layouts. As a rule of thumb, once you account for 7 feet of finished ceiling plus the floor and roof assembly, a ridge below that range leaves too little headroom for any plan to clear code, and the real conversation becomes dormers or raising the roof.

The structural changes that cost the most

Ranked from most to least expensive:

• Raising the ridge or reframing the roof. Rebuilding the roof to gain height is the most invasive move available, often $25,000 to $75,000 or more, and it puts the house under tarps for weeks. It only makes sense when the attic is otherwise unusable and an addition is off the table.
• Adding dormers. A single shed or gable dormer typically runs $8,000 to $30,000 depending on size and finish. A dormer is usually better value than a bigger footprint, though. Homeowners assume more floor area is the upgrade, but one well-placed dormer adds standing height, light, and a bed or tub nook to space that already exists, which is why it beats chasing square footage under a slope you can't stand up in.
• Reinforcing the floor. Sistering joists or adding beams to bring a storage-rated floor up to living loads commonly costs $5,000 to $15,000, and it has to happen before any finish work. Skipping it is not an option a permit office will entertain.
• Building a code-compliant staircase. A new straight-run stair typically costs $3,000 to $10,000 installed, but the real price is the 40 to 50 square feet it consumes on the floor below.
• Extending HVAC and cutting egress. Ductwork or a ductless mini-split for the new floor generally runs $2,000 to $8,000, and cutting and flashing an egress window into the roof or gable adds $1,500 to $5,000.
